Ibergrif Roma M13150-1 Wall Mounted Kitchen Tap Instruction Manual

Zavedení

This manual provides detailed instructions for the installation, operation, and maintenance of your Ibergrif Roma M13150-1 Wall Mounted Kitchen Tap. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.

Bezpečnostní informace

• Před zahájením jakékoli instalace nebo údržby se ujistěte, že je hlavní přívod vody uzavřen.
• Během instalace používejte vhodné osobní ochranné prostředky, jako jsou ochranné brýle a rukavice.
• Pokud si nejste jisti některou částí instalace, poraďte se s kvalifikovaným instalatérem.
• Do not use abrasive cleaners or harsh chemicals on the tap's surface, as this may damage the finish.
• Regularly check for leaks and address them promptly to prevent water damage.

Obsah balení

Před zahájením instalace ověřte, zda jsou přítomny všechny komponenty.

• 1 x Wall Mounted Kitchen Sink Mixer Tap
• 1 x Trigger Spray Head with Hose
• Mounting Parts (e.g., escutcheons, S-unions, gaskets)
• Návod k použití

Obrázek 1: Zahrnuté součásti

Specifikace

Pokyny k instalaci

The Ibergrif Roma M13150-1 kitchen tap is designed for wall-mounted installation. Follow these steps for proper setup:

1. Připravte instalační prostor: Turn off the main water supply. Clear the wall area where the tap will be mounted. Ensure the wall is structurally sound to support the tap.
2. Instalace S-spojek: Thread the S-unions into the wall water outlets. Adjust them to ensure the correct distance for the tap body and that they are level. Use thread seal tape for a watertight connection.
3. Připevněte rozety: Place the decorative escutcheons over the S-unions, flush against the wall.
4. Mount the Tap Body: Connect the main tap body to the S-unions. Tighten the nuts securely, ensuring rubber gaskets are in place to prevent leaks.
5. Connect the Outlet Pipe: Attach the long outlet pipe to the tap body. The pipe is designed to rotate 90 degrees for convenience.
6. Install the Trigger Spray: Connect the flexible hose of the trigger spray to the designated outlet on the tap body. Ensure all connections are hand-tightened, then use a wrench for a final snug fit, being careful not to overtighten.
7. Zkouška těsnosti: Slowly turn on the main water supply and check all connections for any signs of leakage. If leaks occur, tighten the connections further or re-apply thread seal tape.

Figure 2: Tap Dimensions and Rotational Features

Návod k obsluze

Your Ibergrif Roma M13150-1 tap offers versatile water delivery options:

• Řízení průtoku vody: The single lever handle controls both water temperature and flow volume. Move the lever left for hot water, right for cold water, and up/down to adjust flow intensity.
• Otočení výtoku: The main outlet pipe can be rotated 90 degrees horizontally, allowing you to position it as needed or move it out of the way when not in use.

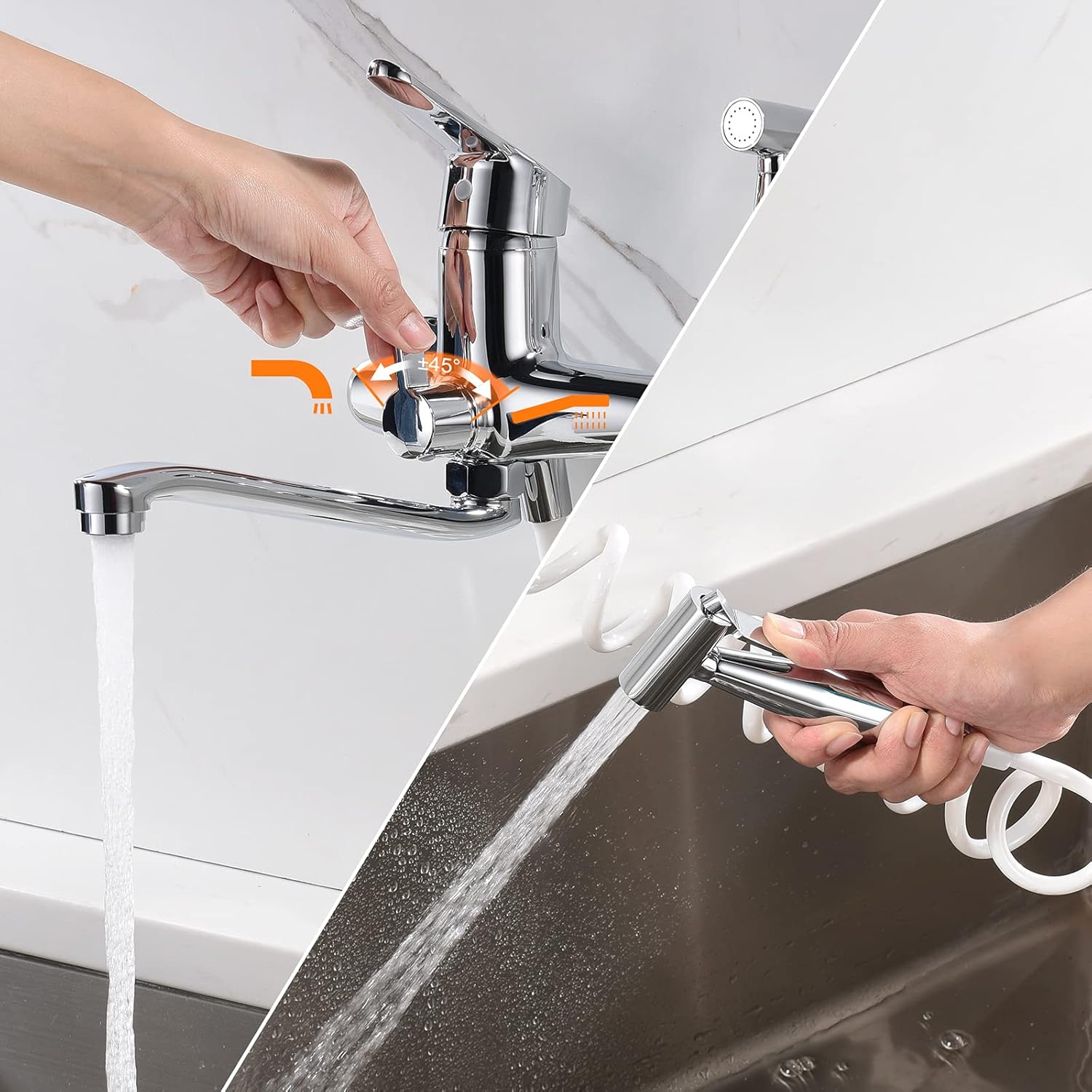

• Switching Between Spout and Spray: A small wrench-like diverter knob located on the tap body allows you to switch water flow between the main spout and the trigger spray. Turn the knob approximately 45 degrees left or right to select the desired output.
• Using the Trigger Spray: Once the diverter is set to the spray, press the trigger on the spray head to activate water flow. Release the trigger to stop the flow. The spray head is suitable for rinsing sinks or kitchen utensils. The hose has a maximum stretchable length of 1.5 meters.

Figure 3: Switching Water Output

Figure 4: Trigger Spray in Use

Figure 5: Spout Swivel Range

Údržba a péče

Proper maintenance ensures the longevity and performance of your tap:

• Čištění: Clean the tap regularly with a soft cloth and mild soap and water. Rinse thoroughly and dry to prevent water spots. Avoid abrasive cleaners, scouring pads, or chemicals containing ammonia, bleach, or alcohol, as these can damage the chrome finish.
• Keramická kazeta: The tap is equipped with a ceramic cartridge, tested for over 500,000 cycles, designed to prevent leaks. If a drip occurs, it may indicate a need for cartridge inspection or replacement.
• Těsnění: Periodically check rubber gaskets and O-rings for wear and tear. Replace them if they appear cracked or worn to maintain a watertight seal.
• Údržba provzdušňovače: If water flow from the spout decreases, the aerator may be clogged. Unscrew the aerator from the spout, clean any debris, and reattach.

Odstraňování problémů

Záruka a podpora

Ibergrif products are manufactured to high-quality standards. For specific warranty information or technical support, please refer to the warranty card included with your product or visit the official Ibergrif webwebu. Uschovejte si účtenku jako doklad o koupi.
