1. Úvod
The Westclox 71051 Sunrise Alarm Clock is designed to enhance your sleep and wake-up experience. This clock features a simulated natural sunrise to gently wake you, a restful sunset simulator to help you fall asleep, and a dimmable nightlight. It is easy to set and operate, providing a refreshing start to your day.

Figure 1: Westclox 71051 Sunrise Alarm Clock
2. Klíčové vlastnosti
- Simulace východu slunce: Postupně se rozjasňuje a simuluje přirozený východ slunce, což podporuje jemné probuzení.
- Simulace západu slunce: Gradually dims to simulate a natural sunset, aiding in relaxation and sleep.
- Dimmable Nightlight: Provides a soft glow for nighttime use, adjustable for comfort.
- Ascending Audible Alarm: Gently increases in volume after the light alarm, ensuring you wake up.
- Large 0.6" Red Digital LED Display: Clear and easy to read time display, day or night.
- Electric Operated with Battery Backup: Ensures time and alarm settings are maintained during power outages (requires 2 AAA batteries, not included).
- Snadno použitelné ovládací prvky: Simple buttons for setting time, alarm, and other functions.
- Funkce odložení: Allows for extra minutes of sleep.
3. Nastavení
3.1 Připojení napájení
Connect the alarm clock to a standard electrical outlet using the provided power cord. The clock is primarily electric operated.
3.2 Instalace záložní baterie
Pro nepřerušovaný provoz při výpadku proudutages, install 2 AAA batteries (not included) into the battery compartment located on the underside of the unit. This will preserve your time and alarm settings.

Figure 2: Battery Backup Feature
4. Návod k obsluze

Figure 3: Rear Controls Overview
4.1 Nastavení času
- Stiskněte a podržte ČAS button located on the back of the clock.
- Při držení ČAS, stiskněte tlačítko HODINA nastavte hodinu.
- Při držení ČAS, stiskněte tlačítko MINUTA minutu.
- Uvolněte ČAS button once the desired time is set.
4.2 Nastavení alarmu
- Stiskněte a podržte POPLACH button located on the back of the clock.
- Při držení POPLACH, stiskněte tlačítko HODINA tlačítko pro nastavení hodiny budíku.
- Při držení POPLACH, stiskněte tlačítko MINUTA tlačítko pro nastavení minuty budíku.
- Uvolněte POPLACH button once the desired alarm time is set.
4.3 Aktivace/deaktivace alarmu
Stiskněte tlačítko ALARM ZAPNUTO / VYPNUTO button to toggle the alarm function. An indicator light on the display will show if the alarm is active.
4.4 Simulace východu slunce
The sunrise simulation feature will gradually brighten the light before your set alarm time, mimicking a natural sunrise. This helps to gently prepare your body for waking.

Figure 4: Sunrise Light Feature
4.5 Sunset Simulation / Nightlight
To activate the sunset simulation or use the dimmable nightlight:
- Stiskněte a podržte ZÁPAD SLUNCE tlačítko.
- Při držení ZÁPAD SLUNCE, stiskněte tlačítko MINUTA or HODINA buttons to set the duration of the sunset simulation.
- The light will gradually dim over the set period, helping you relax and fall asleep.
- To use as a static nightlight, simply press the ZÁPAD SLUNCE button briefly to turn the light on/off. The brightness can be adjusted by holding the button.

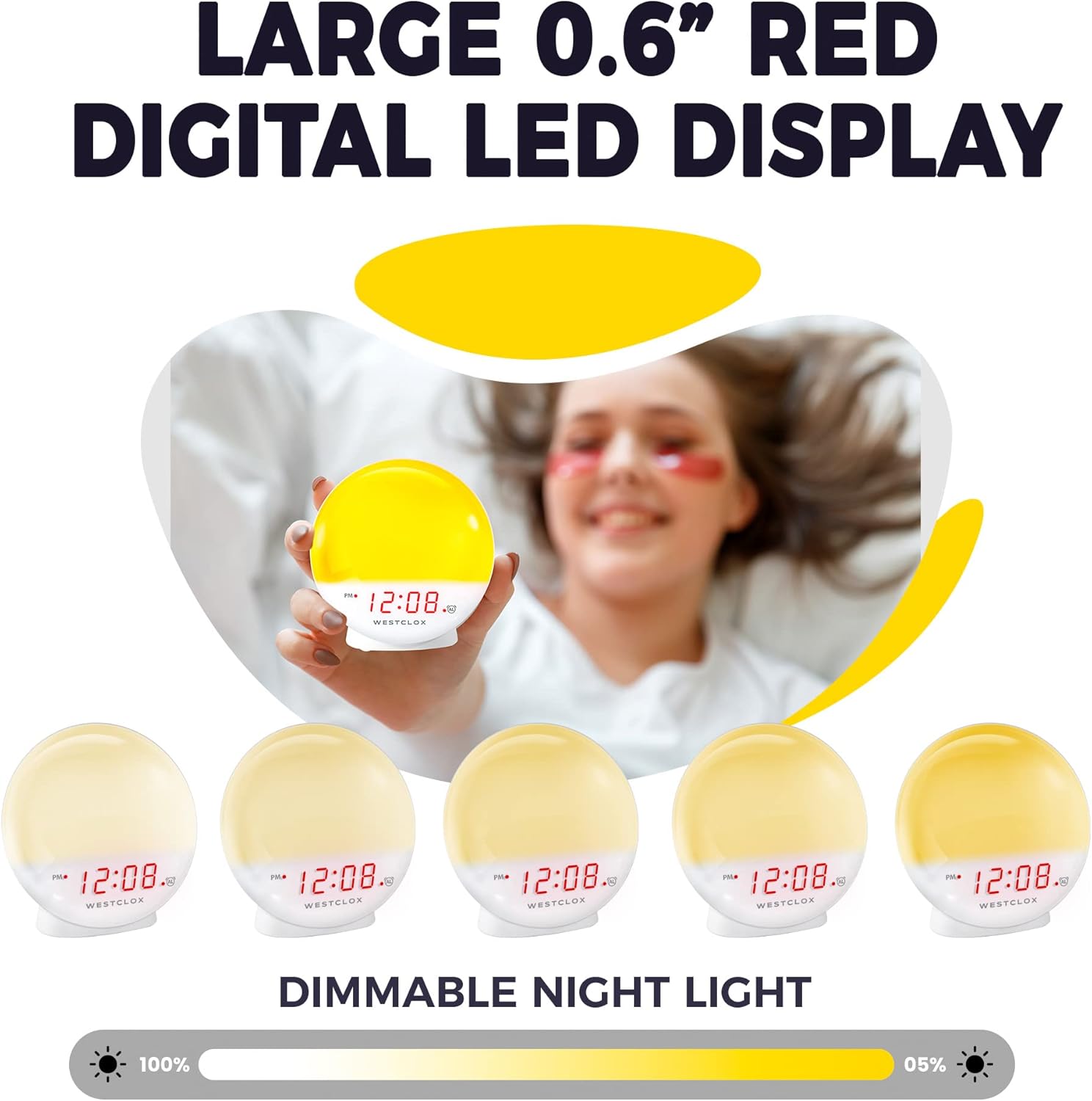

Figure 5: Dimmable Night Light
4.6 Funkce odložení
Když zazvoní budík, stiskněte velké PODŘIMOVAT button (typically located on top) to temporarily silence the alarm and get a few extra minutes of sleep. The alarm will sound again after the snooze period.

Figure 6: Snooze Button
4.7 Stmívač displeje
The digital LED time display can be adjusted to be dim or bright according to your preference. Refer to the product's specific controls for dimmer adjustment, usually a dedicated button or a combination of buttons.
5. Údržba
- Čištění: Hodiny otřete měkkým, suchým hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
- Výměna baterie: Replace AAA batteries in the backup compartment annually or when the display shows signs of dimming during power outages.
- Skladování: Pokud hodiny skladujete delší dobu, vyjměte záložní baterie, abyste zabránili vytečení.
6. Řešení problémů
- Clock Not Working/Display Blinking: Ensure the power cord is securely plugged into a working electrical outlet. If using battery backup, check if batteries are correctly installed and not depleted.
- Alarm nezní: Verify that the alarm is activated using the ALARM ON/OFF button. Check the alarm time setting.
- Light Not Bright Enough: The sunrise simulation gradually increases brightness. If the nightlight is too dim, adjust the dimmer setting. Note that the light intensity is designed for a gentle wake-up, not as a primary room light source.
- Bzučivý hluk: If you experience an unusual humming sound, try plugging the clock into a different outlet. If the issue persists, contact customer support.
7. Specifikace
| Funkce | Detail |
|---|---|
| Značka | Westclox |
| Číslo modelu | 71051 |
| Barva | Červený |
| Typ zobrazení | Digitální |
| Speciální funkce | Small, Sound Machine |
| Rozměry produktu | 5 cm Š x 5.1 cm V |
| Zdroj napájení | Battery Powered, Electrical |
| Typ pokoje | Ložnice |
| Tvar | Kolo |
| Vnitřní/venkovní použití | Krytý |
| Materiál rámu | Plast |
| Jsou součástí balení | Žádný |
| Typ montáže | Stolní deska |
| Budík | Ano |
| Typ záruky | Omezený |
| Provozní režim | Elektrický |
| Forma hodin | Východ slunce |
| Technologie připojení | USB |
| Hmotnost položky | 10.2 unce |
| Výrobce | Nyl Holdings llc |
| Datum první dostupnosti | 21. května 2021 |
8. Videoukázka
Video 1: Oficiální konecview of the Westclox 71051 Sunrise Alarm Clock, demonstrating its features and functionality.
9. Záruka a podpora
This Westclox 71051 Sunrise Alarm Clock comes with a Limited Warranty. For specific details regarding warranty coverage, terms, and conditions, please refer to the documentation included with your product or contact Westclox customer support directly.
For technical assistance, troubleshooting not covered in this manual, or warranty claims, please reach out to the manufacturer, Nyl Holdings llc, or visit the official Westclox webstránky pro kontaktní informace podpory.
