Zavedení
The Coast XP11R flashlight is a high-performance lighting tool designed for versatility and durability. It features a powerful 2100 lumen output in Turbo mode, a Zithion-X rechargeable battery, and Coast's patented Slide Focusing optical technology for seamless transitions between flood and spot beams. This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your XP11R flashlight.
Mezi klíčové vlastnosti patří:
- Dual Power System: Operates with a Zithion-X rechargeable battery or 3 x AAA alkaline batteries.
- ProTek Charging Port: Allows charging the Zithion-X battery inside or outside the flashlight.
- Four Output Modes: Turbo (2100 Lm), High (1000 Lm), Medium (330 Lm), and Low (75 Lm).
- Slide Focusing Optic: Adjusts beam from broad flood to narrow spot.
- Beam Lock: Secures the beam at a desired focus setting.
- Real-time Power Indicator: Displays battery charge status.
- Durable Construction: Made of stainless steel and aluminum, weatherproof and dust-resistant.
Nastavení
Instalace a nabíjení baterie
The XP11R flashlight is designed to use either the included Coast Zithion-X rechargeable battery or three AAA alkaline batteries. For optimal performance, it is recommended to use the Zithion-X battery.
- To install the Zithion-X battery: Unscrew the tail cap of the flashlight. Insert the Zithion-X battery with the positive (+) end facing towards the head of the flashlight. Screw the tail cap back on securely.
- To install AAA alkaline batteries: Unscrew the tail cap. Insert three AAA batteries into the included battery cartridge, ensuring correct polarity. Insert the cartridge into the flashlight with the positive (+) end facing towards the head. Screw the tail cap back on securely.
- Charging the Zithion-X battery: The XP11R features a ProTek charging port. Locate the charging port cover near the head of the flashlight. Open the cover and connect a USB-C charging cable (not included) to the port. Connect the other end of the cable to a USB power source. The real-time power indicator will show charging status. A full charge is indicated when all indicator lights are solid.

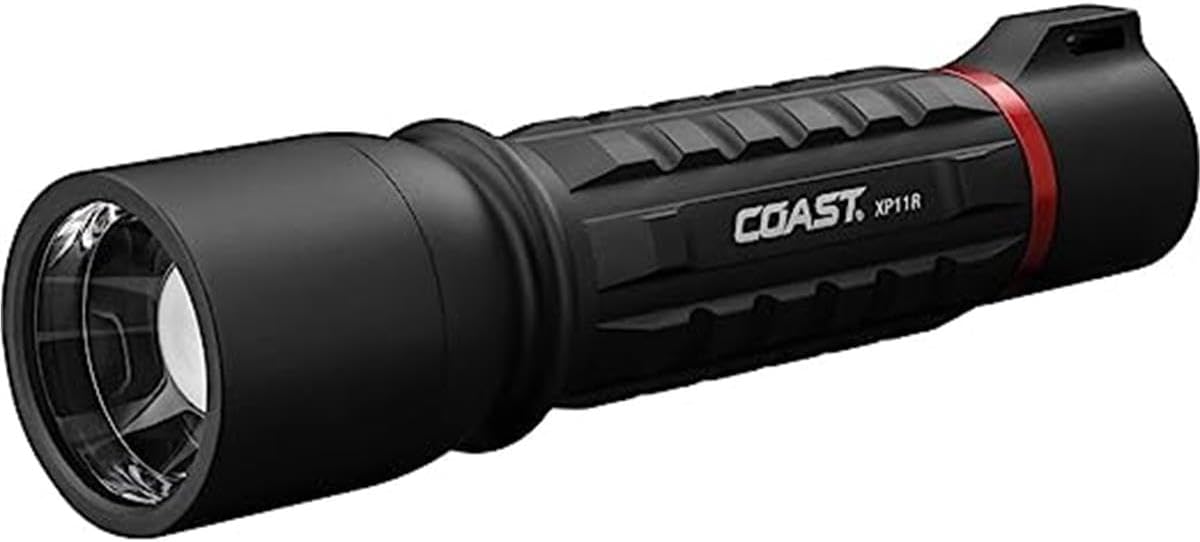

Figure 1: The Coast XP11R flashlight, showing its robust design and the textured grip for secure handling. The head of the flashlight can be adjusted for beam focus.
Návod k obsluze
Zapnutí/vypnutí a výběr režimu
The power button is located on the tail cap of the flashlight.
- Zapnutí / vypnutí: Press the power button once to turn the flashlight on. Press it again to turn it off.
- Procházení režimů: With the flashlight on, quickly press the power button repeatedly to cycle through the output modes: High, Medium, Low.
- Turbo režim: From any mode, press and hold the power button for approximately 1 second to activate Turbo mode, providing the maximum 2100 lumens. Release the button to return to the previous mode.
Slide Focusing Optic and Beam Lock
The XP11R features a patented Slide Focusing optical system, allowing you to adjust the beam from a wide flood to a narrow spot.
- Chcete -li upravit zaostření: Simply slide the head of the flashlight forward or backward. Sliding it forward will narrow the beam to a spot, while sliding it backward will widen it to a flood.
- To use Beam Lock: Once you have achieved your desired beam focus, twist the head of the flashlight clockwise until it locks into place. This prevents accidental changes to the beam setting during use. To unlock, twist counter-clockwise.
Figure 2: The tail cap of the Coast XP11R flashlight, which houses the power button. The charging port is located near the head of the flashlight, allowing for convenient recharging.
Údržba
Proper maintenance ensures the longevity and optimal performance of your Coast XP11R flashlight.
- Čištění: Otřete tělo svítilny měkkým hadříkemamp hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla. Pro dosažení maximálního světelného výkonu udržujte čočku čistou.
- Péče o baterie: If using the Zithion-X rechargeable battery, charge it regularly, especially if the flashlight will not be used for an extended period. If using AAA alkaline batteries, remove them if the flashlight will be stored for more than a few weeks to prevent leakage.
- O-kroužky: Periodically inspect the O-rings (seals) for any damage or wear. A light application of silicone grease can help maintain their integrity and the flashlight's water resistance.
- Skladování: Uchovávejte svítilnu na chladném a suchém místě mimo přímé sluneční světlo a extrémní teploty.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Svítilna se nezapne. |
|
|
| Světlo je tlumené nebo bliká. |
|
|
| Beam focus is stiff or difficult to adjust. |
|
|
Specifikace
| Funkce | Hodnota |
|---|---|
| Model | XP11R (30322) |
| Light Output (Turbo) | 2100 XNUMX lumenů |
| Světelný výkon (vysoký) | 1000 XNUMX lumenů |
| Light Output (Medium) | 330 XNUMX lumenů |
| Světelný výkon (nízký) | 75 XNUMX lumenů |
| Beam Distance (Turbo) | 721 stop (220 metrů) |
| Dosah paprsku (vysoký) | 508 stop (155 metrů) |
| Beam Distance (Medium) | 288 stop (88 metrů) |
| Dosah paprsku (nízký) | 137 stop (42 metrů) |
| Doba běhu (vysoká) | 5 hodiny |
| Doba běhu (střední) | 7 hodin 15 minut |
| Doba běhu (nízká) | 37 hodiny |
| Typ baterie | ZX1000 Zithion-X rechargeable or 3 x AAA alkaline |
| Materiál | Nerezová ocel, hliník |
| Úroveň odolnosti proti vodě | Water Resistant (ANSI/PLATO FL 1 Standard) |
| Rozměry (D x H) | 5.98" x 1.48" (Bezel) / 1.25" (Body) |
| Hmotnost | 0.44 oz |
Informace o záruce
Coast products are backed by a comprehensive warranty. For detailed information regarding the warranty period and terms for your XP11R flashlight, please refer to the official Coast webwebu nebo záruční kartu dodanou s vaším produktem. Uschovejte si doklad o koupi pro případ reklamace.
Zákaznická podpora
If you encounter any issues or have questions not covered in this manual, please contact Coast customer support. Visit the official Coast webstránky s kontaktními informacemi, častými dotazy a dalšími zdroji.
Official Coast Webmísto: www.coastportland.com
