Uživatelská příručka k robotické sekačce Einhell FREELEXO 600 BT

1. Úvod a konecview

The Einhell FREELEXO 600 BT robotic lawn mower is designed for automated lawn care, covering areas up to 600 m². It is part of the Einhell Power X-Change family, utilizing a flexible battery system. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your robotic lawn mower.

Image 1.1: The Einhell FREELEXO 600 BT robotic lawn mower shown with its charging station, boundary wire, fixing pegs, spare blades, and a Power X-Change battery.

Klíčové vlastnosti:

• Systém Power X-Change: Utilizes interchangeable lithium-ion batteries from the Einhell Power X-Change family.
• Ovládání Bluetooth aplikací: Manage and program the mower's functions and schedule via a dedicated smartphone application.
• Intuitive Keypad: For direct control and settings adjustments on the device.
• Multi-Zone Mowing: Capable of navigating and mowing complex garden layouts with multiple zones.
• Nastavitelná výška sečení: Easily set cutting height from 20 mm to 60 mm.
• Schopnost svahu: Operates effectively on slopes up to 35%.
• Integrated Safety Sensors: Features shock, tilt, and lift sensors for obstacle detection and safe operation.
• Dešťový senzor: Automatically detects rain and returns to the charging station.
• Ochrana proti krádeži: Secured with a PIN code and warning signal.
• Automatické nabíjení: Returns to the charging station automatically when battery is low.
• Rukojeť na přenášení: For convenient transport.

2. Obsah balení

Ensure all items are present and undamaged upon unpacking. The FREELEXO 600 BT package includes:

• Einhell FREELEXO 600 BT Robotic Lawn Mower
• Nabíjecí stanice
• 1 x 2.5 Ah Power X-Change Lithium-ion Battery
• 140 meters of Boundary Wire
• 200 x Fixing Pegs for Boundary Wire
• 3 x Náhradní čepele
• 4 x Connection Terminals
• Uživatelská příručka (tento dokument)

Image 2.1: Visual representation of the complete package contents for the FREELEXO 600 BT robotic lawn mower.

3. Bezpečnostní pokyny

Read all safety warnings and instructions carefully before operating the device. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Always ensure the work area is clear of obstacles, children, and pets before operation.
• Do not operate the mower in wet conditions unless specifically designed for it (rain sensor will guide it back).
• Udržujte ruce a nohy v dostatečné vzdálenosti od řezných nožů.
• Use the provided PIN code for theft protection. Do not share your PIN.
• Regularly inspect the boundary wire for damage.
• Ensure the charging station is placed on a level surface and protected from direct sunlight and heavy rain.
• Only use original Einhell Power X-Change batteries and chargers.
• In case of emergency, press the large red "STOP" button on the mower.

Image 3.1: The robotic lawn mower features PIN-based theft protection to deter unauthorized use.

4. Nastavení a instalace

4.1. Umístění nabíjecí stanice

Select a suitable location for the charging station. It should be on a flat surface, preferably in the shade, and near a power outlet. Ensure there is enough clear space around the station for the mower to dock easily.

4.2. Instalace ohraničujícího vodiče

The boundary wire defines the mowing area. Lay the wire around the perimeter of your lawn, securing it with the provided fixing pegs. Ensure the wire is taut and buried slightly or firmly pegged to the ground to prevent tripping hazards and damage. Create islands around obstacles like trees or flowerbeds.

Obrázek 4.1: Příkladample of boundary wire layout for multi-zone mowing, defining the operational area and protecting garden elements.

Connect the ends of the boundary wire to the charging station using the connection terminals. Refer to the detailed diagram in the full manual for specific wiring instructions.

4.3. Instalace baterie

Insert the fully charged 2.5 Ah Power X-Change battery into the designated compartment on the robotic lawn mower. Ensure it clicks securely into place.

Image 4.2: Proper insertion of the Power X-Change battery into the mower's battery compartment.

5. Návod k obsluze

5.1. Initial Start-up and PIN Setting

Upon first start-up, you will be prompted to set a personal PIN code. This code is crucial for theft protection and accessing certain settings. Remember your PIN and keep it confidential.

5.2. Ovládání aplikací (Bluetooth)

Download the Einhell FREELEXO app from your smartphone's app store. Connect your mower to the app via Bluetooth. The app allows for comprehensive control, including:

• Scheduling mowing times and days.
• Adjusting cutting height digitally.
• Setting up multi-zone mowing patterns.
• Monitoring mower status and battery level.
• Initiating manual mowing or sending the mower back to the charging station.

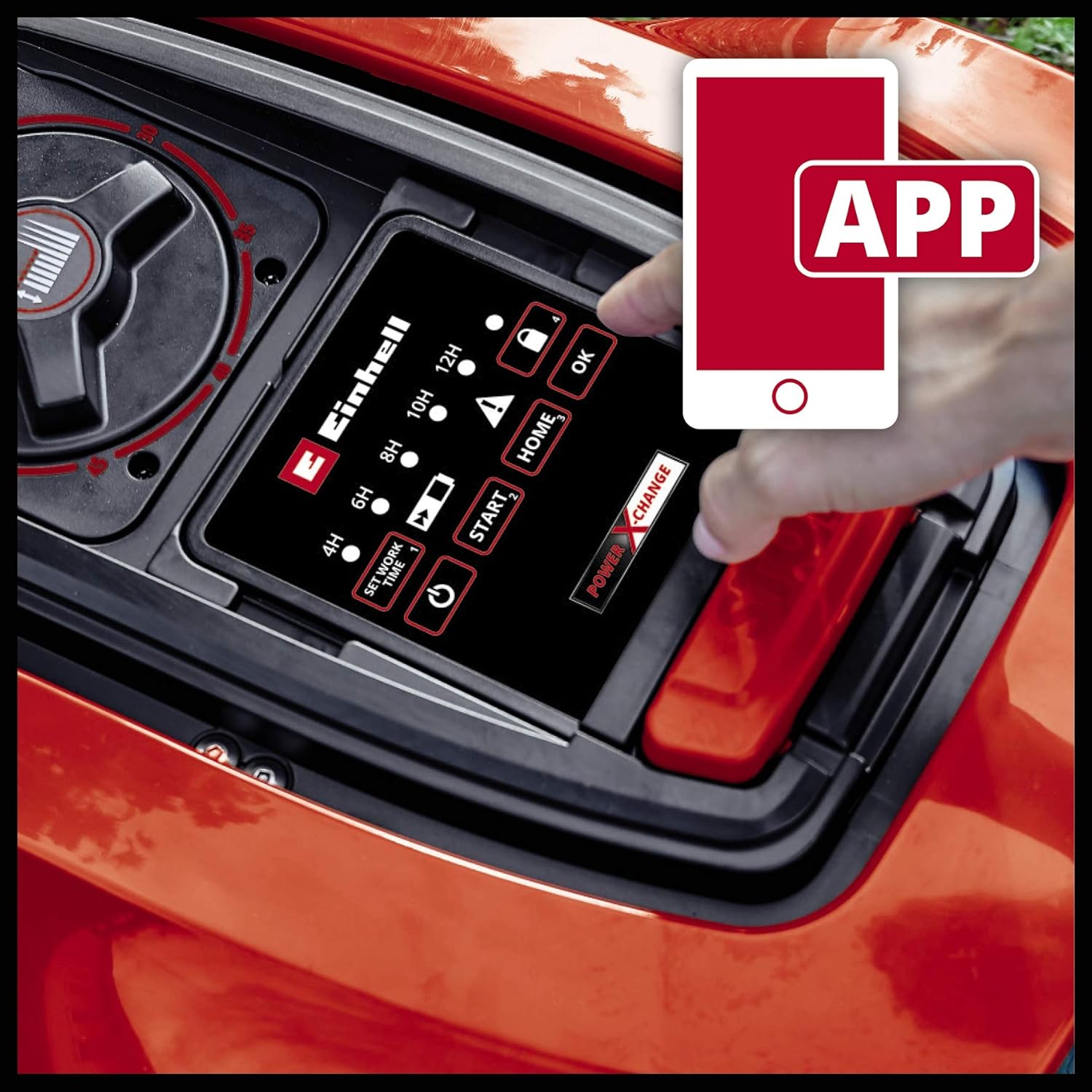

Image 5.1: The mower can be controlled via its integrated keypad or through the dedicated smartphone application.

5.3. Manual Operation and Adjustments

The intuitive keypad on the mower allows for direct control. You can manually start/stop mowing, send it home, and adjust basic settings. The cutting height can be physically adjusted using the dial on the mower's top panel.

Image 5.2: Adjusting the cutting height using the rotary dial on the mower's control panel.

5.4. Rain Sensor Functionality

The integrated rain sensor detects precipitation. When rain is detected, the mower will automatically return to its charging station to protect itself from adverse weather conditions.

Image 5.3: The mower is equipped with a rain sensor for automatic return to the charging station during wet weather.

6. Údržba

Regular maintenance ensures optimal performance and extends the lifespan of your robotic lawn mower.

6.1. Čištění

• Clean the mower regularly, especially the underside, wheels, and cutting deck, to remove grass clippings and debris.
• Use a soft brush or cloth. Avoid using high-pressure washers or harsh chemicals.
• Ensure the charging contacts on both the mower and the station are clean.

6.2. Výměna čepele

The blades should be inspected regularly and replaced when dull or damaged. Always use genuine Einhell spare blades.

1. Turn off the mower and remove the battery before performing any maintenance.
2. Opatrně otočte sekačku, abyste se dostali k žacímu ústrojí.
3. Unscrew the old blades and replace them with new ones, ensuring they are securely fastened.
4. Always replace all blades simultaneously to maintain balance and cutting quality.

Obrázek 6.1: View of the mower's cutting mechanism, highlighting the three blades attached to the rotating disc. Blades should be replaced regularly for optimal performance.

7. Řešení problémů

This section addresses common issues you might encounter with your Einhell FREELEXO 600 BT.

Pro podrobnější informace o řešení problémů se podívejte do kompletní uživatelské příručky nebo kontaktujte zákaznickou podporu.

8. Specifikace

Image 8.1: Key specifications: suitable for up to 600 m² lawns, handles slopes up to 35%, and powered by an 18V 2.5Ah Power X-Change battery.

9. Záruka a podpora

Information regarding warranty coverage and customer support is typically provided with your purchase documentation. For specific warranty details or technical assistance, please refer to the official Einhell webwebu nebo se přímo obraťte na jejich zákaznický servis.

Výrobce: Einhell Germany AG

Reference produktu: 3413946

ASIN: B093QDRS8Z
