1. Úvod
This manual provides instructions for the VENTION 3.5mm Audio Splitter, Model BBUBY. This device allows you to connect headphones, a microphone, or speakers to a single 3.5mm audio jack on compatible devices such as PCs, laptops, and gaming consoles. It supports both OMTP and CTIA standards for broad compatibility.
Figure 1: VENTION 3.5mm Audio Splitter. This image shows the splitter cable with its single female 3.5mm input and two male 3.5mm output jacks, one for audio and one for microphone.
2. Nastavení
To set up your VENTION 3.5mm Audio Splitter, follow these steps:
- Identifikace portů: Locate the headphone (audio output) and microphone (audio input) ports on your computer or device. These are typically color-coded (green for audio, pink for microphone) or marked with corresponding icons.
- Connect Splitter to Device: Plug the two male 3.5mm jacks of the VENTION splitter into the respective audio output and microphone input ports on your computer. The jack with the headphone icon connects to the audio output, and the jack with the microphone icon connects to the microphone input.
- Connect Headset/Speakers: Plug your headset, headphones, or speakers into the single female 3.5mm jack of the VENTION splitter.
- Ověřte kompatibilitu: The splitter is compatible with both OMTP and CTIA standard devices. Ensure your headset or speakers are properly connected.
Figure 2: Headset Splitter Cable Connection. This image illustrates connecting a headset to a laptop using the splitter, showing separate icons for control, listening, and call functions.
Figure 3: Computer Voice Input. This diagram details how to connect the splitter's male jacks to a computer's headset and microphone interfaces, and then connect a headset with a 3.5mm plug to the splitter's female end.
Video 1: VENTION Headphone Audio Splitter Demonstration. This video demonstrates the physical connection process of the VENTION audio splitter to a computer and a headset, showing its use for gaming and phone calls.
3. Návod k obsluze
Once connected, the VENTION 3.5mm Audio Splitter allows for simultaneous audio output and microphone input through a single headset or speaker system.
- Zvukový výstup: Sound from your computer will be directed to the connected headphones or speakers.
- Vstup pro mikrofon: The microphone on your connected headset will function as the audio input for your computer, enabling voice communication in applications, games, or calls.
- Funkce telefonního hovoru: The splitter supports phone call functions when used with compatible headsets and devices.

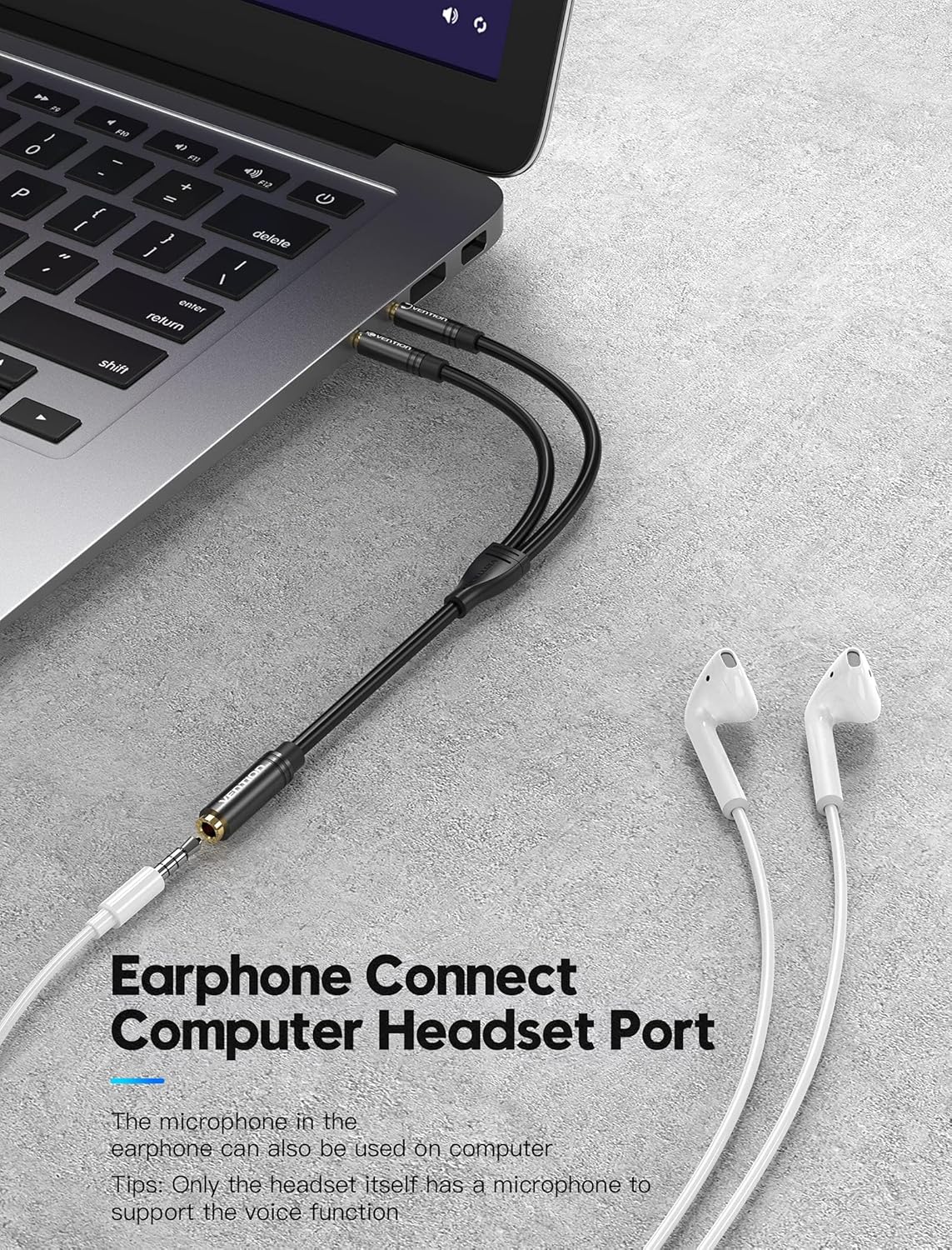

Figure 4: Earphone Connection to Computer. This image shows a user connecting earphones to a laptop's headset port using the VENTION audio splitter, highlighting its use for voice functions.
4. Údržba
To ensure the longevity and optimal performance of your VENTION 3.5mm Audio Splitter:
- Čištění: Use a soft, dry cloth to gently wipe the cable and connectors. Avoid using liquid cleaners or abrasive materials.
- Skladování: Store the splitter in a cool, dry place away from direct sunlight and extreme temperatures.
- Zacházení: Avoid excessive bending, twisting, or pulling of the cable, especially near the connectors, to prevent internal damage.
5. Řešení problémů
- Žádný audio výstup:
- Ujistěte se, že jsou všechna připojení bezpečná.
- Check your computer's audio settings to ensure the correct output device is selected and volume is not muted.
- Test your headphones/speakers directly with the computer to rule out issues with the audio device itself.
- Mikrofon nefunguje:
- Důležitá poznámka: Microphone function may not work with Apple headphones and certain Beat headphones due to proprietary wiring configurations.
- Verify that the microphone jack of the splitter is correctly plugged into the microphone input port of your computer.
- Zkontrolujte nastavení zvuku počítače a ujistěte se, že je vybráno správné vstupní zařízení a že není ztlumen mikrofon.
- Test your microphone directly with a compatible device if possible.
- Špatná kvalita zvuku:
- Ensure all connections are fully inserted.
- Zkontrolujte, zda není kabel nebo konektory poškozené.
- Avoid placing the cable near sources of electromagnetic interference.
6. Specifikace
| Funkce | Detail |
|---|---|
| Značka | VENTION |
| Číslo modelu | BBUBY |
| Typ konektoru | Auxiliary (3.5mm Male to 3.5mm Female) |
| Délka kabelu | 30 cm (přibližně 11.8 palců) |
| Kompatibilita | OMTP and CTIA Standard |
| Hmotnost položky | 0.317 unce |
| Rozměry balení | 5.28 x 3.78 x 0.55 palce |
| Materiál | Enameled copper conductor, TPE jacket, Aluminum alloy shell, Gold-plated interface |

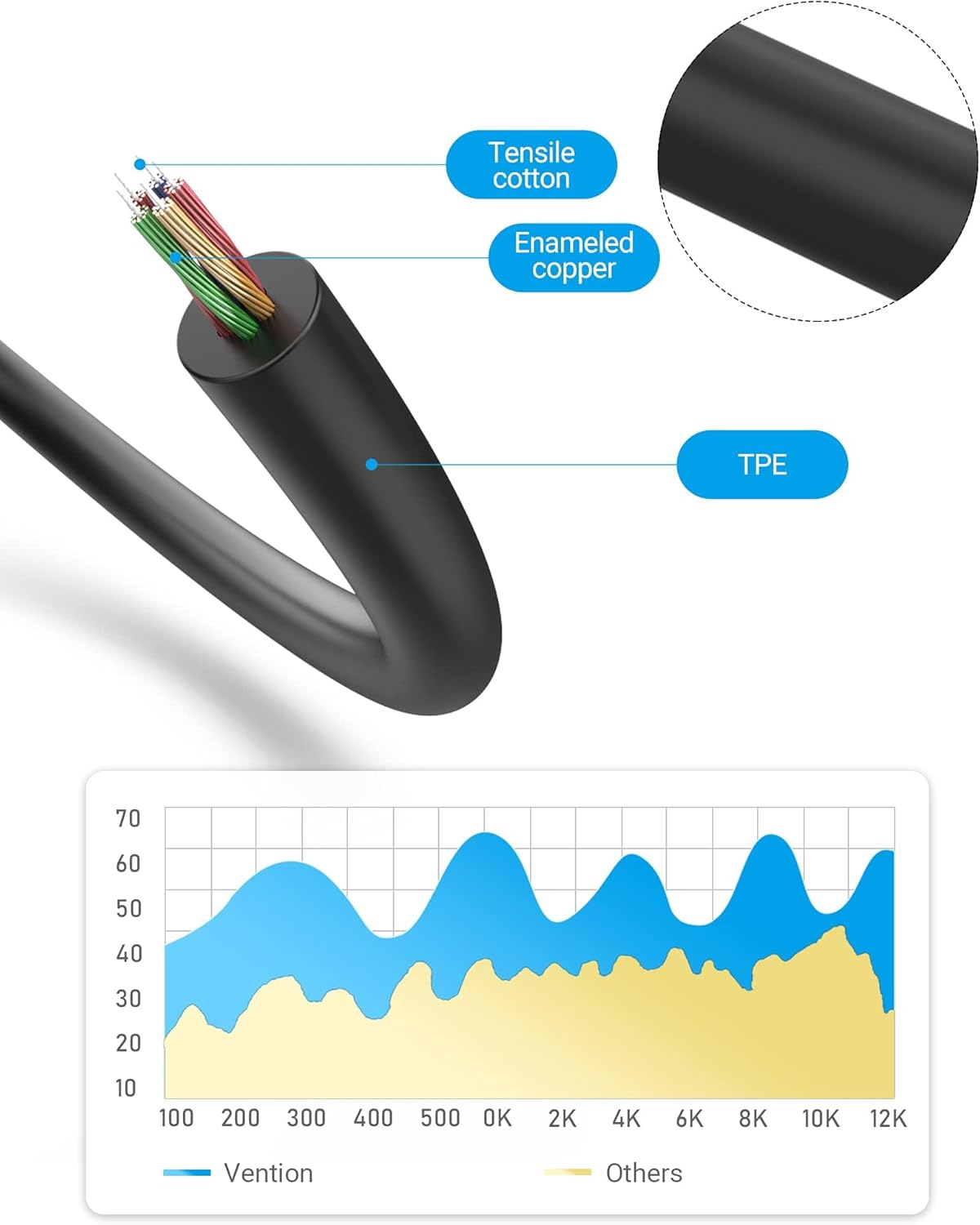

Figure 5: Cable Construction. This diagram illustrates the internal components of the cable, including tensile cotton, enameled copper, and the TPE outer jacket, contributing to its durability and performance.
Figure 6: Compatible Devices. This image displays examples of devices compatible with the splitter, including PCs, laptops (male connectors), and headsets, earphones, and speakers (female connector).
7. Záruka a podpora
For specific warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. For product support, please visit the official VENTION store or webmísto.
Official VENTION Store: https://www.amazon.com/stores/Vention/page/A27ACE64-6255-49B7-855D-EE0B34D11C9A
