1. Konec produktuview
The Morimoto Sealed5 (5x7) LF268 is a universal BI-LED headlight housing replacement designed to provide ultra-bright illumination with integrated switchback Daytime Running Lights (DRLs). This assembly is engineered for flicker and error-free operation, offering a plug-and-play installation and is DOT approved.
Klíčové vlastnosti:
- BI-LED Technology for superior light output.
- Integrated Switchback DRLs for enhanced visibility and style.
- Flicker and Error-Free operation, ensuring compatibility with vehicle electronics.
- Plug and Play Assembly for simplified installation.
- DOT Approved for legal road use.
- Durable construction with polycarbonate lens material.
2. Co je v krabici
Každý balíček obsahuje následující komponenty:
- One (1) Morimoto Sealed5 LED Headlight Housing (Model LF268)
- Associated wiring harness for plug-and-play connection.
Obrázek 2.1: Přední strana view of the Morimoto Sealed5 LED Headlight, showcasing its clear lens and internal LED arrangement.
Obrázek 2.2: Zadní view of the Morimoto Sealed5 LED Headlight, showing the heat sink design and the included wiring harness with connectors.
3. Nastavení a instalace
Installation of the Morimoto Sealed5 LED Headlights is designed to be plug-and-play for most compatible vehicles. Professional installation is recommended for optimal performance and safety.
3.1 Kontrolní seznam před instalací:
- Ujistěte se, že je vypnuté zapalování vozidla a odpojená baterie.
- Verify the headlight size (5x7 inch) matches your vehicle's existing headlight housing.
- Gather necessary tools (e.g., screwdrivers, wrenches, wire strippers/crimpers if custom wiring is needed for DRL/switchback functions).
3.2 Kroky instalace:
- Carefully remove the existing headlight assembly from your vehicle. Refer to your vehicle's service manual for specific instructions.
- Disconnect the electrical connector from the old headlight.
- Connect the Morimoto Sealed5 LED Headlight to the vehicle's existing headlight harness. The plug-and-play design should allow for direct connection.
- For the DRL and switchback functions, connect the additional wires as follows:
- DRL Wire: Connect to a switched 12V power source that is active when the vehicle is on (e.g., fuse box, accessory wire).
- Vodič směrových světel: Connect to the vehicle's positive turn signal wire for the switchback function.
- Carefully mount the new Morimoto Sealed5 LED Headlight into the vehicle's headlight housing. Ensure it is securely fastened.
- Znovu připojte baterii vozidla.
- Test all headlight functions: low beam, high beam, DRLs, and turn signals (switchback).
- Perform headlight aiming adjustment according to local regulations and best practices to ensure proper beam pattern and avoid blinding oncoming traffic.
Figure 3.1: Two Morimoto Sealed5 LED Headlights, illustrating their compact design suitable for universal 5x7 applications.

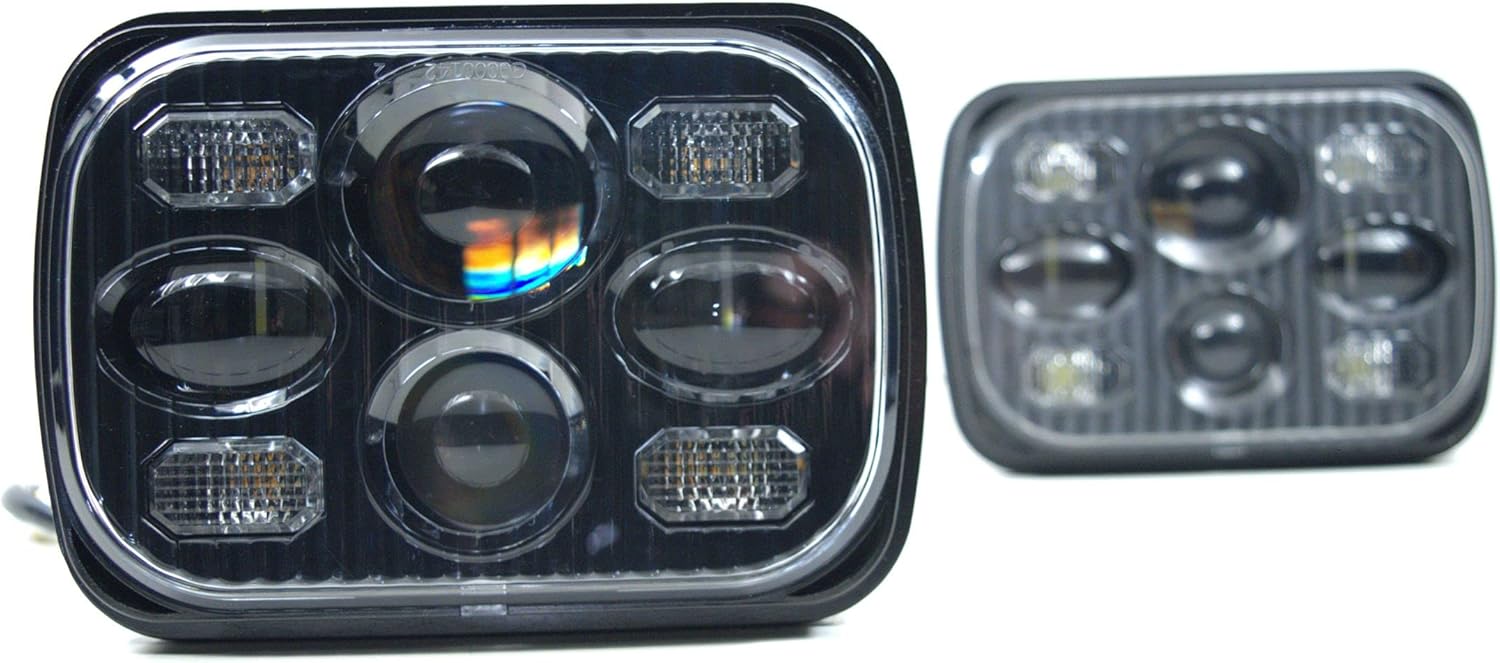

Obrázek 3.2: Zavírač view of two Morimoto Sealed5 LED Headlights, highlighting the distinct optical elements for different light functions.
4. Návod k obsluze
The Morimoto Sealed5 LED Headlights operate in conjunction with your vehicle's existing headlight controls. The integrated DRL and switchback turn signal functions activate automatically based on wiring connections.
4.1 Headlight Functions:
- Potkávací: Activates when your vehicle's low beam headlights are turned on. Provides a broad, even light distribution for general driving.
- Dálkové světlo: Activates when your vehicle's high beam headlights are turned on. Provides maximum light output for extended visibility.
- Daytime Running Lights (DRLs): The integrated DRLs illuminate when the vehicle is running and the DRL wire is connected to a switched 12V source. These provide enhanced daytime visibility.
- Switchback Turn Signals: When the turn signal is activated, the DRLs on the corresponding side will switch from white to amber and flash, then return to white DRL mode when the turn signal is disengaged.
Figure 4.1: The Morimoto Sealed5 LED Headlights with their bright white Daytime Running Lights (DRLs) illuminated.
Figure 4.2: The Morimoto Sealed5 LED Headlights demonstrating the amber illumination of the switchback turn signal function.
Obrázek 4.3: Přample of the low beam pattern projected by the Morimoto Sealed5 LED Headlight, showing a clear cutoff line.
Obrázek 4.4: Přample of the high beam pattern projected by the Morimoto Sealed5 LED Headlight, demonstrating increased light output and spread.
5. Údržba
The Morimoto Sealed5 LED Headlights are designed for long-term, maintenance-free operation. However, periodic cleaning and inspection are recommended to ensure optimal performance and longevity.
5.1 Čištění:
- Clean the headlight lenses regularly with a soft cloth and mild soap and water.
- Avoid abrasive cleaners or harsh chemicals, as these can damage the polycarbonate lens material.
- Rinse thoroughly with clean water and dry with a soft, lint-free cloth.
5.2 Kontrola:
- Periodically check the headlight assembly for any signs of damage, such as cracks in the lens or housing.
- Ujistěte se, že všechna kabelová spojení jsou bezpečná a bez koroze.
- Verify that the headlights are securely mounted and not loose.
6. Řešení problémů
This section addresses common issues that may arise during the use of your Morimoto Sealed5 LED Headlights.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Headlight not illuminating. | Volné spojení, spálená pojistka, nesprávné zapojení. | Check all electrical connections. Inspect vehicle's headlight fuse. Verify wiring against installation instructions. |
| Flickering or intermittent operation. | Insufficient power, loose connection, vehicle electrical system incompatibility. | Ensure stable 12V power supply. Re-secure connections. While designed to be error-free, some vehicles may require additional resistors (not typically needed for this model). Consult a professional if issue persists. |
| DRLs or Switchback not working. | Incorrect DRL/turn signal wire connection, no power to DRL wire. | Verify DRL wire is connected to a switched 12V source. Ensure turn signal wire is connected to the correct positive signal wire. |
| Condensation inside lens. | Temperature changes, minor seal breach. | Small amounts of condensation are normal and should dissipate. If excessive or persistent, inspect seals for damage. |
7. Specifikace
| Atribut | Detail |
|---|---|
| Značka | Morimoto |
| Model | LF268 |
| Typ světlometu | Sealed Beam LED (5x7 inch / H6054, H5054, HP6054 equivalent) |
| Světelný zdroj | BI-LED |
| DRL Function | Integrated Switchback (White DRL / Amber Turn Signal) |
| Materiál čočky | Polykarbonát |
| Barva | Jasný |
| Wattage | 35 watts (High Beam) |
| DOT Schváleno | Ano |
| Hmotnost položky | 1 pound (per headlight) |
| Rozměry balení | 5.75 x 3.75 x 0.3 inches (approximate, per headlight) |
| UPC | 840203303733 |
Figure 7.1: Technical diagram providing dimensions and component labels for the Morimoto Sealed5 LED Headlight.
8. Záruka a podpora
Morimoto products are known for their quality and durability. For specific warranty information regarding your Sealed5 LED Headlights, please refer to the warranty card included with your product or visit the official Morimoto webmísto.
For technical support, installation assistance, or warranty claims, please contact Morimoto customer service through their official channels. Keep your purchase receipt as proof of purchase.
Výrobce: Morimoto
Oficiální Webmísto: www.morimotohid.com
