Zavedení
Thank you for choosing the Lepro WL5000 Solar Motion Activated Security Light. This product is designed to provide efficient and reliable outdoor lighting using solar power, enhancing security and visibility around your home. It features a separate solar panel for optimal sun exposure, three adjustable light heads for wide coverage, and an intelligent motion sensor for automated operation. Please read this manual carefully before installation and use to ensure proper function and longevity of your device.
Konec produktuview a Komponenty
The Lepro WL5000 security light system consists of the main light unit with three adjustable heads and a separate solar panel connected by a cable. Key components are illustrated below:
- Main Light Unit: Houses 72 ultra-bright LEDs and a PIR motion sensor.
- Nastavitelné světelné hlavy: Three heads that can be adjusted vertically and horizontally for 270° wide lighting.
- Separate Solar Panel: Converts sunlight into electricity for charging the internal battery.
- Connection Cord: 16ft (4.8m) cord connecting the solar panel to the main light unit.
- Montážní hardware: Includes screws, wall plugs, and wall brackets for installation.
Klíčové vlastnosti
- Wide Lighting & Ultra Bright: Equipped with 72 ultra-bright LEDs, providing 1000 lumens of 6500K daylight. The three adjustable heads offer a 270° wide lighting angle, illuminating larger areas.
Figure 2: Adjustable Light Heads and Brightness. The image illustrates the flexibility of the three light heads, capable of adjusting to provide a wide 270° lighting angle. Key specifications like 1000 lumens, 6500K color temperature, and 72 LEDs are highlighted. - Convenient Solar Charging: The separate solar panel allows for flexible placement in direct sunlight, maximizing energy absorption. This design reduces carbon emissions and electricity costs.

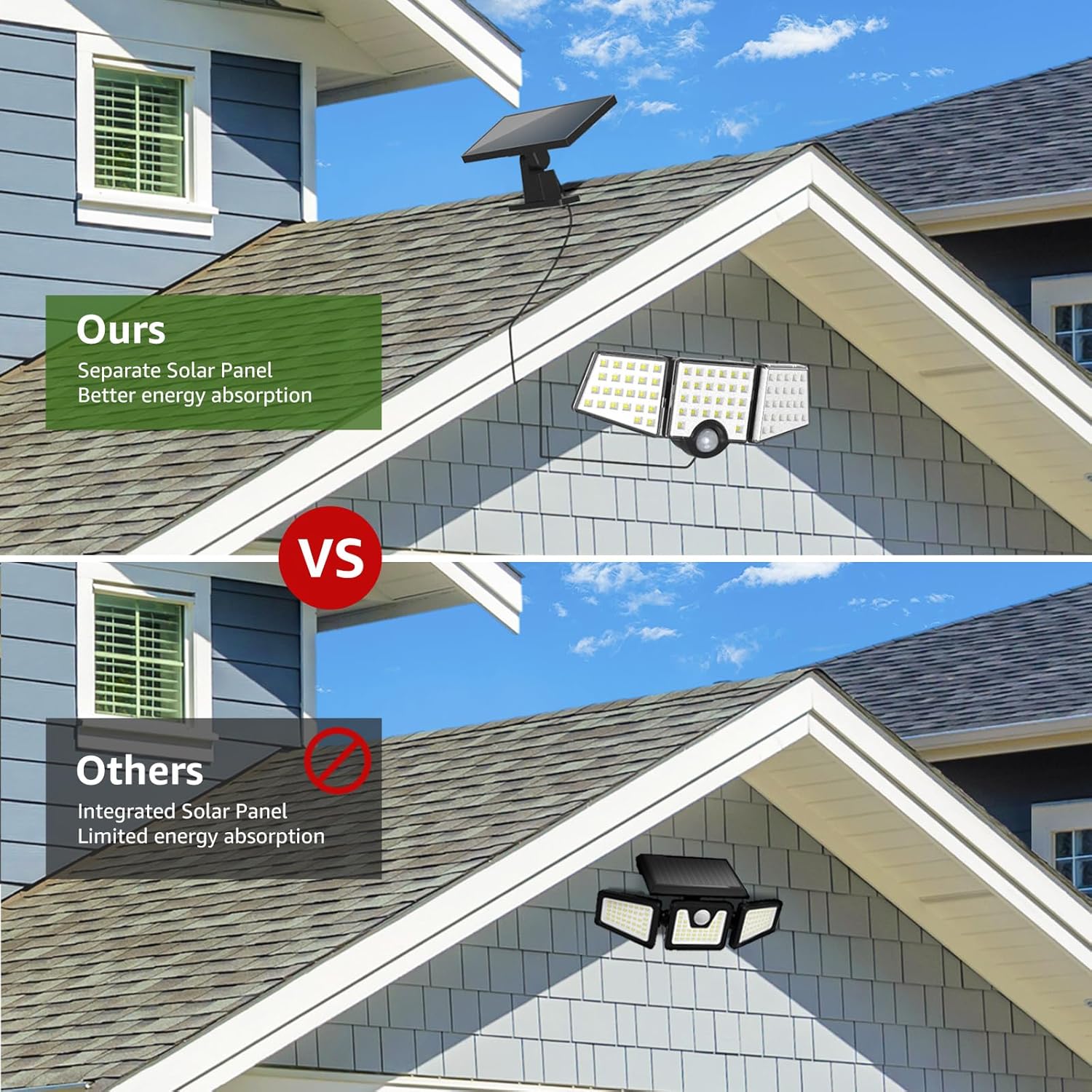

Figure 3: Separate Solar Panel Advantage. This image compares the Lepro light with its separate solar panel, allowing for optimal sun exposure on a roof, versus a light with an integrated panel that may have limited energy absorption due to its wall-mounted position. - Motion Sensor Lights: An upgraded PIR motion sensor detects movement within a 16-26ft distance and a 120° detection angle. The light automatically turns on when motion is detected at night and turns off after 20 seconds of no movement.
Figure 4: Motion Sensor Detection. The diagram shows the 120° detection angle and 16-26ft detection distance of the PIR motion sensor, indicating its effectiveness in sensing human or animal movement. - IP65 voděodolný a odolný: Constructed from durable GPPS+ABS material, the light is IP65 waterproof, heat-resistant, and frost-resistant, ensuring reliable operation in various weather conditions.

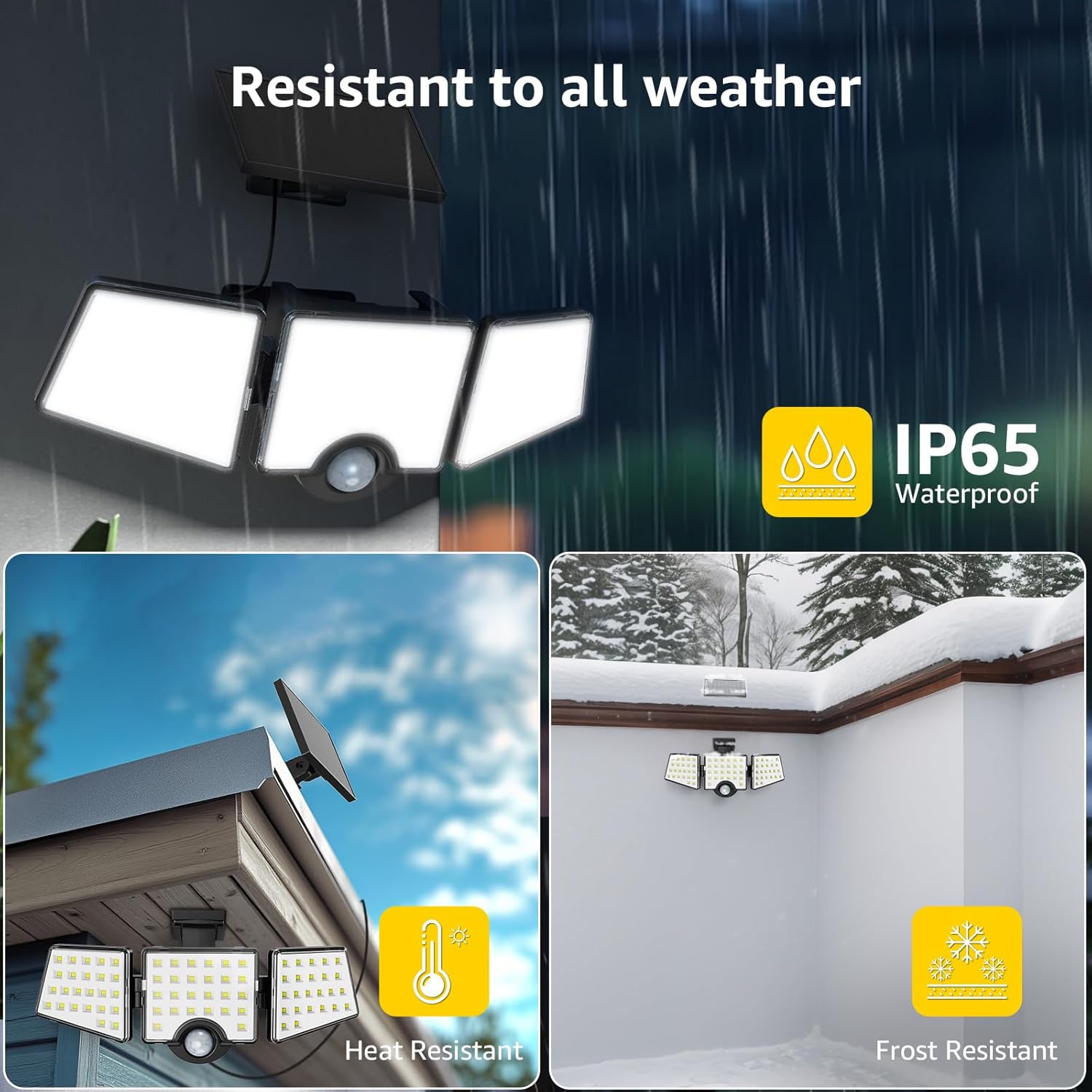

Figure 5: All-Weather Durability. This image highlights the IP65 waterproof rating, heat resistance, and frost resistance of the light, ensuring its functionality in diverse environmental conditions.
Produktové videoview
Video 1: Lepro Solar Outdoor Light, Separate Solar Panel. This video demonstrates the key features and functionality of the Lepro solar security light, including its motion detection and adjustable light heads.
Nastavení a instalace
The Lepro WL5000 is designed for easy installation without the need for household electrical wiring. Follow these steps for optimal performance:
- Vyberte umístění: Select an outdoor location for the main light unit, such as a front door, eaves, garage, or courtyard. Ensure the area where the solar panel will be placed receives direct sunlight for at least 8 hours a day.
- Montáž solárního panelu: Fix the solar panel to a location exposed to direct sunlight using the provided screws and wall plugs. The separate panel and 16ft cord allow flexibility, for example, mounting the panel on a roof.
- Namontujte světelnou jednotku: Fix the main light unit to an exterior wall at a recommended height of 1.5-3.5m (5-12ft) using the provided screws and wall plugs.
- Připojte kabel: Plug the connection cable from the solar panel into the main light unit.
- Aktivujte přepínač: Locate the power switch on the back of the main light unit and turn it to the "ON" position.
Návod k obsluze
The Lepro WL5000 operates automatically based on light conditions and motion detection:
- Denní provoz: During the day, the light will remain off and the solar panel will charge the internal battery when exposed to sunlight.
- Noční provoz: At night, the motion sensor light will automatically turn ON when triggered by human or animal movement within its detection range.
- Automatické vypnutí: The light will automatically turn OFF approximately 20 seconds after no movement is detected. If motion is continuously detected, the light will remain on.
Údržba
To ensure optimal performance and extend the lifespan of your Lepro solar light, consider the following maintenance tips:
- Vyčistěte solární panel: Solární panel pravidelně otírejte měkkým hadříkemamp cloth to remove dust, dirt, or debris. A clean panel ensures maximum sunlight absorption and efficient charging.
- Jasné překážky: Ensure no trees, bushes, or other objects are blocking direct sunlight from reaching the solar panel, especially during peak charging hours.
- Kontrola připojení: Periodically check the connection cable between the solar panel and the light unit for any signs of wear or damage.
- Zimní péče: In areas with heavy snow, clear snow from the solar panel to allow for charging. The light is frost-resistant, but prolonged snow cover will prevent charging.
Odstraňování problémů
If you encounter issues with your Lepro solar light, please refer to the following common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Světlo se v noci nerozsvítí. |
|
|
| Světlo zůstává svítit během dne. |
|
|
| Pohybový senzor nedetekuje pohyb. |
|
|
Specifikace
| Funkce | Detail |
|---|---|
| Značka | Lepro |
| Číslo modelu | PR640004-DW |
| Typ světelného zdroje | LED (72 LED) |
| Jas | 1000 XNUMX lumenů |
| Světlá barva | 6500K denní světlo bílá |
| Zdroj napájení | Solární napájení |
| svtage | 5.4 voltů |
| Wattage | 12 wattů |
| Úhel detekce pohybového senzoru | 120° |
| Vzdálenost detekce pohybového senzoru | 16-26 ft |
| Úhel osvětlení | 270° (with adjustable heads) |
| Úroveň odolnosti proti vodě | IP65 Vodotěsný |
| Materiál | GPPS+ABS |
| Rozměry produktu | 11.1 cm D x 4.65 cm Š x 5.87 cm V |
| Hmotnost položky | 1.1 libry (500 gramů) |
| Typ baterie | Je vyžadována 1 lithium-iontová baterie |
| Průměrná životnost baterie | 12 měsíců |
Záruka a podpora
Lepro provides a 12-month after-sales service warranty for this product. If you encounter any issues or have questions regarding your Lepro WL5000 Solar Motion Activated Security Light, please contact Lepro customer support for assistance. Refer to the product packaging or the official Lepro webstránky s nejaktuálnějšími kontaktními informacemi.
For additional resources, you may visit the official Lepro store: Obchod Lepro na Amazonu.
