1. Konec produktuview
The Gree H13 True HEPA Air Purifier is designed to improve indoor air quality by filtering various airborne particles. It features an H13 True HEPA filter, real-time air quality monitoring, and multiple operating modes.
Figure 1: Gree H13 True HEPA Air Purifier unit.
2. Bezpečnostní informace
- Před použitím si přečtěte všechny pokyny.
- Neprovozujte jednotku s poškozeným kabelem nebo zástrčkou.
- Keep the unit away from water or moist environments.
- Zajistěte řádné větrání kolem jednotky.
- Před čištěním nebo údržbou jednotku odpojte.
3. Nastavení
3.1 Vybalení
- Opatrně vyjměte čističku vzduchu z obalu.
- Remove any protective plastic or wrapping from the unit and the filter.
3.2 Instalace filtru
The air purifier comes with an H13 True HEPA filter. Ensure it is properly installed before first use.
- Otočte jednotku vzhůru nohama.
- Rotate the base counter-clockwise to unlock and remove it.
- Insert the H13 True HEPA filter into the unit. Ensure it is seated correctly.
- Replace the base and rotate it clockwise to lock it securely.
Figure 2: Illustration of filter replacement process.
3.3 Umístění
Place the air purifier on a flat, stable surface. For optimal performance, ensure there is adequate space around the unit for air intake and output. The compact design allows for placement on tables or desks, suitable for small rooms.
Figure 3: Air purifier demonstrating 360-degree air intake in a room setting.
3.4 Připojení napájení
Connect the power adapter to the unit and then plug it into a standard electrical outlet.
4. Návod k obsluze
4.1 Ovládací panel
The control panel is located on the top of the unit. It includes buttons for power, fan speed, timer, and a display for air quality.

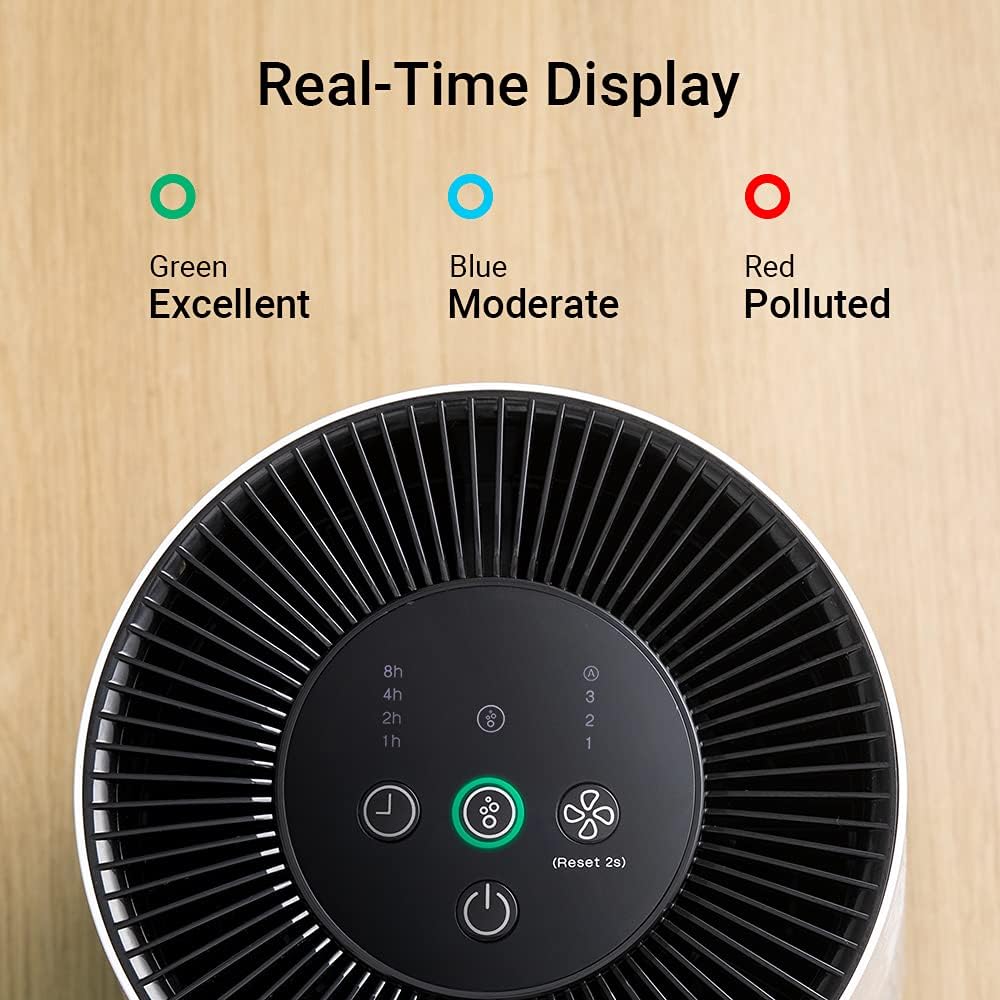

Obrázek 4: Nahoře view of the control panel with air quality indicators.
4.2 Zapnutí/vypnutí
Stiskněte tlačítko Moc tlačítko pro zapnutí nebo vypnutí jednotky.
4.3 Nastavení rychlosti ventilátoru
Stiskněte tlačítko Rychlost ventilátoru button to cycle through three available wind speeds (1, 2, 3). Speed 1 is the quietest setting, suitable for sleeping environments.
4.4 Funkce časovače
Stiskněte tlačítko Časovač pro nastavení doby provozu na 1, 2, 4 nebo 8 hodin. Jednotka se po uplynutí zvolené doby automaticky vypne.
Figure 5: Visual representation of the timer settings.
4.5 Indikátor kvality vzduchu
The unit is equipped with infrared sensors that provide real-time air quality feedback through a color-coded indicator light:
- Zelený: Výborná kvalita vzduchu
- Modrý: Střední kvalita vzduchu
- Červený: Polluted air quality
Figure 6: Close-up of the air quality indicator lights.
4.6 Režim spánku
To ensure undisturbed sleep, the unit operates at an ultra-low noise level (as low as 36 dB(A)) on the lowest fan speed. The indicator light can also be turned off by pressing and holding the light button (refer to control panel diagram for specific button).
Figure 7: Air purifier operating quietly in a bedroom setting.
5. Údržba
5.1 Výměna filtru
The filter needs to be replaced approximately every 6 months, depending on usage and air quality. A dedicated indicator light on the control panel will illuminate when it's time for replacement.
Figure 8: Control panel showing the filter replacement reminder light.
To replace the filter, follow the steps outlined in Section 3.2. Ensure the unit is unplugged before performing this task. After replacing the filter, press and hold the filter reset button (usually the air quality button for 2 seconds) to reset the filter life indicator.
For replacement filters, please contact Gree customer support or visit the official Gree website to ensure compatibility and availability. The model number for the replacement filter is typically associated with the air purifier model GCF120ASDA.
5.2 Čištění jednotky
- Před čištěním čističku vzduchu odpojte.
- Vnější povrch jednotky otřete měkkým, suchým hadříkem.
- Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
- Periodically clean the air intake and output vents with a soft brush or vacuum cleaner to remove dust accumulation.
6. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Jednotka se nezapne | No power supply; Power cord not connected; Unit damaged | Check power outlet; Ensure power cord is securely connected; Contact customer support |
| Slabé proudění vzduchu | Filter clogged; Air intake/output blocked | Replace filter; Clear any obstructions |
| Neobvyklý hluk | Unit not on a flat surface; Foreign object inside; Fan issue | Place on a flat surface; Unplug and check for obstructions; Contact customer support |
| Filter replacement indicator light is on | Filtr vyžaduje výměnu | Replace the filter and reset the indicator (refer to Section 5.1) |
| Cannot find replacement filter | Specific filter model may have limited availability | Contact Gree customer support directly for information on purchasing compatible replacement filters. |
7. Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | GCF120ASDA |
| Rozměry produktu | 9.37 x 9.37 x 13.18 palce |
| Hmotnost | 6 libry |
| Typ filtru | H13 Skutečná HEPA |
| Zdroj napájení | AC/DC |
| Kontrolní metoda | Dotek |
| Osvědčení | Certifikováno CARB |
8. Záruka a podpora
For warranty information and customer support, please refer to the warranty card included with your product or visit the official Gree website. You can also contact Gree customer service for assistance with product inquiries, troubleshooting, or replacement parts.
Official Gree Webmísto: Gree Store on Amazon
