TecTake Metallic Office Cabinet 90 x 40 x 180 cm with Lock

1. Úvod

This instruction manual provides essential information for the safe and efficient assembly, operation, and maintenance of your TecTake Metallic Office Cabinet. Please read this manual thoroughly before beginning assembly or use, and retain it for future reference.

Image 1.1: The TecTake Metallic Office Cabinet with its doors open, revealing multiple shelves filled with files and a small safe, demonstrating its storage capacity.

2. Bezpečnostní informace

It is recommended to observe maximum load limits, ensure stable and secure installation, and be aware of potential pinch points during the use and handling of this product.

• Always ensure the cabinet is placed on a level and stable surface to prevent tipping.
• Do not exceed the maximum load capacity of 40 kg per shelf. Overloading can compromise stability and structural integrity.
• Keep fingers clear of door hinges and closing mechanisms to avoid pinching injuries.
• Secure the cabinet to a wall if there is any risk of tipping, especially in areas with children or pets. Mounting hardware for wall attachment is not typically included and may need to be purchased separately based on wall type.
• Use appropriate personal protective equipment (e.g., gloves) during assembly to prevent cuts or scrapes from metal edges.

3. Konec produktuview a funkce

The TecTake Metallic Office Cabinet is designed for secure and organized storage in various environments. It features a robust construction and practical design elements.

Klíčové vlastnosti:

• Bezpečný uzamykací mechanismus: Equipped with a cylinder lock and two keys for safeguarding documents and valuables.
• Nastavitelné police: Four height-adjustable shelves allow for flexible storage configurations to accommodate various item sizes, including binders and office supplies.
• Odolná konstrukce: Made from powder-coated steel for enhanced durability and resistance to wear.
• Reinforced Doors: Two swing doors with a wide opening angle (up to 130°) for easy access to contents.
• Zvuk-Dampening Buffers: Rubber buffers on the doors ensure quiet closing.
• Snadno se čistí: Smooth, rimless shelves facilitate simple cleaning with a damp tkanina.

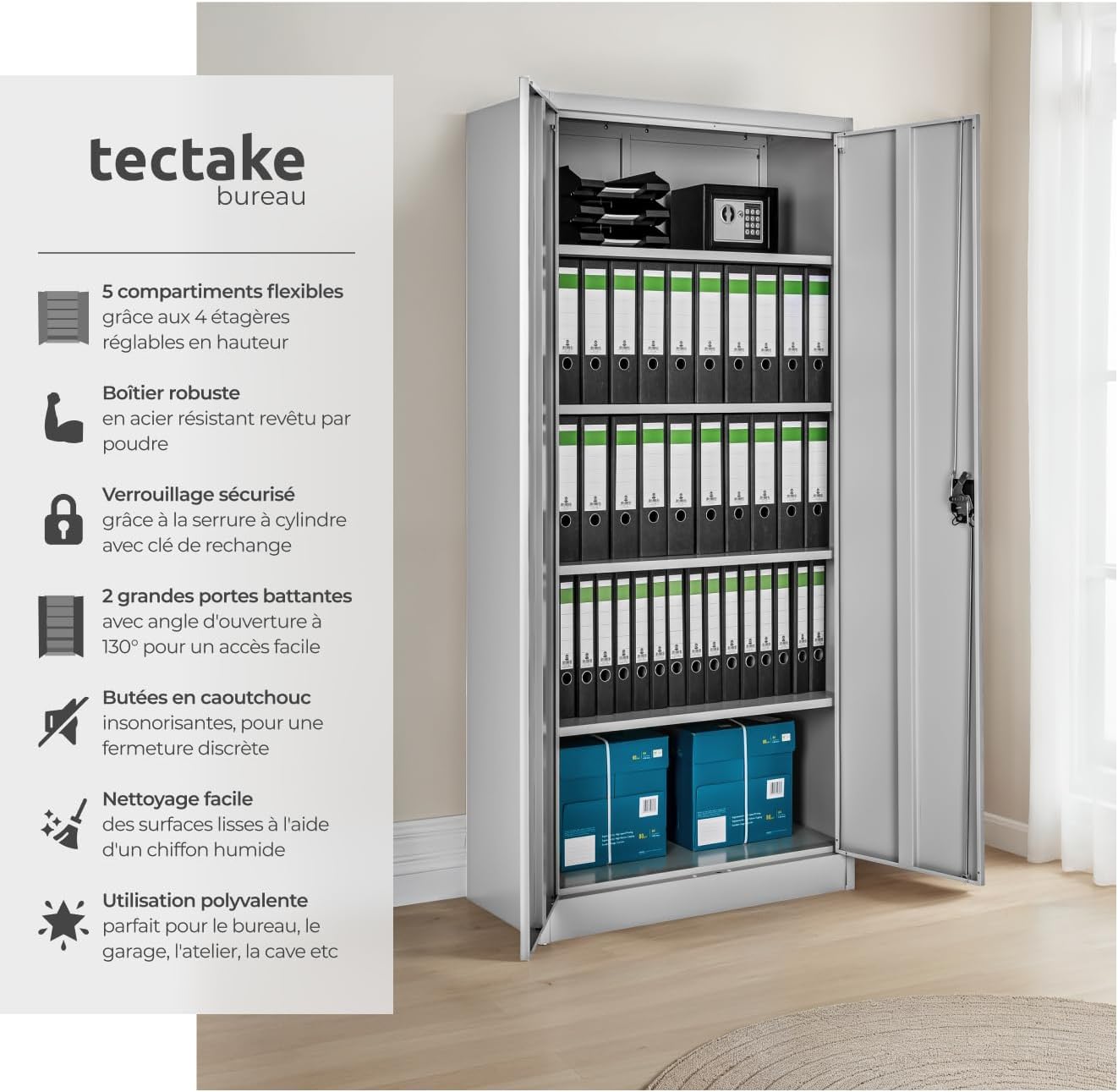

Image 3.1: An infographic highlighting the main features of the cabinet, such as its flexible compartments, robust steel body, secure cylinder lock, and reinforced doors.

4. Nastavení a montáž

Assembly of the TecTake Metallic Office Cabinet requires careful attention to detail. It is recommended to have two people for assembly to ensure stability and ease of handling. Please ensure all parts are present before starting.

Požadované nástroje (nejsou součástí dodávky):

• Šroubovák (doporučuje se křížový šroubovák)
• Gumové kladivo (volitelné, pro jemné poklepávání)
• Měřicí páska
• Úroveň

Montážní kroky:

1. Vybalte a zkontrolujte: Carefully unpack all components and check against the parts list provided in the packaging. Inspect for any damage.
2. Sestavte základnu: Attach the side panels to the base plate according to the instructions. Ensure all screws are tightened securely.
3. Instalace zadního panelu: Slide or attach the back panel into the designated grooves or mounting points.
4. Připevněte horní panel: Secure the top panel to the side panels.
5. Instalace podpěr polic: Insert the shelf support clips into the desired height slots on the interior side panels. Ensure they are level and securely seated.
6. Umístění polic: Carefully place the adjustable shelves onto the installed supports.
7. Připevnit dveře: Mount the doors to the cabinet frame using the provided hinges. Adjust as necessary to ensure proper alignment and smooth operation.
8. Instalace zamykacího mechanismu: Attach the lock and handle assembly to one of the doors. Test the lock with the provided keys.
9. Závěrečná kontrola: Ensure all connections are tight, the cabinet is stable, and doors open and close smoothly. Place the cabinet in its final desired location, ensuring it is level.

Image 4.1: Detail of the adjustable shelf system, illustrating how shelves can be repositioned to suit different storage needs.

5. Návod k obsluze

Using your TecTake Metallic Office Cabinet is straightforward once assembled.

5.1. Otevírání a zavírání dveří

• To open, turn the handle and pull the door outwards. The doors are designed to open up to 130 degrees for full access.
• To close, gently push the doors until they meet the cabinet frame. The integrated rubber buffers will ensure a quiet closure.

5.2. Použití zámku

• Insert one of the provided keys into the cylinder lock located on the handle.
• Turn the key clockwise to lock the doors.
• Turn the key counter-clockwise to unlock the doors.
• Always remove the key after locking or unlocking to prevent loss or unauthorized access.

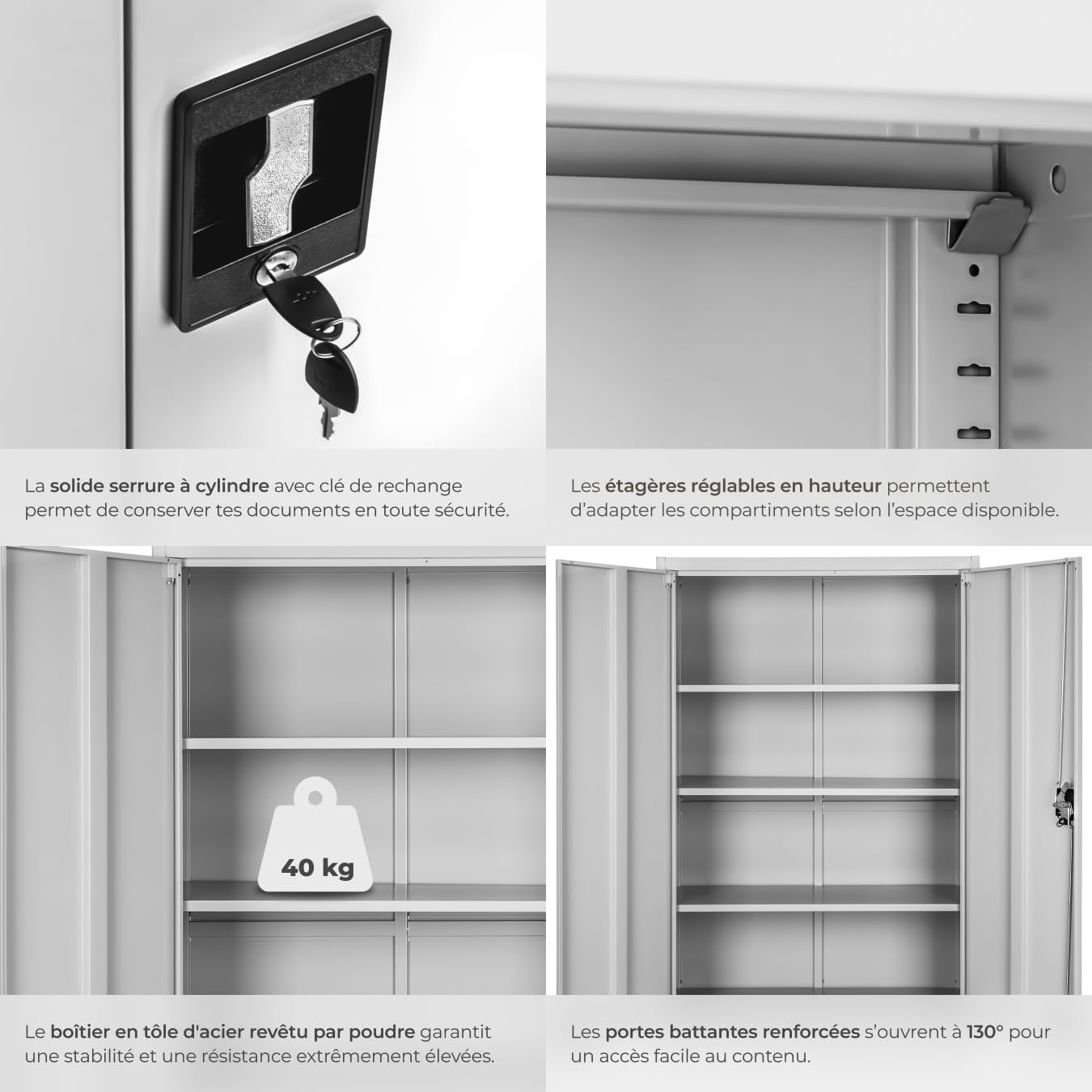

Obrázek 5.1: Podrobný view of the cabinet's handle and cylinder lock, showing the keys in place for secure operation.

5.3. Úprava polic

• Vyprázdněte polici, kterou chcete upravit.
• Carefully lift the shelf and remove the support clips from their current slots.
• Reinsert the support clips into the desired new height slots on both side panels, ensuring they are at the same level.
• Place the shelf back onto the newly positioned support clips.

6. Údržba

Pravidelná údržba pomůže zachovat vzhled a funkčnost vaší skříňky.

• Čištění: Wipe down all surfaces, including the smooth, rimless shelves, with a soft, damp cloth. For stubborn marks, a mild, non-abrasive cleaner can be used. Dry thoroughly with a clean cloth.
• Vyhněte se agresivním chemikáliím: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the powder-coated finish.
• Mazání: Periodically check door hinges and the lock mechanism. If they become stiff, a small amount of silicone-based lubricant can be applied.
• Utáhněte upevňovací prvky: Over time, screws and fasteners may loosen. Periodically check and tighten all connections to maintain structural integrity.

7. Řešení problémů

If you encounter issues with your cabinet, refer to the following common troubleshooting tips:

• Dveře se správně nezavírají:
  • Check if the cabinet is level. Adjust the feet or place shims underneath if necessary.
  • Inspect hinges for damage or misalignment. Adjust hinge screws if needed.
  • Ujistěte se, že žádné předměty uvnitř skříně neblokují dvířka.
• Lock is stiff or not working:
  • Apply a small amount of graphite powder or silicone spray lubricant into the keyhole.
  • Ensure the doors are fully closed and aligned before attempting to lock.
  • Check if the locking mechanism is obstructed by any internal components.
• Kabinet se jeví nestabilně:
  • Verify that the cabinet is on a flat, stable surface.
  • Ujistěte se, že všechny montážní šrouby jsou zcela utažené.
  • Consider anchoring the cabinet to a wall for added stability, especially if it will hold heavy items.
• Poškozené díly po dodání:
  • If parts are damaged during shipping, contact the seller or manufacturer immediately with details and photographic evidence. Do not attempt to assemble damaged components as this may void your warranty or cause further issues.

8. Specifikace

Detailed specifications for the TecTake Metallic Office Cabinet.

Image 8.1: A visual representation of the cabinet's dimensions, indicating its overall size.

9. Záruka a podpora

For warranty information or customer support, please refer to the documentation included with your purchase or contact the seller directly. The seller for this product is Made4Home SAS.

When contacting support, please provide your model number (aa-2t4g8e3l) and proof of purchase to expedite assistance.
