1. Úvod
This manual provides comprehensive instructions for the setup, operation, and maintenance of your hygger 150GPH Turtle Filter. Designed for amphibian tanks ranging from 5 to 35 gallons, this filter ensures clean and healthy water for your aquatic pets. Please read these instructions carefully before use to ensure proper function and longevity of the product.
Image 1.1: The hygger 150GPH Turtle Filter installed in an amphibian tank, demonstrating its rain shower feature.
2. Důležité bezpečnostní pokyny
- Always disconnect the power supply before performing any maintenance, installation, or handling of the filter.
- Ensure the power cord is not damaged. Do not operate the filter if the cord or plug is compromised.
- Tento spotřebič je určen pouze pro vnitřní použití.
- Do not allow the filter to run dry. Always ensure the water level is above the minimum operating level.
- Uchovávejte mimo dosah dětí.
- Ensure the filter is securely attached to the tank wall using the provided suction cups to prevent accidental dislodgement.
3. Obsah balení
Po otevření balíku ověřte, zda jsou všechny položky přítomny a v dobrém stavu:
- hygger 150GPH Turtle Filter Unit
- Filter Sponges (2 included)
- Bio Ceramic Balls
- Přísavky
Image 3.1: Included filter media, showing both fine and coarse sponges.
4. Vlastnosti produktu
The hygger 150GPH Turtle Filter offers several features designed for effective water purification in shallow amphibian environments:
- Tři-Stage Filtrace: Equipped with two sponge filters for mechanical filtration (debris removal) and bio ceramic balls for biological filtration (beneficial bacteria growth). This system can be customized with additional filter media.
- Powerful Water Circulation: A robust motor ensures continuous water movement, aiding in debris collection and maintaining a clean aquatic environment.
- Adjustable Output Nozzle: The multi-directional output nozzle allows for customization of water flow patterns, including a rain shower effect.
- Shallow Water Operation: Designed to function effectively in water levels as low as 2.7 inches, making it suitable for turtle, frog, and newt tanks.
- Easy Water Change Function: The filter facilitates water changes by allowing a hose to be attached to the top outlet, simplifying the draining process.
- Jednoduché nastavení a údržba: The filter is designed for straightforward installation and easy disassembly for routine cleaning.
Image 4.1: Diagram showing the water circulation, physical filtration, and bio filtration processes within the filter.
Image 4.2: Visual representation of the multi-stage filtration, including coarse sponge, biochemical ceramic balls, and fine bio sponge.
5. Pokyny k nastavení
- Příprava filtračního média: Rinse the filter sponges and bio ceramic balls thoroughly under clean water to remove any manufacturing dust.
- Sestavení filtru: Place the rinsed filter media into their respective chambers within the filter unit. Ensure they are seated correctly.
- Připevněte přísavky: Install the provided suction cups into the designated holes on the bottom of the filter unit.
- Filtr pozic: Securely attach the filter to the inside wall of your tank using the suction cups. Ensure the filter is submerged to the appropriate water level.
- Hladina vody: The filter is designed for shallow water. The minimum water level required for operation is 2.7 inches. The optimum water level is approximately 3.14 inches, reaching the first filtering chamber.
- Připojte napájení: Once the filter is securely in place and submerged, plug the power cord into a suitable electrical outlet.
Image 5.1: Illustration of the filter's minimum and optimum water level requirements for shallow tanks.
Image 5.2: Guide on how to properly install the suction cups onto the filter unit.
6. Návod k obsluze
6.1 Filtration Modes
The hygger 150GPH Turtle Filter offers two primary output modes:
- Standard Filtering: Water is circulated through the filter media and returned to the tank.
- Rain Shower Effect: The top nozzle can be adjusted to create a gentle rain shower, providing aeration and a natural environment for your pets.
To switch between modes, adjust the multi-directional output nozzle at the top of the filter.
Image 6.1: Visual comparison of the filter operating in standard filtering mode versus rain shower mode.
6.2 Water Change Function
The filter simplifies the water change process:
- Odpojte filtr od napájení.
- Remove the rain shower nozzle from the top outlet.
- Insert a suitable hose (not included) into the top outlet tube.
- Direct the other end of the hose into a bucket or drain.
- The filter will then drain water from the tank.
- Once the desired amount of water is removed, remove the hose and reattach the rain shower nozzle.
Image 6.2: Illustration of the water change function, demonstrating how to attach a hose for draining.
Image 6.3: Step-by-step visual guide for performing a water change using the filter's dedicated function.
7. Údržba
Regular maintenance is crucial for the optimal performance and longevity of your filter.
7.1 Čištění filtru
- Odpojit napájení: Always unplug the filter from the power outlet before cleaning.
- Vyjmout z nádrže: Carefully detach the filter from the tank wall.
- Rozebrat: The filter is designed for easy disassembly. Separate the filter chambers and remove the filter media (sponges and bio balls).
- Čistá média: Rinse the filter sponges under tank water or dechlorinated tap water to remove accumulated debris. Avoid using untreated tap water on bio media as it can kill beneficial bacteria. Gently rinse bio balls in old tank water.
- Čistá jednotka: Clean the internal components of the filter unit, including the impeller and motor housing, with a soft brush if necessary.
- Znovu sestavit: Reassemble the filter, ensuring all components are correctly seated.
- Přeinstalovat: Reattach the filter to the tank wall and reconnect the power.
It is recommended to rinse the filter sponges weekly and perform a more thorough cleaning of the entire unit every 2-4 weeks, depending on tank conditions and bioload.

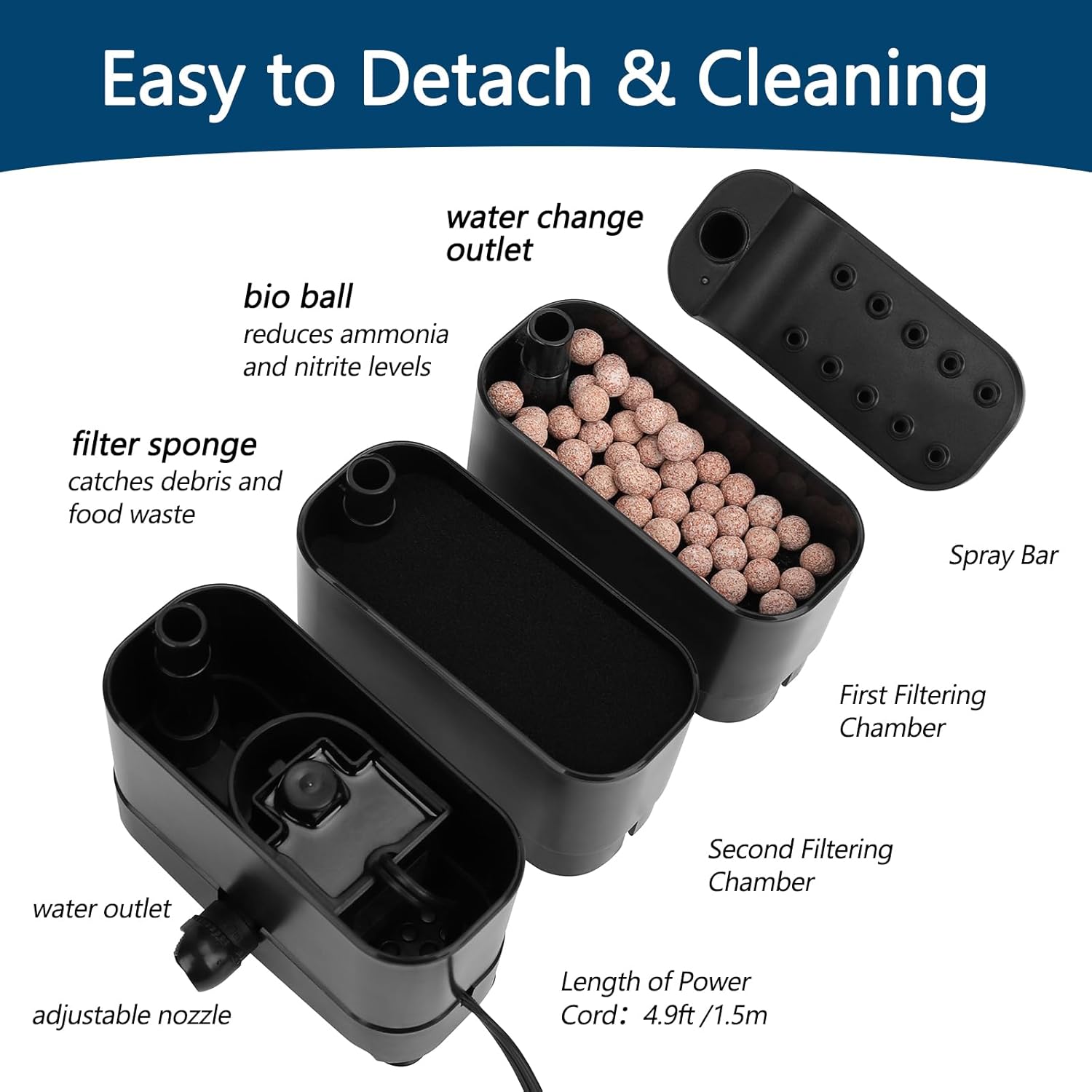

Obrázek 7.1: Rozložený view of the filter, highlighting the water change outlet, bio ball chamber, filter sponge chamber, and adjustable nozzle for easy cleaning.
Image 7.2: Visual reminder for regular cleaning, emphasizing the filter's easy disassembly and cleaning features.
8. Řešení problémů
If you encounter issues with your hygger 150GPH Turtle Filter, refer to the following common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Filtr se nespouští | No power; Impeller jammed; Motor malfunction | Check power connection. Disconnect and clean impeller. If problem persists, contact support. |
| Snížený průtok vody | Clogged filter media; Dirty impeller; Low water level | Clean or replace filter media. Clean impeller. Ensure water level is above minimum. |
| Nadměrný hluk | Impeller obstructed or damaged; Air in filter; Filter not securely mounted | Clean impeller and check for damage. Gently shake filter to release trapped air. Re-secure filter with suction cups. |
| Voda zůstává zakalená | Insufficient filtration; Overfeeding; New tank syndrome; Filter media needs replacement | Ensure filter media is clean and correctly installed. Reduce feeding. Perform partial water changes. Consider replacing filter media. |
9. Specifikace
- Značka: užívat si
- Model: 150GPH Turtle Filter
- Barva: Černý
- Materiál: Plast
- Rozměry produktu: 4.9 cm D x 1.95 cm Š x 8.2 cm V
- Zdroj napájení: Elektrický kabel
- Hmotnost položky: 1.72 libry
- Maximální průtok: 150 Gallons Per Hour (2.5 Gallons Per Minute)
- Doporučená velikost nádrže: 5 až 35 galony
- Minimum Water Level: 2.7 palců
- Zahrnuté komponenty: Filter unit, 2 sponges, bio media
10. Záruka a podpora
For warranty information, please refer to the documentation included with your purchase or visit the official hygger website. If you require technical assistance or have questions regarding your hygger 150GPH Turtle Filter, please contact hygger customer support through their official channels.
Více informací a kontaktní údaje naleznete na hygger Store Page.
