Kenmore BC4026 Bagged Canister Vacuum Instruction Manual

Zavedení

The Kenmore BC4026 Bagged Canister Vacuum is designed for efficient and thorough cleaning across various surfaces. This manual provides essential information for the proper setup, operation, and maintenance of your vacuum cleaner to ensure optimal performance and longevity.

Klíčové vlastnosti:

2-motor system for powerful cleaning.
Check bag indicator for timely bag replacement.
Variable power control for customized suction.
HEPA filtration system for improved air quality.
Bagged design for hygienic dust disposal.
Brush roll on/off switch for versatile cleaning.
4-levels height adjustment to suit different carpet types.
26' retractable cord for extended reach and easy storage.
360-degree hose swivel for enhanced maneuverability.

Nastavení

Before initial use, ensure all components are correctly assembled.

1. Unpacking and Component Identification:

Carefully remove all parts from the packaging. Verify that all listed components are present:

Canister Unit
Flexibilní hadice
Teleskopická hůlka
Floor Brush/PowerMate
Štěrbinový nástroj
Kartáč na prach
Čalounický nástroj

2. Attaching the Hose and Wand:

Insert the flexible hose into the suction inlet on the canister unit until it clicks securely into place.
Attach the telescopic wand to the end of the flexible hose.
Connect the desired floor brush or attachment to the end of the telescopic wand.

Kenmore BC4026 Bagged Canister Vacuum with hose and floor brush attached

Figure 1: Fully assembled Kenmore BC4026 Bagged Canister Vacuum.

This image shows the main canister unit, the flexible hose connected to it, and the telescopic wand with the floor brush attached. The vacuum is blue and gray.

Návod k obsluze

1. Zapnutí/vypnutí:

Plug the power cord into a suitable electrical outlet. Press the power button located on the canister unit to turn the vacuum on or off.

2. Nastavení sacího výkonu:

The vacuum features variable power control. Use the dial on the canister unit to adjust the suction power according to your cleaning needs. Lower settings are suitable for delicate fabrics or light dusting, while higher settings provide maximum suction for deep cleaning carpets or hard floors.

3. Using the Floor Brush:

The main floor brush is designed for multi-surface cleaning. It includes a brush roll on/off switch and 4-levels height adjustment.

Brush Roll On: Activate the brush roll for effective deep cleaning of carpets and rugs.
Brush Roll Off: Turn off the brush roll for cleaning delicate rugs, bare floors, hardwood, and tile to prevent scratching or scattering debris.
Nastavení výšky: Adjust the brush height using the lever on the floor brush to optimize cleaning performance on different carpet pile heights.

Close-up of Kenmore BC4026 floor brush on a wooden floor

Figure 2: The floor brush is suitable for various floor types, including hardwood.

This image shows the bottom of the floor brush with its rollers and brushes, positioned on a light-colored wooden floor.

Kenmore BC4026 floor brush on a carpeted floor

Figure 3: The floor brush effectively cleans carpeted surfaces.

This image shows the floor brush with its brush roll engaged, cleaning a light-colored carpet.

4. Používání příloh:

The Kenmore BC4026 comes with specialized tools for detailed cleaning:

Štěrbinový nástroj: Ideal for cleaning tight spaces, corners, and edges.
Kartáč na prach: Use for dusting furniture, blinds, and delicate surfaces.
Čalounický nástroj: Designed for cleaning upholstery, curtains, and car interiors.
Pet PowerMate: A specialized tool for removing pet hair from upholstery and carpets.

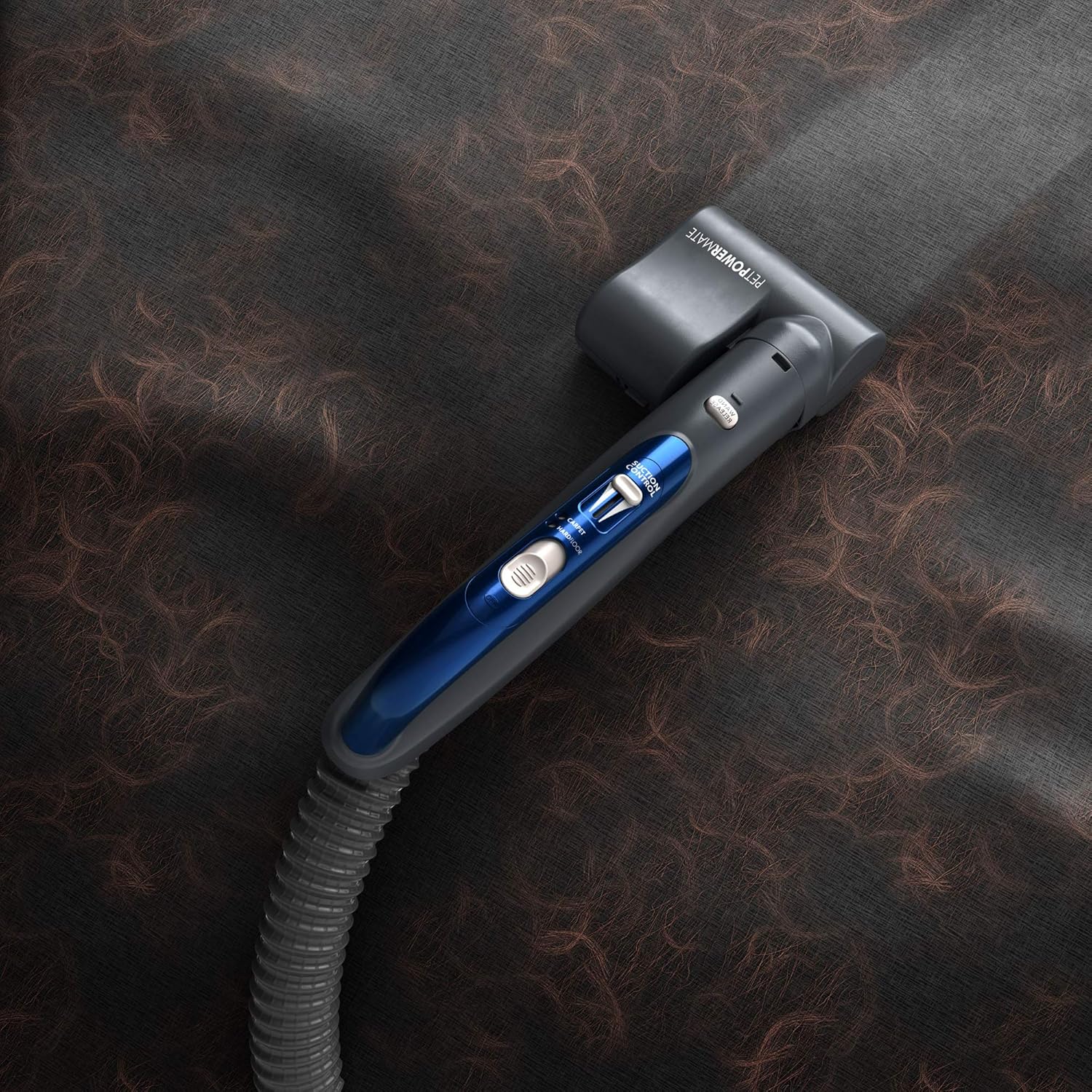

Close-up of the Pet PowerMate attachment on a dark, furry surface

Figure 4: The Pet PowerMate attachment is effective for removing pet hair.

This image shows the Pet PowerMate attachment being used on a dark, furry surface, highlighting its ability to pick up pet hair.

Údržba

Regular maintenance ensures your vacuum operates efficiently and extends its lifespan.

1. Bag Replacement:

The Kenmore BC4026 uses HEPA bags. Replace the bag when the
