Zavedení
The COAST PM450 Work Light is a compact and rugged lighting solution designed for various applications, especially in confined workspaces. It features COAST's patented Pure Beam optic system, a magnetic base for hands-free operation, and a 180-degree swivel head for versatile light positioning. The PM450 is built to withstand tough conditions, being dust-proof and weather-resistant, and offers a dual power system for convenience and efficiency.
Image: The COAST PM450 Work Light, a compact and versatile lighting tool.
Bezpečnostní informace
- Always ensure the work light is turned off before performing any maintenance or battery replacement.
- Do not look directly into the LED light source when it is illuminated, as this may cause temporary vision impairment.
- Udržujte baterie mimo dosah dětí. Při požití okamžitě vyhledejte lékařskou pomoc.
- Použité baterie zlikvidujte v souladu s místními předpisy. Baterie nespalujte.
- Nevystavujte světlo po delší dobu extrémním teplotám nebo přímému slunečnímu záření.
Obsah balení
Upon opening your COAST PM450 Work Light package, please verify that all the following items are included:
- 1 x COAST PM450 Work Light
- 3 x AAA alkalické baterie
Image: The PM450 Work Light shown with the included AAA batteries.
Nastavení
Instalace baterie
The PM450 Work Light operates on 3 AAA alkaline batteries (included) or a COAST ZITHION-X rechargeable battery pack (sold separately).
- Locate the battery compartment cover, typically on the base or rear of the unit.
- Otevřete přihrádku na baterie.
- Vložte 3 baterie typu AAA a dbejte na správnou polaritu (+/-) vyznačenou uvnitř přihrádky.
- Bezpečně zavřete kryt prostoru pro baterie.
For optimal performance and cost efficiency, consider purchasing a COAST ZITHION-X rechargeable battery pack.
Image: Illustration of the Alkaline Dual Power system, showing both AAA batteries and the optional ZITHION-X rechargeable battery pack.
Návod k obsluze
Zapnutí/vypnutí
Press the power button located on the side of the unit to turn the light on or off.
Pure Beam Focusing Optic
The PM450 features a patented Pure Beam Focusing Optic system, allowing seamless transition between a broad flood beam and a focused spot beam.
- Twist Focusing Lens: Rotate the lens bezel to adjust the beam from a wide Ultra View Flood beam for edge-to-edge clarity to a Bulls-Eye Spot beam for long-distance illumination.
Image: Close-up of the twist focusing lens, indicating the rotation for beam adjustment.
Image: Visual representation of the Pure Beam Focusing, showing the transition from a spot beam to a flood beam.
180-Degree Beam Rotation
The adaptive head of the PM450 allows you to rotate the beam up to 180 degrees, directing light precisely where needed for optimal placement.
Image: The PM450 head rotating to demonstrate the 180-degree beam adjustment capability.
Magnetický základ
The integrated magnetic base allows the PM450 to be securely attached to any metal surface, providing hands-free illumination. This is ideal for working in tight spaces or when both hands are required for a task.
Image: The PM450 Work Light magnetically attached to a metal surface, demonstrating hands-free use.
Base Hanging Loop
For additional versatility, the PM450 includes a base hanging loop. This allows you to suspend the light from hooks, nails, or other suitable fixtures, providing overhead or elevated lighting.
Image: Close-up of the PM450's base, highlighting the integrated hanging loop.
Video: Demonstration of the COAST PM450 Work Light being hung using its base hanging loop.
Údržba
The COAST PM450 Work Light is designed for durability and minimal maintenance. To ensure its longevity and optimal performance:
- Čištění: Otřete světlo měkkým, damp hadříkem odstraňte nečistoty nebo úlomky. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
- Péče o baterie: If the light will not be used for an extended period, remove the batteries to prevent leakage and corrosion.
- Dust and Weather Resistance: The PM450 is dust-proof and weather-resistant. While it can withstand tough conditions, avoid submerging it in water.
Image: The PM450 Work Light shown in a dusty environment, highlighting its dust-resistant design.

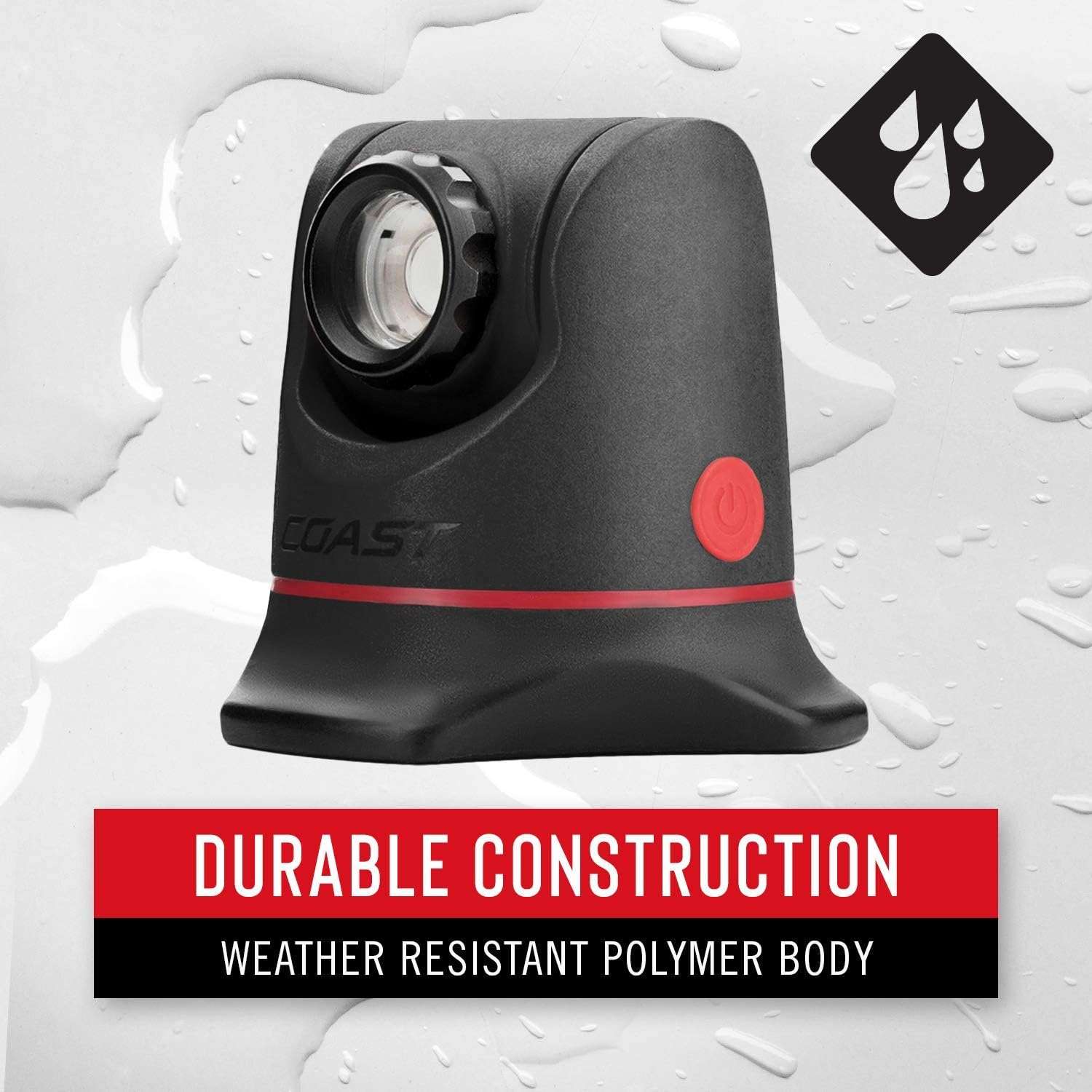

Image: The PM450 Work Light with water droplets, illustrating its weather-resistant polymer body and durable construction.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Světlo se nerozsvítí. | Vybité nebo nesprávně vložené baterie. | Replace batteries with new ones, ensuring correct polarity. Check if the optional rechargeable battery pack is charged. |
| Světlo je slabé. | Nízká kapacita baterie. | Replace batteries or recharge the ZITHION-X battery pack. |
| Beam focusing is stiff. | Nečistoty nebo úlomky v zaostřovacím mechanismu. | Gently clean around the lens bezel. Avoid forcing the mechanism. |
Specifikace
| Funkce | Detail |
|---|---|
| Model | PM450 (Part Number: 30364) |
| Světelný výkon | 510 lumenů (max.) |
| Vzdálenost paprsku | 160 metrů (524 stop) |
| Doba běhu | 9 hodin |
| Zdroj napájení | 3 x AAA Alkaline Batteries (Included) or COAST ZITHION-X Rechargeable Battery Pack (Sold Separately) |
| Typ světelného zdroje | LED |
| Materiál | Plast |
| Rozměry (D x Š x V) | Approximately 1"L x 1"W x 1"H (Note: Product dimensions from data are generic, using the image for visual context) |
| Hmotnost | 13.3 unce |
| Speciální funkce | Pure Beam Focusing Optic, 180-Degree Rotation, Magnetic Base, Base Hanging Loop, Dust Resistant, Weather Resistant |
Image: Key performance specifications of the PM450, including lumen output and beam distance.
Image: Visual representation of the PM450's dimensions.
Záruka a podpora
Informace o záruce
Coast warranties its Coast knives, tools, and Coast LED flashlights/headlamps to be free of defects in materials and workmanship for the life of the original purchaser. This warranty does not cover normal wear and tear, nor damage resulting from misuse or neglect. Warranty does not cover batteries and charging accessories (or damage caused by either). Batteries or damage caused by batteries (i.e., leakage) are not included in the guarantee.
Zákaznická podpora
For further assistance, technical support, or warranty claims, please visit the official Coast website or contact their customer service department. Refer to the product packaging or the Coast webstránky s nejaktuálnějšími kontaktními informacemi.
