1. Úvod

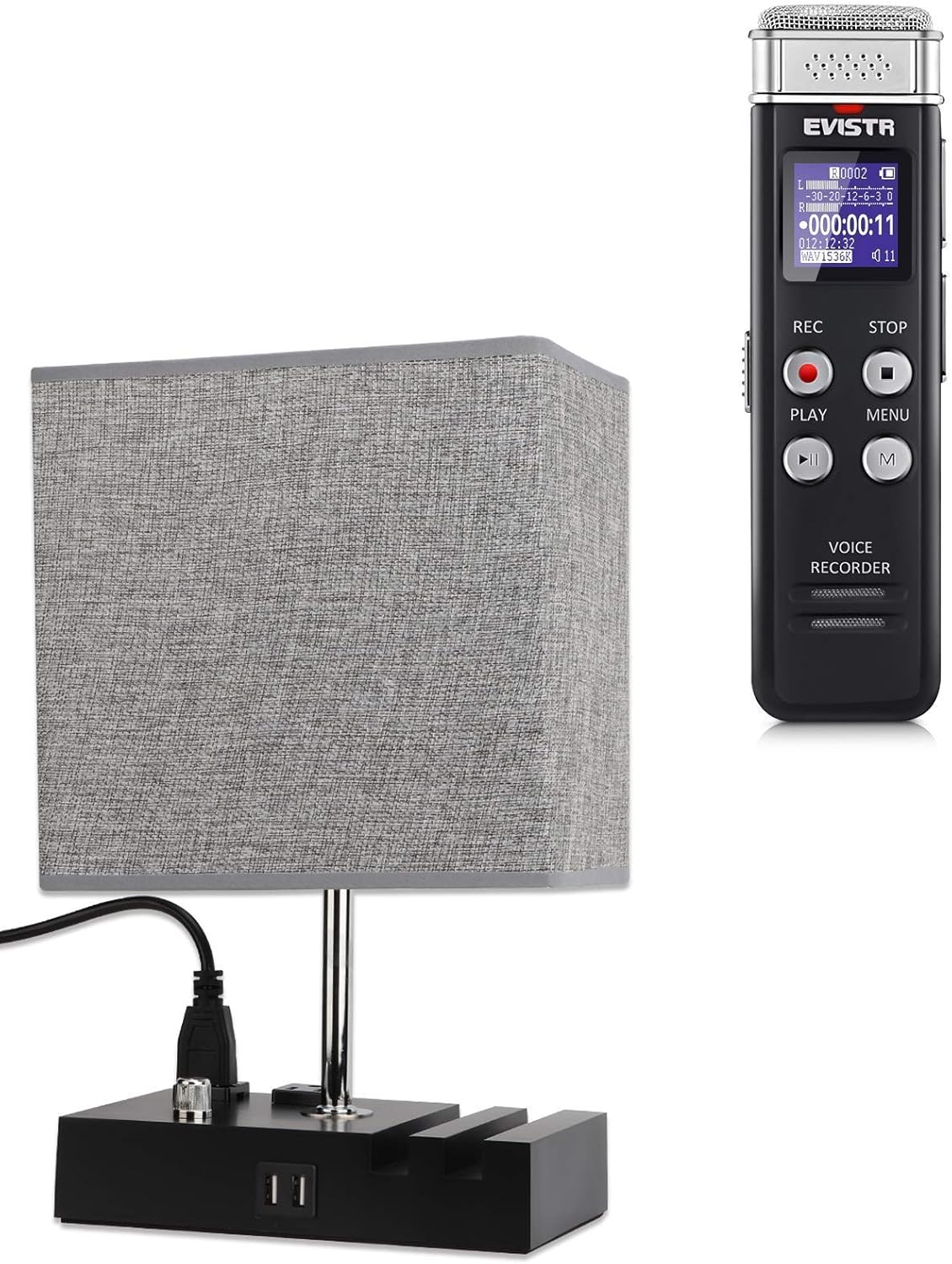

Welcome to your EVISTR bundle, featuring the versatile 16GB Digital Voice Recorder L157 and the functional Table Lamp LT8286. This manual provides comprehensive instructions for setting up, operating, and maintaining both devices to ensure optimal performance and longevity. Please read this manual carefully before use.
2. Konec produktuview
2.1 EVISTR Digital Voice Recorder L157
The EVISTR L157 is a compact and powerful digital voice recorder designed for clear audio capture in various settings. Its features include:
- 1536kbps HD Recording Quality: Ensures high-fidelity audio capture.
- Hlasově aktivované nahrávání (VOR): Automatically starts recording when sound is detected and pauses when silent.
- Cross-platform Compatibility: Records in MP3/WAV formats, allowing easy playback on computers, mobile phones, and MP3 players.
- Intuitive Menu Navigation: Optimized menu for user-friendly operation.
- Vestavěný reproduktor a konektor pro sluchátka: For convenient playback directly from the device.
2.2 EVISTR Table Lamp LT8286
The EVISTR LT8286 is a versatile table lamp that combines illumination with convenient charging capabilities. Key features include:
- Stmívatelné osvětlení: Provides adjustable brightness for various needs.
- Integrovaná nabíjecí stanice: Equipped with 2 USB ports and 2 AC outlets.
- Phone Slots: Convenient slots for holding mobile devices while charging.
- Moderní design: Ideal for bedside tables, desks, living rooms, and dorms.
3. Průvodce nastavením
3.1 Voice Recorder L157 Initial Setup
- Nabíjení: Connect the recorder to a USB power source (computer or wall adapter) using the provided USB cable. The battery indicator on the screen will show charging status.
- Zapnutí/vypnutí: Slide the power switch to the 'ON' position to turn on the device. To turn off, slide it to 'OFF'.
- Nastavení data a času: Upon first use or after a full discharge, you may need to set the date and time via the device's menu for accurate timestamppořizování nahrávek.
3.2 Tabulka Lamp LT8286 Assembly
Follow these steps to assemble your EVISTR Table Lamp LT8286:
- Rozbalte komponenty: Carefully remove all parts from the packaging: lamp base with charging station, lamp stínítko a žárovka.
- Připojit Lamp Shade Frame: If the shade is separate, attach its frame to the lamp's central rod.
- Bezpečný Lamp Odstín: Umístěte lamp shade onto the frame and secure it with the provided ring or fastener.
- Instalace žárovky: Screw the included LED bulb into the lamp socket until it is firmly seated.
- Připojení k napájení: Zapojte lamp's power cord into a standard AC wall outlet.
4. Návod k obsluze
4.1 Using the Voice Recorder L157
The L157 recorder is designed for straightforward operation:
- Záznam: Stiskněte tlačítko REC button to start recording. The recording indicator will light up.
- Ukládání: Stiskněte tlačítko ZASTÁVKA button to end and save the current recording.
- Přehrávání: In stop mode, select a file pomocí navigačních tlačítek a stiskněte HRÁT tlačítko pro poslech.
- Hlasově aktivované nahrávání (VOR): Enable VOR through the menu settings. The recorder will automatically start recording when sound is detected and pause during silence, conserving memory.
- Připojení k počítači: Connect the recorder to your computer via USB. It will appear as a removable disk, allowing you to transfer, delete, or manage recorded files.
4.2 Using the Table Lamp LT8286
The LT8286 lamp offers both illumination and charging convenience:
- Řízení výkonu: Use the rotary switch on the lamp base to turn the light on/off and adjust brightness.

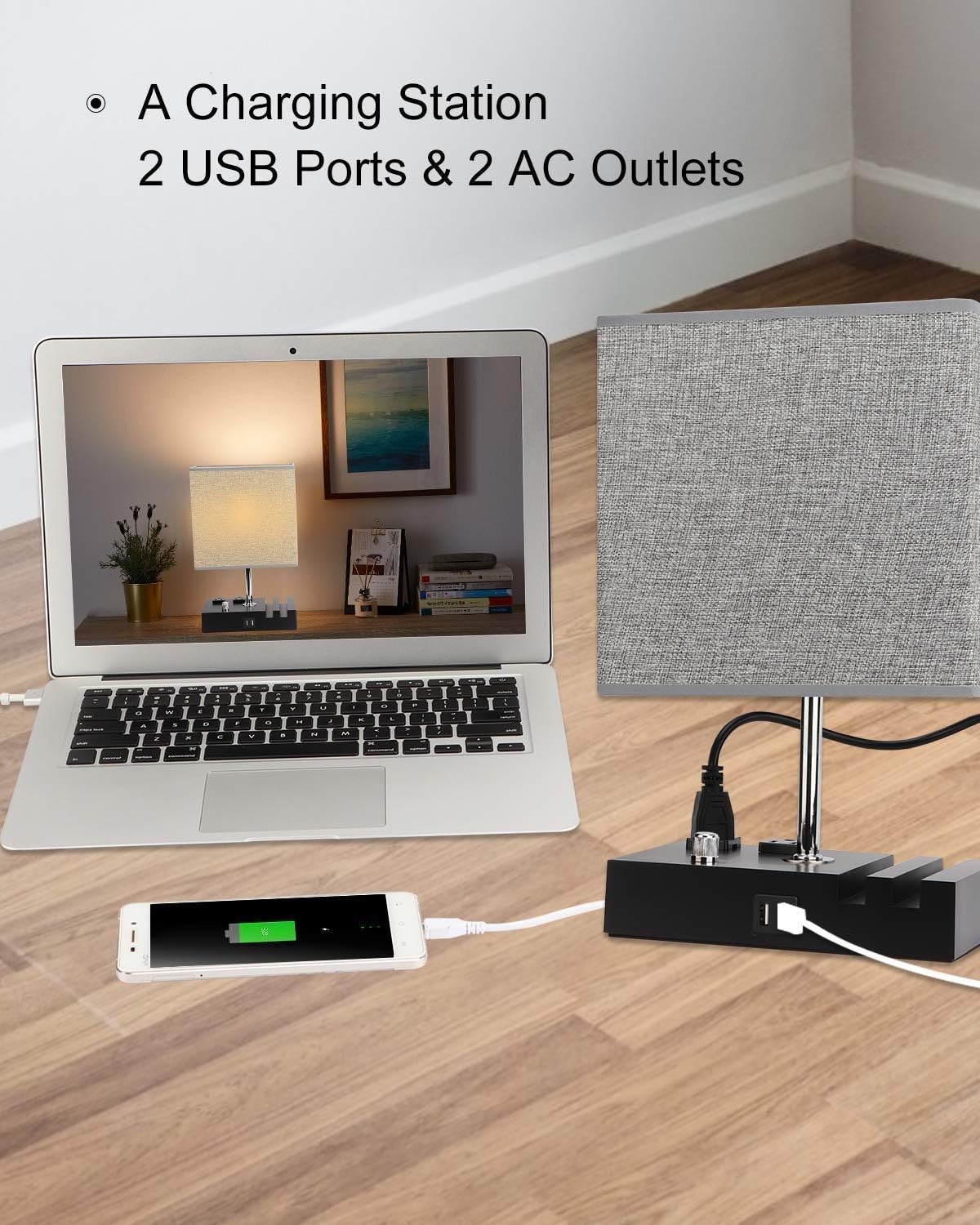

- USB nabíjecí porty: Plug your USB charging cables into the two USB ports on the lamp base to charge smartphones, tablets, and other USB-powered devices.
- AC zásuvky: Utilize the two standard AC outlets on the lamp base to power or charge larger electronics.
5. Údržba
Proper maintenance ensures the longevity and performance of your EVISTR products:
- Čištění: Use a soft, dry cloth to clean the surfaces of both the voice recorder and the lamp. Avoid abrasive cleaners or solvents.
- Skladování: Store both devices in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Care (Recorder): For optimal battery life, avoid fully discharging the recorder frequently. Charge it regularly, even if not in constant use.
- Bulb Replacement (Lamp): Ujistěte se, že lamp is unplugged before replacing the light bulb. Use an LED bulb of appropriate wattage and base type (E26/E27 standard base).
6. Řešení problémů
If you encounter issues with your EVISTR products, refer to the table below for common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Hlasový záznamník: Zařízení se nezapne. | Slabá baterie; Vypnuto. | Nabijte zařízení; Ujistěte se, že je vypínač v poloze „ON“. |
| Hlasový záznamník: Špatná kvalita záznamu. | Microphone obstructed; Too far from sound source; Low battery. | Ensure microphone is clear; Move closer to sound source; Charge battery. |
| Hlasový záznamník: Nelze přenést filek počítači. | Faulty USB cable; Incorrect connection. | Try a different USB cable; Ensure recorder is properly connected and recognized as a removable disk. |
| Stůl Lamp: Světlo se nerozsvítí. | Lamp unplugged; Bulb loose or faulty; Switch off. | Check power connection; Tighten or replace bulb; Turn rotary switch to 'ON'. |
| Stůl Lamp: USB porty nebo síťové zásuvky nefungují. | Lamp not plugged in; Overload. | Zajistěte lamp is plugged into a live outlet; Reduce number of connected devices to avoid overload. |
7. Specifikace
7.1 EVISTR Digital Voice Recorder L157 Specifications
- Úložná kapacita paměti: 16 GB
- Formát záznamu: Audio MP3, WAV
- Tvarový faktor mikrofonu: Vestavěný
- Jack pro sluchátka: 3.5 milimetru

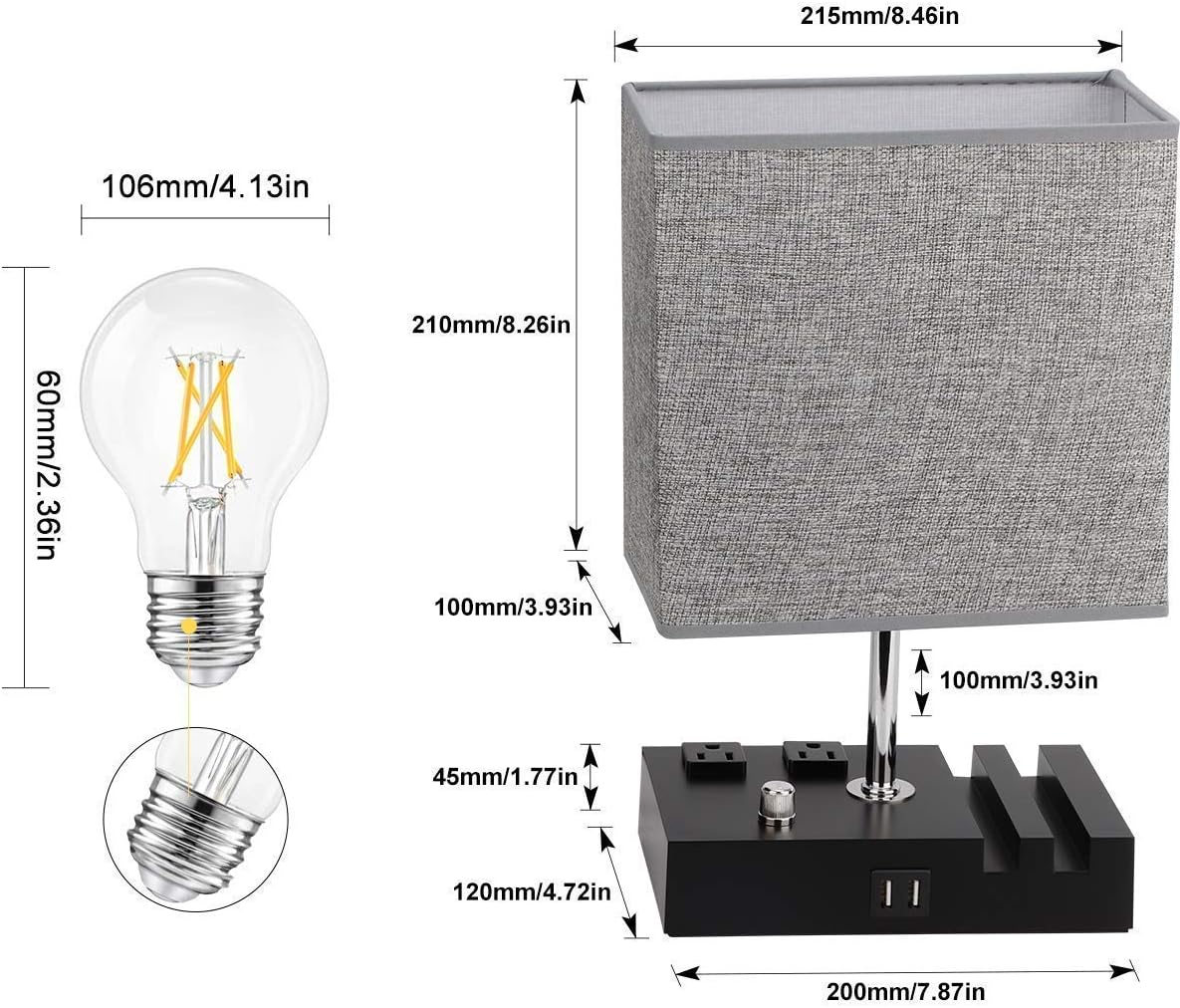

7.2 EVISTR Table Lamp LT8286 Specifications
- Rozměry (Lamp Shade): 215 mm (8.46 palce) x 210 mm (8.26 palce)
- Rozměry (základna): 200 mm (7.87 palců) x 120 mm (4.72 palce) x 45 mm (1.77 palce)
- USB porty: 2 (for charging devices)
- AC zásuvky: 2 (for powering devices)
- Typ žárovky: E26/E27 Standard Base (LED bulb included)
8. Záruka a podpora
EVISTR products are designed for reliability and performance. This bundle is covered by an Záruka 18 měsíců od data nákupu, která se vztahuje na výrobní vady a vady zpracování.
For technical support, troubleshooting assistance, or warranty claims, please visit the official EVISTR website or contact their customer service through the contact information provided with your purchase. Please have your product model numbers (L157, LT8286) and purchase details ready when contacting support.
