The Coast Polysteel 700 LED Flashlight is engineered for durability and versatility, featuring a robust stainless-steel core and a stormproof polyethylene exterior. It offers two distinct lighting sources: a main Pure Beam optic with Twist Focus technology and a side-mounted C.O.B. (Chip On Board) area light. Designed to withstand harsh conditions, this flashlight is crushproof, drop-proof, and dust resistant, making it an ideal tool for various demanding environments.

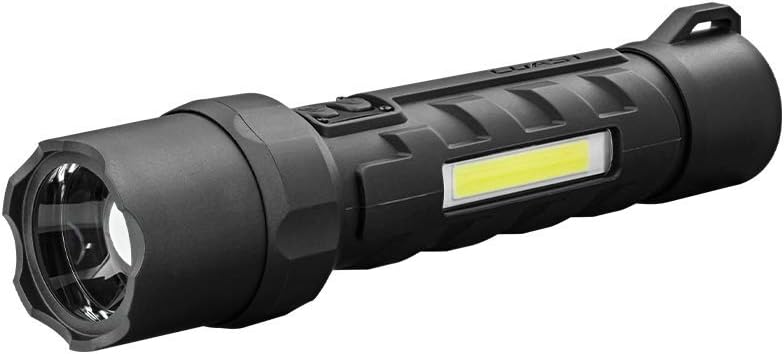

Image: The Coast Polysteel 700 LED Flashlight, showcasinjeho robustní černá casing and integrated C.O.B. light panel.
Nastavení
Instalace baterie
The Polysteel 700 flashlight operates on a dual-power system, allowing the use of either standard alkaline batteries or a Coast ZITHION-X rechargeable lithium-ion battery (sold separately). Four AA COAST Extreme Performance Batteries are included with the product for immediate use.
Image: Diagram illustrating the dual power capability, showing icons for alkaline and rechargeable battery options.
To install or replace batteries, unscrew the tail cap of the flashlight. Insert the batteries according to the polarity indicators inside the battery compartment. Securely reattach the tail cap.

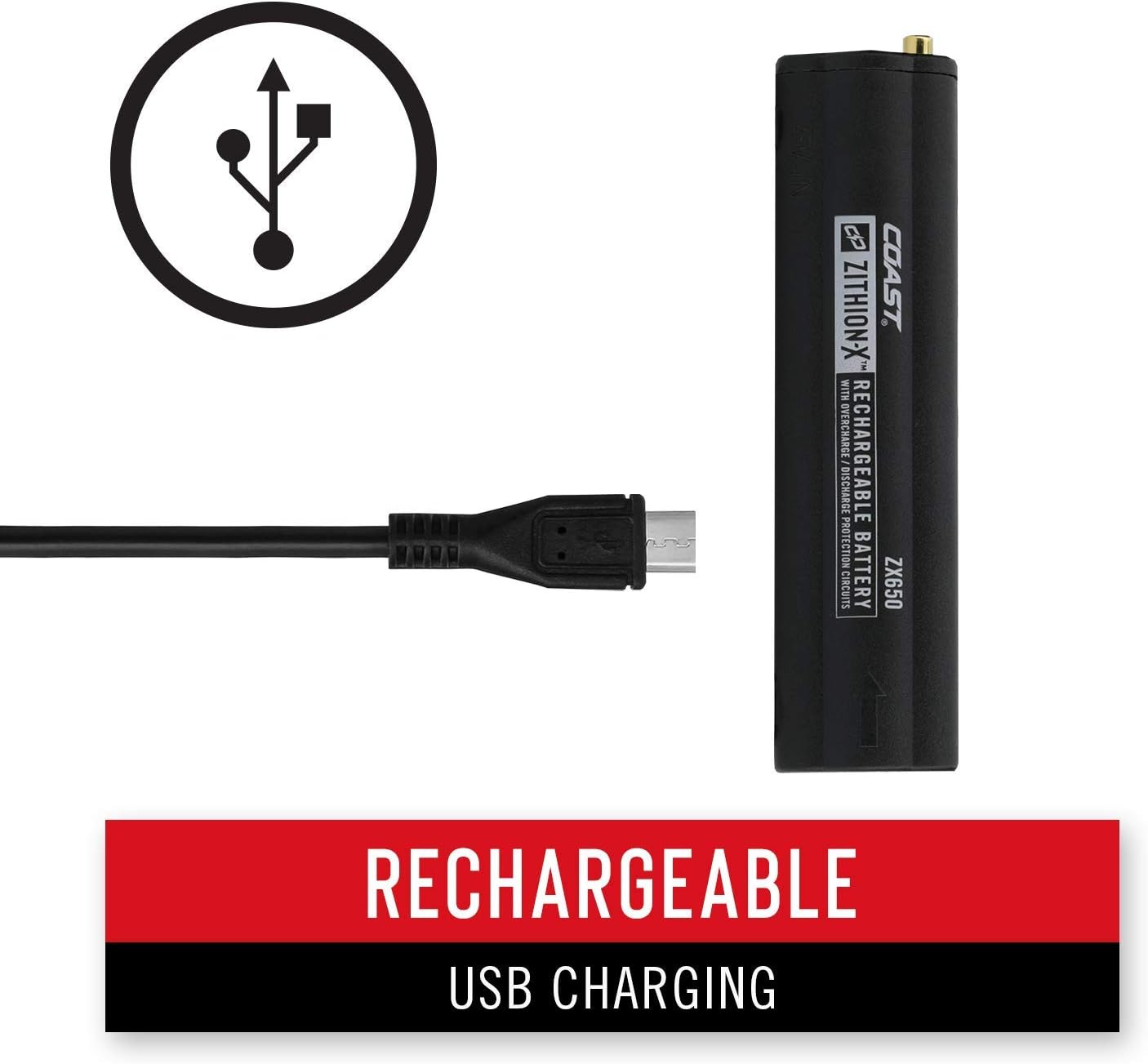

Charging (for ZITHION-X Rechargeable Battery)
If using the optional ZITHION-X rechargeable battery, it must be removed from the flashlight for charging. Connect the battery to a compatible USB charging cable. Ensure the battery is fully charged before first use for optimal performance.

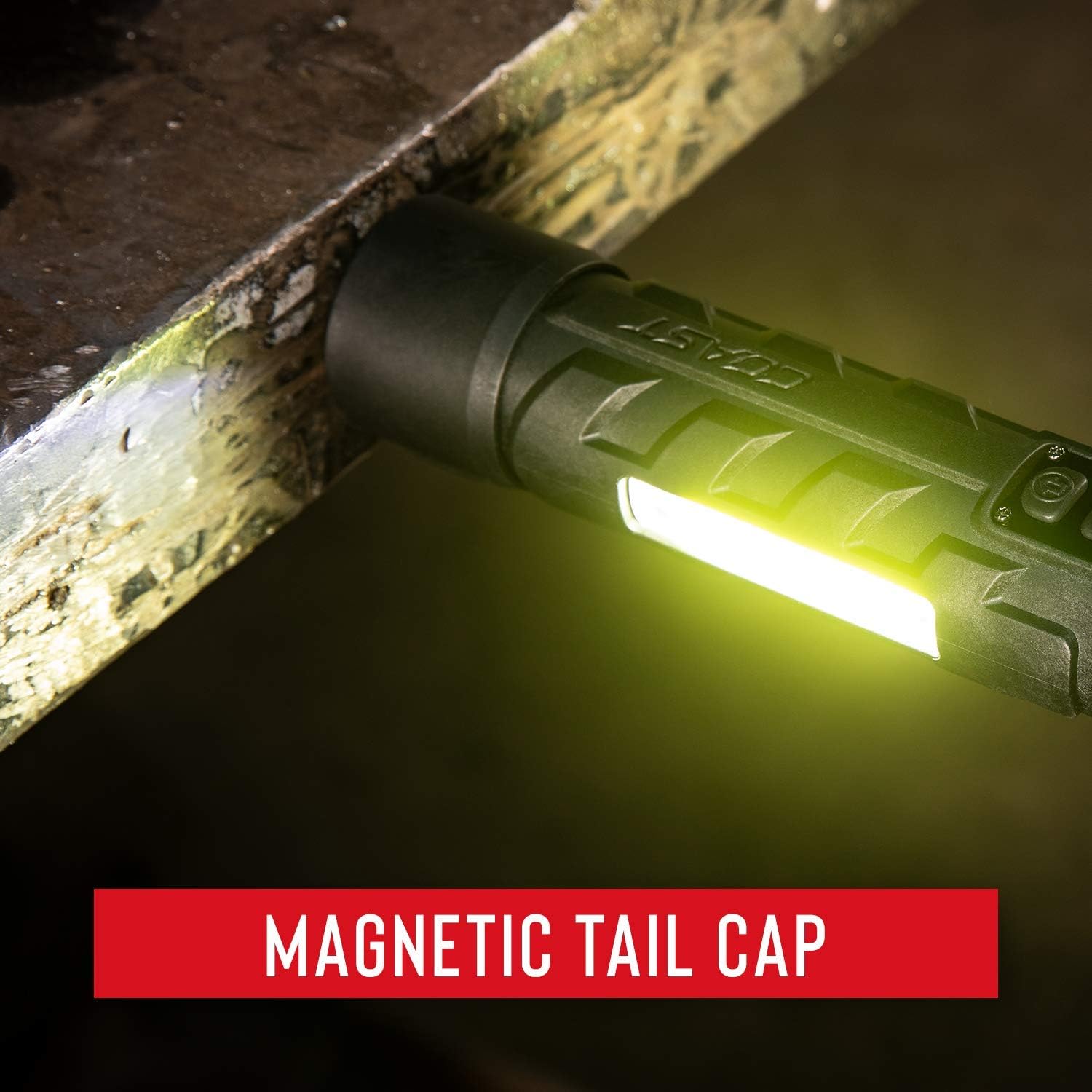

Image: A close-up of the flashlight's magnetic tail cap, demonstrating its ability to attach to metallic surfaces for hands-free operation.
Návod k obsluze
The Coast Polysteel 700 features a dual switch system for independent control of the main beam and the C.O.B. area light.
Image: A red arrow pointing to the dual switch system on the flashlight's body, indicating separate controls for different light functions.
Main Beam Operation (Pure Beam & Twist Focus)
The main beam utilizes COAST's patented TWIST FOCUS™ technology, allowing seamless transition between an Ultra View Flood Beam and a BULLS-EYE™ Spot Beam. To adjust the beam, simply twist the head of the flashlight.
Image: The flashlight head with a red arrow indicating the twisting motion for focus adjustment.
Obrázek: Rozdělení view demonstrating the wide, even illumination of the Ultra View Flood Beam.
Obrázek: Rozdělení view demonstrating the concentrated, long-distance illumination of the BULLS-EYE Spot Beam.
C.O.B. Area Light Operation
The C.O.B. LED array is located on the side of the flashlight and offers three distinct modes: white, red, and red flashing. This light is ideal for task lighting or emergency signaling, especially when combined with the magnetic tail cap for hands-free use.
Image: Close-up of the C.O.B. light panel, indicating its white, red, and flashing red light modes.
Specifikace výkonu
- Světelný výkon: 800 lumens (High), 115 lumens (Low)
- Beam Vzdálenost: 240 meters (High), 90 meters (Low)
- Doba běhu: 4 hours (High), 45 hours (Low)
Image: Graphic displaying the flashlight's performance metrics: 800 lumens output and 240 meters beam distance on high mode.
Image: The flashlight being used in rainy conditions, highlighting its stormproof polymer body.
Údržba
Čištění
The Polysteel 700 is designed to be dust resistant and has an IPX4 rating for water resistance, protecting against splashes and sprays. To clean the flashlight, wipe its exterior with a damp cloth. Avoid submerging the flashlight in water or using harsh chemical cleaners.
Péče o baterie
For optimal performance and to prevent damage, replace alkaline batteries when they are depleted. If using rechargeable batteries, ensure they are charged regularly. Remove batteries if the flashlight will not be used for an extended period to prevent leakage.
Odstraňování problémů
Svítilna se nezapne
- Check battery orientation: Ensure batteries are inserted correctly according to polarity (+/-) markings.
- Replace batteries: If using alkaline batteries, try new ones. If using a rechargeable battery, ensure it is fully charged.
- Clean contacts: Inspect battery contacts for dirt or corrosion. Gently clean with a cotton swab and rubbing alcohol if necessary.
- Ensure tail cap is fully tightened: A loose tail cap can prevent electrical contact.
Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | 30300 |
| Světelný výkon (vysoký) | 800 XNUMX lumenů |
| Světelný výkon (nízký) | 115 XNUMX lumenů |
| Dosah paprsku (vysoký) | 240 metrů |
| Dosah paprsku (nízký) | 90 metrů |
| Doba běhu (vysoká) | 4 hodiny |
| Doba běhu (nízká) | 45 hodiny |
| Zdroj napájení | Battery Powered (4 x AA Alkaline included, ZITHION-X rechargeable compatible) |
| Materiál | Polyethylene exterior, Stainless-Steel core |
| Rozměry produktu | 2"H x 2"Š x 7.9"V |
| Hmotnost položky | 14.9 unce |
| Úroveň odolnosti proti vodě | IPX4 (Stormproof) |
| Trvanlivost | Crushproof, Drop-proof (1-meter), Dust Resistant |
| Speciální funkce | Pure Beam Focusing, C.O.B. Area Light (White, Red, Red Flashing), Magnetic Tailcap, Dual Switch System |
Záruka a podpora
Informace o záruce
Coast products, including this flashlight, are backed by a lifetime warranty against defects in materials and workmanship for the original purchaser. This warranty does not cover normal wear and tear, nor damage resulting from misuse or neglect. Please note that batteries and charging accessories, or damage caused by them (e.g., leakage), are not covered under this guarantee.
Zákaznická podpora
For further assistance, technical support, or warranty claims, please visit the official Coast webnebo se obraťte na jejich oddělení zákaznických služeb. Konkrétní kontaktní údaje naleznete na obalu produktu nebo navštivte www.coastportland.com pro více informací.
