1. Úvod
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Olucia Dico IP65 White Recessed Veranda Spotlights. Please read this manual thoroughly before installation and retain it for future reference. These spotlights are designed for both indoor and outdoor use, including bathrooms, thanks to their IP65 rating.
2. Bezpečnostní pokyny
- Elektrická bezpečnost: Installation must be performed by a qualified electrician or competent person in accordance with local electrical codes and regulations. Always disconnect power at the main circuit breaker before installation or maintenance.
- svtage: Zajistěte napájení objtage odpovídá požadavkům uvedeným na štítku výrobku.
- Stupeň krytí IP65: The IP65 rating indicates protection against dust ingress and low-pressure water jets from any direction. While suitable for wet locations, avoid submerging the product in water.
- Teplo: Do not cover the spotlights with insulating material unless specifically designed for it. Ensure adequate ventilation around the fixtures.
- Poškození: Do not operate the product if any part is damaged. Contact customer support for replacement parts.
- Čištění: K čištění používejte měkký, suchý hadřík. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
3. Obsah balení
Před zahájením instalace ověřte, zda jsou všechny komponenty přítomny:
- Recessed Spotlights (Quantity: 8)
- Napájecí jednotka
- Connection Set (Splitter/Hub)
- Dálkové ovládání
- Uživatelská příručka (tento dokument)

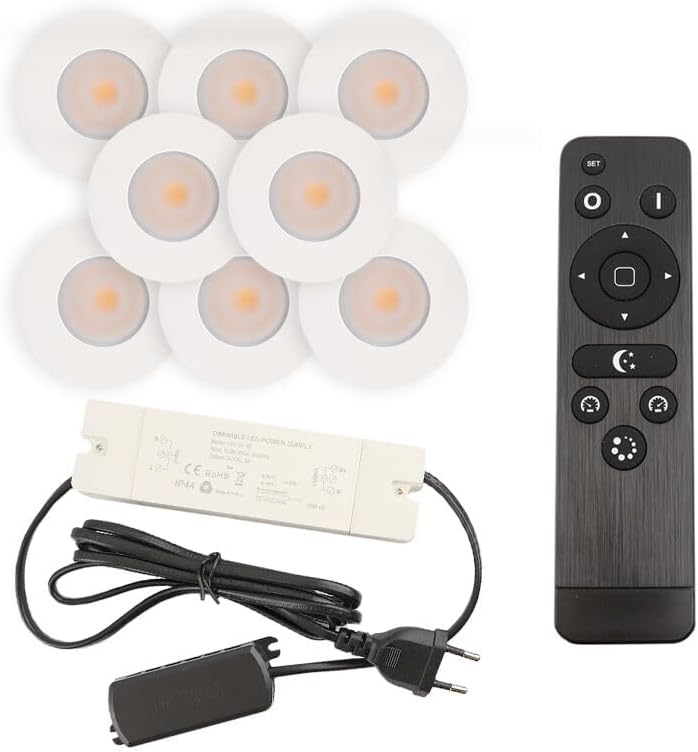

Obrázek 3.1: Nadview of the Olucia Dico IP65 spotlight set, including eight white recessed spotlights, a power supply unit, a connection hub, and a remote control.
4. Nastavení a instalace
Pro správnou instalaci postupujte podle těchto kroků. Před zahájením instalace se ujistěte, že je odpojeno napájení.
4.1 Příprava oblasti instalace
- Vyberte umístění: Select appropriate locations for each spotlight, ensuring sufficient space behind the mounting surface for the fixture and wiring.
- Vrtací otvory: Drill mounting holes of the specified diameter (refer to specifications for exact dimensions, typically around 30-32mm for a 36mm outer diameter spotlight) in the ceiling or veranda structure.

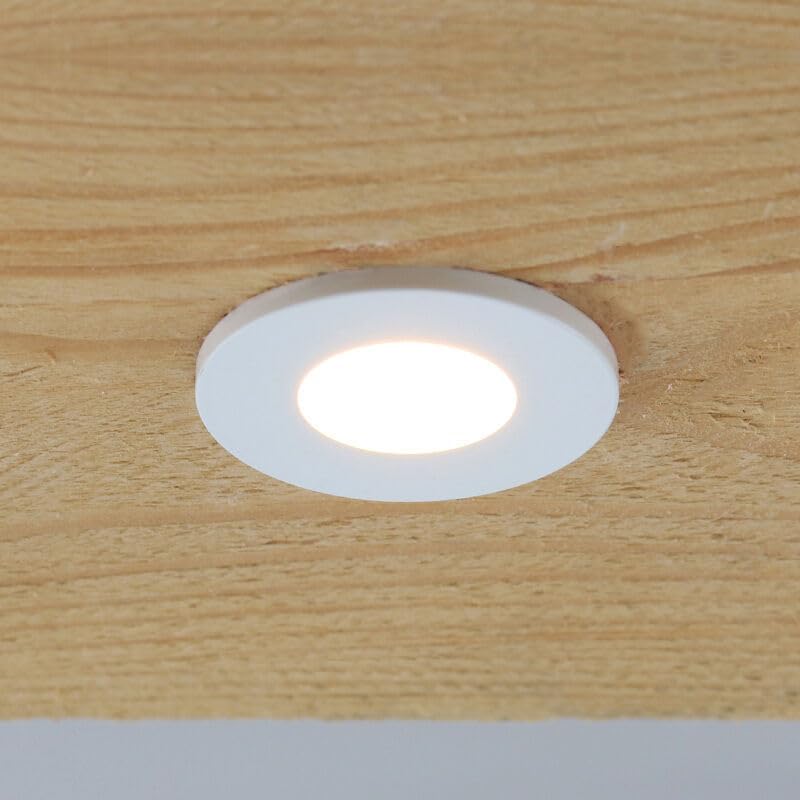

Obrázek 4.1: An Olucia Dico spotlight seamlessly integrated into a wooden ceiling panel, demonstrating a typical installed appearance.
Obrázek 4.2: Detailní view of a single Olucia Dico recessed spotlight, highlighting its round, white design and integrated light source.
4.2 Zapojení a připojení
- Connect Spotlights to Hub: Each spotlight has a small connector. Plug these connectors into the corresponding ports on the connection hub. Ensure a secure fit.
- Connect Hub to Power Supply: Connect the output cable from the connection hub to the input cable of the power supply unit.
- Connect Power Supply to Mains: Zapojte napájecí zdroj do standardní elektrické zásuvky.
Obrázek 4.3: The power supply unit and the multi-port connection hub, illustrating how the individual spotlights are connected to the main power source.
4.3 Installing the Spotlights
- Vložit reflektory: Gently push each spotlight into its drilled hole. The spring clips on the sides of the spotlight will hold it securely in place.

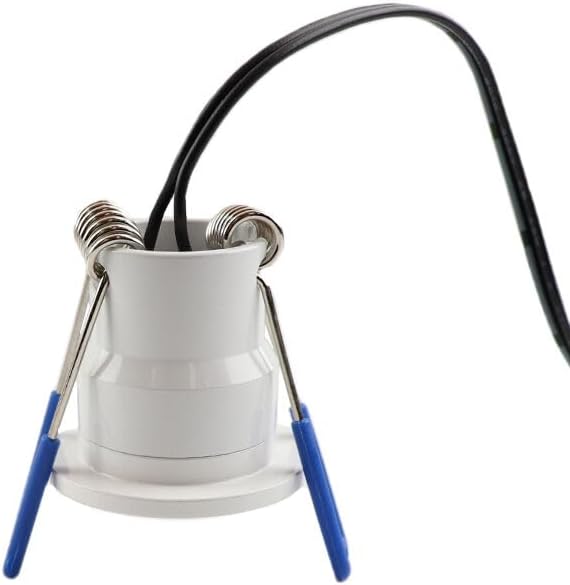

Obrázek 4.4: The back of an Olucia Dico spotlight, clearly showing the spring-loaded clips used for secure recessed installation.
Once all spotlights are installed and connected, restore power at the main circuit breaker.
5. Návod k obsluze
The Olucia Dico spotlights are controlled using the included remote control.
5.1 Funkce dálkového ovládání
Obrázek 5.1: The remote control for the Olucia Dico spotlights, showing its various buttons and the battery compartment on the reverse side.
- Tlačítko SET: Used for pairing the remote with the spotlights (if not pre-paired) or for advanced settings. Refer to specific pairing instructions if lights do not respond.
- O (On) Button: Turns the spotlights ON.
- I (Off) Button: Turns the spotlights OFF.
- Šipky (nahoru/dolů): Adjust brightness levels. Up increases brightness, Down decreases brightness.
- Tlačítka se šipkami (doleva/doprava): Adjust color temperature (if applicable, for models with tunable white light) or cycle through preset modes.
- Crescent Moon Button: Activates a low-light/night mode setting.
- Clock Buttons: May function as timer settings (e.g., 30 min, 60 min auto-off).
- Starburst/Mode Button: Cycles through different lighting scenes or effects.
Instalace baterie: The remote control requires AAA batteries. Open the battery compartment on the back of the remote and insert batteries according to the polarity markings.
6. Údržba
- Čištění: Ensure the power is off before cleaning. Wipe the spotlights with a soft, slightly damp tkanina. Nepoužívejte agresivní chemikálie nebo abrazivní materiály.
- Inspekce: Periodically inspect the wiring and fixtures for any signs of damage or wear. If damage is found, disconnect power and contact a qualified electrician or customer support.
- Životnost LED: The integrated LED light sources are designed for long life and are not user-replaceable.
7. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Světla se nerozsvítí. | No power supply; remote control batteries depleted; remote not paired; loose connection. | Check main power switch/circuit breaker. Replace remote batteries. Re-pair remote (refer to SET button instructions). Check all wiring connections. |
| Světla nečekaně blikají nebo ztlumují. | Unstable power supply; faulty connection; remote interference. | Ensure stable power. Check connections. Try operating from closer distance or away from other wireless devices. |
| Dálkové ovládání nereaguje. | Batteries depleted; remote not paired; obstruction between remote and receiver. | Replace batteries. Re-pair remote. Ensure clear line of sight to the receiver (usually integrated into the power supply or hub). |
8. Technické specifikace
| Funkce | Detail |
|---|---|
| Značka | Olucia |
| Číslo modelu | SRC80000000C045 |
| Product Dimensions (per spotlight) | 1 x 3.6 x 3.5 cm (10L x 36B x 35H millimeter) |
| Hodnocení ochrany proti vniknutí (IP). | IP65 (Dust tight, protected against low-pressure water jets) |
| Barva | Bílý |
| Tvar | Kolo |
| Počet položek | 8 spotlights per set |
| Výrobce | Olucia |
9. Informace o záruce
Olucia products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your purchase or visit the official Olucia webUschovejte si doklad o koupi pro případ reklamace.
10. Zákaznická podpora
If you encounter any issues or have questions regarding your Olucia Dico spotlights, please contact Olucia customer support through their official website or the retailer where the product was purchased. Please have your model number (SRC80000000C045) and proof of purchase ready when contacting support.
