PAC RPK4-CH4103 Integrated Installation Kit User Manual

1. Úvod

This manual provides detailed instructions for the installation, operation, and maintenance of the PAC RPK4-CH4103 Integrated Installation Kit. This kit is designed to facilitate the replacement of the factory radio in select Jeep Grand Cherokee vehicles (2014-2020) while retaining essential factory features, including steering wheel controls, climate controls, and other vehicle settings.

Please read this manual thoroughly before beginning installation to ensure proper functionality and to avoid damage to your vehicle or the product.

2. Bezpečnostní informace

• Always disconnect the vehicle's negative battery terminal before starting any electrical work to prevent short circuits and damage.
• Ujistěte se, že všechna připojení jsou bezpečná a řádně izolovaná, abyste předešli nebezpečí úrazu elektrickým proudem.
• Refer to your vehicle's service manual for specific dashboard disassembly and reassembly procedures.
• If you are unsure about any part of the installation process, seek assistance from a qualified automotive technician.
• Do not modify the wiring harnesses or components unless explicitly instructed.
• Keep all small parts and tools away from children.

3. Obsah balení

Ověřte, zda jsou v balení přítomny všechny níže uvedené komponenty:

• Integrated Dash Kit with Climate Controls
• Radio Replacement Interface Module (RPK4-CH4103)
• Vehicle Specific Wiring Harnesses
• Anténní adaptér
• USB retenční svazek
• Auxiliary Input Retention Harness
• Montážní držáky
• Instalační hardware

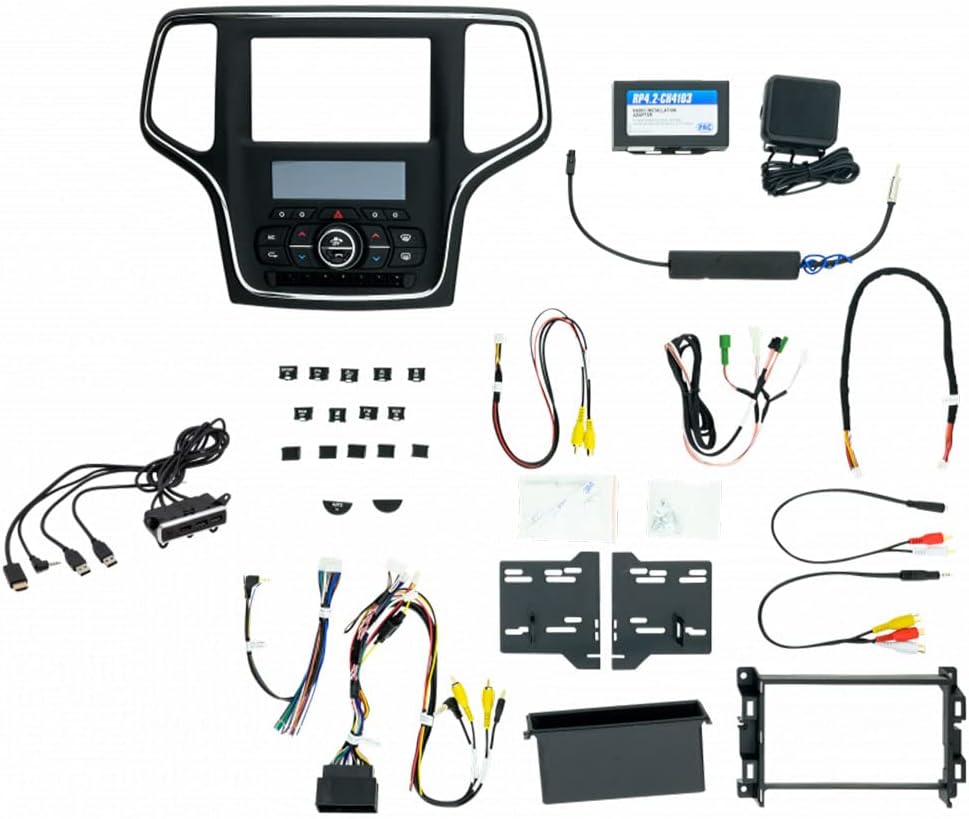

Obrázek 3.1: Nadview of all components included in the PAC RPK4-CH4103 Integrated Installation Kit.

4. Nastavení a instalace

This section outlines the general steps for installing the PAC RPK4-CH4103 kit. Specific vehicle disassembly instructions are not covered here and should be referenced from your vehicle's service manual.

4.1. Kroky před instalací

1. Odpojit baterii: Odpojte záporný pól baterie vozidla.
2. Odstranění továrního rádia: Carefully remove the factory radio and associated trim panels. Store all removed parts safely.
3. Identify Factory Connections: Note the existing wiring harnesses connected to the factory radio.

4.2. Sestavení soupravy

4. Prepare New Radio: Attach the provided mounting brackets to your new aftermarket radio.
5. Connect Wiring Harnesses: Connect the vehicle-specific wiring harnesses from the PAC kit to your aftermarket radio's harness. Ensure all connections are secure. This may involve soldering or crimping connections.
6. Connect Interface Module: Plug the main wiring harness into the PAC RPK4-CH4103 interface module.
7. Connect Antenna Adapter: Connect the antenna adapter to the vehicle's antenna cable and then to your new radio.
8. Connect USB/Aux Retention: If applicable, connect the USB and auxiliary input retention harnesses to maintain factory USB/Aux ports.

4.3. Dash Kit Integration

9. Install Radio into Dash Kit: Secure your aftermarket radio (with attached brackets) into the new integrated dash kit.
10. Connect Dash Kit Controls: Connect the wiring from the integrated climate controls on the new dash kit to the main PAC interface harness.
11. Test připojení: Before fully reassembling the dashboard, temporarily connect the vehicle's battery and test the functionality of the new radio, steering wheel controls, and climate controls. Address any issues before proceeding.

Obrázek 4.1: The integrated dash kit featuring climate controls, designed to seamlessly replace the factory panel.

Obrázek 4.2: Example of the PAC RPK4-CH4103 kit installed in a Jeep Grand Cherokee, showing the aftermarket radio and integrated controls.

12. Konečná montáž: Once all functions are verified, carefully reassemble the dashboard trim panels.
13. Znovu připojte baterii: Znovu připojte záporný pól baterie.

5. Návod k obsluze

The PAC RPK4-CH4103 kit is designed to retain and integrate your vehicle's factory features with your new aftermarket radio. The primary operational aspects will involve the integrated climate controls and steering wheel controls.

5.1. Climate Controls

The integrated dash kit includes physical buttons and a display for controlling your vehicle's heating, ventilation, and air conditioning (HVAC) system. These controls function identically to your factory controls.

• Nastavení teploty: Use the temperature control knob or buttons to set the desired cabin temperature.
• Rychlost ventilátoru: Adjust the fan speed using the dedicated fan control buttons.
• Výběr režimu: Select airflow modes (e.g., face, feet, defrost) using the mode buttons.
• A/C and Recirculation: Activate or deactivate the air conditioning and air recirculation functions with their respective buttons.

5.2. Ovládací prvky na volantu (SWC)

The kit retains the functionality of your factory steering wheel controls, allowing you to manage your aftermarket radio without taking your hands off the wheel. Functions typically include:

• Zvýšení/snížení hlasitosti
• Track Up/Down
• Výběr režimu/zdroje
• Answer/End Call (if supported by your aftermarket radio)

Refer to your aftermarket radio's manual for specific programming or customization options for steering wheel controls.

5.3. Retained Factory Features

The RPK4-CH4103 kit is designed to retain various factory features, which may include:

• Factory Reverse Camera (if applicable)
• Heated Steering Wheel Controls
• Air Suspension Controls
• Továrna Amplifier Integration
• Vehicle Settings Menu (accessed via the new radio display)

Access to these features will typically be through the integrated climate control panel or a dedicated menu on your aftermarket radio's display, as configured by the PAC interface.

6. Údržba

The PAC RPK4-CH4103 kit requires minimal maintenance. Follow these guidelines to ensure longevity:

• Čištění: Use a soft, dry cloth to clean the dash kit and climate control panel. Avoid abrasive cleaners or solvents.
• Aktualizace firmwaru: Pravidelně kontrolujte PAC website for any available firmware updates for the RPK4-CH4103 interface module. Updates can improve performance and compatibility.
• Podmínky prostředí: Avoid exposing the unit to extreme temperatures or excessive moisture.

7. Řešení problémů

If you encounter issues with your PAC RPK4-CH4103 kit, refer to the following common problems and solutions:

7.1. No Power to Aftermarket Radio

• Zkontrolujte připojení baterie: Ensure the vehicle's battery is properly reconnected.
• Zkontrolujte pojistky: Verify that the vehicle's fuses and any inline fuses for the aftermarket radio are intact.
• Připojení kabeláže: Double-check all power and ground connections between the PAC harness and the aftermarket radio.

7.2. Climate Controls Not Functioning

• Připojení kabeláže: Ensure the climate control harness from the dash kit is securely connected to the PAC interface module.
• Napájení modulu: Verify the PAC interface module is receiving power.
• Kompatibilita vozidla: Confirm the kit is compatible with your specific Jeep Grand Cherokee model year and trim.

7.3. Ovládací prvky na volantu nefungují

• Připojení SWC: Ensure the steering wheel control wire from the PAC harness is correctly connected to the aftermarket radio's SWC input.
• Programování rádia: Many aftermarket radios require programming or learning of steering wheel controls. Refer to your radio's manual.
• PAC Module Configuration: The PAC module may require specific configuration for your radio. Consult the detailed PAC installation guide.

7.4. Žádný zvuk

• Připojení reproduktorů: Check all speaker wire connections from the PAC harness to the aftermarket radio.
• AmpZapnutí zařízení Liferier: Pokud má vaše vozidlo továrnu ampzáchranář, zajistěte, aby amplifier turn-on wire from the PAC harness is connected to the aftermarket radio's remote turn-on output.
• Nastavení rádia: Verify the aftermarket radio's audio settings are correctly configured.

8. Specifikace

9. Záruka a podpora

Informace o záruce a technickou podporu naleznete v oficiálním PAC webnebo se obraťte přímo na jejich zákaznický servis. Uschovejte si doklad o koupi pro případ reklamace.

PAC Webmísto: www.pac-audio.com

For specific product inquiries or installation assistance, it is recommended to consult a certified automotive electronics installer.
