TecTake Luxury Garden Pavilion User Manual

Důležité bezpečnostní informace

VAROVÁNÍ: This pavilion is designed for sun and light weather protection.It does not offer protection in case of storms, strong winds, heavy rain, or other severe weather conditions.In such circumstances, the pavilion should not be used and must be disassembled or secured to prevent damage or injury. Failure to do so may result in damage to the pavilion or personal injury.

• Always ensure the pavilion is securely anchored to the ground using the provided ground stakes and base feet.
• Regularly check all connections and fasteners to ensure they are tight and secure.
• Nezavěšujte těžké předměty na rám.
• Uchovávejte mimo dosah otevřeného ohně a zdrojů tepla.
• Je nutná montáž dospělých. Během montáže udržujte děti mimo dosah.

Konec produktuview

The TecTake Luxury Garden Pavilion (Model 800793) is designed to enhance your outdoor living space, providing shade and privacy. It features a robust metal frame, a tiered roof for optimal air circulation, and six removable side panels with zipper closures.

Figure 1: Fully assembled TecTake Luxury Garden Pavilion with side panels. The pavilion features a grey canopy and side walls, supported by a dark metal frame. Ground stakes and ropes are visible in the foreground, indicating secure anchoring.

Klíčové vlastnosti:

• Six removable side panels with zipper closure for privacy and weather protection.
• Waterproof and UV-resistant polyester canopy.
• Tiered roof design for improved air circulation and heat dissipation.
• Luxurious design with ornamental decorations on the frame.
• Stable support provided by base feet and ground stakes.

Nastavení a montáž

Assembly of the TecTake Garden Pavilion requires two or more adults. Follow the instructions carefully to ensure proper and safe setup.

Kontrolní seznam komponent:

Before starting assembly, ensure all parts are present and undamaged. Refer to the included parts list in your packaging.

Figure 2: The robust metal frame of the pavilion, showing the main support poles and the upper frame structure with decorative elements. This image highlights the foundational components before the canopy and side panels are attached.

Montážní kroky:

1. Sestava rámu: Begin by assembling the main metal frame according to the diagrams in your instruction manual. Connect all poles securely. Ensure all screws and bolts are tightened.
2. Instalace přístřešku: Carefully drape the main canopy over the assembled frame. Secure it to the frame using the integrated fasteners or ties. Ensure the tiered roof sections are properly aligned for optimal air circulation.


   Obrázek 3: Interiér view looking up at the pavilion's roof structure, showing the metal crossbeams and the underside of the canopy. This illustrates how the fabric is supported by the frame.
3. Upevnění bočního panelu: Attach the six side panels to the frame using the integrated rings and hooks. The panels feature zippers for easy opening and closing.


   Obrázek 4: Detailní view showing the zipper closure on a side panel and the attachment rings that slide onto the pavilion's frame. This highlights the mechanism for securing and opening the side walls.

4. Kotvení: Secure the pavilion to the ground using the provided base feet and ground stakes. For added stability, especially in areas prone to wind, consider using additional weights or anchors (not included).

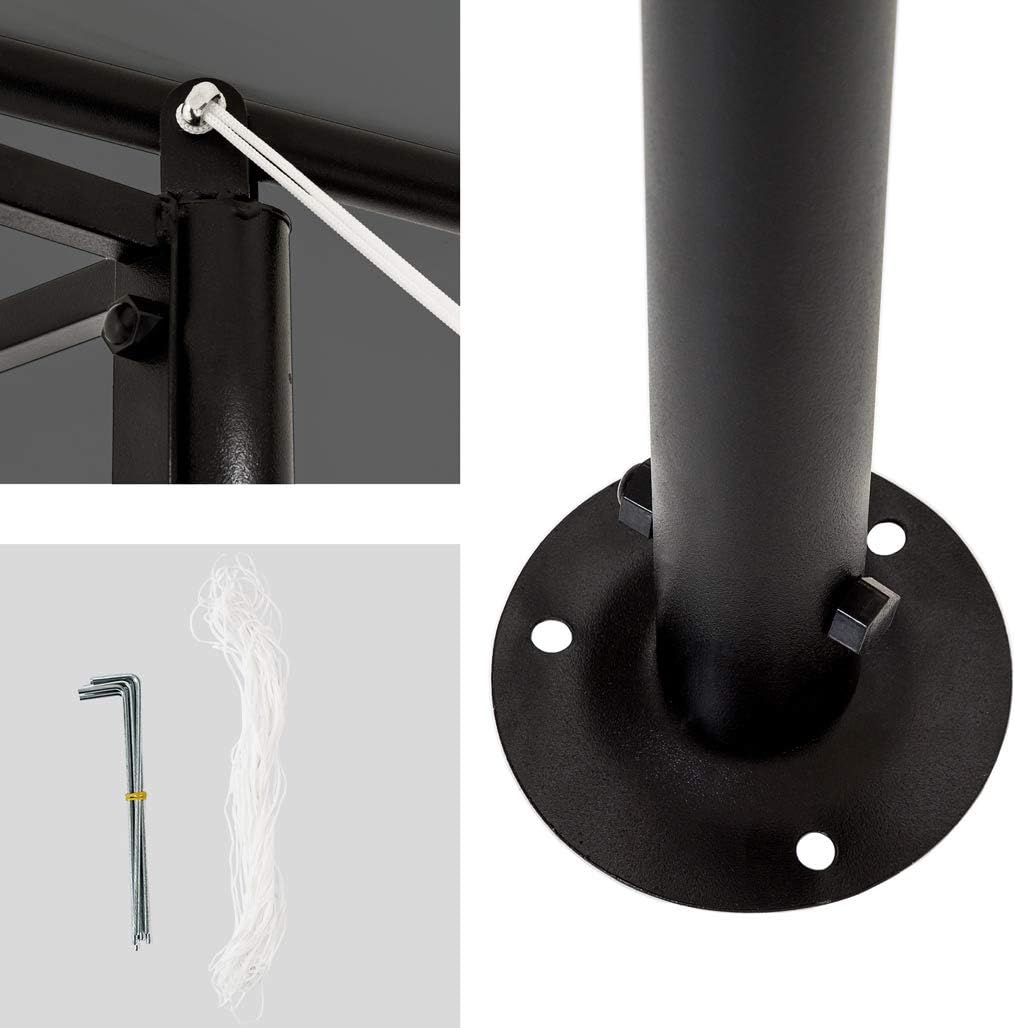

   Figure 5: Close-up of a pavilion base foot, along with the included ground stakes and rope. This illustrates the components used for anchoring the pavilion securely to the ground.

Návod k obsluze

The TecTake Garden Pavilion is designed for flexible use in your outdoor space.

• Boční panely: The six side panels can be easily opened or closed using their integrated zippers. For an open-air feel, the panels can be tied back to the pavilion legs using the attached ties.
• Cirkulace vzduchu: The tiered roof design naturally promotes air circulation, helping to keep the interior cool on warm days.

Figure 6: The garden pavilion shown with its side panels tied back to the support poles, demonstrating an open configuration for increased airflow and accessibility.

Údržba

Proper maintenance will extend the life of your TecTake Garden Pavilion.

• Čištění: Clean the polyester canopy and side panels with a mild soap solution and water. Do not use harsh chemicals or abrasive cleaners. Rinse thoroughly and allow to air dry completely before storage.
• Péče o rám: Otřete kovový rám reklamouamp cloth. If any rust appears, clean it immediately and apply a rust-inhibiting paint to prevent further corrosion.
• Skladování: During periods of non-use, especially in winter or during severe weather forecasts, it is highly recommended to disassemble the pavilion and store it in a dry, protected area. This will prevent damage from extreme weather and prolong the product's lifespan.
• Pravidelná kontrola: Periodically inspect all components, including the frame, canopy, side panels, zippers, and anchoring points, for any signs of wear, damage, or loose connections. Address any issues promptly.

Odstraňování problémů

If you encounter issues with your pavilion, consider the following common solutions:

• Nestabilita: Ensure all frame connections are securely tightened. Verify that the pavilion is properly anchored to the ground using all provided stakes and that the ground is firm.
• Hromadění vody na střeše: While the roof is designed to shed water, heavy rainfall might cause some pooling. Ensure the canopy is tautly installed. In very heavy rain, it is advisable to remove the canopy or disassemble the pavilion.
• Porucha zipu: Ensure zippers are clean and free of debris. Apply a silicone-based lubricant if they are stiff. Avoid forcing stuck zippers.
• Škody způsobené počasím: As stated in the safety section, the pavilion is not designed for severe weather. Damage due to storms, strong winds, or heavy snow is not covered by typical product warranties. Always disassemble or secure the pavilion in anticipation of bad weather.

Specifikace

Figure 7: Technical diagram illustrating the key dimensions of the pavilion, including length (400 cm), width (300 cm), overall height (265 cm), and passage height (187 cm).

Záruka a podpora

For warranty information and customer support, please refer to the documentation provided with your purchase or contact TecTake customer service directly.

Důležitá poznámka: Information regarding the availability of spare parts for this product is currently unavailable. Please contact the manufacturer for any inquiries about replacement parts.

Kontaktní údaje často najdete na oficiálních stránkách výrobce webna webu nebo prostřednictvím vašeho nákupního místa.
