Lepro 65.6ft Dreamcolor LED Strip Lights Instruction Manual

Zavedení

Thank you for choosing Lepro Dreamcolor LED Strip Lights. This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your new LED strip lights. Please read this manual thoroughly before use and retain it for future reference.

Figure 1: Lepro 65.6ft Dreamcolor LED Strip Lights kit components.

Konec produktuview

Obsah balení

• 65.6ft Dreamcolor LED Strip Lights (2 x 32.8ft rolls)
• Dálkové ovládání
• Napájecí adaptér
• Ovládací skříňka
• 6 Mounting brackets/fixing clips
• 6 Šrouby

Klíčové vlastnosti

• Dreamcolor Effect: Displays multiple colors simultaneously on a single strip, creating a rainbow-like effect.
• Synchronizace hudby: Built-in sensitive microphone allows lights to change colors and patterns with music beats.
• Snadná instalace: Features 3M adhesive backing for secure attachment and includes mounting clips for additional support.
• Duální ovládání: Operate the lights using the included 20-key remote control or the 3-button control box.
• Dynamické režimy: Offers a variety of dynamic lighting modes and effects for different ambiance settings.

Figure 2: Dreamcolor LED Strip displaying multiple colors simultaneously.

Nastavení a instalace

Příprava

• Ujistěte se, že povrch pro instalaci je čistý, suchý a hladký.
• Unroll the LED strip lights completely before powering them on to prevent overheating.
• Plan your desired layout to ensure the strip length is sufficient and power connections are accessible.

Kroky instalace

1. Připojení komponent: Connect the LED strip(s) to the control box, and then connect the control box to the power adapter. Ensure all connections are secure.
2. Testovací světla: Before peeling the adhesive, plug in the power adapter to a wall outlet to test if the lights function correctly.
3. Oloupejte a nalepte: Carefully peel off the protective backing from the 3M adhesive tape on the back of the LED strip. Press the strip firmly onto the prepared surface along your desired path.
4. Add Support (Optional but Recommended): For enhanced security and longevity, use the provided mounting brackets and screws. Place clips at regular intervals, especially around corners or areas with less adhesion.
5. Bezpečné zapojení: Ensure all cables are neatly arranged and secured to prevent accidental disconnections or damage.

Důležitá poznámka:

• The LED strip lights are not designed to be cut. Cutting the strip will damage the circuit and render it inoperable.
• This product is rated for pouze pro vnitřní použití and is not water resistant. Avoid exposure to moisture or outdoor elements.

Figure 3: Easy installation steps for the LED strip lights.

Návod k obsluze

Your Lepro Dreamcolor LED Strip Lights can be controlled using either the included 20-key remote control or the 3-button control box.

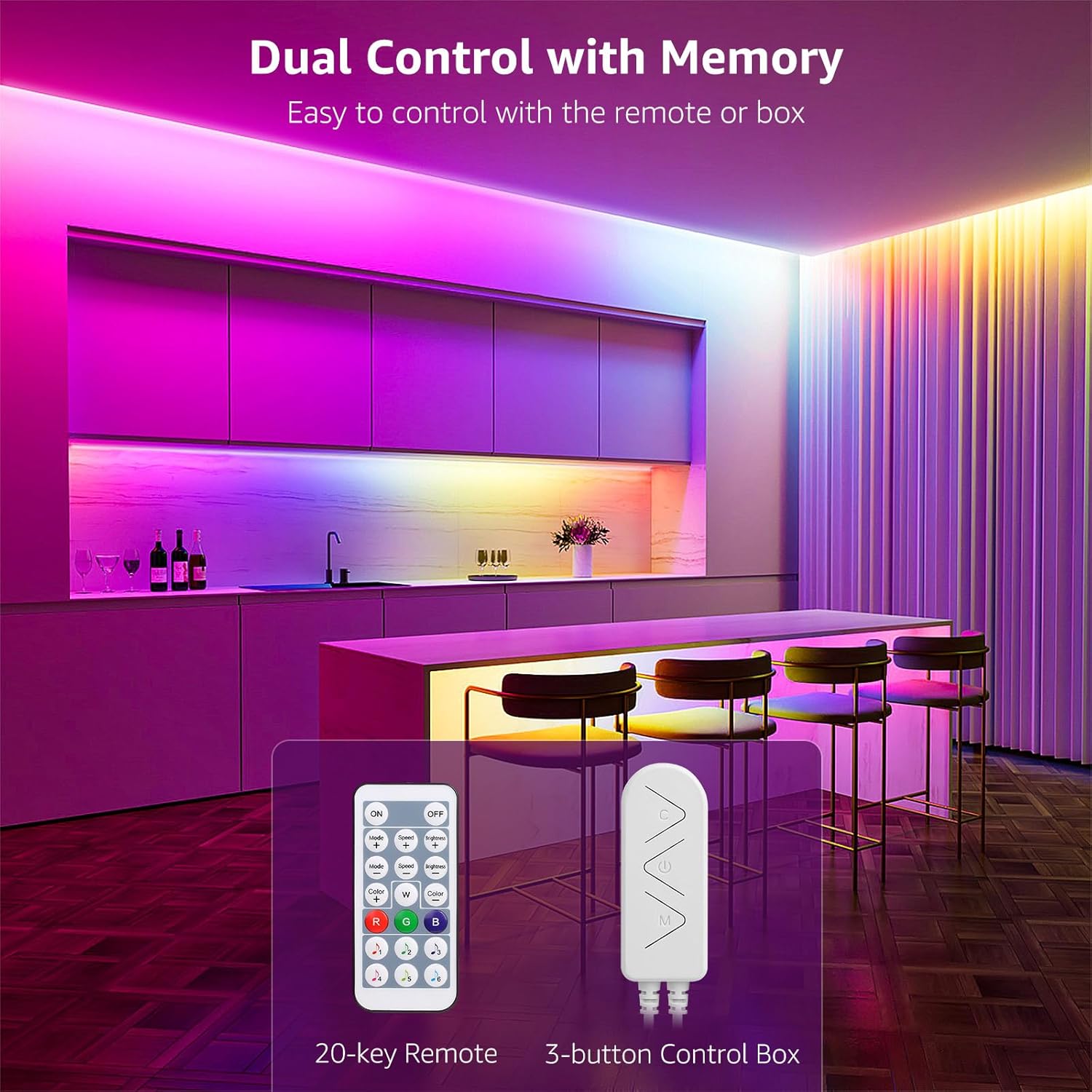

Figure 4: Remote control and 3-button control box.

Provoz dálkového ovládání

Point the remote control directly at the IR receiver on the control box for optimal response.

• ON/OFF: Zapněte nebo vypněte světla.
• R/G/B/W Buttons: Select static Red, Green, Blue, or White colors.
• Tlačítka pro výběr barev: Vyberte si z řady přednastavených statických barev.
• Jas +/-: Adjust the brightness level of the lights.
• Režim +/-: Cycle through various dynamic lighting effects (e.g., Breathe, Run, Chase, Stack, Flow, Starry, Rainbow, Dreamcolor).
• Rychlost +/-: Upravte rychlost dynamických světelných efektů.
• Hudební režim: Aktivujte synchronizaci hudby.

Ovládání ovládací skříňky

The 3-button control box provides basic control directly on the unit:

• Vypínač: Zapíná nebo vypíná světla.
• Tlačítko režimu: Cycles through various lighting modes.
• Tlačítko hudby: Activates or deactivates music synchronization.

Funkce synchronizace hudby

The built-in microphone in the control box detects ambient sound and music, allowing the lights to change colors and patterns in rhythm. Press the 'Music' button on the remote or control box to activate this feature. There are multiple music modes to choose from, offering different visual responses to sound.

Figure 5: LED strip lights in music sync mode.

Obrázek 6: Přamples of dynamic light effects.

Údržba

Čištění

To maintain optimal performance and appearance, clean the LED strip lights periodically:

• Ensure the lights are unplugged and completely off before cleaning.
• Gently wipe the surface of the LED strips with a soft, dry, or slightly damp tkanina.
• Do not use harsh chemicals, abrasive cleaners, or excessive moisture, as this can damage the lights.

Skladování

If you need to store the LED strip lights for an extended period:

• Unplug the power adapter and carefully detach the strips.
• Roll the strips loosely to avoid kinking or damaging the internal wiring.
• Skladujte na chladném a suchém místě mimo dosah přímého slunečního záření a extrémních teplot.

Pozor:

Tento produkt je není voděodolný. Do not install in wet locations or expose to rain or splashes. Ensure the power adapter and control box remain dry at all times.

Odstraňování problémů

If you encounter issues with your LED strip lights, refer to the following table for common problems and solutions:

Technické specifikace

Záruka a podpora

Informace o záruce

Lepro products are manufactured to high-quality standards. While specific warranty terms may vary, Lepro is known for its commitment to customer satisfaction. Please retain your proof of purchase for any warranty claims.

Zákaznická podpora

Should you encounter any issues or have questions regarding your Lepro Dreamcolor LED Strip Lights, please contact Lepro customer support. You can typically find contact information on the product packaging or the official Lepro website. When contacting support, please provide your product model number (PR410096-RGB-WP-US) and a detailed description of the issue.
