1. Úvod
This manual provides essential information for the safe and efficient use of your Hisense E6322C ceramic hob. Please read these instructions carefully before installation and operation, and keep them for future reference.

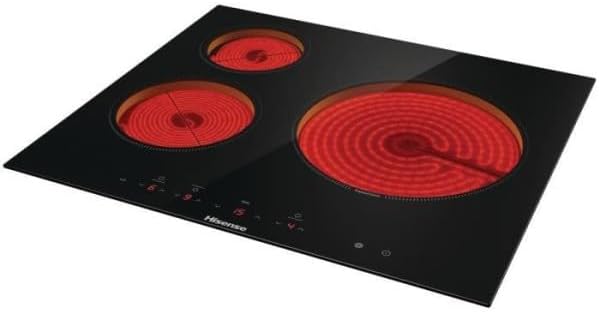

Obrázek 1: Přesview of the Hisense E6322C Ceramic Hob.
2. Bezpečnostní informace
Vaše bezpečnost je prvořadá. Dodržujte všechna varování a bezpečnostní opatření, abyste předešli zranění nebo poškození.
2.1 Funkce dětského zámku
The child lock function is designed to prevent accidental activation or changes to settings by children, ensuring a safer kitchen environment.
Figure 2: Child Lock feature for enhanced kitchen safety.
2.2 Indikátor zbytkového tepla
After cooking, the residual heat indicator ('H') will illuminate on the display for any hot cooking zone. This warns you that the surface is still hot and should not be touched directly, preventing burns.
Figure 3: Residual Heat Indicator ('H') for safe handling.
2.3 Obecná bezpečnostní opatření
- Během provozu zajistěte v kuchyni dostatečné větrání.
- Do not leave cooking unattended, especially when using high heat settings.
- Use only cookware suitable for ceramic hobs.
- Keep flammable materials away from the hob surface.
3. Instalace
Proper installation is crucial for the safe and optimal performance of your ceramic hob. It is strongly recommended that installation be carried out by a qualified technician.
3.1 Rozměry a výřez
The Hisense E6322C ceramic hob has product dimensions of approximately 59 cm (width) x 6 cm (height) x 52 cm (depth). Refer to the diagram below for precise cut-out dimensions required for installation into your countertop.
- Minimum Countertop Depth: 600 mm
- Šířka výřezu: 560-564 mm
- Hloubka výřezu: 490-494 mm
Figure 4: Installation dimensions and recommended cut-out for the hob.
4. Návod k obsluze
4.1 Stiskněte Ovládací panel
The hob features an intuitive touch control panel, allowing for easy and precise adjustment of cooking settings. Simply touch the corresponding symbols to activate functions or adjust heat levels.
4.2 varné zóny
The Hisense E6322C is equipped with three ceramic cooking zones. This includes a large 30cm zone, ideal for accommodating larger pots and pans, providing versatility for various cooking needs.
Figure 5: Ceramic hob design with cooking zones in use.
4.3 Funkce časovače
Utilize the integrated timer to set specific cooking durations. Once the set time expires, the hob will automatically switch off, and an audible signal will indicate that your dish is ready.
Figure 6: Using the integrated timer for precise cooking.
5. Údržba a čištění
The ceramic surface of your Hisense E6322C hob is designed to be scratch-resistant and features a beveled finish. This makes it easy to clean and maintain its elegant appearance. For daily cleaning, wipe the surface with a soft cloth and a mild detergent after it has cooled down. Avoid abrasive cleaners or scouring pads that could damage the surface.
6. Řešení problémů
If you encounter any issues with your Hisense E6322C ceramic hob, please refer to the following general advice. For complex problems or issues not listed here, contact a qualified service technician.
- Vařič se nezapíná: Check if the hob is properly connected to the power supply and if the circuit breaker has tripped.
- Varná zóna se nehřeje: Ensure the correct cooking zone is selected and the heat level is set. Verify that the cookware is suitable for ceramic hobs and is placed correctly on the zone.
- Chybové kódy: If an error code appears on the display, consult the full product manual (if available) or contact customer support for specific guidance.
7. Specifikace
Key technical specifications for the Hisense E6322C Ceramic Hob:
| Funkce | Specifikace |
|---|---|
| Značka | Hisense |
| Číslo modelu | E6322C |
| Rozměry produktu (Š x V x H) | 59 x 6 x 52 cm |
| Hmotnost | 8.7 kg |
| Počet topných těles | 3 |
| Large Zone Size | 30 cm |
| Barva | Černý |
| Zdroj napájení | Elektrický kabel |
| Typ paliva | Elektrický |
| Speciální funkce | Touch Control, Residual Heat Indicator |
| Materiál povrchu topného tělesa | Keramické sklo |
8. Co je v krabici
Balení produktu obvykle obsahuje:
- 1x Hisense E6322C Ceramic Hob
- 1x Uživatelská příručka (tento dokument)
9. Konec produktuview Video
Pro vizuální představu se podívejte na toto videoview of the Hisense E6322C ceramic hob's features and design.
Video: Features and design of the Hisense E6322C ceramic hob.
10. Záruka a podpora
For detailed warranty information, customer service, or technical support, please refer to the warranty card included with your purchase or visit the official Hisense webUschovejte si doklad o koupi pro případné reklamace.
