Eonon P4 9.33-Inch IPS Touchscreen Car Radio User Manual

Zavedení

This manual provides detailed instructions for the installation, operation, and maintenance of your Eonon P4 9.33-inch IPS Touchscreen Car Radio. This device integrates wireless CarPlay and Android Auto, a dual camera system (4K front, 1080P rear), GPS navigation, Bluetooth, FM, and AUX connectivity to enhance your driving experience. Please read this manual thoroughly before using the product to ensure proper function and safety.

Obrázek 1: The Eonon P4 main unit displaying a CarPlay interface, along with the included 4K front camera, 1080P reversing camera, and 64GB MicroSD card.

Obsah balení

Ověřte, zda jsou v balení obsaženy všechny níže uvedené položky:

• 1 x Head Unit (Eonon P4 Car Radio)
• 1 x Držák základny
• 1 x Suction Cup Bracket
• 1 x napájecí kabel do zapalovače cigaret
• 1 x Backup Camera (Rear Lens)
• Kabel 1 x AUX
• 1 x Pry Bar
• 4 x Cable Clips (Wire Frame)
• 1 x 64 GB MicroSD karta
• 1 x Uživatelská příručka

Obrázek 2: Illustration of all components included in the Eonon P4 package. This image displays the main unit, mounting brackets, power cable, cameras, and accessories.

Nastavení a instalace

The Eonon P4 offers two primary installation methods: via a base bracket or a suction cup bracket. Choose the method that best suits your vehicle's dashboard and your preference.

Způsoby montáže

Obrázek 3: Demonstrates the two available mounting options: a suction cup mount for windshield or smooth surfaces, and a dashboard base mount for a more permanent fixture.

1. Base Bracket Installation:
   • Attach the base bracket to the rear of the main unit.
   • Remove the protective film from the adhesive on the bottom of the base bracket.
   • Place the bracket firmly onto a clean, flat surface on your dashboard. Apply pressure for a few seconds to ensure a secure bond.
2. Suction Cup Bracket Installation:
   • Attach the suction cup bracket to the rear of the main unit.
   • Clean the desired mounting surface (windshield or smooth dashboard area).
   • Press the suction cup firmly against the surface and engage the locking mechanism to secure it.

Připojení napájení

Obrázek 4: Illustrates the three main steps for quick installation: attaching the bracket, securing it to the dashboard, and connecting the power cable to the cigarette lighter socket.

After mounting the unit, connect the cigarette lighter power cable:

1. Insert one end of the cigarette lighter power cable into the "Power In" port on the Eonon P4 unit.
2. Insert the other end into your vehicle's cigarette lighter socket.
3. The unit should power on automatically or after pressing the power button.

Instalace kamery

The Eonon P4 includes a 4K front camera (integrated) and a 1080P reversing camera. The reversing camera requires external installation.

Obrázek 5: Shows the 1080P backup camera, its IP68 waterproof rating, and examples of backup camera guidelines and a real-time interior view.

• Přední kamera: Integrated into the main unit. Ensure its view je bez překážek.
• Couvací kamera:
  • Mount the 1080P reversing camera at the rear of your vehicle, typically near the license plate light or trunk handle.
  • Route the camera cable to the main unit and connect it to the "Camera In" port.
  • Connect the camera's power wire to your vehicle's reverse light circuit so it activates automatically when shifting into reverse.

Návod k obsluze

Displej a rozhraní

Obrázek 6: Highlights the 9.33-inch IPS display with 1600x600 resolution, showcasing its vibrant colors and responsive capacitive touchscreen. It also shows the detachable screen feature.

The Eonon P4 features a 9.33-inch IPS touchscreen with a resolution of 1600x600 pixels. The capacitive touchscreen provides a responsive user experience. The screen is detachable for security.

Wireless Connectivity (CarPlay & Android Auto)

Obrázek 7: Illustrates the wireless connectivity options including Apple CarPlay, Android Auto, Apple AirPlay, and Android Cast, showing how a smartphone screen can be mirrored or integrated.

The unit supports wireless Apple CarPlay and Android Auto. To connect your smartphone:

1. Ujistěte se, že je na vašem smartphonu povoleno Bluetooth a Wi-Fi.
2. On the Eonon P4, navigate to the CarPlay or Android Auto application.
3. Follow the on-screen prompts to pair your phone via Bluetooth. Once paired, the Wi-Fi connection will be established automatically for wireless CarPlay/Android Auto functionality.
4. You can now use voice commands (Siri/Google Assistant) for navigation, calls, music, and other supported applications.

Screen Mirroring (Apple AirPlay & Android Cast)

The Eonon P4 supports screen mirroring from your smartphone via Apple AirPlay and Android Cast. This allows you to display your phone's screen directly on the unit.

• To use AirPlay or Android Cast, ensure your phone and the P4 unit are connected to the same Wi-Fi network (or directly via the unit's Wi-Fi hotspot if available).
• Select the AirPlay or Android Cast option on the P4 and follow your phone's instructions to mirror the screen.
• Poznámka: Some streaming services (e.g., Netflix, Prime Video) may restrict screen mirroring due to content protection.

Dual Camera System and Loop Recording

The unit features an integrated 4K front camera (with WDR and 140° wide angle) and a 1080P rear camera (100° wide angle). Both cameras support loop recording and real-time display.

• Nahrávání ve smyčce: Video footage is recorded in segments (1, 3, or 5 minutes). When the MicroSD card is full, the oldest filese automaticky přepíší.
• Reversing Camera Display: When your vehicle is shifted into reverse, the unit will automatically display the 1080P rear camera feed.
• Zobrazení v reálném čase: Můžete view both front and rear camera feeds simultaneously on the screen.
• MicroSD karta: The included 64GB MicroSD card is used for DVR recording. It supports cards from 32GB to 256GB, Class 10 or higher.

Rozdělení obrazovky

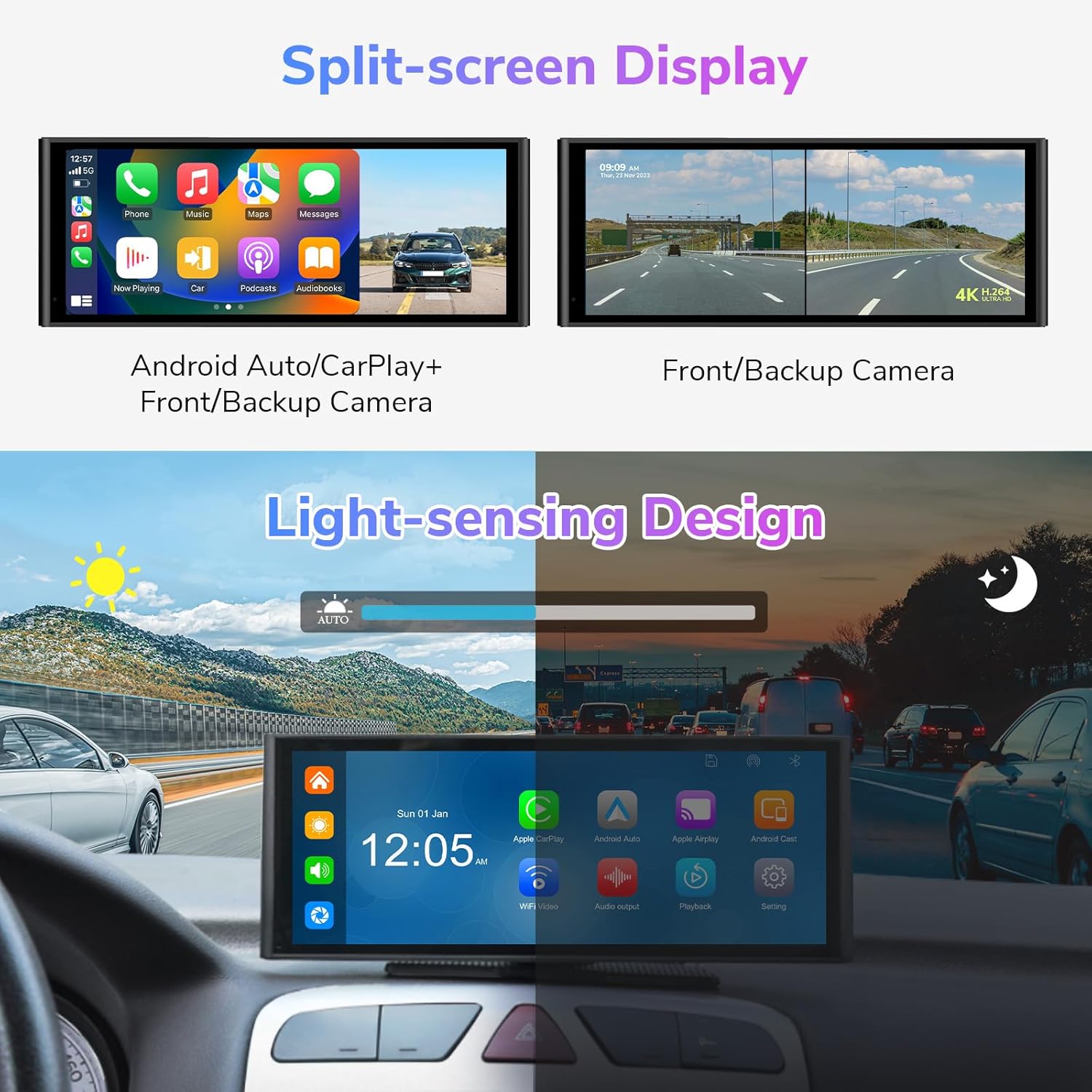

Obrázek 8: Illustrates the split-screen capability, showing combinations like CarPlay with camera view, Android Auto with camera view, and simultaneous front and backup camera views.

The split-screen function allows you to view two applications simultaneously. Supported combinations include:

• CarPlay + Front/Backup Camera
• Android Auto + Front/Backup Camera
• Front Camera + Backup Camera

Možnosti zvukového výstupu

Obrázek 9: Displays the four audio output methods: Bluetooth out, AUX out, FM transmit, and the built-in speaker, allowing users to choose how audio is played through their car's sound system.

The Eonon P4 offers four ways to output audio to your vehicle's sound system:

• Vestavěný reproduktor: Pro přímé přehrávání zvuku z jednotky.
• FM vysílání: Přenášejte zvuk do FM rádia ve vašem autě naladěním obou zařízení na stejnou FM frekvenci.
• AUX výstup: Connect the provided AUX cable from the P4's AUX output to your car's AUX input for a wired audio connection.
• Bluetooth výstup: Pair the P4 with your car's Bluetooth system to stream audio wirelessly.

Light-Sensing Design

Obrázek 10: Illustrates the light-sensing design, showing how the screen brightness automatically adjusts between day and night modes based on ambient light conditions for optimal visibility.

The unit features a light-sensing design that automatically adjusts screen brightness based on ambient light conditions, ensuring optimal visibility during both day and night driving.

Údržba

• Čištění obrazovky: Dotykovou obrazovku jemně otřete měkkým hadříkem, který nepouští vlákna. V případě odolných šmouh lehceampOtřete hadřík vodou nebo čisticím prostředkem na obrazovky. Vyhněte se agresivním chemikáliím.
• Objektivy fotoaparátu: Keep the front and rear camera lenses clean for clear recordings. Use a soft cloth to remove dust or dirt.
• MicroSD karta: Periodically format the MicroSD card (e.g., monthly) to maintain optimal recording performance and prevent data corruption. Back up any important footage před formátováním.
• Aktualizace firmwaru: Check the official Eonon website periodically for any available firmware updates to ensure your device has the latest features and bug fixes.

Odstraňování problémů

Specifikace

Záruka a podpora

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official Eonon webUschovejte si účtenku jako doklad o koupi pro případ reklamace.
