Uživatelská příručka k elektromotoru Nidec 25 hp 3600 ot./min 284TS s rámem HD25P1ES

1. Úvod

This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Nidec 25 hp 3600 RPM 284TS Frame Electric Motor, model HD25P1ES. This motor is a hostile duty, premium efficient, world motor with a cast iron frame, designed for continuous duty in various industrial applications. Adherence to these instructions will ensure optimal performance and longevity of the motor.

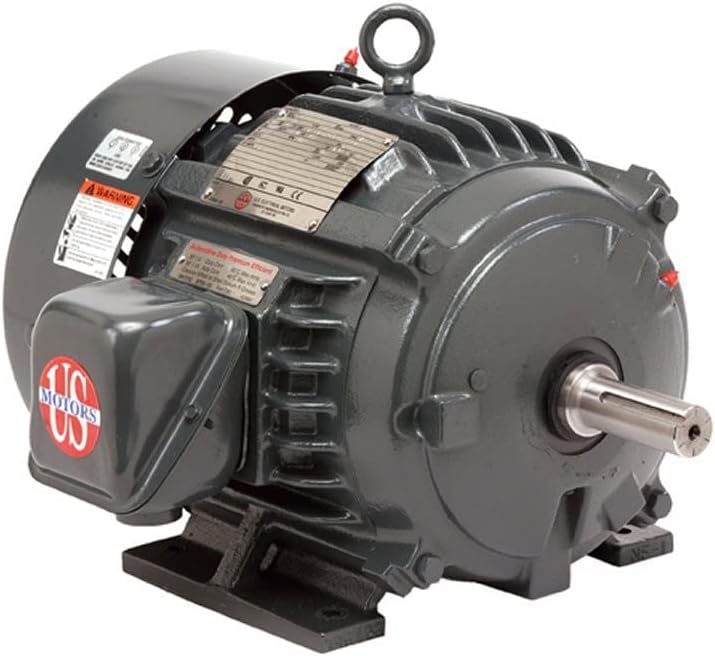

Přední strana view of the Nidec 25 hp 3600 RPM electric motor, model HD25P1ES, showcasing its robust cast iron frame, fan cover, and shaft.

2. Bezpečnostní informace

Always prioritize safety when working with electric motors. Failure to follow safety precautions can result in serious injury or equipment damage.

• Elektrická nebezpečí: Ensure power is disconnected and locked out before any installation, maintenance, or inspection. Only qualified personnel should perform electrical work.
• Rotující části: Keep hands, tools, and clothing clear of rotating parts during operation. Install appropriate guards where necessary.
• Správné uzemnění: The motor must be properly grounded in accordance with all local and national electrical codes to prevent electrical shock.
• Zdvihání: Use appropriate lifting equipment and techniques when moving the motor due to its weight (approximately 310 pounds).
• Prostředí: Operate the motor within its specified ambient temperature (40°C maximum) and ensure adequate ventilation.

3. Nastavení a instalace

Proper installation is crucial for the motor's performance and lifespan.

3.1 Montáž

• The motor features a rigid base mount. Ensure the mounting surface is flat, level, and capable of supporting the motor's weight and operational forces.
• Secure the motor firmly to the base using appropriate fasteners to prevent vibration and misalignment.

3.2 Shaft Connection

• The motor is equipped with a keyed shaft, measuring 1 5/8 inches in diameter and 3 1/4 inches in length.
• Ensure proper alignment between the motor shaft and the driven equipment to minimize stress on bearings and couplings.

3.3 Elektrické připojení

• This is a three-phase motor compatible with 208-230/460 Volts. Verify the supply voltage odpovídá požadavkům motoru.
• The wiring diagram is located on the motor's nameplate. Follow this diagram precisely for correct connections.
• Ensure all electrical connections are tight and insulated.
• Install appropriate overcurrent protection as required by electrical codes. Note that this motor does not include internal overload protection.

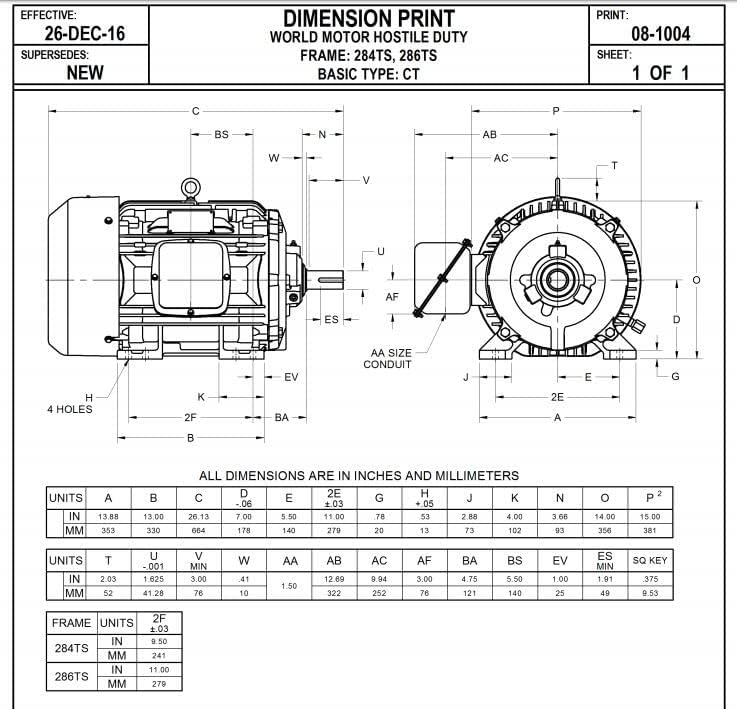

Technical drawing illustrating the dimensions of the Nidec 25 hp electric motor, model HD25P1ES, including various measurements in both inches and millimeters for the 284TS and 286TS frames.

4. Návod k obsluze

The Nidec HD25P1ES motor is designed for continuous duty operation.

• Počáteční spuštění: Po instalaci proveďte krátký zkušební provoz, abyste zkontrolovali, zda nedochází k neobvyklým zvukům, vibracím nebo přehřívání.
• Reversible Operation: The motor is reversible. Refer to the wiring diagram on the nameplate for instructions on changing rotation direction.
• Kompatibilita invertoru: This motor is suitable for 20:1 variable torque and 5:1 constant torque applications when powered by an inverter. Ensure the inverter is correctly sized and programmed for the motor.
• Sledování: Regularly monitor the motor's temperature, current draw, and vibration levels during operation to detect potential issues early.

5. Údržba

Regular maintenance extends the life and ensures the reliability of your electric motor.

• Čištění: Keep the motor's exterior, especially the fan cover and cooling fins, free from dust, dirt, and debris to ensure efficient cooling. The TEFC (Totally Enclosed Fan Cooled) design helps protect internal components from environmental contaminants.
• Condensation Drains: The motor is equipped with condensation drains with plastic plugs. Periodically check and clear these drains to prevent moisture buildup inside the motor, especially in humid environments or during periods of non-operation.
• Kontrola ložisek: The motor uses ball bearings. Follow Nidec's recommended lubrication schedule and type, if applicable, or inspect for signs of wear and replace as needed.
• Kontrola vibrací: Periodically check for excessive vibration, which can indicate misalignment, bearing wear, or other mechanical issues.
• Elektrické připojení: Annually inspect all electrical connections for tightness and signs of corrosion or damage.

6. Řešení problémů

This section outlines common issues and potential solutions. Always disconnect power before attempting any troubleshooting or repairs.

7. Specifikace

Key technical specifications for the Nidec HD25P1ES Electric Motor:

8. Záruka a podpora

The Nidec HD25P1ES Electric Motor comes with a Year Manufacture Warranty. For specific warranty terms, claims, or technical support, please refer to the documentation provided with your purchase or contact Nidec customer service directly.
