tectake 401029 Heavy-Duty Garden Cart Instruction Manual

1. Úvod

Thank you for choosing the tectake 401029 Heavy-Duty Garden Cart. This manual provides essential information for the safe assembly, operation, and maintenance of your new transport cart. Please read these instructions carefully before use and retain them for future reference.

This garden cart is designed to assist with various transport tasks in gardens, construction sites, or during other outdoor activities. It features a robust metal construction, pneumatic tires, and a high load capacity.

Obrázek 1: The tectake 401029 Heavy-Duty Garden Cart, fully assembled with its green inner tarpaulin and black handle. The cart features a green metal frame, mesh side panels, and yellow-rimmed pneumatic tires.

2. Bezpečnostní informace

Always observe the following safety guidelines to prevent injury or damage to the product:

• Maximální nosnost: Do not exceed the maximum load capacity of 550 kg. Overloading can cause damage to the cart and lead to accidents.
• Rovnoměrné rozložení hmotnosti: Distribute the load evenly across the cart's bed to maintain stability.
• Bezpečné zatížení: Ensure all items are securely placed or tied down to prevent shifting or falling during transport.
• Nerovný terén: Exercise caution when operating on uneven or sloped surfaces. The cart may tip if not handled properly.
• Děti: This cart is not suitable for transporting children and is not a children's toy. Keep children away from the cart during operation.
• Shromáždění: Ensure all components are correctly assembled and fasteners are tightened before use.
• Tlak v pneumatikách: Maintain proper tire pressure as specified to ensure safe operation and longevity of the tires.

3. Obsah balení

Po vybalení se prosím ujistěte, že jsou v balení všechny následující položky:

• Garden Cart Frame (disassembled)
• Inner Tarpaulin
• Montáž rukojeti
• Pneumatic Tires (4x)
• Montážní návod
• Mounting Material (bolts, nuts, washers, pins)

4. Montážní návod

The tectake 401029 Garden Cart requires assembly. Please follow the included assembly instructions carefully. A general overview postup montáže je uveden níže:

1. Rozbalte komponenty: Opatrně vyjměte všechny díly z obalu a rozložte je. Zkontrolujte seznam obsahu balení.
2. Sestavte rám: Connect the base frame components and side panels using the provided mounting hardware. Ensure all connections are secure. The side panels are hinged and feature click fasteners.
3. Připevněte kola: Mount the four pneumatic tires to the axle assemblies. Ensure the wheels are properly secured and can rotate freely.
4. Instalační rukojeť: Attach the handle assembly to the front of the cart. The handle is coated for comfort and can be removed for hitching to a lawn tractor.
5. Insert Inner Tarpaulin: Place the inner tarpaulin into the cart bed. It is designed to fit snugly and can be removed for cleaning.
6. Závěrečná kontrola: Before first use, inspect all connections, fasteners, and tires to ensure everything is correctly assembled and tightened.

Obrázek 2: A diagram illustrating the overall dimensions of the tectake 401029 Garden Cart, including length, width, and height measurements, as well as tire diameter.

Obrázek 3: Detailní záběr view of the cart's black coated handle and the hitching mechanism, showing how it connects to the cart's frame. This mechanism allows the handle to be removed for towing.

5. Návod k obsluze

Using your tectake 401029 Garden Cart effectively and safely:

• Načítání: Place items into the cart, ensuring the weight is distributed evenly. Do not exceed the 550 kg maximum load capacity.
• Boční panely: The hinged side panels can be lowered for easier loading and unloading of bulky items. Secure them with the click fasteners when raised.
• Inner Tarpaulin: Use the inner tarpaulin for transporting loose materials like soil, sand, or garden waste to prevent spillage and keep the cart bed clean.
• Manual Pulling: Use the coated handle to pull the cart. Maintain a firm grip and be aware of your surroundings.
• Tažení: The handle can be removed to allow the cart to be hitched to a lawn tractor or similar vehicle. Ensure the hitch connection is secure before towing.
• Manévrování: The pneumatic tires provide good traction and shock absorption. Be mindful of obstacles and uneven terrain.

Obrázek 4: A person demonstrating the use of the tectake 401029 Garden Cart, pulling it by its black handle. The cart is shown with its green inner tarpaulin and mesh side panels.

Obrázek 5: The tectake 401029 Garden Cart with its hinged side panels lowered, demonstrating the ease of loading and unloading bulky items. The inner tarpaulin is still in place.

6. Údržba

Regular maintenance will extend the life of your garden cart:

• Čištění: The inner tarpaulin can be easily removed and cleaned with water and mild soap. Wipe down the metal frame with a damp tkanina.
• Péče o pneumatiky: Regularly check the tire pressure. Ensure tires are adequately inflated for optimal performance and to prevent damage. Inspect tires for wear and tear.
• Mazání: Periodically lubricate moving parts, such as wheel axles and hinge points, to ensure smooth operation.
• Spojovací materiál: Check all bolts, nuts, and pins periodically and tighten if necessary to ensure structural integrity.
• Skladování: Store the cart in a dry, sheltered area to protect it from weather elements when not in use.

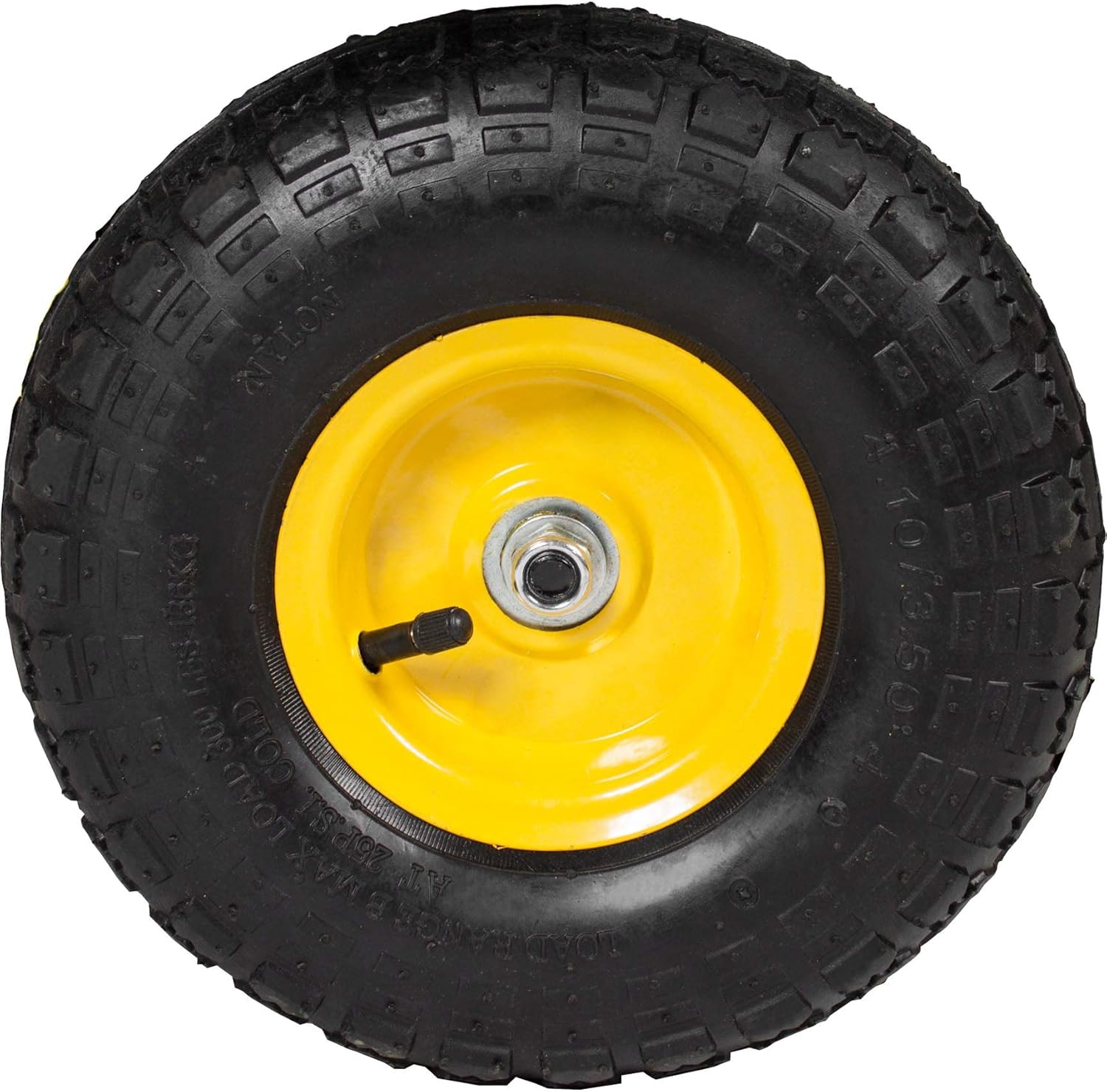

Obrázek 6: A detailed close-up of one of the pneumatic tires, showing its tread pattern and yellow rim. Regular inspection of these tires is crucial for safe operation.

Obrázek 7: Spodní strana view of the tectake 401029 Garden Cart, highlighting the robust metal frame and the attachment points for the pneumatic wheels. This view helps in understanding the cart's structural integrity and maintenance points.

7. Řešení problémů

If you encounter issues with your garden cart, refer to the following common problems and solutions:

8. Specifikace

Detailed technical specifications for the tectake 401029 Garden Cart:

• Číslo modelu: 401029
• Značka: TecTake
• Materiál: Kov
• Barva: Zelený
• Hmotnost: Přibližně 22 kg
• Maximální nosnost: 550 kg
• Celkové rozměry (DxŠxV): Přibližně 114 x 51.5 x 65 cm
• Total Length with Handle: 187 cm
• Total Height with Handle Raised: 95 cm
• Loading Area Dimensions (LxWxH): 96 x 48 x 34 cm
• Typ pneumatiky: Pneumatiky
• Rozměr pneumatiky: průměr 26 cm
• Materiál rukojeti: Rubber (coated)
• Speciální funkce: Robust construction, hinged side panels, removable inner tarpaulin, removable handle for towing.

Obrázek 8: A diagram illustrating the internal dimensions of the cart's loading area: 96 cm length, 48 cm width, and 34 cm height.

9. Informace o záruce

This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official TecTake website for detailed information regarding warranty terms, conditions, and registration procedures. Keep your proof of purchase for any warranty claims.

10. Zákaznická podpora

If you have any questions, require assistance with assembly, or need to report a problem with your tectake 401029 Garden Cart, please contact TecTake customer support. Contact details can typically be found on the official TecTake webmístě nebo na obalu produktu.

Nejnovější informace o podpoře naleznete na adrese: TecTake Contact Page
