Eaton WFSW15-LA-SP-L Wi-Fi Smart Switch User Manual

1. Konec produktuview

The Eaton WFSW15-LA-SP-L Wi-Fi Smart Switch is designed to provide convenient control over your lighting and other connected devices. This smart switch integrates directly with the Amazon Alexa App, eliminating the need for a separate hub. It offers voice control capabilities, scheduling options, and enhanced safety features.

Mezi klíčové vlastnosti patří:

• Není vyžadován žádný rozbočovač: Control devices directly through the Amazon Alexa App.
• Snadná instalace: Simple setup process with LED indicators for proper installation.
• Hlasové ovládání: Kompatibilní s Amazon Alexa pro ovládání bez použití rukou.
• Plánování a rutiny: Program lights to adjust according to your daily schedule.
• Zvýšená bezpečnost: Features a Delay OFF function to keep lights on for a set period after activation.
• Aktualizace softwaru: Receives over-the-air updates for continuous feature enhancements and performance.

Obrázek 1.1: Přední strana view of the Eaton WFSW15-LA-SP-L Wi-Fi Smart Switch.

2. Nastavení a instalace

2.1 Bezpečnostní informace

VAROVÁNÍ: Risk of electric shock. Installation requires working with high voltage wiring. If you are unsure about any part of these instructions, consult a qualified electrician. Ensure power is turned off at the circuit breaker before installation.

2.2 Kontrolní seznam před instalací

• A neutral wire is required for installation. Verify its presence in your electrical box.
• Compatible with LED/CFL up to 600W and INC/HAL/FLR/ELV/MLV up to 1800W.
• Supports 1/2 HP motor loads.
• Tools required: Screwdriver, wire strippers (if needed).

2.3 Pokyny pro zapojení

1. Vypnout napájení: Locate the circuit breaker controlling the switch you are replacing and turn it OFF. Verify power is off using a voltage tester.
2. Demontáž starého spínače: Carefully remove the existing wall plate and switch. Disconnect the wires.
3. Identifikujte dráty: Identify the Line (hot), Load, Neutral, and Ground wires. The smart switch requires a neutral wire.
4. Connect new switch: Connect the wires to the Eaton Wi-Fi Smart Switch using the quick connect terminals or screw terminals as follows:
   • Připojte Země wire to the green terminal.
   • Připojte Neutrální wire to the white terminal.
   • Připojte Čára wire to the black terminal labeled 'Line'.
   • Připojte Zatížení wire to the black terminal labeled 'Load'.
   • For 3-way installations, refer to the detailed wiring diagrams provided in the product packaging. The smart switch can be wired with a standard 3-way switch.
5. Montáž spínače: Carefully push the wired switch into the electrical box. Secure it with the provided screws.
6. Instalace nástěnné desky: Připevněte novou nástěnnou desku.
7. Obnovení napájení: Turn the power back ON at the circuit breaker. LED indicators on the switch will confirm proper installation.

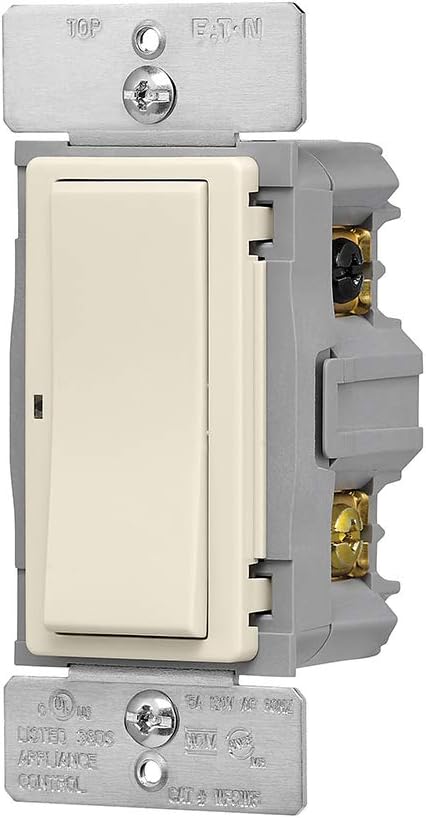

Obrázek 2.1: Boční strana view of the smart switch showing wiring terminals.

2.4 App Setup (Amazon Alexa App)

After physical installation, set up your smart switch using the Amazon Alexa App:

1. Download the Amazon Alexa App: If you don't already have it, download the Amazon Alexa App from your device's app store.
2. Otevřete aplikaci: Launch the Alexa App and log in with your Amazon account.
3. Přidat zařízení: The app should automatically detect your new Eaton Wi-Fi Smart Switch. If not, navigate to the 'Devices' section, tap the '+' icon, and follow the on-screen instructions to add a new device.
4. Kompletní nastavení: Follow the prompts to name your switch and assign it to a room.

Image 2.2: Visual guide for the three easy steps to set up your Wi-Fi smart device.

3. Návod k obsluze

3.1 Ruční ovládání

Press the top of the rocker switch to turn the connected lights/device ON. Press the bottom of the rocker switch to turn the connected lights/device OFF.

3.2 Hlasové ovládání s Amazon Alexou

Once your smart switch is connected to the Amazon Alexa App, you can use voice commands to control it. Ensure your Alexa-enabled device is powered on and connected to the internet.

• To turn lights ON: "Alexa, turn on [device name]." (e.g., "Alexa, turn on living room lights.")
• To turn lights OFF: "Alexa, turn off [device name]."

3.3 Plánování a rutiny

Use the Amazon Alexa App to create schedules and routines for your smart switch:

• jízdní řády: Set specific times for your lights to turn ON or OFF automatically.
• Rutiny: Combine multiple actions with a single command or trigger. For example, create a "Good Morning" routine that turns on your lights and plays news.

3.4 Delay OFF Feature

The Delay OFF feature allows you to set a duration for the lights to remain on before automatically turning off. This can be configured within the Amazon Alexa App settings for the device, providing convenience for safe exits.

3.5 Výkon Outage Předvolba

You can configure the smart switch's behavior after a power outage. This setting allows you to choose whether the device comes on or stays off once power is restored. This option is typically found in the device settings within the Amazon Alexa App.

4. Údržba

4.1 Čištění

To clean the smart switch, ensure power is turned off at the circuit breaker. Use a soft, damp cloth to wipe the surface. Do not use abrasive cleaners or solvents, as these can damage the finish.

4.2 Aktualizace softwaru

The Eaton Wi-Fi Smart Switch receives over-the-air (OTA) software updates. These updates ensure your device has the latest features, security enhancements, and optimal performance. Updates are typically managed automatically through the Amazon Alexa App or your Wi-Fi network connection.

5. Řešení problémů

• Přepínač nereaguje:
  • Zkontrolujte, zda je jistič zapnutý.
  • Ensure the switch is properly wired and the LED indicators confirm correct installation.
  • Verify your Wi-Fi network is active and the smart switch is within range.
  • Restart the smart switch by turning off power at the breaker for 30 seconds, then turning it back on.
• Connectivity issues with Alexa:
  • Ensure your Alexa-enabled device is connected to the internet.
  • Check the Amazon Alexa App to confirm the smart switch is still listed and online.
  • If the switch frequently disconnects, try re-linking it through the Alexa App.
  • Ensure your Wi-Fi network is 2.4 GHz, as this device may not support 5 GHz networks.
• Difficulty with 3-way wiring:

  Wiring a 3-way switch can be complex. If you encounter difficulties, especially with identifying traveler wires or connecting the line and load, it is recommended to consult a qualified electrician for assistance to ensure correct and safe installation.
• Lights flickering or not working correctly:
  • Verify that the connected bulbs are compatible with the smart switch's wattage ratings (LED/CFL up to 600W, INC/HAL/FLR/ELV/MLV up to 1800W).
  • Ujistěte se, že všechna připojení vodičů jsou bezpečná.

6. Specifikace

7. Informace o záruce

Specific warranty details for the Eaton WFSW15-LA-SP-L Wi-Fi Smart Switch are typically provided with the product packaging or can be found on the official Eaton webwebu. Nejpřesnější a nejaktuálnější záruční podmínky naleznete v těchto zdrojích.

8. Podpora

For technical assistance, troubleshooting beyond this manual, or product inquiries, please contact Eaton customer support. Contact information can usually be found on the product packaging, the official Eaton webwebu nebo prostřednictvím svého prodejce.

When contacting support, please have your product model number (WFSW15-LA-SP-L) and purchase information readily available.
