ErGear Single Monitor Arm User Manual

Zavedení

Thank you for choosing the ErGear Single Monitor Arm, Model EGCM4. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your monitor arm. Please read these instructions carefully before assembly and retain them for future reference.

A black single monitor arm with a desk clamp base and a VESA mounting plate, designed for desktop use.

Bezpečnostní informace

• Před montáží se ujistěte, že jsou všechny součásti přítomny a nepoškozené. Nepoužívejte, pokud některé součásti chybí nebo jsou vadné.
• This monitor arm is designed for monitors between 13 and 32 inches, weighing up to 8 kg (17.6 lbs). Do not exceed the maximum weight capacity.
• Verify your monitor's VESA mounting pattern is 75x75mm or 100x100mm.
• Pro C-clamp installation, ensure your desk thickness is between 10-80mm. For grommet installation, ensure your desk thickness is between 20-80mm.
• Always tighten all screws securely. Loose screws can cause the monitor arm to fall, resulting in damage or injury.
• Během instalace držte děti a domácí zvířata v dostatečné vzdálenosti. Malé části mohou představovat nebezpečí udušení.
• Pokud máte jakékoli pochybnosti o instalaci, poraďte se s kvalifikovaným odborníkem.

Obsah balení

Please check that all parts are included in your package:

• Sestava ramene monitoru
• Stůl Clamp Báze
• Součásti pro montáž průchodek
• Deska VESA
• Montážní materiál (šrouby, podložky, distanční podložky)
• Šestihranné klíče pro seřízení
• Klipy pro správu kabelů

Specifikace

An image illustrating the compatible monitor specifications for the arm, including screen size (13-32 inches), maximum weight (8kg), and VESA mounting patterns (75x75mm and 100x100mm).

A checklist image for users to verify compatibility before purchase, covering monitor size (13-32 inches), weight (up to 8kg), VESA standards (75x75mm/100x100mm), and desk thickness for C-clamp (10-80mm) and grommet (20-80mm) mounts.

Nastavení a instalace

The ErGear Single Monitor Arm offers two installation methods: C-clamp and Grommet mount. Choose the method suitable for your desk.

Kontrola před instalací

• Ensure your monitor meets the size and weight requirements (13-32 inches, max 8kg).
• Confirm your monitor has VESA 75x75mm or 100x100mm mounting holes.
• Measure your desk thickness to ensure compatibility with the chosen mounting method.

Kroky instalace

1. Připevněte základnu: Zajistěte C-clamp or grommet base to your desk. Ensure it is firmly tightened to prevent movement.
2. Connect Arm to Pole: Slide the monitor arm onto the pole of the base. Tighten the connecting screws on the arm to secure it to the pole.
3. Připojte desku VESA k monitoru: Attach the VESA plate to the back of your monitor using the appropriate screws (M4x12mm, M4x16mm, M6x12mm, M6x16mm).
4. Montáž monitoru na rameno: Slide the monitor (with VESA plate attached) onto the arm's mounting head. Ensure it clicks securely into place.

A visual guide detailing the three main steps for installing the monitor arm: securing the base, attaching the arm to the pole, and mounting the VESA plate to the arm.

A detailed image showing the two installation methods: C-clamp for desk thicknesses of 10-80mm and grommet mount for desk thicknesses of 20-80mm.

Návod k obsluze (Úpravy)

The ErGear Single Monitor Arm allows for flexible adjustments to achieve an ergonomic viewzkušenosti.

Nastavitelné vlastnosti:

• Nastavení výšky: The monitor arm can be adjusted vertically along the pole by loosening and tightening the collar. This allows for up to 41cm of height adjustment to align your monitor with your eye level.
• Náklon: The monitor can be tilted up or down by ±90° to reduce glare and optimize viewing úhly.
• Otočný: The arm allows for ±180° swivel, enabling you to share your screen with colleagues or adjust for different tasks.
• Otáčení: The monitor can be rotated 360° from landscape to portrait orientation.

A visual representation of the monitor arm's extensive adjustability, detailing 360-degree rotation, +/-180-degree swivel, and +/-90-degree tilt capabilities.

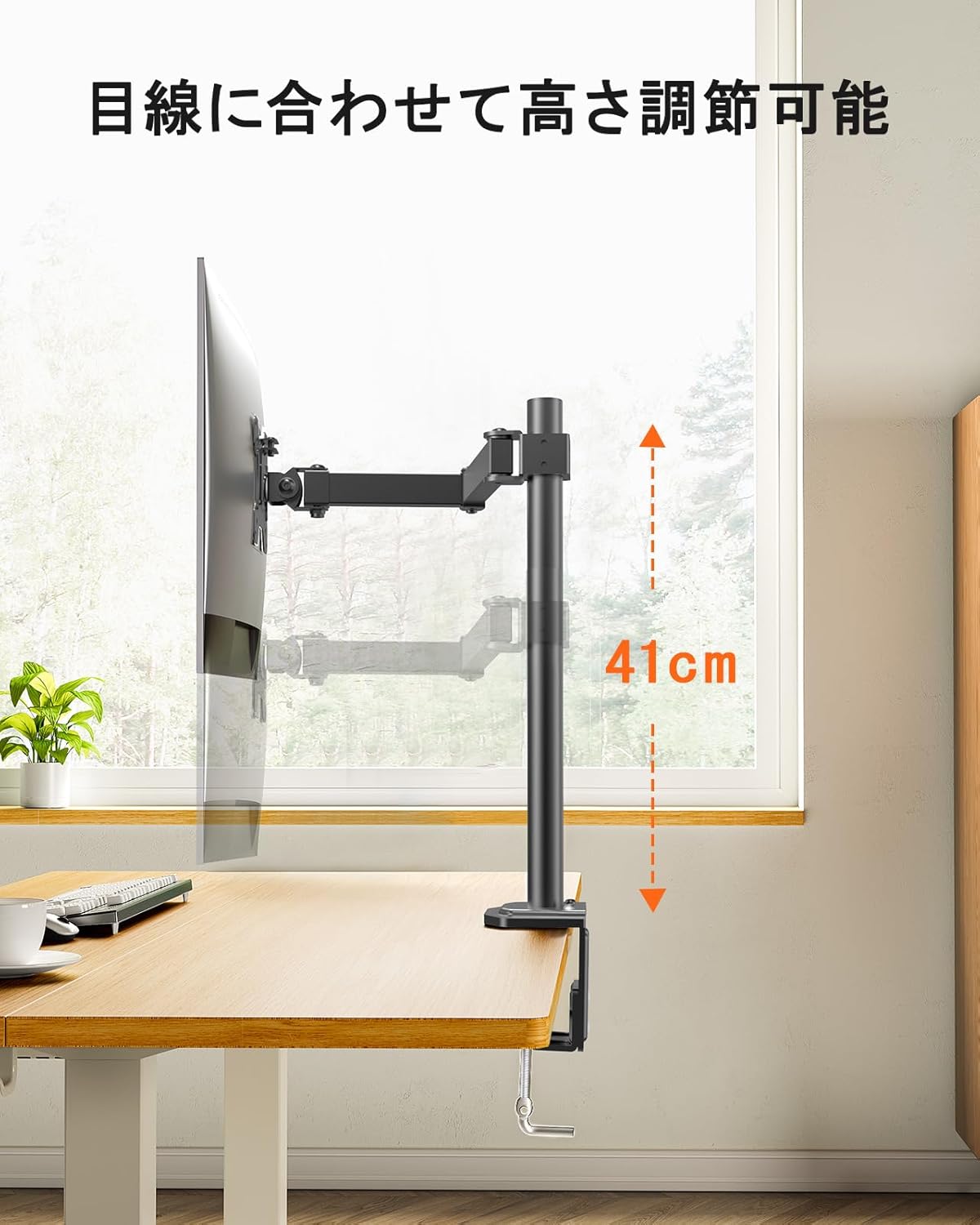

An image highlighting the monitor arm's vertical adjustment capability, allowing for a height range of 41cm to align the monitor with eye level.

A side-by-side comparison demonstrating the ergonomic benefits of using an adjustable monitor arm, showing improved posture compared to a fixed monitor stand.

Nad hlavou view of a person working at a desk, demonstrating how the monitor arm allows for flexible monitor positioning to achieve a comfortable and ergonomic workspace.

Údržba

• Pravidelně kontrolujte všechny šrouby a spoje, zda jsou pevně utažené. V případě potřeby je dotáhněte.
• Rameno monitoru očistěte měkkým hadříkemamp hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla, která by mohla poškodit povrchovou úpravu.
• Ensure cables are properly routed through the cable management clips to prevent strain or damage.

A view of a desk setup where the monitor arm's integrated cable management system keeps monitor cables organized and out of sight, contributing to a clean workspace.

An image showing a yellow cable neatly routed along the monitor arm using the integrated cable clips, illustrating effective cable management.

Odstraňování problémů

• Monitor je nestabilní nebo se prohýbá:
  - Ensure all mounting screws (VESA plate to monitor, arm to pole, base to desk) are securely tightened.
  - Verify that your monitor's weight does not exceed the 8kg capacity.
• Difficulty adjusting arm movement:
  - Check if any adjustment screws are overtightened. Loosen slightly if necessary.
  - Ensure the arm is not obstructed by other objects on the desk.
• Paže nedrží polohu:
  - This model is a pole-mounted arm with fixed position adjustments, not a gas spring arm. Ensure all tightening points are secure after positioning.
• Chybějící díly nebo poškozené komponenty:
  - Refer to the Warranty and Support section for assistance.

Záruka a podpora

ErGear provides a 5letá záruka kvality from the date of purchase for this product. This warranty covers manufacturing defects and ensures product quality.

In the event of any issues with your product, such as defects, malfunctions, or missing accessories, please contact our customer service team. We are committed to providing a full refund or free exchange to ensure your satisfaction.

For support, please refer to the contact information provided with your purchase or visit the official ErGear webmísto.
