1. Úvod
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your NXR SC3611LP 36-inch Pro-Style Propane Gas Range. Please read all instructions thoroughly before using the appliance to ensure proper function and to prevent potential hazards.
The NXR SC3611LP is a 36-inch freestanding propane gas range featuring a 5.5 cubic feet capacity convection oven and a versatile cooktop with six sealed burners. Its stainless steel construction is designed for durability and ease of cleaning.
Obrázek 1: Přední strana view of the NXR SC3611LP Propane Gas Range.
2. Bezpečnostní informace
Vaše bezpečnost a bezpečnost ostatních je prvořadá. Tato příručka obsahuje důležité bezpečnostní pokyny. Vždy si přečtěte a dodržujte všechny bezpečnostní pokyny.
- Zásobování plynem: This appliance is designed for use with Propane (LP) gas. Ensure the gas supply matches the appliance's requirements. Improper gas connection can lead to fire or explosion.
- Větrání: Ensure adequate ventilation in the kitchen area. Do not obstruct the flow of combustion and ventilation air.
- Držák proti převrácení: The range must be secured with the anti-tip bracket provided to prevent tipping. Failure to do so can result in serious injury.
- Horké povrchy: The cooktop and oven surfaces become hot during operation. Exercise caution to avoid burns. Keep children away from the appliance during use.
- Hořlavé materiály: Keep flammable materials, such as clothing, curtains, and aerosols, away from the range.
- Profesionální instalace: Instalaci a servis musí provádět kvalifikovaný instalační technik, servisní agentura nebo dodavatel plynu.
- Propane Conversion: If the range was not originally configured for propane, professional conversion is required. Issues arising from improper conversion are not covered under warranty.
3. Vybalení a instalace
3.1 Vybalení
Carefully remove all packaging materials from the range. Inspect the appliance for any shipping damage. Report any damage immediately to your dealer or carrier.
Zahrnuté komponenty:
- NXR SC3611LP Propane Gas Range
- Produktový manuál (tento dokument)
- Registrační karta
- Držák proti převrácení
3.2 Požadavky na instalaci
The NXR SC3611LP is a freestanding range. Ensure the installation area meets local codes and provides adequate clearances. The appliance dimensions are approximately 28 x 36 x 41 inches (Depth x Width x Height) and it weighs approximately 264 pounds.
- Připojení plynu: A qualified technician must connect the range to the propane gas supply.
- Elektrické připojení: The range requires a 120 Volt electrical supply for ignition and oven functions.
- Držák proti převrácení: Install the anti-tip bracket according to the instructions provided with the bracket. This is a critical safety step.
- Vyrovnání: Level the range using the adjustable legs to ensure stable operation and even cooking.
4. Návod k obsluze
4.1 Obsluha varné desky
The cooktop features six sealed burners with heavy-duty cast iron grates. Burner output ranges from 6,000 BTU for simmering to 18,000 BTU for rapid boiling.
Obrázek 2: Shora dolů view varné desky.
- Zapalování: Push in and turn the desired burner knob counter-clockwise to the 'LITE' position. You will hear a clicking sound as the igniter sparks. Once the burner ignites, continue to hold the knob for a few seconds to allow the thermocouple to heat up, then release.
- Nastavení plamene: Adjust the flame size by turning the knob between the 'HI' and 'LOW' settings. The flame should be stable and blue.
- Rošty: The heavy-duty cast iron grates provide stable support for cookware and maximize heat transfer.

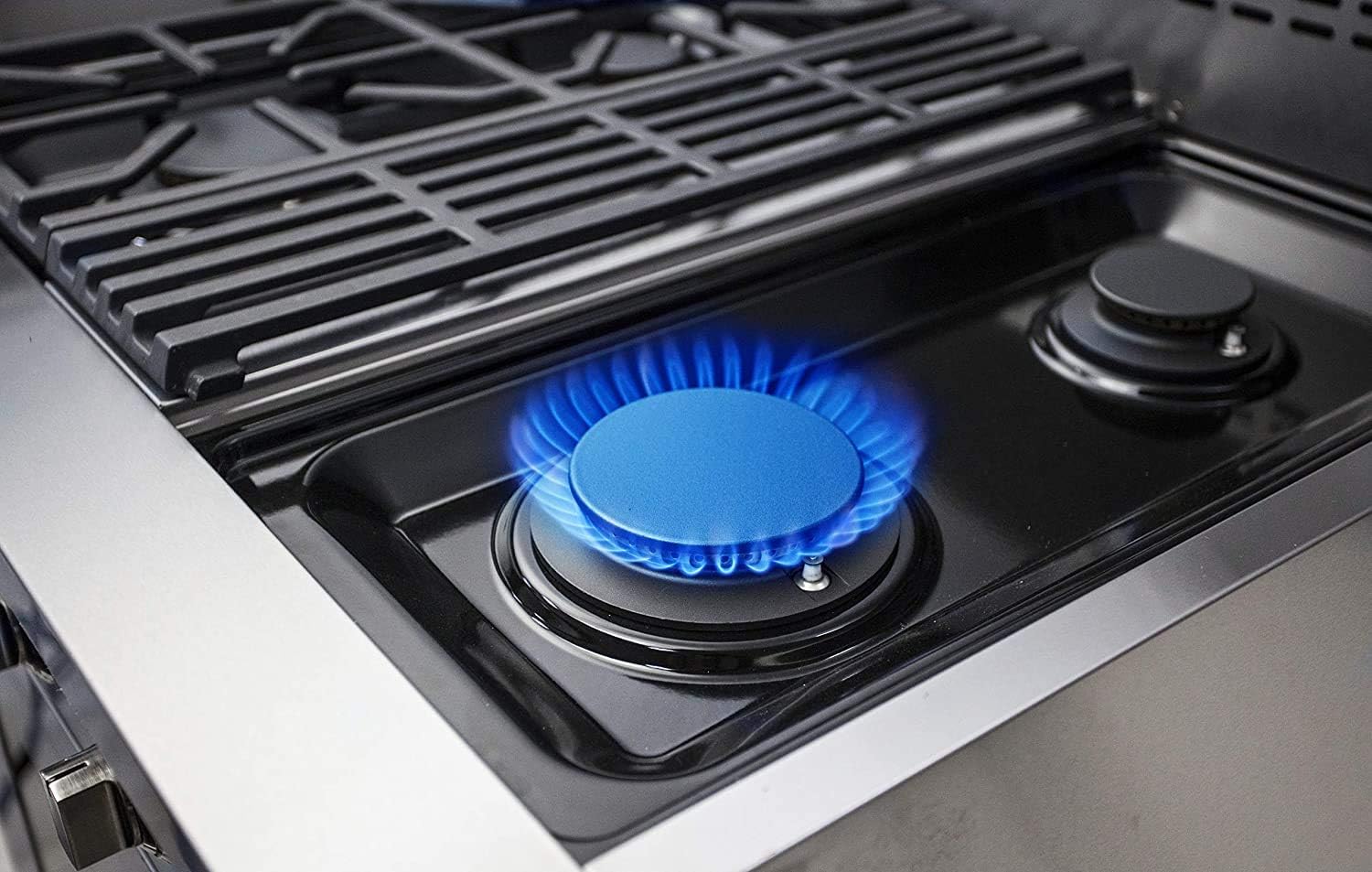

Figure 3: Close-up of a lit burner.
4.2 Provoz trouby
The 5.5 cubic feet capacity oven features convection cooking and a broiler drawer.
Figure 4: Oven interior with racks.
- Nastavení teploty: Use the oven control knob to select the desired temperature. The oven will preheat to the set temperature.
- Konvekční ventilátor: Activate the convection fan using the dedicated switch on the control panel. Convection cooking promotes even heat distribution, ideal for baking and roasting.
- Brojler: The broiler drawer provides direct high heat for searing and browning. Place food on the broiler rack and adjust distance from the heat source as needed.
- Rošty do trouby: The oven includes three adjustable racks for flexible cooking arrangements.
4.3 ovládacích knoflíků
The range is equipped with slick silver commercial temperature knobs for precise control of both cooktop burners and oven functions. Each knob is clearly marked for its corresponding function and setting.
5. Údržba a čištění
Regular cleaning and maintenance will ensure the longevity and optimal performance of your NXR range.
- Nerezové povrchy: Clean with a soft cloth and a non-abrasive stainless steel cleaner. Always wipe in the direction of the grain.
- Litinové rošty: Remove grates and wash with warm, soapy water. For stubborn stains, a non-abrasive scrubber can be used. Ensure grates are completely dry before returning them to the cooktop.
- Uzavřené hořáky: The sealed design helps contain spills. Clean burner caps and bases with warm, soapy water. Ensure all parts are dry before reassembly. Do not use abrasive cleaners on burner parts.
- Interiér trouby: V případě lehkého rozlití setřete čisticím prostředkem.amp cloth. For heavier soil, use an oven cleaner specifically designed for gas ovens, following the product's instructions. Ensure adequate ventilation during and after cleaning.
- Ovládací knoflíky: Pull off the knobs for cleaning. Wash with warm, soapy water and dry thoroughly before replacing.
6. Řešení problémů
Než kontaktujete servis, znovuview následující běžné problémy a jejich řešení:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Hořák se nezapaluje | Přívod plynu vypnutý; Zapalovač ucpaný; Výpadek proudutage | Check gas valve; Clean igniter port; Check circuit breaker |
| Trouba se netopí | Gas supply off; Oven control not set correctly; Power outage | Check gas valve; Verify temperature setting; Check circuit breaker |
| Nerovnoměrné pečení v troubě | Food placement; Convection fan off; Oven not level | Adjust rack position; Activate convection fan; Level the range |
| Zápach plynu | Minor leak; Unlit burner | Ensure all burners are off; If odor persists, turn off gas supply and contact a qualified technician immediately. |
If troubleshooting steps do not resolve the issue, contact NXR customer support or a qualified service technician.
7. Specifikace
Detailed specifications for the NXR SC3611LP Propane Gas Range:
| Funkce | Specifikace |
|---|---|
| Značka | NXR |
| Číslo modelu | SC3611LP |
| Typ paliva | Propanový plyn |
| Typ instalace | Volné stání |
| Rozměry produktu (D x Š x V) | 28 x 36 x 41 palce |
| Hmotnost položky | 264 libry |
| Kapacita trouby | 5.5 kubických stop |
| Number of Heating Elements (Burners) | 6 |
| Typ hořáku | Zapečetěno |
| Vlastnosti trouby | Convection Fan, Broiler Drawer |
| Ovládací konzole | Knoflík |
| svtage | 120 voltů |
| Stojany na trouby | 3 |
| Typ materiálu | Nerez |
| Barva | Nerez |
8. Záruka a podpora
Your NXR SC3611LP range comes with a manufacturer's warranty. Please refer to the registration card included with your product for specific warranty terms, conditions, and registration instructions. Retain your proof of purchase for warranty claims.
For technical assistance, service inquiries, or to register your product, please contact NXR customer support. Contact information can typically be found on the registration card or the official NXR webmísto.
