Uživatelská příručka k FM vysílači Renkforce RF-CAR-100 TWNT-V811R

1. Úvod

The Renkforce RF-CAR-100 FM Transmitter allows you to wirelessly stream audio from your smartphone or Micro SD card to your car's FM radio. This device also features two USB charging ports, providing a combined output of 3.1 Amps to conveniently charge your mobile devices while on the go. Enjoy your personal music selection and hands-free calling through your car's audio system.

2. Bezpečnostní informace

• Ensure the device is securely plugged into the car's 12V power socket.
• Do not operate the device in a manner that distracts you from driving.
• Nevystavujte zařízení extrémním teplotám, přímému slunečnímu záření nebo vlhkosti.
• Nepokoušejte se zařízení rozebírat ani upravovat. Ztratíte tak záruku.
• Uchovávejte mimo dosah dětí.

3. Obsah balení

• Renkforce RF-CAR-100 FM Transmitter (1 unit)

4. Konec produktuview

Familiarize yourself with the components of your Renkforce RF-CAR-100 FM Transmitter:

• 12V Car Power Plug: Connects to your car's cigarette lighter socket.
• USB Charging Ports (x2): For charging smartphones and other USB-powered devices. One port may be designated for music playback from a USB drive (if supported) or for faster charging.
• Slot pro kartu Micro SD: Vložte kartu Micro SD pro přímé přehrávání hudby.
• Multi-function Knob/Button: Used for adjusting FM frequency, controlling music playback (play/pause, skip tracks), and managing calls (answer/end).
• LED displej: Zobrazuje aktuální frekvenci FM.
• Mikrofon: Pro handsfree volání.

Obrázek 1: Přední view of the Renkforce RF-CAR-100 FM Transmitter, showing the two USB charging ports and the blue LED indicator light when powered on.

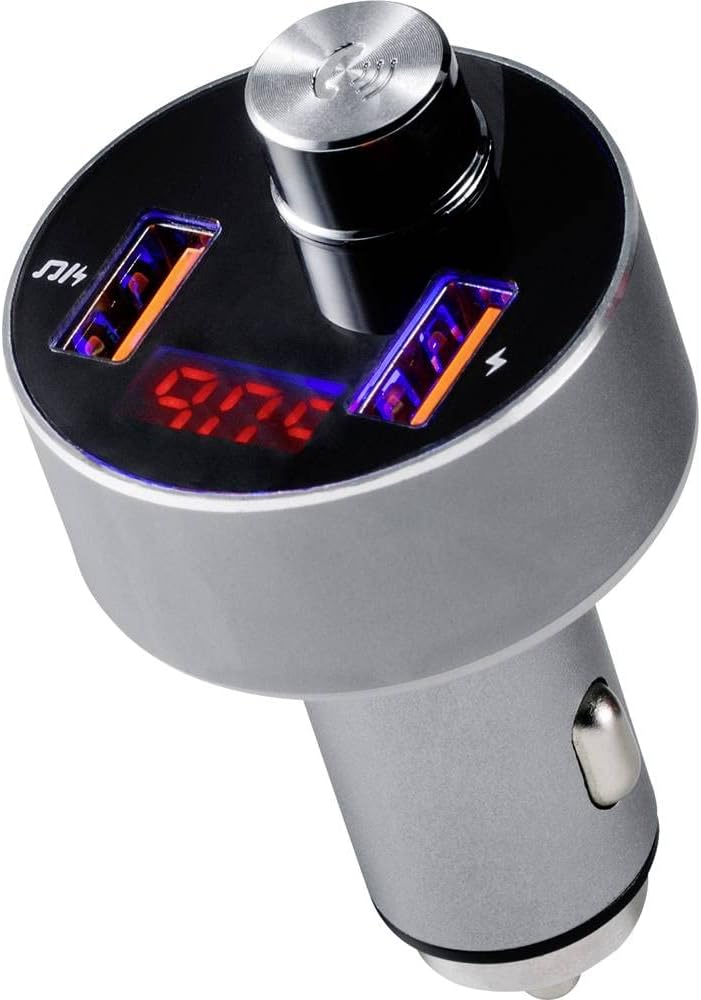

Obrázek 2: Nahoru view of the transmitter, highlighting the digital display showing the FM frequency (e.g., 97.0 MHz) and the central multi-function control knob.

Obrázek 3: The FM Transmitter positioned beside a smartphone, illustrating its capability for hands-free calling. The phone screen shows an incoming call from 'Tom'.

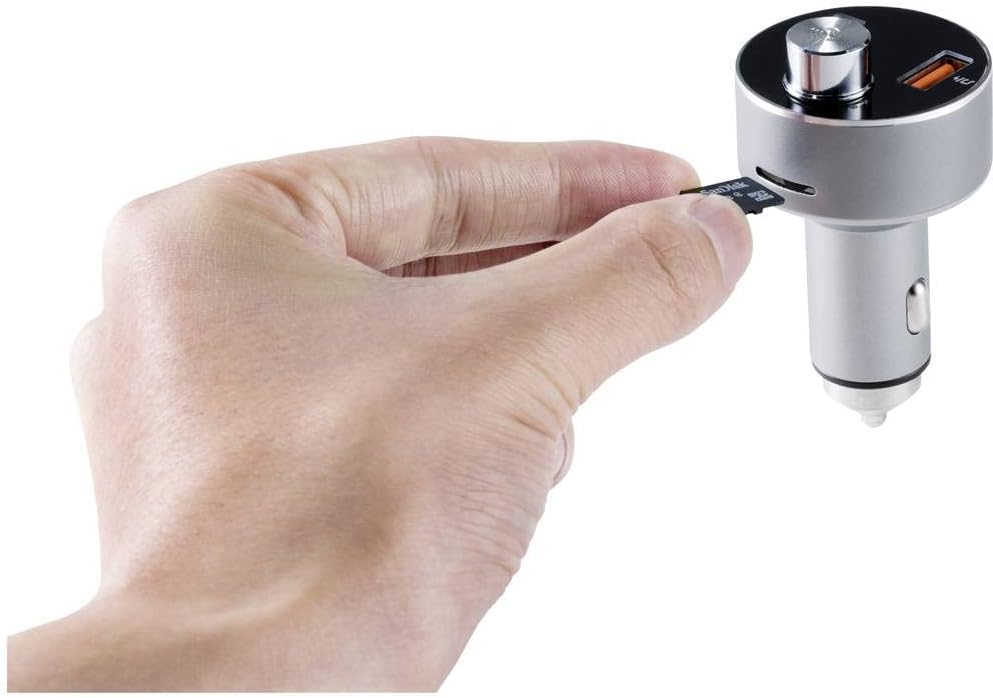

Obrázek 4: A hand demonstrating the insertion of a Micro SD card into the dedicated slot on the side of the FM Transmitter for direct audio playback.

5. Nastavení

1. Zapnutí: Insert the Renkforce RF-CAR-100 into your car's 12V cigarette lighter socket. The device will power on automatically, and the LED display will show the current FM frequency.
2. Nastavte FM frekvenci:
   • Tune your car's FM radio to an unused frequency (one with no strong broadcast signal, typically static).
   • On the RF-CAR-100, press and hold the multi-function knob until the frequency display starts flashing.
   • Rotate the knob left or right to adjust the transmitter's frequency to match the one on your car radio.
   • Press the knob once to confirm the frequency setting.
3. Bluetooth párování:
   • Na smartphonu povolte Bluetooth a vyhledejte dostupná zařízení.
   • Select 'RF-CAR-100' (or similar name) from the list to pair.
   • Once paired, a voice prompt may confirm the connection, and audio from your phone will be transmitted to your car radio.

6. Návod k obsluze

6.1 Přehrávání hudby

• From Bluetooth Device: Once paired, open your music player on your smartphone. Audio will automatically stream through the FM Transmitter to your car radio. Use the multi-function knob to play/pause (short press) or skip tracks (rotate and press).
• From Micro SD Card: Insert a Micro SD card (formatted with MP3/WMA files) into the designated slot. The device will automatically detect the card and begin playing music. Use the multi-function knob for playback control.

6.2 Volání bez použití rukou

• Přijetí hovoru: When an incoming call is received, the device will announce the number. Short press the multi-function knob to answer the call.
• Ukončení hovoru: During a call, short press the multi-function knob to end the conversation.
• Odmítnutí hovoru: Press and hold the multi-function knob to reject an incoming call.
• Opakované vytáčení: Double-press the multi-function knob to redial the last number.

6.3 USB nabíjení

Connect your USB charging cable to one of the two USB ports on the transmitter and to your mobile device. The ports provide a combined output of 3.1 Amps pro efektivní nabíjení.

7. Údržba

• Zařízení čistěte měkkým, suchým hadříkem. Nepoužívejte tekuté čisticí prostředky ani rozpouštědla.
• Ensure the USB ports and Micro SD slot are free from dust and debris.
• Pokud zařízení delší dobu nepoužíváte, skladujte jej na chladném a suchém místě.

8. Řešení problémů

• Bez napájení:
  • Check if the car's 12V socket is functioning correctly.
  • Ensure the transmitter is fully inserted into the socket.
• Poor Audio Quality / Static:
  • Adjust the FM frequency on both the transmitter and your car radio to an unused channel.
  • Ensure the volume on your smartphone and car radio is set appropriately.
  • Move away from areas with strong radio interference.
• Problémy s připojením Bluetooth:
  • Ujistěte se, že je na vašem smartphonu povoleno Bluetooth.
  • Delete 'RF-CAR-100' from your phone's paired devices list and attempt to re-pair.
  • Restart both your phone and the FM Transmitter.
• Nabíjení nefunguje:
  • Verify that the USB cable is not damaged and is properly connected.
  • Ensure the device being charged is compatible with USB charging.

9. Specifikace

10. Záruka a podpora

Renkforce products are designed for reliability and performance. For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact your retailer. Keep your proof of purchase for warranty claims.
