EOTECH G45 Magnifier (G45 No Mount) Instruction Manual

1. Úvod

Thank you for choosing the EOTECH G45 5 Power Magnifier. This manual provides essential information for the proper use, setup, and maintenance of your new magnifier. The G45 Magnifier is designed to enhance your targeting capabilities by offering 5X magnification, allowing for precise long-range targeting and rapid target acquisition. Please read these instructions carefully before mounting and using your magnifier to ensure safe and optimal performance.

2. Konec produktuview

Klíčové vlastnosti

• 5x zvětšení: Offers enhanced 5X magnification for precise long-range targeting.
• Seamless Transition: Ability to transition between 1X and 5X magnification almost instantly.
• Tool-Free Adjustments: Allows for vertical and horizontal adjustments without specialized tools.
• Široké pole View: Poskytuje rozsáhlý view for improved situational awareness.
• Voděodolný: Designed to be water resistant up to 33 feet (10 meters) depth.
• Odolná konstrukce: Features a robust design for reliability and longevity.

Obsah balení

Your EOTECH G45 Magnifier package includes:

• EOTECH G45 Magnifier (No Mount, Black Finish)
• User's Manual for G-Series Magnifiers
• Registrační karta produktu
• Mounting Screws (if applicable for specific variants)

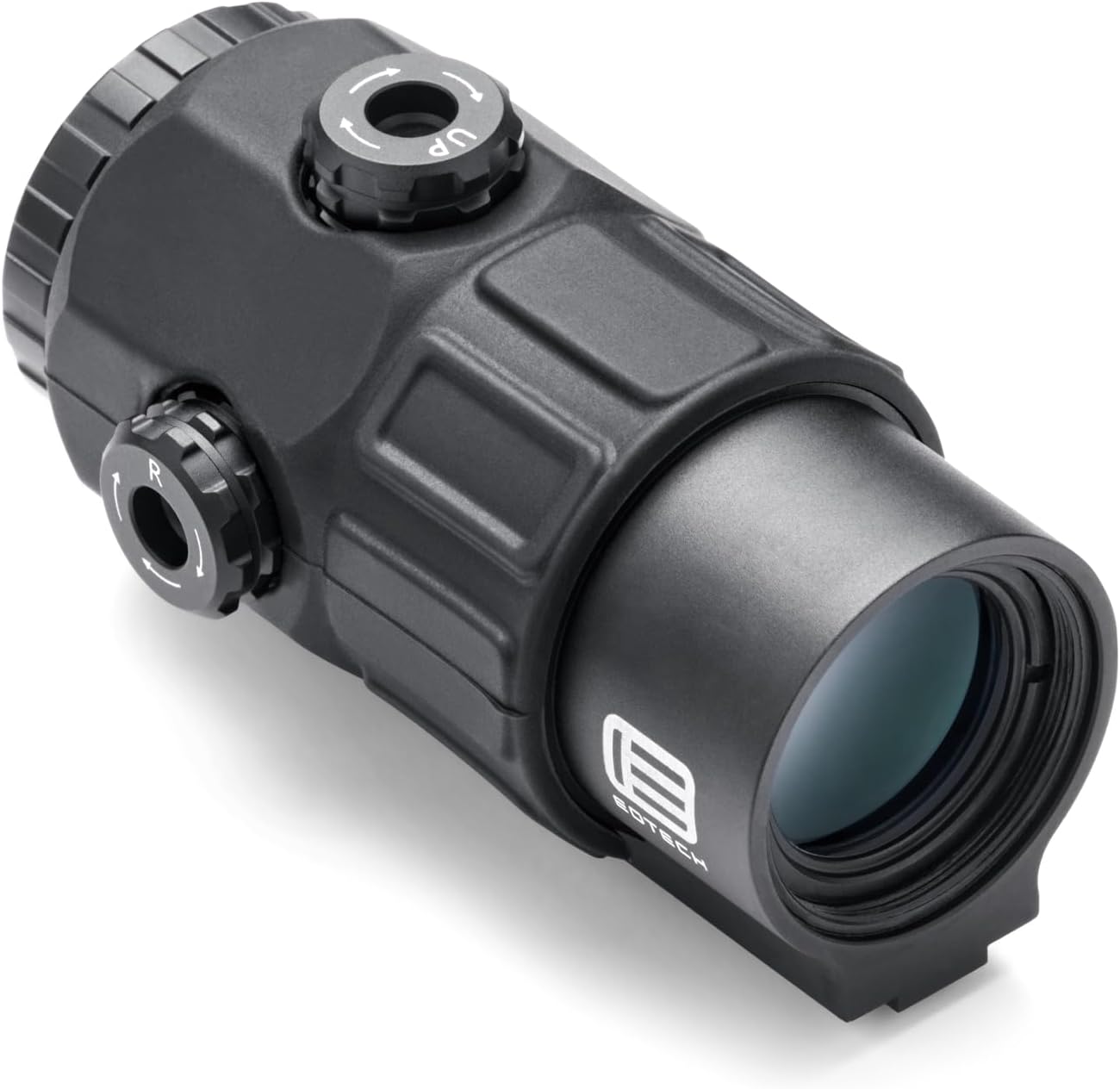

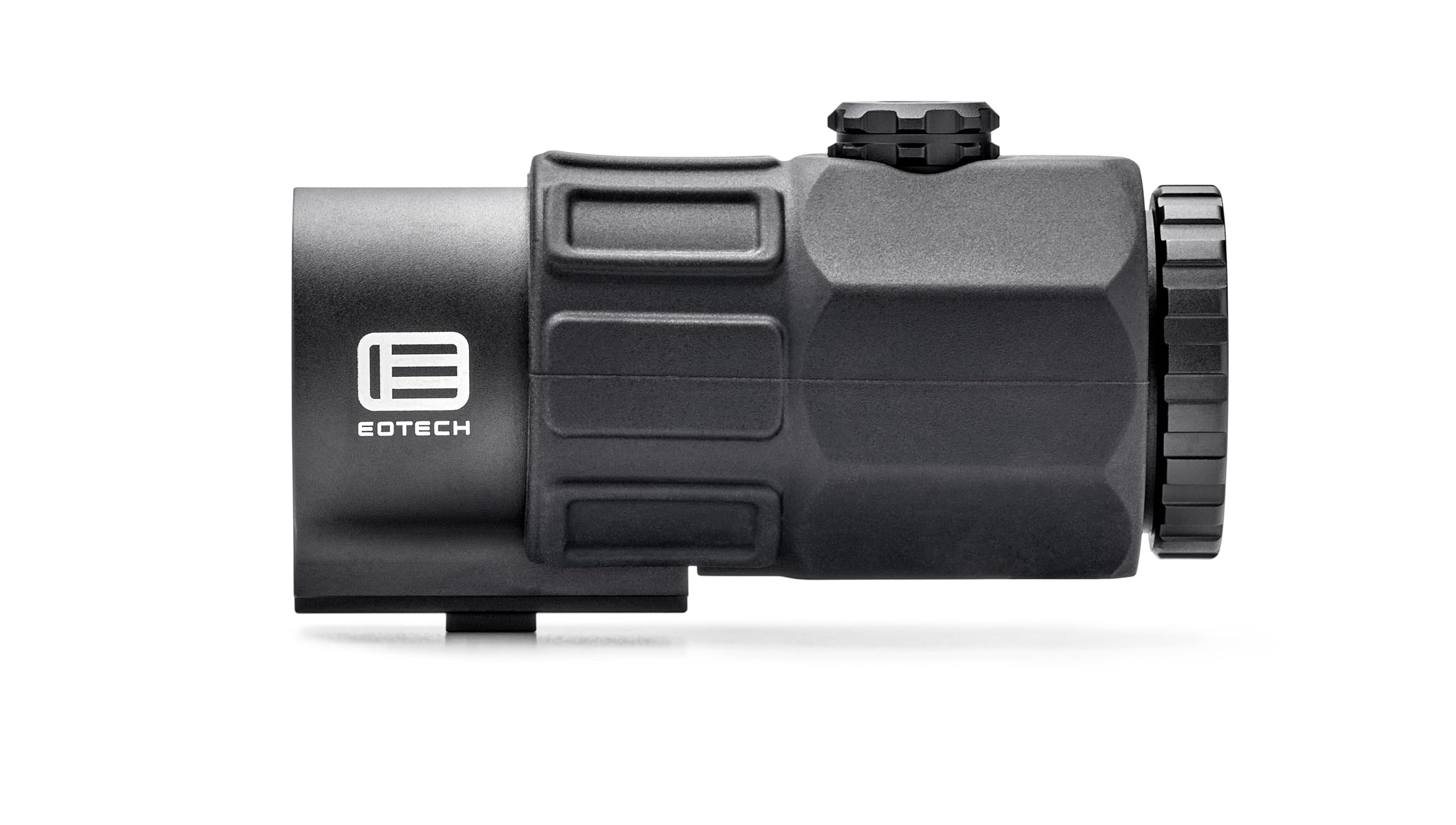

Obrázky produktů

3. Nastavení

Mounting the Magnifier

The EOTECH G45 Magnifier is designed to be used behind an EOTECH Holographic Weapon Sight (HWS). It is compatible with firearms featuring a 1-inch Weaver or MIL-STD-1913 rail. The magnifier does not come pre-assembled to a mount. If using an STS mount (sold separately), ensure it is properly installed.

1. Attach Mount (if applicable): If your G45 came with a separate mount (e.g., STS mount), attach the magnifier to the mount using the provided screws. Ensure screws are tightened to 24 in-lbs using a torque wrench.
2. Position on Rail: Place the magnifier and mount assembly onto your firearm's rail behind your HWS.
3. Bezpečná montáž: Engage the quick-detach lever (if applicable) or tighten mounting screws to secure the magnifier firmly to the rail.

Reticle Position Adjustments

After zeroing or re-zeroing your HWS, it may be necessary to reposition the reticle image into the center of the magnifier window. This is an aesthetic adjustment and has no effect on the sight's zero.

• Turn the horizontal and vertical adjustment dials on the top or side of the magnifier. Use a coin or a flat head screwdriver to reposition the reticle to the desired position.

Dioptrická korekce

Adjust the diopter ring at the rear of the magnifier to achieve a clear, sharp image for your individual eyesight. Rotate the ring until the reticle and target appear in sharp focus.

Unboxing and Setup Video

4. Návod k obsluze

Switch Operation (Flip-to-Side)

To engage the magnifier, simply push the optic to the right or left, depending on how it is mounted. To disengage and move the magnifier out of your line of sight, push the magnifier back into its original position until a hard stop is achieved. The magnifier system can be configured to switch to either the left or right based on user preference.

Magnification Transition

The G45 allows for quick transitions between 1X (unmagnified) and 5X (magnified) views, enabling rapid adaptation to changing target distances.

Nastavení jasu

The EXPS HWS (if paired) typically offers 20 daylight settings and 10 night vision settings for optimal visibility in various lighting conditions.

Lupa View Demonstrační video

5. Údržba

Čištění

• Use a soft, lint-free cloth (such as a microfiber cloth) to clean the lenses. Avoid abrasive materials.
• Na odolné šmouhy použijte čisticí roztok na čočky určený speciálně pro optiku.
• Wipe the exterior of the magnifier with a damp hadříkem podle potřeby.

Skladování

• Store the magnifier in a cool, dry place away from direct sunlight and extreme temperatures.
• Use the protective case or lens covers when not in use to prevent damage.

6. Řešení problémů

If you encounter any issues with your EOTECH G45 Magnifier, please consider the following:

• Rozmazaný obrázek: Adjust the diopter ring at the rear of the magnifier until the image is clear.
• Reticle Not Centered: Use the vertical and horizontal adjustment dials on the magnifier to center the reticle within the magnifier's field of view.
• Nestabilita hory: Ensure all mounting screws are tightened to the recommended torque (24 in-lbs if applicable) and the quick-detach lever is fully engaged.
• No Magnification: Verify the magnifier is properly flipped into the engaged position.

Další pomoc naleznete v části záruka a podpora.

7. Specifikace

8. Záruka a podpora

Informace o záruce

The EOTECH G45 Magnifier comes with a 2-Year Manufacturer Warranty. This warranty covers defects in materials and workmanship under normal use. Please refer to the warranty card included in your package for full details and exclusions.

Registrace produktu

To ensure you receive the full benefits of your warranty and stay informed about product updates, please register your EOTECH G45 Magnifier online at the official EOTECH website. Registration helps protect your product and ensures you are contacted in the event of any product issues.

For customer support or service inquiries, please visit the EOTECH webwebu nebo kontaktujte jejich zákaznický servis na čísle 1-888-368-4656.
