Zavedení
This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your Ibergrif M21701A Concealed Shower Mixer Tap. Please read this manual thoroughly before installation and retain it for future reference. Proper installation and care will ensure optimal performance and longevity of your product.
Bezpečnostní informace
- Před zahájením jakékoli instalace nebo údržby vždy uzavřete hlavní přívod vody.
- Pokud si nejste jisti některou částí instalace, poraďte se s kvalifikovaným instalatérem.
- Ujistěte se, že všechna připojení jsou bezpečná, aby nedošlo k únikům.
- Do not use abrasive cleaners or harsh chemicals on the chrome finish, as this can damage the surface.
- Chraňte výrobek před mrazem.
Obsah balení
Před zahájením instalace ověřte, zda jsou všechny komponenty přítomny:
- 1 x Ibergrif M21701A Concealed Shower Mixer Tap (main body, handle, escutcheon)
- Installation hardware (screws, seals, etc.)
- Návod k použití (tento dokument)
Image: All components of the Ibergrif M21701A concealed shower mixer tap, including the main body, handle, decorative plate, and small installation parts, displayed alongside the product's instruction manual.
Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | M21701A |
| Značka | Ibergrif |
| Dokončit | Chrome |
| Barva | Stříbro |
| Materiál | Mosazný kov |
| Způsob instalace | Nástěnná montáž, jeden otvor |
| Počet úchytů | 1 (Jednopáková) |
| Počet vývodů | 1 |
| Speciální funkce | Water-saving system |
| Rozměry produktu (D x Š x V) | 17 x 12.4 x 17 cm |
| Hmotnost položky | 943 gramů |
Image: Technical drawing illustrating the dimensions of the Ibergrif M21701A concealed shower mixer tap, including the circular faceplate diameter (160mm) and the depth of the concealed unit.
Nastavení a instalace
Poznámka: Installation should ideally be performed by a qualified professional to ensure proper function and compliance with local plumbing codes. Always ensure the main water supply is turned off before starting installation.
- Připravte instalační prostor: Ensure the wall cavity is prepared according to the dimensions provided in the specifications and dimensional drawing. The concealed body requires sufficient depth.
- Install the Concealed Body: Secure the main mixer body within the wall cavity. Ensure it is level and properly aligned with the finished wall surface. Connect the hot and cold water supply lines to the designated inlets on the mixer body. Connect the outlet to the shower head or other shower component.
- Zkouška těsnosti: Before closing the wall, turn on the main water supply and carefully check all connections for leaks. Rectify any leaks immediately.
- Install the Escutcheon and Handle: Once the wall is finished, attach the decorative escutcheon (faceplate) over the concealed body. Then, install the single lever handle onto the mixer spindle, securing it according to the provided hardware.
- Závěrečná kontrola: Turn on the water supply completely and test the mixer tap for proper operation, including water flow and temperature control.

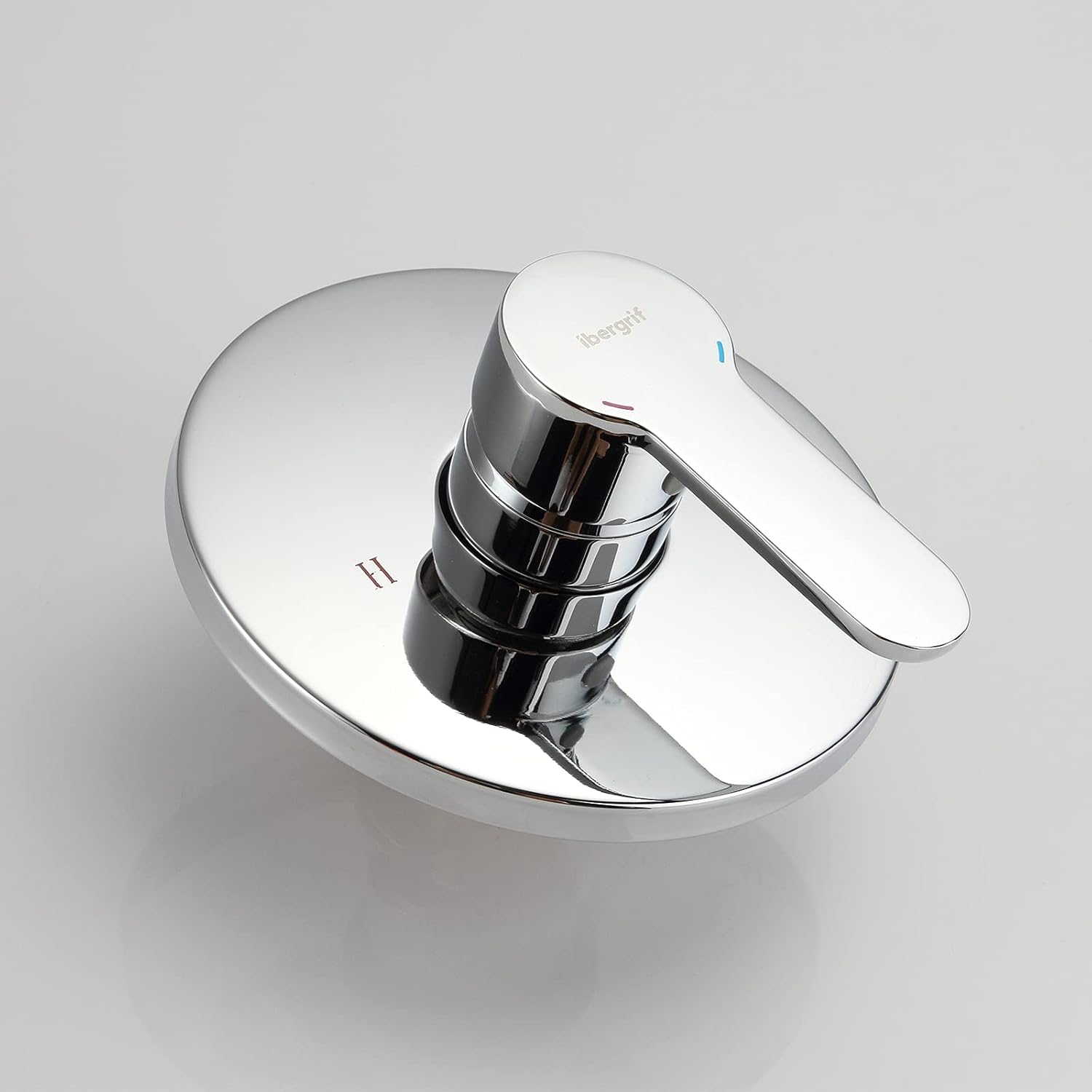

Image: The Ibergrif M21701A concealed shower mixer tap fully assembled, showcasing its chrome finish and single lever handle.
Návod k obsluze
The Ibergrif M21701A features a single lever for controlling both water flow and temperature.
- Zapnutí/vypnutí: Lift the lever upwards to turn on the water flow. Push the lever downwards to turn off the water flow.
- Nastavení průtoku vody: The further you lift the lever, the greater the water flow.
- Nastavení teploty: Move the lever to the left for hotter water and to the right for colder water. The handle typically has markings (red for hot, blue for cold) to indicate temperature direction.
Obrázek: Podrobný view of the Ibergrif M21701A mixer tap's single lever handle, highlighting the hot (red) and cold (blue) temperature indicators for intuitive control.
Údržba
Regular cleaning and maintenance will help preserve the appearance and functionality of your mixer tap.
- Čištění povrchové úpravy: Clean the chrome surface regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome fixtures. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
- Vyhněte se agresivním chemikáliím: Nepoužívejte abrazivní čisticí prostředky, drátěnky, čisticí prostředky na bázi amoniaku ani žádné produkty obsahující bělidlo, kyseliny nebo alkohol, protože by mohly poškodit chromový povrch.
- Zkontrolujte netěsnosti: Periodically inspect connections for any signs of leaks. Tighten connections if necessary, but do not overtighten.
Odstraňování problémů
If you encounter issues with your Ibergrif M21701A mixer tap, refer to the following common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Nízký průtok vody | Clogged aerator or shower head; partially closed stopcock; low water pressure. | Clean or replace aerator/shower head; ensure stopcock is fully open; check household water pressure. |
| Water Leaks from Handle | Opotřebované O-kroužky nebo kazeta. | Turn off water supply and replace O-rings or the ceramic cartridge. Consult a plumber if unsure. |
| Nekonzistentní teplota vody | Issues with water heater; unbalanced hot/cold pressure. | Check water heater settings; ensure balanced water pressure. |
If the problem persists after attempting these solutions, contact a qualified plumber or Ibergrif customer support.
Záruka a podpora
For warranty information regarding your Ibergrif M21701A Concealed Shower Mixer Tap, please refer to the warranty card included with your purchase or visit the official Ibergrif webZáruční podmínky se mohou lišit v závislosti na regionu a prodejci.
For technical support, spare parts, or further assistance, please contact Ibergrif customer service through their official webwebové stránky nebo kontaktní informace poskytnuté vaším prodejcem.
You can visit the Ibergrif brand store for more products and information: Ibergrif Official Store
