Ibergrif M22135 Kitchen Faucet with Pull-Out Spray, Single-Lever Mixer, Brushed Nickel User Manual

Zavedení

This manual provides detailed instructions for the installation, operation, and maintenance of your Ibergrif M22135 Kitchen Faucet. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product. Keep this manual for future reference.

Image: Ibergrif M22135 Kitchen Faucet, showcasing its brushed nickel finish and pull-out spray design.

Důležité bezpečnostní informace

Během instalace a používání dodržujte následující bezpečnostní opatření:

• Před zahájením jakékoli instalace nebo údržby vždy uzavřete hlavní přívod vody.
• Používejte vhodné osobní ochranné prostředky, jako jsou ochranné brýle a rukavice.
• Ujistěte se, že všechna připojení jsou bezpečná, aby nedošlo k únikům. Nepřetahujte.
• Pokud si nejste jisti některou částí instalace, poraďte se s kvalifikovaným instalatérem.
• Na povrchovou úpravu kohoutku nepoužívejte agresivní chemikálie ani abrazivní čisticí prostředky.

Obsah balení

Před zahájením instalace ověřte, zda jsou všechny komponenty přítomny:

• 1 x Kitchen Faucet with Pull-Out Spray
• 1 x Installation Kit (includes mounting hardware)
• 2 x Flexible Hoses (for hot and cold water supply)

Image: All components included with the Ibergrif M22135 faucet, laid out for inspection.

Specifikace produktu

Image: Detailed dimensions of the Ibergrif M22135 Kitchen Faucet, including height and spout reach.

Pokyny k instalaci

Pro správnou instalaci kuchyňské baterie postupujte podle těchto kroků:

1. Prepare the Sink Hole: Ensure your sink has a single hole with a diameter of approximately 35mm (1.38 inches) for faucet mounting.
2. Namontujte faucet: Insert the faucet base into the sink hole. From underneath the sink, secure the faucet using the provided washer and mounting nut. Tighten firmly but do not overtighten.
3. Connect the Pull-Out Hose: Connect the pull-out spray hose to the designated connection point on the faucet body underneath the sink. Ensure a secure, leak-free connection.
4. Install the Weight: Attach the counterweight to the pull-out spray hose. This weight helps the spray head retract smoothly. Position it according to the desired hose length.
5. Připojení přívodních vodovodních potrubí: Connect the hot (marked 'H' or red) and cold (marked 'C' or blue) flexible hoses to your corresponding hot and cold water supply valves. Use appropriate wrenches and ensure all connections are watertight.
6. Zkouška těsnosti: Slowly turn on the main water supply and check all connections for any leaks. Operate the faucet to ensure proper water flow and temperature control.

Image: Visual guide illustrating the key steps for installing the Ibergrif M22135 Kitchen Faucet, including securing the base, connecting hoses, and attaching the weight.

Návod k obsluze

Your Ibergrif M22135 faucet is designed for ease of use with several convenient features:

• Ovládání jednou pákou: The single lever controls both water flow and temperature. Move the lever up to increase flow and down to decrease. Move it left for hot water and right for cold water.
• Funkce studeného startu: The faucet incorporates a "Cold Start" system. When the lever is in the central position, only cold water flows, helping to save energy. Hot water flows only when the lever is moved to the left.
• Pull-Out Spray Head: The spray head can be pulled out from the spout for extended reach and flexibility, making it ideal for rinsing dishes or cleaning the sink. It retracts smoothly back into place thanks to the counterweight.
• Dual-Function Sprayer: The spray head offers two distinct water modes:
  • Režim streamování: Provides a steady, aerated flow for everyday tasks.
  • Režim postřiku: Delivers a powerful spray for heavy-duty rinsing.
  Switch between modes using the button on the spray head.
• Otočný výtok o 360°: The faucet spout can swivel 360 degrees, providing full range of motion and flexibility for various kitchen tasks.

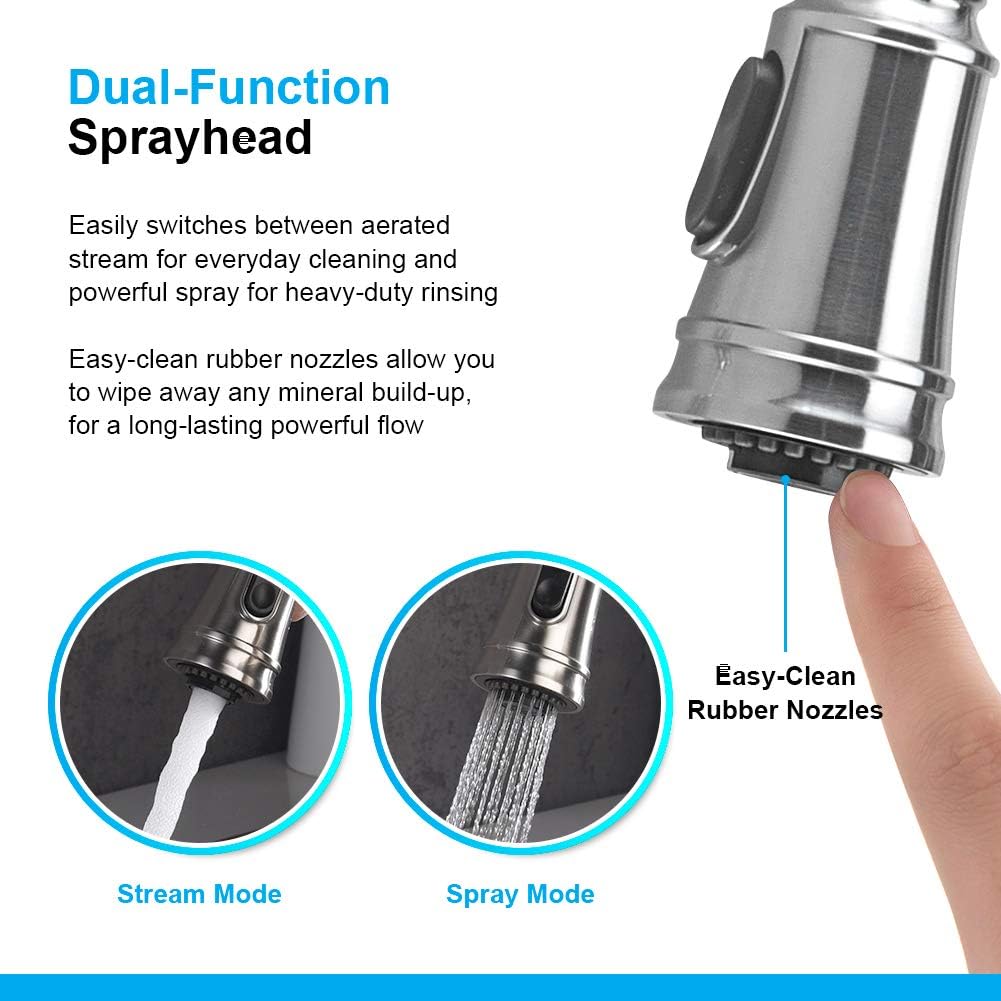

Image: Illustration of the dual-function sprayhead, showing both stream and spray modes for versatile use.

Image: Diagram explaining the Cold Start Kelogic system, which saves energy by starting with cold water in the central lever position.

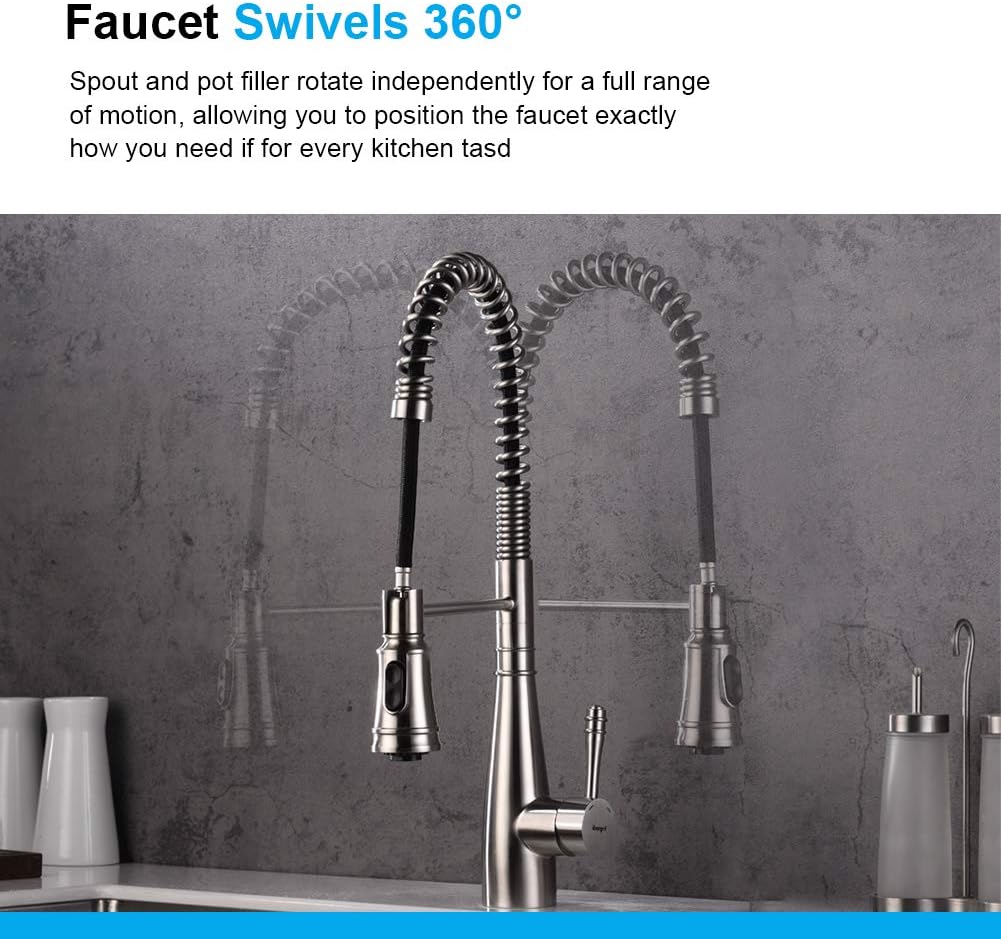

Image: Demonstrates the 360-degree swivel capability of the faucet spout, allowing for full range of motion.

Image: Shows the pull-out spray head in use, highlighting its flexible hose and universal rotation for easy maneuverability.

Péče a údržba

Proper care will help maintain the appearance and function of your faucet:

• Čištění povrchové úpravy: The brushed nickel finish is designed to resist water spots and fingerprints. Clean regularly with a soft, damp cloth and mild soap. Rinse thoroughly and dry with a soft cloth to prevent water spotting.
• Vyhněte se drsným čisticím prostředkům: Do not use abrasive cleaners, scouring pads, ammonia-based cleaners, or any products containing bleach or acids, as these can damage the finish.
• Údržba provzdušňovače: The easy-clean rubber nozzles on the spray head allow you to easily wipe away any mineral build-up with your finger, ensuring a consistent water flow. For more stubborn deposits, unscrew the aerator and soak it in a solution of equal parts white vinegar and water.

Průvodce řešením problémů

V této části naleznete běžné problémy a jejich řešení:

Záruka a podpora

For specific warranty details regarding your Ibergrif M22135 Kitchen Faucet, please refer to the warranty card included with your purchase or visit the official Ibergrif webZáruční podmínky se mohou lišit v závislosti na regionu a prodejci.

If you require technical assistance, replacement parts, or have questions not covered in this manual, please contact your retailer or Ibergrif customer support directly. Contact information can typically be found on the manufacturer's webwebu nebo v dokumentaci k nákupu.

Online zdroje: For additional information and product updates, you may visit the Ibergrif Store on Amazon.
