Zavedení
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your X-PRO Storm 125 ATV. Please read this manual thoroughly before operating the ATV to ensure your safety and the longevity of the product. Keep this manual for future reference.
Bezpečnostní informace
WARNING: Operating an ATV can be hazardous. Always follow safety guidelines to prevent serious injury or death.
- Always wear an approved helmet, eye protection, and protective clothing.
- Never operate the ATV under the influence of alcohol or drugs.
- Adult supervision is required for youth riders.
- Do not carry passengers. This ATV is designed for a single rider.
- Always inspect the ATV before each ride.
- Tento produkt obsahuje chemikálie, o kterých je ve státě Kalifornie známo, že způsobují rakovinu a vrozené vady nebo jiné reprodukční poškození (varování podle návrhu 65).
Nastavení a montáž
Your X-PRO Storm 125 ATV arrives partially assembled. Basic mechanical knowledge and common tools are required for final assembly. Refer to the included hardware list for component identification.
Vybalování
The ATV is shipped in a protective metal crate, which is then enclosed in a cardboard box. Carefully remove the outer packaging and the metal frame.
Image: X-PRO Storm 125 ATV in its shipping box.
Image: X-PRO Storm 125 ATV secured within a metal crate.
Montážní kroky
- Řídítka: Bezpečně připevněte řídítka.
- Přední nosič: Install the front cargo rack.
- kola: Mount all four wheels, ensuring proper torque on lug nuts.
- Baterie: Prepare the battery by adding the electrolyte (if not pre-filled) and charge it fully before installation.
- Kapaliny: Check engine oil and fuel levels. Add fuel as needed.
Image: Assembled X-PRO Storm 125 ATV, front-side view.
Image: Assembled X-PRO Storm 125 ATV, side view.

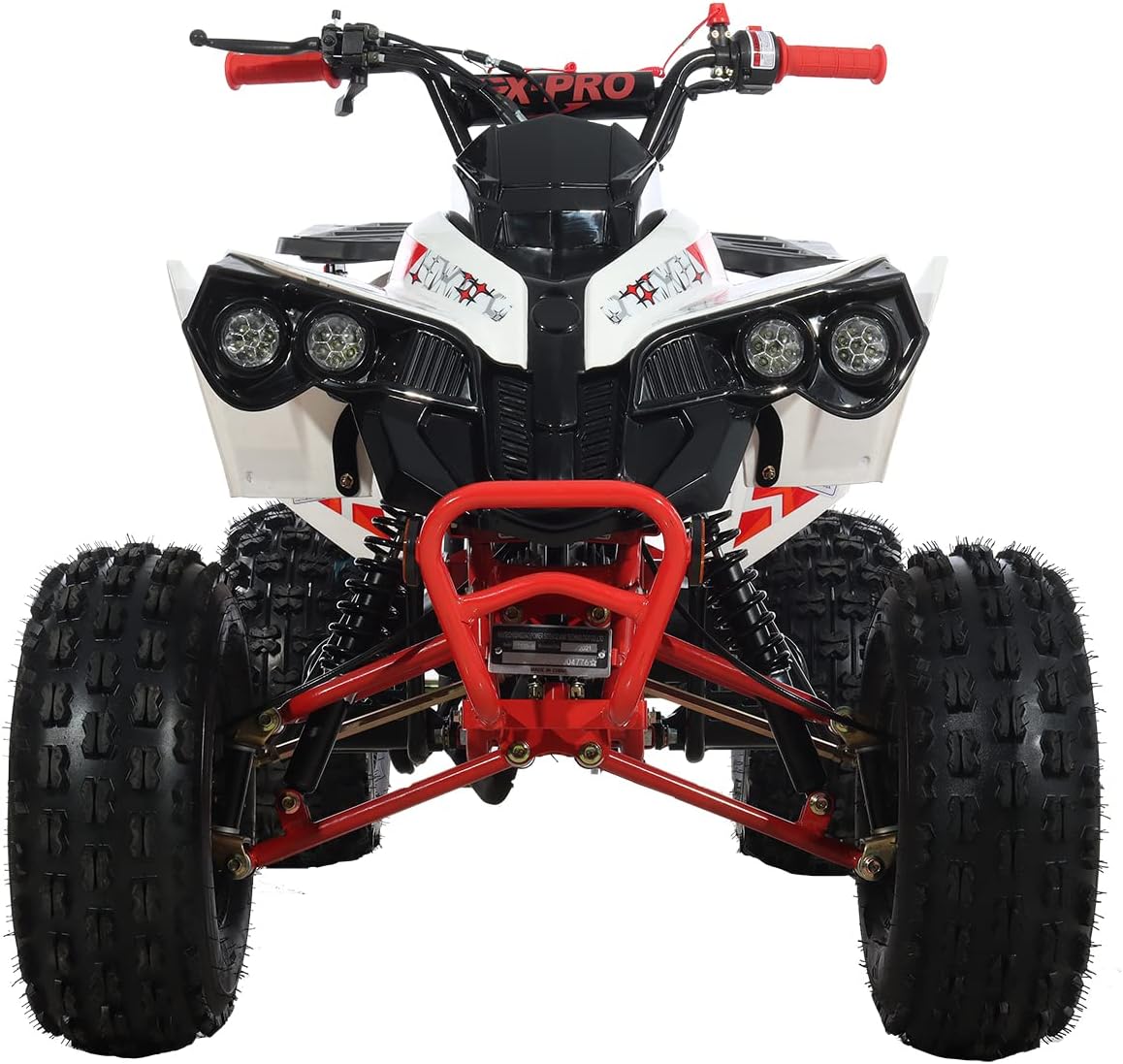

Image: Assembled X-PRO Storm 125 ATV, front view.
Návod k obsluze
Kontroly před jízdou
Před každou jízdou proveďte následující kontroly:
- Hladina paliva: Ensure adequate fuel. Use high-octane, non-ethanol gasoline.
- Motorový olej: Zkontrolujte hladinu oleje a v případě potřeby jej doplňte.
- Tlak v pneumatikách: Verify tires are inflated to recommended pressure.
- brzdy: Zkontrolujte správnou funkci přední a zadní brzdy.
- Ovládání: Check throttle, steering, and all switches.
Starting the ATV
- Ensure the transmission is in Neutral.
- Otočte klíček zapalování do polohy „ON“.
- Pokud je motor studený, zatlačte sytič.
- Press the electric start button.
- Once started, gradually release the choke as the engine warms up.
Ovládací prvky
- Škrticí klapka: Located on the right handlebar. Gently apply to accelerate.
- brzdy: Hand levers for front brakes, foot pedal for rear brake.
- Přenos: Features Forward, Neutral, and Reverse gears for simple operation.
Bezpečnostní funkce
- Remote Cut-Off Switch: Allows an adult to remotely shut off the engine from up to 20 meters away.
- Regulátor rychlosti: Located on the right handlebar, this feature allows you to limit the ATV's top speed, adjustable from approximately 5 km/h upwards, to match the rider's skill level.
Údržba
Regular maintenance is crucial for the performance and longevity of your ATV.
Plán pravidelné údržby
| Položka | Frekvence | Akce |
|---|---|---|
| Motorový olej | Every 10-20 hours or monthly | Check level, change oil (10W-40 recommended) |
| Vzduchový filtr | Každých 20 hodin nebo měsíčně | Vyčistěte nebo vyměňte |
| Zapalovací svíčka | Každých 50 hodin nebo 3 měsíců | Zkontrolujte, vyčistěte nebo vyměňte |
| Brzdy | Před každou jízdou | Inspect for wear, adjust as needed |
| Pneumatiky | Před každou jízdou | Check pressure and condition |
| Řetěz | Every 10 hours or weekly | Inspect tension, lubricate |
Výměna oleje
Drain old oil completely and refill with approximately 0.8-1.0 liters of 10W-40 ATV-specific engine oil. Always dispose of used oil responsibly.
Péče o baterie
Keep the battery charged, especially during periods of non-use. If storing the ATV for an extended period, disconnect the battery and store it in a cool, dry place, charging it periodically.
Odstraňování problémů
This section addresses common issues you might encounter with your X-PRO Storm 125 ATV.
- Motor se nespustí:
- Zkontrolujte hladinu paliva.
- Ujistěte se, že je baterie nabitá.
- Verify spark plug is clean and functional.
- Check if the remote cut-off switch is engaged.
- Ensure the transmission is in Neutral.
- Engine bogs down or runs poorly:
- Check for a clogged air filter.
- Inspect the carburetor for blockages or improper adjustment.
- Ensure the fuel tank vent is not obstructed (e.g., by a faulty gas cap).
- Brzdy nefungují účinně:
- Zkontrolujte brzdové destičky, zda nejsou opotřebované.
- Check brake fluid level (if applicable).
- Adjust brake cables or hydraulic system as needed.
For issues not covered here, please contact X-PRO customer support.
Specifikace
| Funkce | Detail |
|---|---|
| Model | ATV-H20 |
| Typ motoru | 125cc, 4-Stroke, Single Cylinder |
| Přenos | Automatic with Reverse (F-N-R) |
| Startovací systém | Elektrický start |
| Minimální poloměr otáčení | 2.25 metrů |
| Swing Arm & Spindle | Upgraded Steel Casting |
| Maximální hmotnost jezdce | 176 liber (přibližně) |
| Bezpečnostní funkce | Remote Engine Kill Switch, Speed Governor |
Záruka a podpora
X-PROUSA is committed to providing comprehensive aftermarket support for your vehicle. We maintain a stock of parts and offer technical assistance to ensure your satisfaction.
Image: X-PRO Experienced Aftermarket Service.
For parts, service, or advice, please visit the official X-PRO store or contact our customer support team. Our knowledgeable staff is dedicated to resolving issues and ensuring a hassle-free experience.
