1. Úvod
Thank you for choosing the Eonon X20PLUS Car Stereo. This manual provides detailed instructions for the installation, operation, and maintenance of your new car stereo. Please read this manual thoroughly before use to ensure proper functionality and safety.
2. Nastavení a instalace
2.1 Co je v krabici
The Eonon X20PLUS package includes all necessary components for installation and operation. Please verify all items are present upon unboxing.
Figure 2.1: Main components included in the Eonon X20PLUS package.
Figure 2.2: Detailed breakdown of items in the box, including the optional A0125 Backup Camera.
2.2 Dimensions and Compatibility
The X20PLUS is designed for a 178*100mm dashboard size. Please measure your vehicle's dashboard opening to ensure compatibility. If your original car radio size is not 178*100mm, an extra installation kit may be required.
Figure 2.3: Eonon X20PLUS dimensions and dashboard compatibility examples. Note: X20PLUS is a 2 DIN car radio, NOT suitable for Single Din cars.
Figure 2.4: Direct installation is possible if your original radio is 178*100mm and has an ISO connector.
2.3 Schéma zapojení
Carefully connect the provided wiring harness to your vehicle's electrical system. Refer to the diagram below for proper connections. Ensure all connections are secure to prevent malfunctions.
Figure 2.5: Comprehensive wiring diagram for the Eonon X20PLUS head unit.
Figure 2.6: Simplified wiring diagram showing key connections like ISO port and USB ports.
2.4 Tipy pro instalaci
If your original car radio's power cable is not an ISO plug, you will need to purchase an adapter cable. Use keywords like 'Car make & model & year + ISO harness' or 'Car make & model & year + 2 din kit' to find suitable mounting kits or wire harnesses online.
Figure 2.7: Extra kit may be needed for installation if dimensions or connectors do not match.
Figure 2.8: Tips for finding compatible installation accessories online.
3. Návod k obsluze
3.1 QLED displej
The Eonon X20PLUS features a 10.1-inch QLED touch screen with a resolution of 1024x600, offering a brilliant viewing experience with wide 178° viewing úhly.
Figure 3.1: QLED display offers enhanced visual quality compared to older technologies.
Figure 3.2: The 10.1-inch QLED display provides superior viewing úhly.
3.2 Wired and Wireless CarPlay & Android Auto
The X20PLUS supports both wired and wireless CarPlay and Android Auto, allowing seamless integration with your smartphone for navigation, music, calls, and more.
Obrázek 3.3: Přesview of wired and wireless connectivity options for CarPlay, Android Auto, and MirrorLink.
Video 3.1: Demonstrates how to connect CarPlay and Android Auto on the Eonon X20 Series Car Stereo, showing both wired and wireless setup processes.
Figure 3.4: Apple CarPlay interface on the car stereo display.
Figure 3.5: Android Auto interface on the car stereo display.
Figure 3.6: MirrorLink/AirPlay allows screen mirroring from your smartphone.
3.3 Built-in DSP (Digital Sound Processor)
Experience superior audio quality with the built-in DSP, offering a 16-band graphic equalizer and 7 EQ modes for customized sound. It also supports sound field and time delay adjustment for optimal listening.

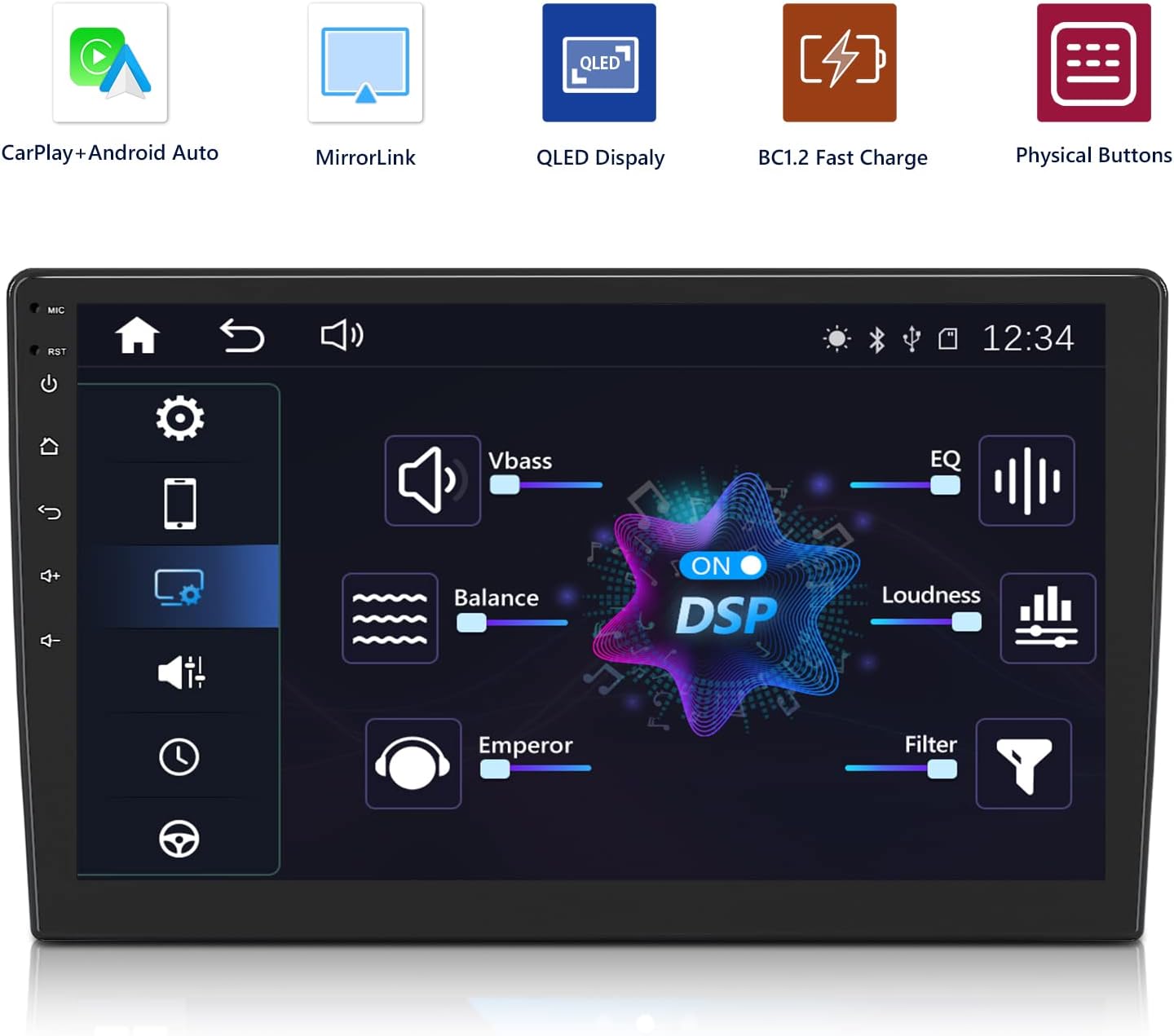

Figure 3.7: Built-in DSP interface for advanced audio customization.
3.4 Bluetooth 5.0 and AM/FM Radio
Bluetooth 5.0 ensures stable and smooth hands-free calls. The unit also features an AM/FM radio with 18 FM and 12 AM station memory to enhance your driving experience.
Figure 3.8: Bluetooth 5.0 for hands-free calls and AM/FM radio functionality.
3.5 Ovládací prvky na volantu
The Eonon X20PLUS supports steering wheel controls, allowing you to manage volume, tracks, and other functions directly from your steering wheel for convenience and safety.
Video 3.2: Toto video poskytuje obecný přehledview of the Eonon X20PLUS, including glimpses of its user interface and features like steering wheel control compatibility.
Figure 3.9: Steering wheel controls allow for convenient operation while driving.
3.6 Rychlé nabíjení
The X20PLUS supports BC1.2 fast charging protocol, allowing you to charge your phone at 1.5A/5V via the USB port.
Figure 3.10: Fast charging capability for compatible smartphones.
3.7 Backup Camera Support
The unit supports a 720P backup camera (A0125, included in some packages) with a 140° wide viewing angle and IP68 waterproof rating, enhancing safety during reverse maneuvers.
Figure 3.11: Backup camera view on the Eonon X20PLUS display.
Figure 3.12: AHD 720P Camera A0125 features.
4. Údržba
To ensure the longevity and optimal performance of your Eonon X20PLUS, follow these maintenance guidelines:
- Čištění: K čištění obrazovky a zařízení používejte měkký, suchý hadřík. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
- Aktualizace softwaru: Periodically check for software updates from Eonon's official website or support channels to ensure you have the latest features and bug fixes.
- Podmínky prostředí: Nevystavujte jednotku extrémním teplotám, delšímu přímému slunečnímu záření nebo nadměrné vlhkosti.
- Připojení kabelů: Pravidelně kontrolujte všechna kabelová připojení, abyste se ujistili, že jsou bezpečná a nepoškozená.
5. Řešení problémů
If you encounter issues with your Eonon X20PLUS, refer to the common problems and solutions below. For persistent issues, please contact customer support.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Žádná síla | Uvolněné připojení napájení, spálená pojistka, problém s autobaterií. | Check power cable connections. Inspect and replace fuse if blown. Verify vehicle battery health. |
| Žádný zvuk | Nesprávné zapojení reproduktorů, příliš nízká hlasitost, aktivované ztlumení, nastavení DSP. | Verify speaker connections. Increase volume. Check mute status. Adjust DSP settings. |
| CarPlay/Android Auto Connectivity Issues | Incorrect phone settings (Wi-Fi/Bluetooth), faulty USB cable, app not updated. | Ensure phone's Wi-Fi and Bluetooth are on. Use a certified USB cable. Update CarPlay/Android Auto apps on your phone. Restart both phone and head unit. |
| Clock Does Not Hold Time | Incorrect wiring (ACC/B+), software bug. | Verify ACC and B+ wiring. Check for software updates that address timekeeping issues. |
| Lagging Performance | Too many apps running in background, low RAM. | Close unnecessary apps. Restart the unit. Consider factory reset if persistent. |
6. Specifikace
| Funkce | Detail |
|---|---|
| Rozměry produktu | 9.92 x 5.79 x 3.94 palce |
| Hmotnost položky | 5.72 liber (2.6 kilogramů) |
| Typ zobrazení | 10.1 inch QLED Touch Screen |
| Rezoluce | 1024 x 600 |
| BERAN | 2 GB |
| Technologie připojení | Bluetooth (5.0), USB |
| Typ ovladače | Android |
| Kompatibilní zařízení | Smartphone |
| Režim zvukového výstupu | Stereo |
| Konfigurace kanálů prostorového zvuku | 2.0 |
| Výrobce | Eonon |
| První dostupný termín | 15. ledna 2020 |
7. Záruka a podpora
Eonon products typically come with a standard manufacturer's warranty. For specific warranty details, registration, or technical support, please visit the official Eonon webwebu nebo se přímo obraťte na jejich zákaznický servis. Můžete se také podívat na EONON Store on Amazon pro další zdroje a kontaktní informace.
