GOOLOO X7 Jump Starter with Air Compressor

1. Úvod

The GOOLOO X7 is a versatile and powerful portable device designed to provide reliable jump-starting capabilities for vehicles, inflate tires, and serve as a portable power bank and LED flashlight. With a peak starting current of 4250A and a 160PSI digital tire inflator, it is engineered for convenience and safety in various automotive and outdoor scenarios.

Figure 1: GOOLOO X7 Jump Starter with Air Compressor

2. Co je v krabici

Zkontrolujte prosím obsah balení a ujistěte se, že jsou v něm přítomny všechny položky:

• 1 x GOOLOO X7 Jump Starter with Air Compressor
• 1 x Smart propojovací kabel
• 1 x kabel USB-A na USB-C
• 1 x taška na přenášení
• 1 x hadice čerpadla
• 3 x Air Nozzles (for various inflatables)
• 1 x Uživatelská příručka (tento dokument)

Obrázek 2: Obsah balení

3. Konec produktuview a Komponenty

Familiarize yourself with the main components and features of your GOOLOO X7 device:

Figure 3: GOOLOO X7 Component Diagram

• 12V Car Start Connector: Port for connecting the smart jumper cable.
• LCD obrazovka: Displays battery level, inflator mode, real-time tire pressure, and other operational data.
• Pressure Setting Buttons (+/-): Upravuje cílový tlak pro nafukování.
• Vypínač: Zapíná/vypíná zařízení.
• Tlačítko Upravit: Cycles through inflation units (PSI, BAR, KPA) and modes.
• Lamp Přepínač: Ovládá režimy LED svítilny.
• Air Inflation Connection: Port for attaching the pump tube for tire inflation.
• LED Torch (Emergency Light): Integrated 400-lumen flashlight with multiple modes.
• USB-C 9V/2A Input: Charging port for the GOOLOO X7.
• USB QC3.0 Output 5V/9V/12V: Fast charging output for mobile devices.
• Stejnosměrný výstup 15V/10A: Output for powering 12V accessories.

Figure 4: 5.1-inch Intelligent LCD Display

4. Nastavení

4.1 Počáteční nabíjení

Before first use, fully charge your GOOLOO X7. Connect the provided USB-A to USB-C cable to the USB-C input port on the device and a suitable USB power adapter (not included). The LCD screen will indicate the charging status. A full charge is recommended for optimal performance.

4.2 Kontrola stavu baterie

Press the Power Switch briefly to check the current battery level displayed on the LCD screen. Ensure the device has sufficient charge before attempting to jump start a vehicle or inflate tires.

5. Návod k obsluze

5.1 Startování vozidla skokem

The GOOLOO X7 can jump start all 12V vehicles (up to 10L Gas/10L Diesel engines). For totally exhausted batteries, use the BOOST FUNCTION.

1. Ensure the GOOLOO X7 is sufficiently charged (at least 50% recommended).
2. Connect the smart jumper cable's blue plug into the 12V Car Start Connector on the GOOLOO X7.
3. Připojte červený clamp to the vehicle's positive (+) battery terminal and the černý clamp k zápornému (-) pólu baterie vozidla.
4. Check the indicator light on the smart jumper cable:
   • Svítí zelená: Connection is correct and safe. Ready to jump start.
   • Svítí červeně s pípnutím: Reverse polarity detected. Disconnect clamps and re-connect correctly.
   • No Light/Flashing Green: Battery is too low or other issue. If battery is completely dead, press the 'BOOST' button on the smart cable for 3 seconds until the light turns solid green.
5. Jakmile kontrolka svítí trvale zeleně, nastartujte motor vozidla.
6. After the engine starts, immediately remove the smart jumper clamps from the car battery, then disconnect the cable from the GOOLOO X7.

Figure 5: Simple Maneuver, Instant Jumpstarter

Figure 6: Jump Starting a Completely Dead Car Battery

5.2 Huštění pneumatik

The GOOLOO X7 features a 160PSI digital tire inflator with real-time pressure detection.

1. Connect the pump tube to the Air Inflation Connection port on the GOOLOO X7.
2. Attach the other end of the pump tube securely to the tire valve.
3. Turn on the GOOLOO X7. The LCD screen will display the current tire pressure.
4. Use the 'Adjust Button' to select the desired inflation unit (PSI, BAR, KPA).
5. Pomocí tlačítek „+/-“ nastavte cílový tlak.
6. Short press the Power Button to start inflation. The inflator will automatically stop when the target pressure is reached.
7. Disconnect the pump tube from the tire valve and the GOOLOO X7.

Figure 7: Easy Operation, Fast Inflation

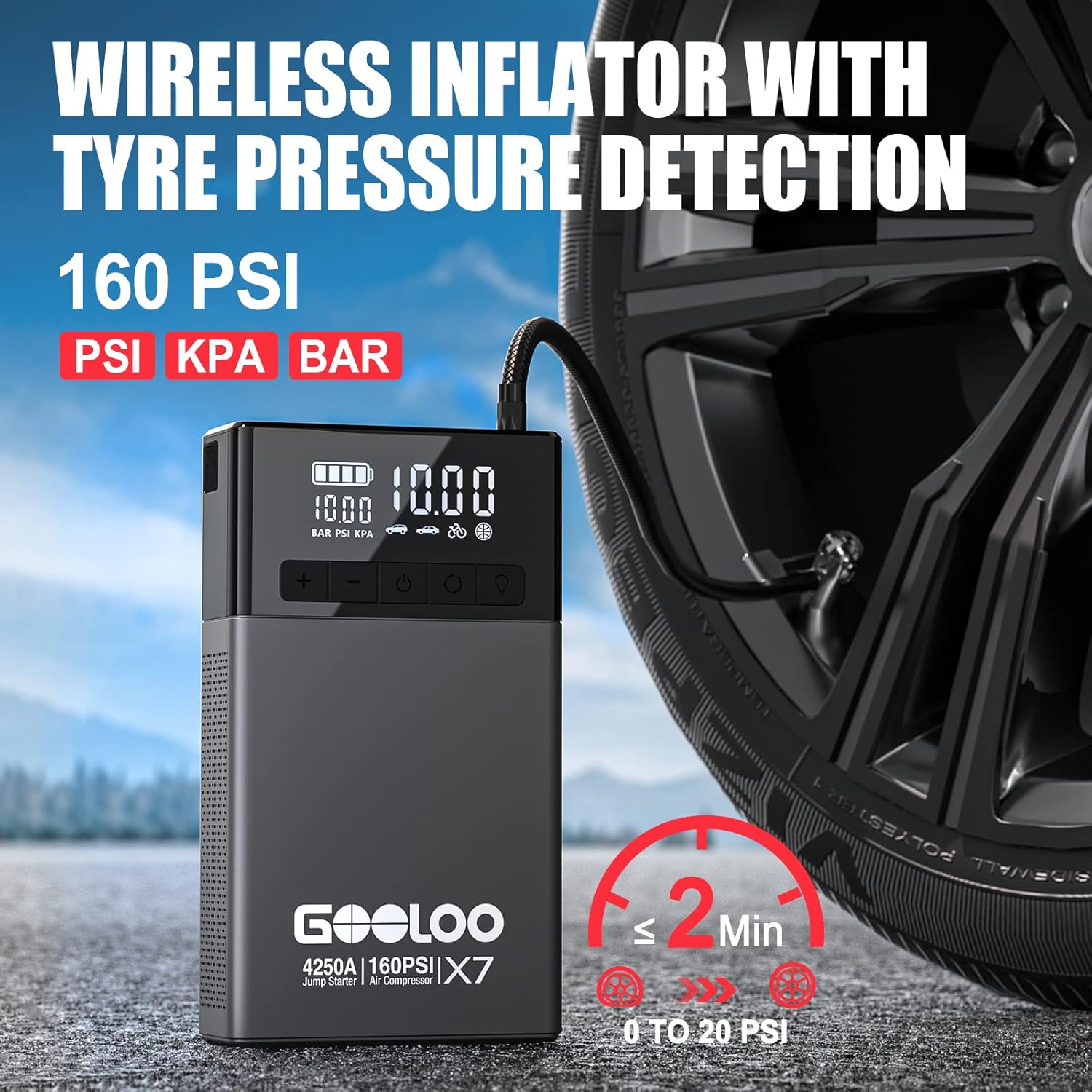

Figure 8: Wireless Inflator with Tyre Pressure Detection

5.3 Funkce powerbanky

The GOOLOO X7 can charge various electronic devices via its USB outputs.

• Connect your device's charging cable to the USB QC3.0 Output (5V/9V/12V) or the DC Output (15V/10A) on the GOOLOO X7.
• The GOOLOO X7 will automatically begin charging your device.

Figure 9: Multifunctional Portable Powerbank

LED svítilna 5.4

The integrated 400-lumen LED light offers multiple modes for various situations.

• Stiskněte tlačítko „L“amp Switch' button to cycle through the lighting modes:
• Constant Lighting (White): Pro všeobecné osvětlení.
• Constant Lighting (Red): For low-light situations or to preserve night vision.
• Blikat: A flashing white light for signaling or attracting attention.
• SOS: A red SOS signal for emergency situations.

Figure 10: 400 Lumen Torch with 4 Modes

Figure 11: Device functioning as a Warning Triangle

6. Bezpečnostní opatření

The GOOLOO X7 is equipped with multiple built-in safety protection technologies to ensure safe operation. Always adhere to the following guidelines:

• Do not attempt to jump start a vehicle if the GOOLOO X7's battery level is below 20%.
• Ensure proper polarity when connecting the jumper clamps to the vehicle battery. The smart jumper cable will alert you to incorrect connections.
• Nepřipojujte červenou a černou třamps dohromady.
• Avoid exposing the device to extreme temperatures (below -4°F or above 140°F) or direct sunlight for prolonged periods.
• Neponořujte zařízení do vody ani jej nevystavujte silnému dešti.
• Uchovávejte mimo dosah dětí.
• Zařízení nerozebírejte ani neupravujte.
• If the device becomes excessively hot during use, discontinue use and allow it to cool down.

The X7 includes 10 built-in safety protection technologies:

• Ochrana před přeplněním
• Ochrana proti nadproudu
• Ochrana proti zkratu
• Reverse-polarity Protection
• Ochrana proti nízkým teplotám
• High-temp Protection
• Voltage Ochrana
• Ochrana proti přetížení
• Spark-proof Protection
• Reverse-charge Protection

Figure 12: Multiple Advanced Protection Features

7. Údržba

• Nabíjení: Pro zachování dobrého stavu baterie zařízení dobíjejte každé 3–6 měsíců, i když jej nepoužíváte.
• Skladování: Store the GOOLOO X7 in a cool, dry place away from direct sunlight and moisture. Ensure it is fully charged before long-term storage. The device has a 24-month standby time once fully charged.
• Čištění: Zařízení otřete měkkým, suchým hadříkem. Nepoužívejte agresivní chemikálie ani abrazivní čisticí prostředky.
• Odvod tepla: The unique honeycomb heat dissipation design enhances safety and promotes service life. Ensure the ventilation areas are not blocked during operation.

Figure 13: 24-Months Standby Capability

Figure 14: Honeycomb Heat Dissipation Design

8. Řešení problémů

If problems persist, please contact GOOLOO customer support.

9. Specifikace

10. Záruka a podpora

GOOLOO provides comprehensive support for your X7 Jump Starter:

• Záruka: 18měsíční záruka od data nákupu.
• Záruka vrácení: 30-day unconditional return guarantee.
• Zákaznická podpora: 24/7 customer support available.
• Technická podpora: Lifetime customer and technical support.

For any after-sales questions or technical assistance, please contact GOOLOO customer service. Refer to the contact information provided with your product packaging or visit the official GOOLOO webmísto.
