1. Úvod

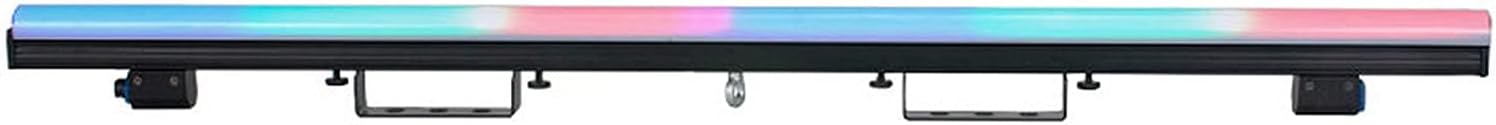

The ADJ Pixie-Strip-60 is a 1-meter indoor LED pixel strip designed for professional lighting applications. It features 60 tri-color RGB SMD LEDs, offering vibrant and dynamic lighting effects. This manual provides essential information for the safe and efficient setup, operation, and maintenance of your Pixie-Strip-60.
2. Bezpečnostní informace
- Pouze pro vnitřní použití: This device is designed for indoor use in dry locations. Do not expose to rain or moisture.
- Zdroj napájení: Ujistěte se, že zdroj napájení odpovídá objtage requirements of the Pixie Driver 2000 (sold separately) and the Pixie-Strip-60.
- Větrání: Zajistěte dostatečné větrání kolem jednotky, aby se zabránilo přehřátí.
- Montáž: Always secure the fixture using the integrated adjustable mounting bracket and safety cable loop.
- Servis: Veškerý servis svěřte kvalifikovanému servisnímu personálu. Nepokoušejte se jednotku opravovat sami.
3. Obsah balení
Ověřte, zda váš balíček obsahuje následující položky:
- ADJ Pixie-Strip-60 LED Pixel Strip
- Square frosted lens attachment
- Round frosted lens attachment
- Square smoked lens attachment
- 4pinový napájecí/datový kabel
- Magnetic end caps (pre-installed or included)
4. Nastavení
Follow these steps to set up your Pixie-Strip-60:
- Montáž: Use the integrated adjustable mounting bracket to securely attach the Pixie-Strip-60 to a truss or other suitable structure. Always use a safety cable through the safety cable loop for added security.
- Uchycení objektivu: Select the desired lens attachment (square frosted, round frosted, square smoked, or round smoked) and carefully install it onto the front of the LED strip.
- Connecting to Pixie Driver 2000: The Pixie-Strip-60 requires the Pixie Driver 2000 (sold separately) for power and data. Connect the provided 4-pin combo cable from the Pixie-Strip-60 to the appropriate output port on the Pixie Driver 2000. Ensure connections are firm.
- Daisy Chaining (volitelné): For seamless end-to-end pixel spacing, utilize the magnetic end caps to connect multiple Pixie-Strip-60 units. Ensure proper power and data cabling for all connected units, adhering to the maximum pixel limits of the Pixie Driver 2000.
5. Provoz
The Pixie-Strip-60 is controlled via the Pixie Driver 2000 (sold separately).
- Možnosti ovládání: The Pixie Driver 2000 provides versatile control. It offers simple on-board manual dimming and strobe control for basic operation.
- Pixel Mapping: For advanced control, the Pixie Driver 2000 supports full pixel mapping. It can control up to 2,040 max pixels via Kling-Net protocol and up to 340 max pixels via Art-Net and sACN (streaming ACN) protocols. Refer to the Pixie Driver 2000 manual for detailed pixel mapping instructions.
- Provoz bez blikání: With a refresh rate of 44,000Hz, the Pixie-Strip-60 ensures flicker-free operation, making it suitable for broadcast TV and film applications.
6. Údržba
Regular maintenance ensures optimal performance and longevity of your Pixie-Strip-60.
- Čištění: Periodically clean the exterior of the unit with a soft, lint-free cloth. Do not use abrasive cleaners or solvents. Ensure the unit is powered off and disconnected before cleaning.
- Péče o čočky: Gently wipe the lens attachments to remove dust or smudges. Avoid scratching the lens surface.
- Skladování: When not in use, store the Pixie-Strip-60 in a dry, dust-free environment, preferably in its original packaging or a protective case.
7. Řešení problémů
If you encounter issues with your Pixie-Strip-60, refer to the following common troubleshooting steps:
- Bez napájení: Ensure the 4-pin combo cable is securely connected to both the Pixie-Strip-60 and the Pixie Driver 2000. Verify that the Pixie Driver 2000 is powered on and receiving electricity.
- No Data/Incorrect Display: Check all 4-pin combo cable connections. Confirm that the Pixie Driver 2000 is sending the correct data signal and that the Pixie-Strip-60 is configured correctly within the control software (if applicable).
- Blikající: While the unit is designed for flicker-free operation, ensure stable power supply and proper data signal. If flickering persists, consult the Pixie Driver 2000 manual or contact support.
- Přehřívání: Ensure the unit has adequate ventilation and is not obstructed. If the unit feels excessively hot, power it off and allow it to cool before resuming operation.
8. Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | Pixie-Strip-60 |
| Typ LED | 60x Tri-color RGB SMD LEDs |
| Pixel Pitch | 16.5 mm |
| Délka | 1 Meter (39.6 inches) |
| Obnovovací frekvence | 44,000 Hz |
| Kontrolní protokoly | Kling-Net, Art-Net, sACN (via Pixie Driver 2000) |
| Bydlení | Lehký hliník |
| Konektivita | Proprietary 4-pin combo cables |
| Zahrnuté příslušenství | Square/Round Frosted/Smoked Lens Attachments, Magnetic End Caps |
| Vnitřní/venkovní použití | Krytý |
| Hmotnost položky | 4.14 libry |
| svtage | 12 voltů |
| Wattage | 60 wattů |
9. Záruka
The ADJ Pixie-Strip-60 is covered by a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official ADJ webPodrobné záruční podmínky naleznete na webových stránkách. Uschovejte si doklad o koupi pro případ reklamace.
10. Podpora
For technical assistance, service, or any questions regarding your ADJ Pixie-Strip-60, please contact ADJ customer support. Contact information can typically be found on the official ADJ webmístě nebo na obalu produktu.
