Uživatelská příručka k programovatelnému elektronickému termostatu Stelpro ST402P
Model: ST402P - 4000W
Konec produktuview
The Stelpro ST402P Programmable Electronic Thermostat is designed to provide precise and energy-efficient temperature control for electric baseboard heaters and convectors. Its advanced 5/2 day programming capabilities allow for customized heating schedules, ensuring optimal comfort and potential energy savings in your home.
Figure 1: The Stelpro ST402P thermostat seamlessly integrated into a modern living space, providing comfortable heating.
Důležité bezpečnostní informace
VAROVÁNÍ: Risk of electric shock. Disconnect power at the main electrical panel before installing or performing any maintenance on this thermostat. All wiring must comply with local electrical codes and regulations. Installation should be performed by a qualified electrician.
This thermostat is designed for use with electric baseboard heaters and convectors only. Do not use with other heating systems.
Ensure the thermostat is installed in a location free from drafts, direct sunlight, or other heat sources that could affect temperature readings.
Nastavení a instalace
Co je v krabici
- One (1) Stelpro ST402P Programmable Electronic Thermostat
- Dva (2) montážní šrouby
- Two (2) twist-on wire connectors suitable for copper wires
Kroky instalace
- Odpojit napájení: Before beginning any work, turn off the power to your heating system at the main electrical panel to avoid electric shock.
- Demontáž starého termostatu (pokud je k dispozici): Opatrně vyjměte stávající termostat. Poznamenejte si zapojení kabeláže.
- Montáž: The ST402P is designed for wall mounting. Secure the thermostat base to the wall using the provided mounting screws. Ensure it is level and firmly attached.
- Zapojení: Connect the thermostat wires to your heating system's electrical wires using the provided twist-on wire connectors. This thermostat is compatible with 120 V, 208 V, and 240 V systems, supporting a maximum load of 4000 W. Refer to the wiring diagram provided with your product packaging for specific connections. Ensure all connections are secure.
- Připevnit kryt: Once wiring is complete and secure, attach the front cover of the thermostat.
- Obnovit napájení: Znovu zapněte napájení na hlavním elektrickém panelu.
For detailed wiring diagrams, please consult the separate installation guide included with your product or visit the official Stelpro webmísto.
Návod k obsluze
The Stelpro ST402P thermostat features a clear digital display and intuitive push-button controls for easy operation.
Základní operace
The thermostat displays the current ambient temperature. Use the up and down arrow buttons to adjust the desired setpoint temperature. The display will show the new setpoint temporarily, then revert to the ambient temperature.

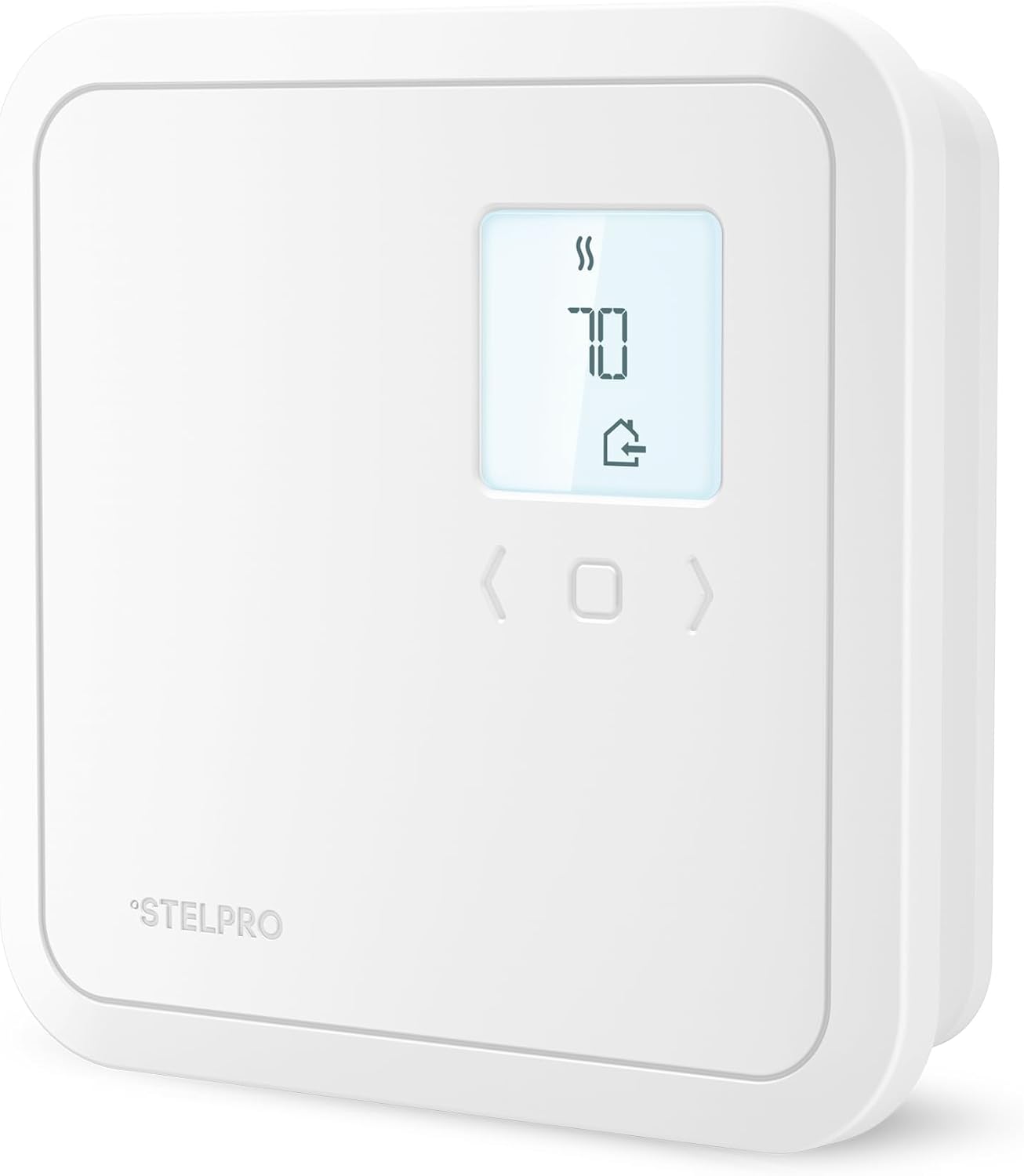

Obrázek 2: Přední strana view of the Stelpro ST402P thermostat showing the digital display and control buttons.
Programovací funkce
The ST402P offers 5/2 day programming, allowing you to set different temperature schedules for weekdays and weekends. This feature helps optimize energy usage and maintain comfort.
- 5/2 Day Programming: Set distinct temperature schedules for Monday-Friday and Saturday-Sunday.
- Přesná regulace teploty: Maintains ambient temperature within ±1°F increments (or ±0.5°C), ensuring your living space remains at your ideal temperature setting.
- Široký teplotní rozsah: Adjustable settings from 41°F to 86°F (5°C to 30°C) to suit various preferences and seasons.
- Úspora energie: Utilize programming features to potentially achieve up to 20% in energy savings.
Consult the detailed programming guide in the full product manual for step-by-step instructions on setting up your custom schedules.
Údržba
Termostat Stelpro ST402P vyžaduje minimální údržbu.
- Čištění: Jemně otřete vnější část termostatu měkkým hadříkemamp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
- Žádné díly opravitelné uživatelem: The thermostat contains no user-serviceable parts. Do not attempt to open or repair the unit yourself. Refer all servicing to qualified personnel.
- Hromadění prachu: Ensure the thermostat's vents (if any) are free from dust accumulation to allow for proper air circulation and accurate temperature sensing.
Odstraňování problémů
If you experience issues with your Stelpro ST402P thermostat, please refer to the following common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Displej termostatu je prázdný. | Termostat není napájen. | Check the circuit breaker for your heating system. Ensure it is in the ON position. Verify wiring connections. |
| Topný systém nereaguje na termostat. | Incorrect wiring; thermostat in OFF mode; temperature set too low. | Verify wiring connections are secure. Ensure the thermostat is set to HEAT mode and the setpoint temperature is above the ambient temperature. |
| Nepřesný údaj o teplotě. | Termostat vystavený průvanu, přímému slunečnímu záření nebo zdrojům tepla. | Relocate the thermostat if possible, or shield it from external influences. Ensure no objects are blocking the thermostat's sensor. |
| Thermostat not holding programmed schedule. | Programming error; power interruption. | Re-enter your desired program schedule carefully. If power was interrupted, some settings might need to be re-configured. |
Pokud problém přetrvává i po vyzkoušení těchto řešení, kontaktujte zákaznickou podporu Stelpro.
Specifikace
| Značka | Stelpro |
| Název modelu | ST402P - 4000 W |
| Rozměry produktu | 125.5 mm x 125.5 mm x 35 mm (hloubka x šířka x výška) |
| Barva | Bílý |
| Materiál | Plast |
| Typ ovladače | Tlačítko, ovládání tlačítkem |
| Speciální funkce | Programovatelné |
| Specifické použití pro produkt | Elektrický ohřívač základní desky |
| Typ řízení teploty | Topení |
| Hmotnost položky | 14.4 unce |
| svtage | 240 Volts (Compatible with 120 V, 208 V, and 240 V systems) |
| Wattage | 4000 W (Supports 2000 W / 3475 W / 4000 W max load) |
| Typ montáže | Držák na zeď |
| Podsvícení | Ano |
| UPC | 626296598948 |
| Datum první dostupnosti | 2. prosince 2019 |
Figure 3: Dimensions of the Stelpro ST402P thermostat.
Záruka a podpora
Informace o záruce
Stelpro products are manufactured to the highest standards and are backed by a manufacturer's warranty. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Stelpro webUschovejte si doklad o koupi pro případ reklamace.
Zákaznická podpora
If you have any questions, require technical assistance, or need to report an issue with your Stelpro ST402P thermostat, please contact Stelpro customer support:
- Webmísto: www.stelpro.com (Check for specific support page or contact section)
- Telefon: Refer to the Stelpro website or product packaging for regional contact numbers.
When contacting support, please have your product model number (ST402P - 4000W) and purchase date ready.
