Ibergrif M22117 Kitchen Tap User Manual

1. Konec produktuview

The Ibergrif M22117 is a high-quality kitchen tap featuring a high spout and a double-handle mixer design. It is finished in brushed bronze, offering both durability and a distinctive aesthetic. This tap is designed for single-hole, deck-mounted installation and includes a durable ceramic cartridge for extended lifespan.

Image 1.1: The Ibergrif M22117 kitchen tap, showcasing its high spout and double handle design in a brushed bronze finish.

2. Obsah balení

Před zahájením instalace se prosím ujistěte, že jsou všechny komponenty přítomny a nepoškozené.

• 1 x Ibergrif M22117 Kitchen Faucet
• 1 x Installation Kit (includes mounting hardware)
• 2 x 40 cm G3/8 Inch Hose Pipes
• Návod k použití

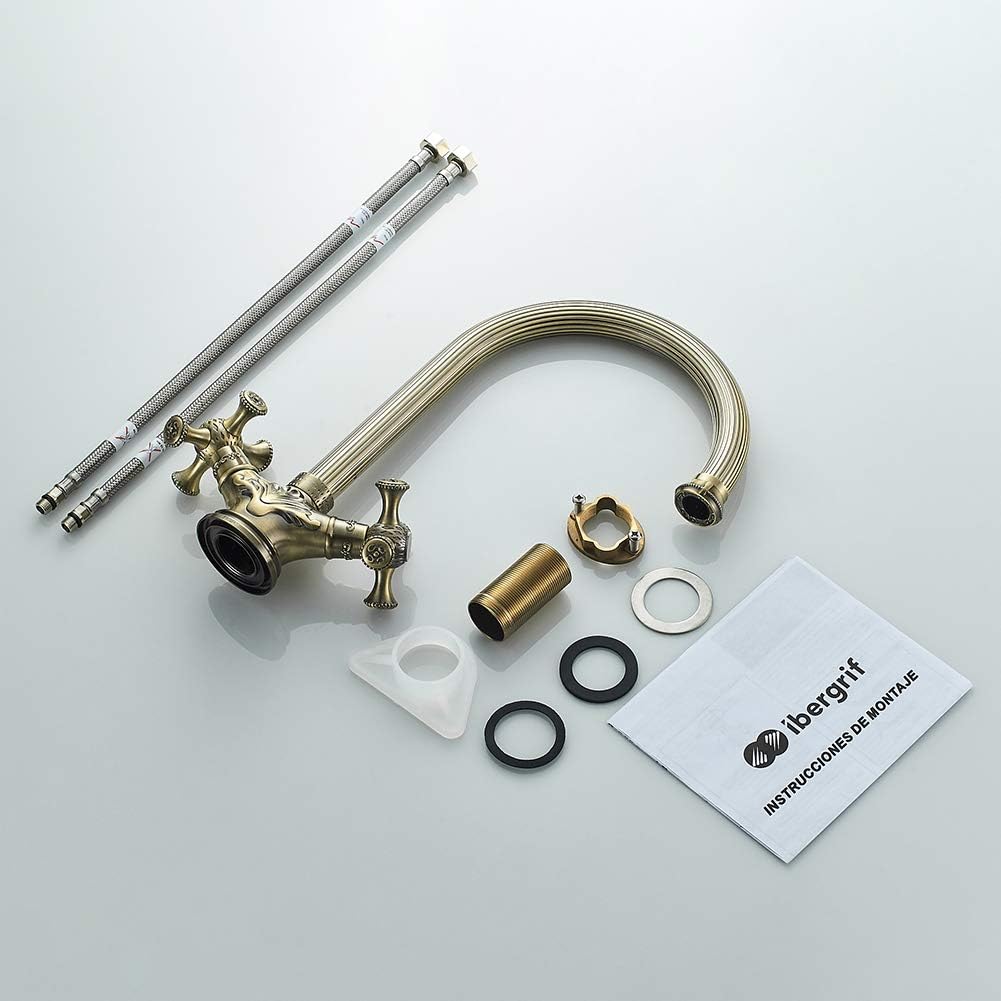

Image 2.1: All components included in the package, including the faucet, hoses, and mounting hardware.

3. Nastavení a instalace

This faucet is designed for single-hole, deck-mounted installation. Ensure you have the necessary tools before starting (e.g., adjustable wrench, screwdriver, plumber's tape).

1. Příprava: Turn off the main water supply to your kitchen. Clear the area under the sink and remove any existing faucet. Clean the mounting surface.
2. Montáž faucetu: Insert the faucet body into the single mounting hole on your sink or countertop. Ensure the base gasket is correctly positioned between the faucet and the mounting surface to prevent leaks.
3. Securing the Faucet: From underneath the sink, slide the rubber washer, metal washer, and mounting nut onto the threaded shank of the faucet. Tighten the mounting nut securely using the provided installation kit.
4. Connecting Water Hoses: Attach the two G3/8 inch hose pipes to the corresponding hot and cold water inlets on the faucet's threaded shank. Hand-tighten first, then use a wrench to tighten an additional quarter turn. Connect the other ends of the hoses to your hot and cold water supply lines. Ensure connections are secure to prevent leaks.
5. Testování: Slowly turn on the main water supply. Check all connections for leaks. Operate both handles to ensure proper water flow and temperature control.

Obrázek 3.1: Detailní view of the faucet's underside, showing the threaded shank and mounting hardware for secure installation.

4. Návod k obsluze

The Ibergrif M22117 features a double-handle design for precise control over water temperature and flow.

• Studená voda: Otočte pravou rukojeť proti směru hodinových ručiček pro otevření přívodu studené vody.
• Horká voda: Otočte levou rukojeť proti směru hodinových ručiček pro otevření přívodu teplé vody.
• Ovládání teploty: Současně nastavte obě rukojeti pro dosažení požadované teploty vody.
• Řízení toku: Čím dále jsou rukojeti otočeny, tím větší je průtok vody.

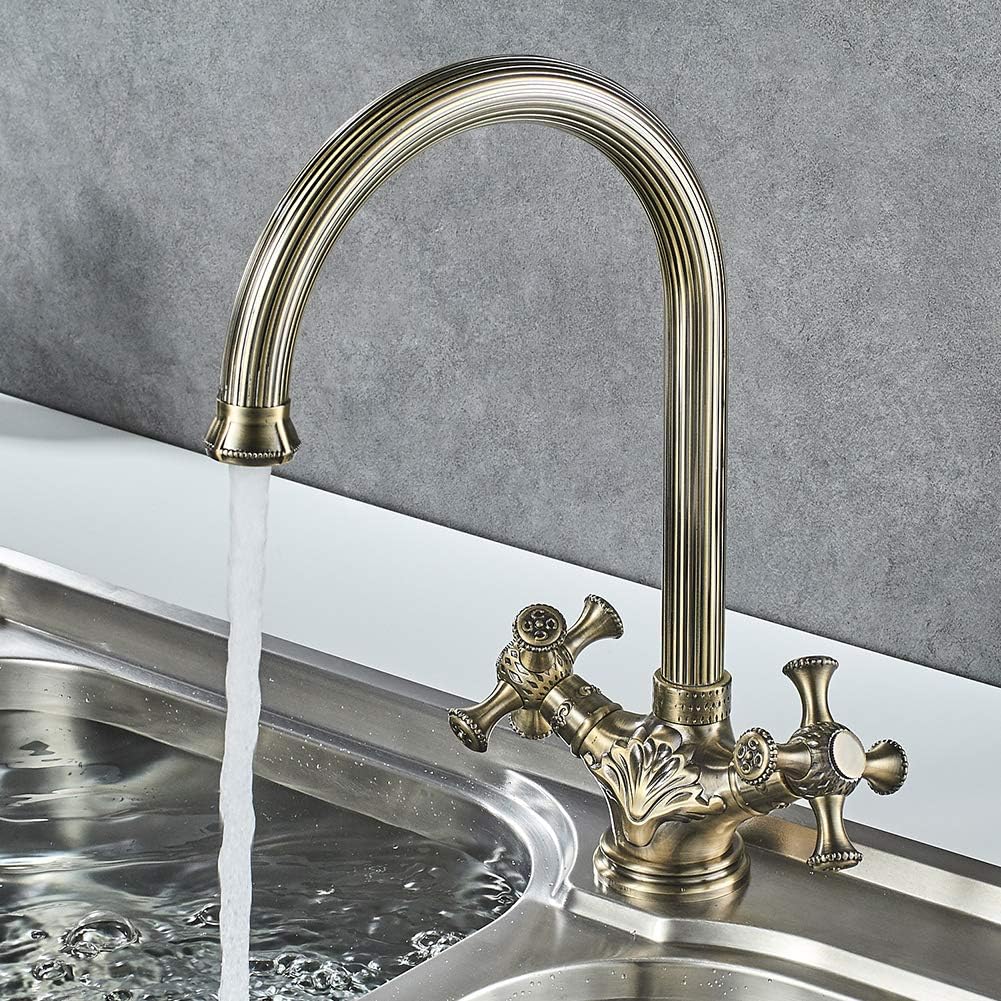

Image 4.1: The kitchen tap in operation, demonstrating water flow from the high spout.

5. Údržba a péče

Proper maintenance will ensure the longevity and appearance of your Ibergrif kitchen tap.

• Čištění: Clean the faucet regularly with a soft cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the brushed bronze finish.
• Údržba provzdušňovače: If water flow decreases or becomes irregular, the aerator at the end of the spout may be clogged. Unscrew the aerator, clean any debris, and rinse it before reattaching.
• Keramická kazeta: The faucet is equipped with a durable ceramic cartridge. In case of persistent drips or leaks from the handles, the cartridge may need to be replaced. Consult a professional plumber if you are unsure.

Obrázek 5.1: Detailní záběr view of the aerator at the end of the high spout, which can be removed for cleaning.

6. Řešení problémů

Běžné problémy a jejich řešení naleznete v následující tabulce.

7. Specifikace

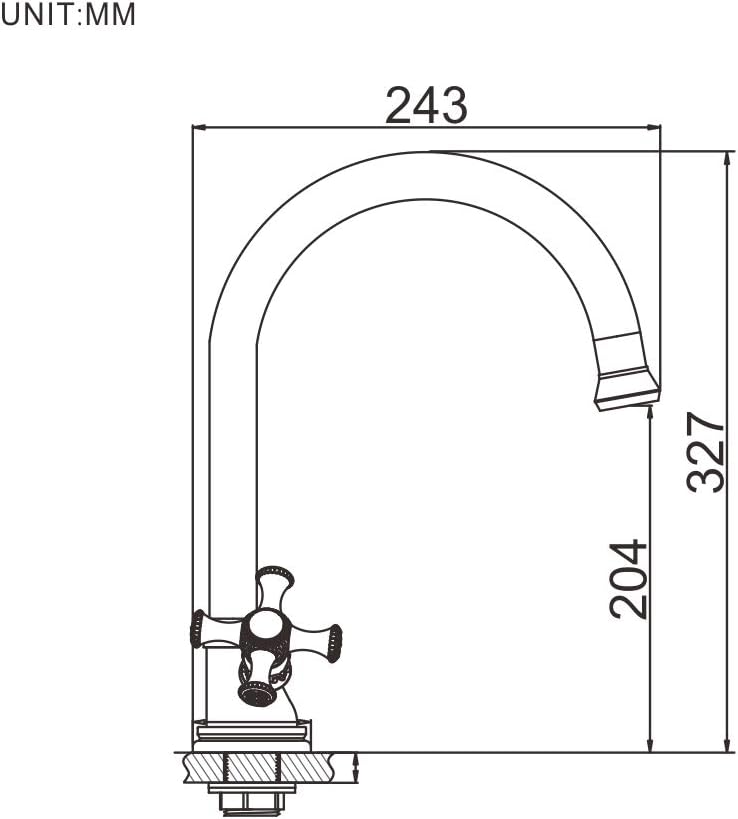

Image 7.1: Technical drawing illustrating the dimensions of the Ibergrif M22117 kitchen tap in millimeters.

8. Záruka a podpora

Informace o záruce a zákaznické podpoře naleznete v dokumentaci dodané s vaším nákupem nebo se obraťte přímo na prodejce/výrobce. Uschovejte si doklad o koupi pro případné reklamace.
