Zavedení
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Ibergrif M22119-2 kitchen faucet. This faucet features a flexible, 360° rotatable spout and a single-lever control for precise water flow and temperature adjustment. Constructed with durable materials and a ceramic disc, it is designed to provide reliable, leak-free performance in your kitchen.
Please read these instructions carefully before installation and retain this manual for future reference.
Nastavení a instalace
Zahrnuté komponenty
Před zahájením instalace se ujistěte, že jsou přítomny všechny komponenty:
- 1 x Kuchyňská baterie
- 1 x Installation Kit (washers, nuts, mounting hardware)
- 2 x Water Supply Hoses (G3/8")
- Těsnicí kroužky
Obrázek 1: Explodoval view of faucet components, including the main faucet body, mounting hardware, and water supply lines.
Obrázek 2: All parts included in the package, ready for installation.
Kroky instalace
- Prepare the Sink Hole: Ensure your sink has a single mounting hole with a diameter of approximately 35mm.
- Vložte kohoutek: Place the faucet body into the sink hole. Ensure the base gasket is correctly positioned between the faucet and the sink surface.
- Zajistěte kohoutek: From underneath the sink, slide the rubber washer, metal washer, and then the mounting nut onto the threaded shank of the faucet. Tighten the mounting nut securely using the provided tool or an adjustable wrench.
- Připojení přívodních vodovodních potrubí: Attach the hot and cold water supply hoses to the corresponding inlets on the faucet body (typically marked H for hot and C for cold). Connect the other ends of the hoses to your hot and cold water supply valves. Ensure all connections are hand-tightened, then use a wrench for a final quarter-turn to prevent leaks.
- Zkouška těsnosti: Slowly turn on the main water supply and check all connections for any signs of leakage. If leaks are detected, tighten the connections further.
Obrázek 3: Step-by-step visual guide for faucet installation.
Návod k obsluze
Regulace průtoku a teploty vody
The Ibergrif M22119-2 faucet features a single lever for controlling both water flow and temperature:
- Průtok vody: Zvedněte páku nahoru pro zvýšení průtoku vody. Zatlačte ji dolů pro snížení nebo uzavření průtoku.
- Ovládání teploty: Move the lever to the left for hot water and to the right for cold water. Adjust the position between left and right to achieve your desired water temperature.
Flexible Spout Operation
The flexible spout can be rotated 360 degrees and adjusted to various angles for convenience during kitchen tasks. Simply grasp the spout and position it as needed. The flexible design allows for easy cleaning of large sinks or filling tall pots.

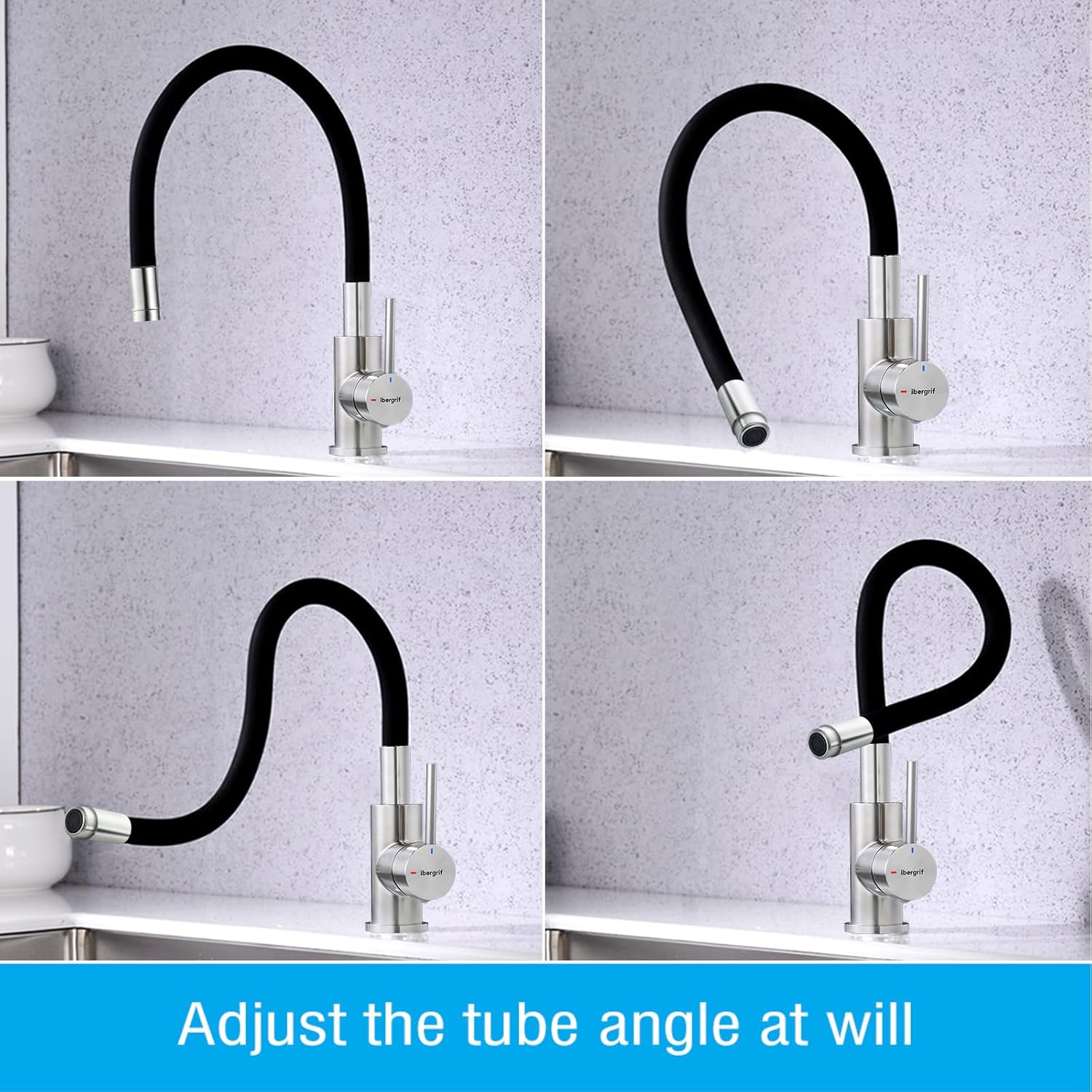

Obrázek 4: Adjusting the flexible spout to different angles.

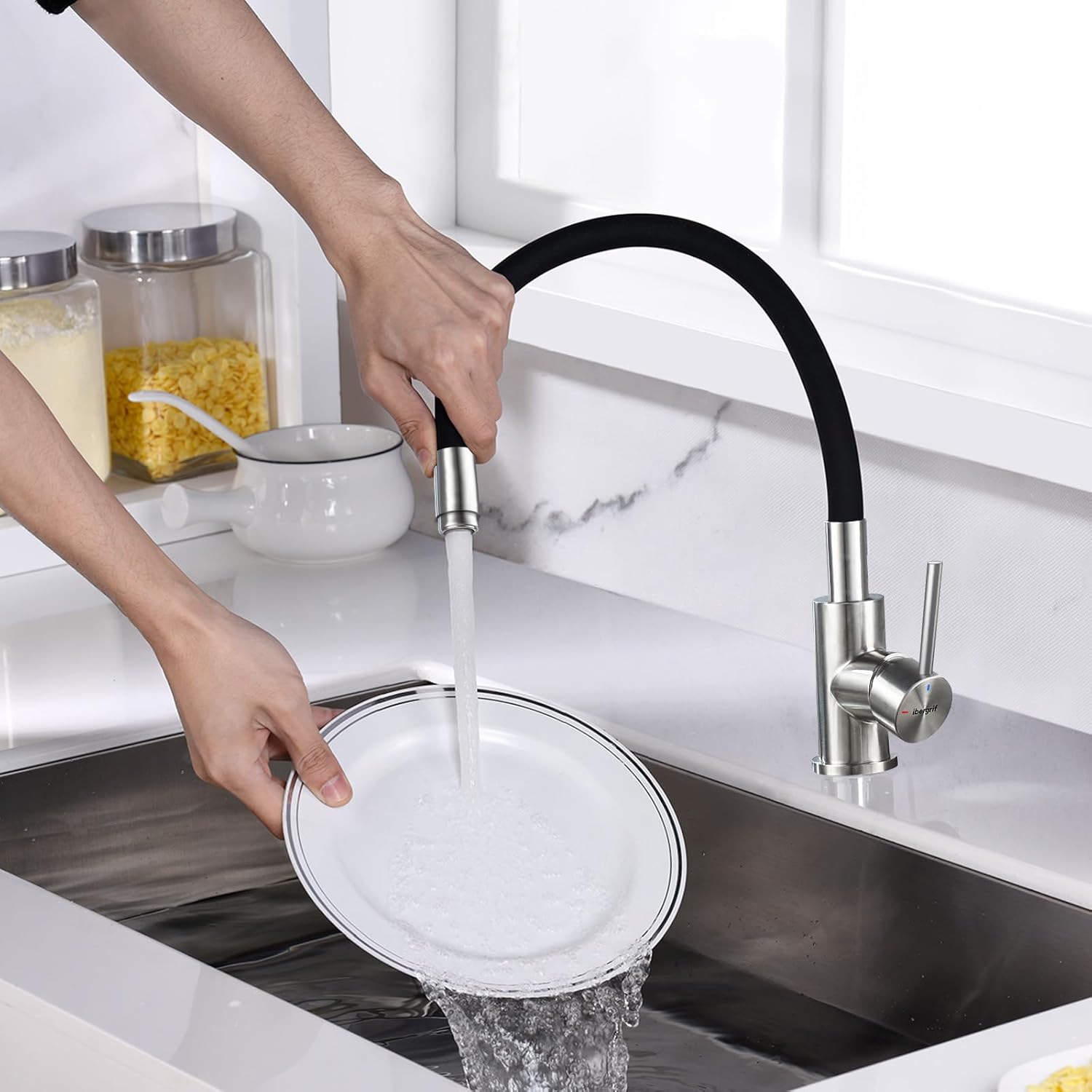

Obrázek 5: Practical application of the flexible spout for washing dishes.
Údržba
Čištění kohoutku
To maintain the finish of your Ibergrif faucet, clean it regularly with a soft cloth and mild soap. Avoid abrasive cleaners, scouring pads, or harsh chemicals, as these can damage the surface finish.
Údržba provzdušňovače
Over time, mineral deposits can accumulate in the aerator, reducing water flow. To clean the aerator:
- Odšroubujte perlátor z hrotu výpusti.
- Rinse any debris or mineral deposits under running water.
- For stubborn deposits, soak the aerator in a solution of equal parts white vinegar and water for a few hours.
- Rinse thoroughly and reattach the aerator to the spout.

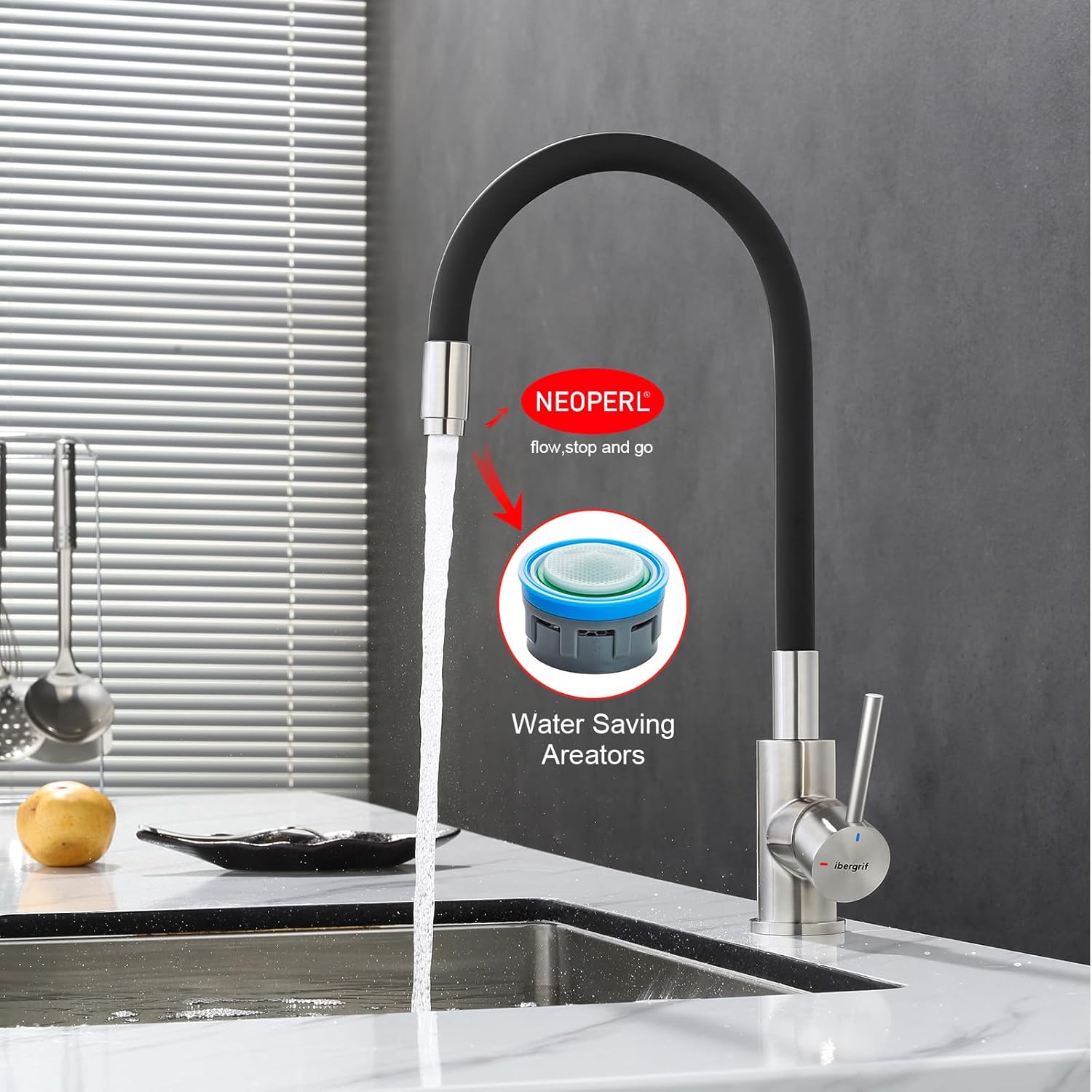

Obrázek 6: Location of the water-saving aerator for maintenance.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Nízký průtok vody | Ucpaný provzdušňovač nebo usazeniny minerálů. | Clean the aerator as described in the Maintenance section. Check water supply valves are fully open. |
| Únik z výlevky | Aerator not tightened correctly or damaged. | Ensure aerator is securely tightened. If leaking persists, the ceramic disc cartridge may need inspection by a professional. |
| Únik ze základny | Loose mounting nut or improper seal. | Tighten the mounting nut underneath the sink. Ensure gaskets are correctly seated. |
| Nekonzistentní teplota vody | Issues with hot or cold water supply. | Check that both hot and cold water supply valves are fully open. Ensure your water heater is functioning correctly. |
Specifikace produktu

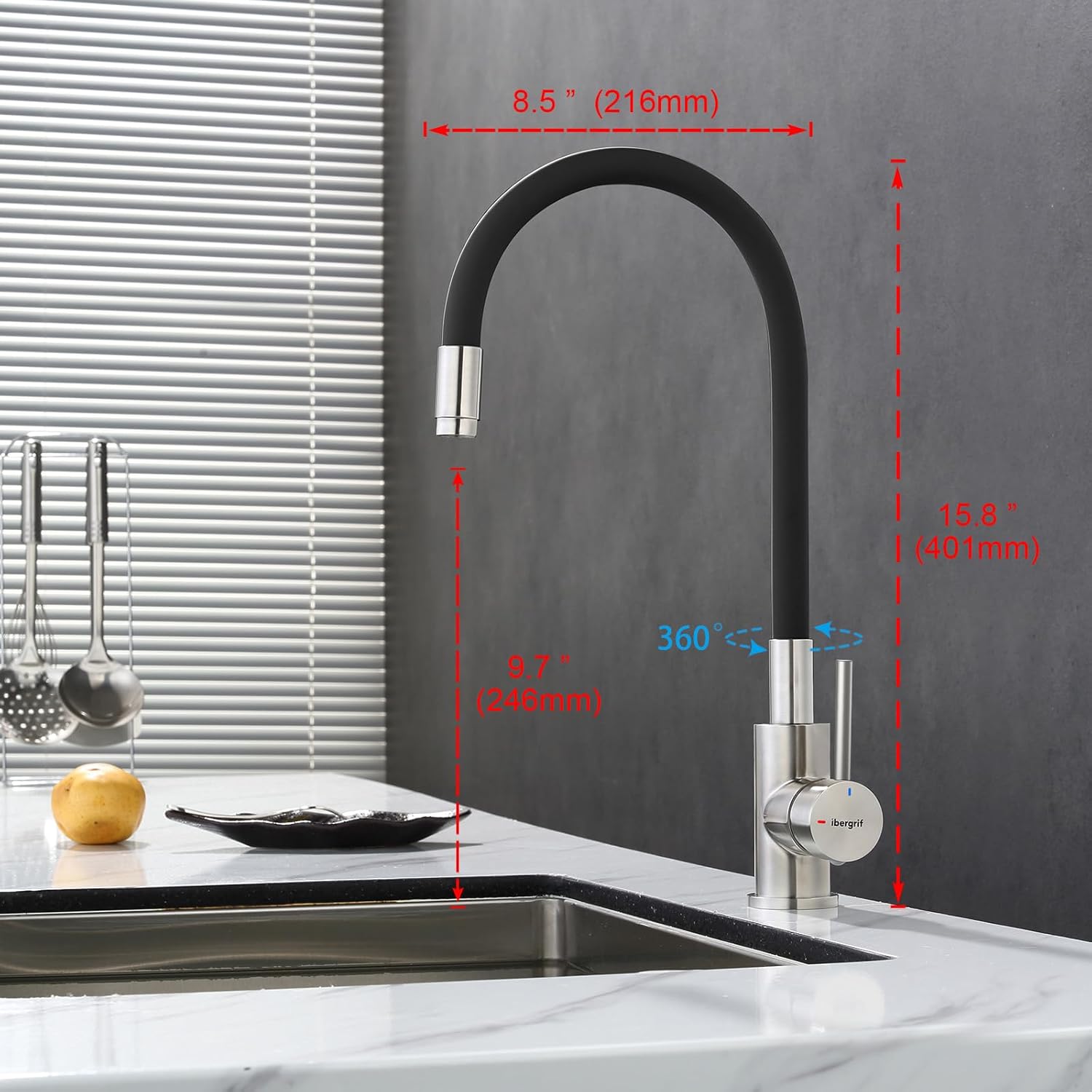

Obrázek 7: Key dimensions of the Ibergrif M22119-2 kitchen faucet.
- Číslo modelu: M22119-2
- Výrobce: Ibergrif Griferias SL
- Rozměry produktu (D x Š x V): 33 x 16 x 5 cm (13 x 6.3 x 2 palce)
- Hmotnost: 2.07 kilogramů (4.56 liber)
- Barva: Černý
- Styl: Moderní
- Dokončit: Kartáčovaný
- Materiál: Stainless Steel with Silicone
- Způsob instalace: Monotrou (Single Hole)
- Počet držadel: 1
- Materiál rukojeti: Nerez
- Number of Holes Required: 1
- Výška hubice: 246 milimetrů (9.7 palce)
- Dosah hubice: 20 centimetru (8.5 palce)
- Délka hadice: 3.8 Inches (for connection to faucet, supply hoses are longer)
- Speciální vlastnosti: Flexible Spout, 360° Rotation, Ceramic Disc Cartridge, Water Saving Aerator
Informace o záruce
Ibergrif products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Ibergrif webUschovejte si doklad o koupi pro případné reklamace.
Zákaznická podpora
If you encounter any issues or have questions regarding your Ibergrif M22119-2 kitchen faucet that are not covered in this manual, please contact Ibergrif customer support. Contact details can typically be found on the product packaging or the official Ibergrif webmísto.
Online zdroje: For additional information, installation videos, or FAQs, please visit the Ibergrif official webmísto.
