Uživatelská příručka ke skeneru Autel MaxiPRO MP900-BT

1. Úvod

The Autel MaxiPRO MP900-BT is an advanced automotive diagnostic scanner designed for comprehensive vehicle analysis and maintenance. This device offers a wide range of functionalities, including sophisticated ECU functions, extensive diagnostic capabilities, and numerous service resets. It is an upgraded version of previous MaxiPRO/MaxiDAS series models, incorporating newer technologies like DoIP/CAN FD protocols and enhanced hardware for improved performance.

The MP900-BT provides OE-level full system diagnostics, bidirectional control, and guided functions for various vehicle makes. Its wireless Bluetooth connectivity allows for flexible operation around the vehicle, while the Android 11 operating system ensures a smooth and intuitive user experience.

Figure 1: Autel MaxiPRO MP900-BT Scanner with included MV108S Endoscope.

2. Co je v krabici

Upon unboxing your Autel MaxiPRO MP900-BT Scanner, please verify that all the following items are included:

• MP900-BT Main Tool
• MaxiVCI V150
• Napájecí adaptér
• Kabel USB typu C
• Měkká tkanina
• Stručná referenční příručka
• Seznam balení
• Rugged Plastic Carrying Case (504*360*133mm)

The MV108S endoscope is also included as part of this package.

3. Nastavení

Before using your MaxiPRO MP900-BT Scanner, ensure it is fully charged and connected to a stable internet connection via Wi-Fi. A good internet connection is crucial for software updates, online functions, and accessing certain vehicle authentication services.

3.1 Počáteční zapnutí a konfigurace

1. Nabijte zařízení: Connect the power adapter to the scanner and a power outlet. Allow the device to charge fully before first use.
2. Zapnutí: Stiskněte a podržte tlačítko napájení, dokud se obrazovka nerozsvítí.
3. Počáteční nastavení: Follow the on-screen prompts to select your language, time zone, and connect to a Wi-Fi network.
4. Aktualizace softwaru: Navigate to the 'Update' application on the main menu and download any available software updates to ensure optimal performance and the latest vehicle coverage.

3.2 Připojení MaxiVCI V150

The MaxiVCI V150 is the vehicle communication interface that connects the scanner to your vehicle's OBDII port.

1. Vyhledejte port OBDII: The OBDII port is typically located under the dashboard on the driver's side of the vehicle.
2. Připojení VCI: Plug the MaxiVCI V150 into the vehicle's OBDII port. The VCI's LED indicator should light up, indicating power.
3. Navázání připojení Bluetooth: On the MP900-BT scanner, ensure Bluetooth is enabled. The scanner will automatically attempt to connect to the VCI. A successful connection will be indicated by a solid blue LED on the VCI and a Bluetooth icon on the scanner's status bar.

4. Návod k obsluze

The Autel MaxiPRO MP900-BT offers a user-friendly interface with various functions accessible from the main menu.

4.1 OE Full Systems Diagnostics

This function allows for comprehensive scanning of all available electronic control modules (ECUs) in the vehicle.

1. Select 'Diagnostics': From the main menu, tap on the 'Diagnostics' icon.
2. Identifikace vozidla: Choose 'AutoVIN' for automatic vehicle identification or 'Manual Input' to enter VIN/vehicle details manually. The 8MP camera can also be used for VIN/License plate scanning.
3. Automatické skenování: Select 'Auto Scan' to perform a full system scan. The scanner will read ECU information, retrieve diagnostic trouble codes (DTCs), and display live data.
4. Review Data: View live data in various formats (text, graph, histogram, meter diagram), analyze freeze frame data, and perform active tests to pinpoint issues.

Figure 2: Comprehensive Full System Diagnostics interface showing various data points and options.

4.2 ECU Functions (Coding & Activation)

The MP900-BT supports advanced ECU functions for specific vehicle makes, including online coding, offline coding, and hidden function activation.

• Online kódování: For BMW, Porsche, VW, Nissan, Infiniti, Hyundai, etc. Requires internet connection to synchronize with OEM data.
• Offline Coding: For Ford, Mazda, Jaguar, Vauxhall, Opel, etc. Allows coding without an internet connection if original values are known.
• Hidden Function Activation: Activate hidden features on vehicles like Nissan, Infiniti, BMW, MINI, Toyota, Lexus, Scion.
• Personalizace: Customize settings for Land Rover/Jaguar vehicles.

Obrázek 3: Přesview of advanced ECU coding capabilities including component matching and hidden function activation.

4.3 40+ Maintenance Resets

The scanner supports over 40 maintenance and service functions to address common vehicle needs.

• Reset oleje: Po výměně oleje resetujte systém životnosti oleje.
• EPB: Resetování elektronické parkovací brzdy.
• SAS: Kalibrace snímače úhlu řízení.
• BMS: Battery Management System registration.
• ABS Brake Bleed: Proveďte odvzdušnění brzd ABS.
• Resetování plynu: Reset throttle body adaptations.
• CKP Relearn: Crankshaft Position System Relearn.
• Kódování vstřikovačů: Nakódujte nové hodnoty vstřikovačů.
• Air Suspension: Reset or calibrate air suspension systems.

Figure 4: Visual representation of various service reset functions available on the scanner.

4.4 Bidirectional Control / Active Tests

Perform active tests to command vehicle components to perform specific functions, aiding in troubleshooting.

• Windows: Test window up/down operation.
• Zrcadla: Test mirror adjustments.
• ABS AutoBleed: Initiate automated ABS bleeding.
• Palivové čerpadlo: Aktivujte palivové čerpadlo.
• Radiator Fan: Turn the radiator fan on/off.
• Interior/Exterior Lights: Control vehicle lighting.

Figure 5: Illustration of bidirectional control testing various vehicle actuators.

4.5 VAG Guided Functions

For Volkswagen, Audi, Skoda, Seat, and Man LD vehicles, the scanner provides step-by-step on-screen instructions for complex service operations, special functions, and functional tests.

4.6 Správa cloudových sestav

Generate and manage diagnostic reports efficiently.

• Save Reports: Store diagnostic reports securely in the cloud.
• Share Reports: Share reports via QR codes, text messages, or email for easy collaboration.
• Wi-Fi Printing: Print reports directly from the device using a Wi-Fi connected printer.

5. Specifikace

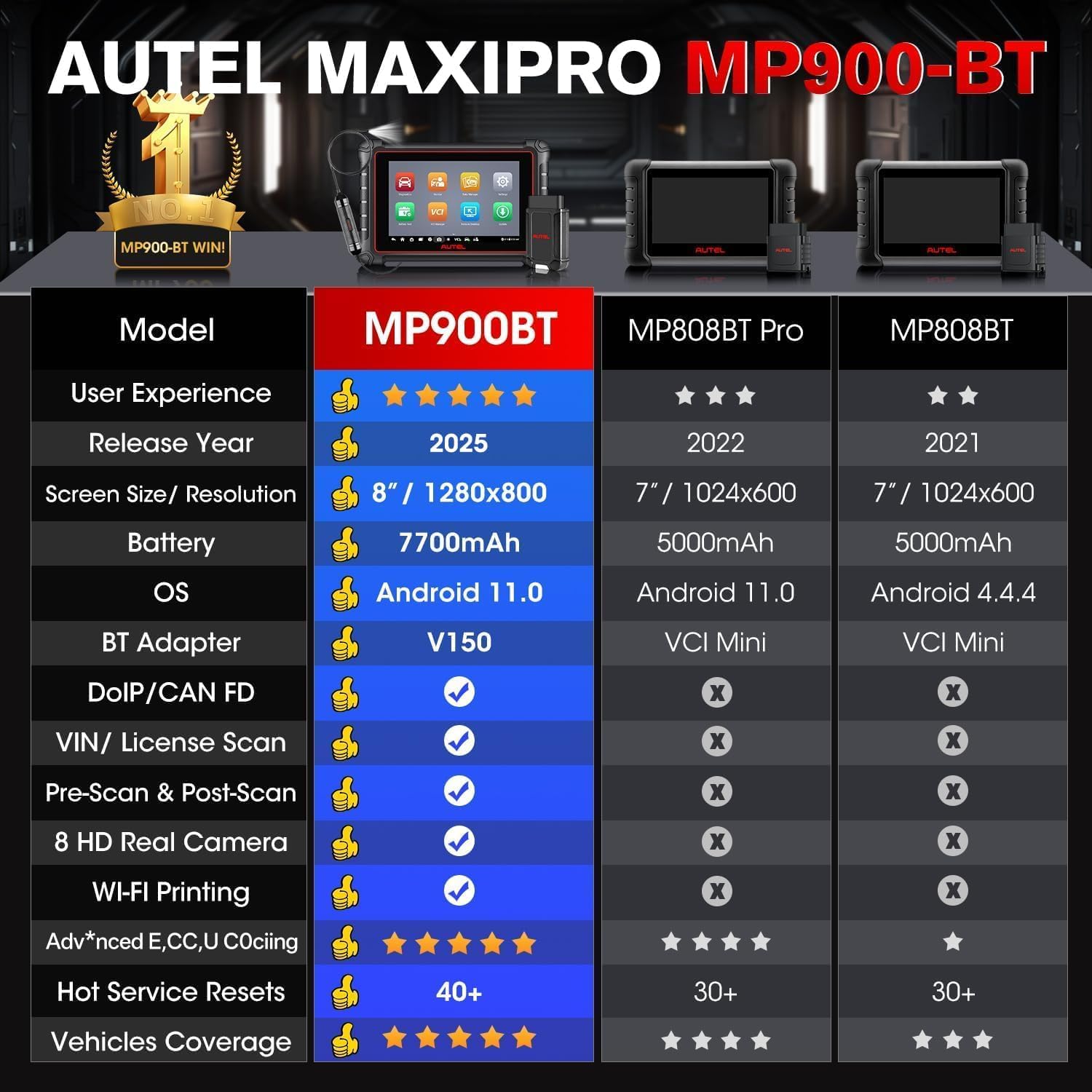

Figure 6: Comparison of MP900-BT specifications with other Autel models.

6. Údržba

To ensure the longevity and optimal performance of your Autel MaxiPRO MP900-BT Scanner, follow these maintenance guidelines:

• Udržujte v čistotě: Regularly wipe the screen and device exterior with the provided soft cloth or a non-abrasive cleaner.
• Aktualizace softwaru: Connect to Wi-Fi monthly and check for software updates via the 'Update' application. Keeping the software current ensures the latest vehicle coverage and features.
• Správně skladujte: When not in use, store the scanner and its accessories in the rugged plastic carrying case to protect it from dust, moisture, and physical damage.
• Péče o baterie: Avoid fully discharging the battery frequently. Charge the device regularly, especially if it will be stored for an extended period.

7. Řešení problémů

If you encounter issues with your Autel MaxiPRO MP900-BT Scanner, consider the following troubleshooting steps:

• Bez napájení: Ujistěte se, že je zařízení plně nabité nebo připojené k napájecímu adaptéru. Zkontrolujte napájecí adaptér a kabel, zda nejsou poškozené.
• Problémy s připojením VCI: Verify the MaxiVCI V150 is securely plugged into the vehicle's OBDII port and that the vehicle's ignition is on. Check the Bluetooth connection on the scanner.
• Online Functionality Problems: Confirm the scanner has a stable internet connection (Wi-Fi). Ensure your software subscription is active for online functions like ECU Coding and SGW module access.
• Chyby komunikace s vozidlem: Double-check that the correct vehicle make, model, and year are selected. Ensure the VCI is properly connected and the vehicle's battery voltage is sufficient (not less than 11.5V).
• Softwarové závady: Try restarting the scanner. If the issue persists, perform a factory reset (note: this will erase user data, back up important information first).

8. Záruka a podpora

The Autel MaxiPRO MP900-BT Scanner comes with a 1-letá záruka from the date of purchase, covering manufacturing defects. Additionally, it includes Dvouleté bezplatné aktualizace softwaru. After the free update period expires, offline functions will remain available, but online functions (e.g., ECU Coding, SGW module access) will require a renewed subscription.

For technical assistance, warranty claims, or to inquire about language support (e.g., Spanish), please contact Autel's official customer support. You may need to provide your device's serial number (12 digits, located on the back of the device).
