1. Úvod
The ELEPHAS BL128 Mini Projector is a compact and versatile device designed for home entertainment, gaming, and portable presentations. Featuring advanced projection technology, it delivers a high-quality visual and audio experience in a small, lightweight package.
This manual provides detailed instructions for setting up, operating, and maintaining your projector to ensure optimal performance and longevity.
2. Obsah balení
Zaškrtněte prosím políčko u následujících položek:
- ELEPHAS BL128 Mini Projector x1
- Dálkové ovládání x1
- Krytka objektivu x1
- AC napájecí kabel x1
- Kabel HDMI x1
- AV kabel 3 v 1 x1
- User Manual (Japanese) x1
- Stativ x1
- Dedicated Carry Bag x1
Image: All items included in the ELEPHAS BL128 Mini Projector package.
3. Vlastnosti produktu
- Ultrakompaktní a lehký design: Measuring 15.4 x 12 x 6 cm and weighing only 420g, this projector is highly portable, offering a home theater experience in a palm-sized device.
- High-Quality 1080P Native Resolution: Equipped with German LED projection technology and the latest LCD display, it delivers native 1080P resolution with an 8000:1 contrast ratio and 24-bit color support for vivid, detailed images.
- Large Screen Projection & Zoom Function: Project images from 30 to 200 inches. The 50% to 100% zoom function allows for flexible screen size adjustment. Ceiling projection is also supported.
- Built-in HIFI Stereo Speaker: Enjoy immersive audio with the integrated HIFI stereo speaker, providing a surround sound effect for movies, games, and videos.
- Široká kompatibilita: Features HDMI, USB, AV, and 3.5mm ports for connection to various devices including Fire Stick TV, Chromecast, PCs, laptops, external speakers, TV Boxes, DVD players, PS3, PS4, and USB memory.
- Pokročilý systém chlazení: An upgraded cooling system with an innovative fan ensures low noise operation and excellent quietness, allowing for focused viewIng.
Image: Internal components illustrating the advanced lens and display technology.

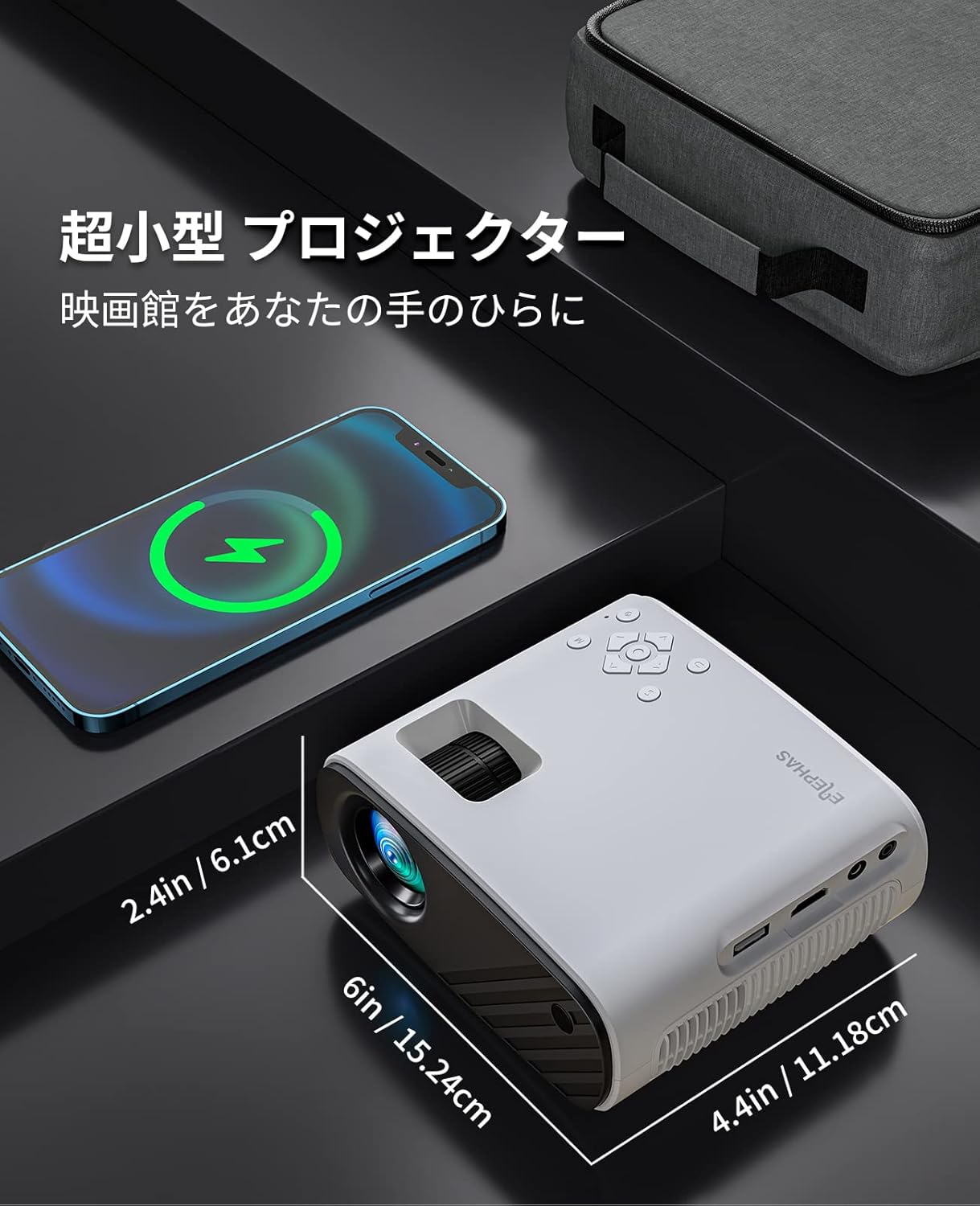

Image: The compact size of the ELEPHAS BL128 Mini Projector compared to a smartphone.
Image: Illustration of the projector's efficient heat dissipation system.
4. Nastavení
- Vybalte projektor: Opatrně vyjměte všechny součásti z obalu.
- Připojení napájení: Connect the AC power cable to the projector and then to a power outlet.
- Umístění:
- Umístěte projektor na stabilní, rovný povrch.
- For ceiling projection, use the included tripod or a compatible ceiling mount.
- Ensure the projector lens is facing the desired projection surface (wall or screen).
- Zapnutí: Stisknutím tlačítka napájení na projektoru nebo dálkovém ovladači jej zapněte.
- Nastavení zaostření: Otáčejte zaostřovacím kroužkem na objektivu projektoru, dokud nebude obraz jasný a ostrý.
- Korekce lichoběžníkového zkreslení: Adjust the keystone setting (if available, typically in the menu) to correct any trapezoidal distortion of the image.
Image: Projector setup in a living room demonstrating large screen projection.
Image: Visual representation of the projector's 50-100% zoom function.
5. Návod k obsluze
- Zapnutí/vypnutí: Stiskněte tlačítko napájení na projektoru nebo dálkovém ovladači.
- Výběr zdroje vstupu: Use the 'Source' button on the remote or projector to cycle through available input options (HDMI, USB, AV).
- Navigace v nabídce: Use the arrow keys and 'OK' button on the remote or projector to navigate the on-screen menu for settings adjustments.
- Ovládání hlasitosti: Adjust the volume using the '+' and '-' buttons on the remote or projector.
- Funkce zoom: Access the zoom function through the projector's menu to adjust the screen size from 50% to 100% without moving the projector.
Video: A demonstration of the KITELY M8 projector, showcasing its features and operation. This video is relevant for understanding general projector functionality.
Video: A product display for the HY300Ultra projector, illustrating its design and projection capabilities. This video provides a visual overview of a similar projector type.
Video: An actual product display video for the HY300 Pro+ projector, showing its physical aspects and projection quality. This video helps visualize the projector in use.
6. Konektivita
The ELEPHAS BL128 Mini Projector offers multiple connectivity options to suit various devices:
- Port HDMI: Connect to laptops, PCs, game consoles (PS3, PS4), streaming devices (Fire Stick TV, Chromecast), and TV Boxes using the included HDMI cable.
- USB port: Vložte paměťový klíč USB pro přehrávání médií files přímo.
- AV port: Use the 3-in-1 AV cable to connect to older devices like DVD players.
- 3.5mm audio jack: Pro lepší zvuk připojte externí reproduktory nebo sluchátka.
- Wireless Connectivity (Screen Mirroring): The projector supports screen mirroring via Miracast (Android) and AirPlay (iOS) for smartphones and tablets. Navigate to the 'My Apps' section and select the appropriate screen mirroring option.
Poznámka:
- Due to HDCP copyright protection, direct playback of content from Netflix, Amazon Prime, and Hulu is not supported. Please connect a Fire TV Stick or similar streaming device to the HDMI port for viewing these services.
- For iOS/Android smartphone connection, an HDMI adapter (Lightning to HDMI or Micro USB/Type-C to HDMI) may be required and is sold separately.
Obrázek: Overview portů připojení projektoru a kompatibilních zařízení.
Image: Demonstrating compatibility with Fire TV Stick for streaming services.
Video: A guide on how to connect a projector to a PC, useful for beginners. This video demonstrates the connection process for external devices.
7. Údržba
- Čištění objektivu: Use a soft, lint-free cloth or lens cleaning paper to gently wipe the projector lens. Avoid using abrasive cleaners or excessive force.
- Čištění prachového filtru: Regularly check and clean the dust filter (if accessible) to prevent overheating and maintain optimal performance. Refer to the Japanese user manual for specific instructions on filter access.
- Skladování: When not in use, store the projector in a cool, dry place, preferably in its dedicated carry bag, to protect it from dust and damage.
8. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Žádný promítaný obraz |
|
|
| Obraz je rozmazaný |
|
|
| Žádný zvuk |
|
|
| Dálkové ovládání nefunguje |
|
|
9. Specifikace
| Funkce | Detail |
|---|---|
| Značka | ELEPHAS |
| Číslo modelu | BL128 |
| Typ zobrazení | LCD |
| Nativní rozlišení | 1920 x 1080 (1080P Full HD) |
| Kontrastní poměr | 8000:1 |
| Velikost projekce | 30 - 200 palce |
| Doporučená projekční vzdálenost | 0.8 - 2.2 metrů |
| Funkce zvětšení | 50 % - 100 % |
| Technologie připojení | HDMI, USB, AV, 3.5mm Audio Jack, Wireless (Screen Mirroring) |
| HDMI porty | 1 |
| USB porty | 1 |
| Vestavěný reproduktor | Yes (HIFI Stereo) |
| Rozměry produktu (D x Š x V) | 15.4 x 12 x 6 cm |
| Hmotnost produktu | 0.42 kg |
| Obnovovací frekvence | 60 Hz |
| Zdroj napájení | AC napájecí kabel |
10. Záruka a podpora
The ELEPHAS BL128 Mini Projector comes with a 2-letá záruka od data nákupu.
During the warranty period, ELEPHAS provides dedicated customer service and technical support. In the event of repair difficulties, we offer a free exchange or refund.
For any inquiries, technical assistance, or warranty claims, please contact our customer support team through the following channels:
- E-mail: support@elephas.com (Napřample)
- Webmísto: www.elephas.com/support (Napřample)
Please have your product model number (BL128) and purchase date ready when contacting support.
