Návod k obsluze motocyklového nůžkového zvedáku ConStands CB14682 XL

1. Úvod

Thank you for choosing the ConStands CB14682 Motorcycle Scissor Lift XL. This manual provides essential information for the safe and effective operation, setup, and maintenance of your new lift. Please read this manual thoroughly before use and retain it for future reference.

This robust scissor lift is designed for repair and maintenance work on motorcycles, including those with double-tube frames and quads. It offers a stable and secure platform for comfortable working on both the front and rear wheels.

2. Bezpečnostní pokyny

VAROVÁNÍ: Nedodržení těchto bezpečnostních pokynů může vést k vážnému zranění nebo poškození majetku.

• Always ensure the lift is placed on a flat, stable, and level surface before use.
• Nepřekračujte maximální nosnost 500 kg (1100 lb).
• Always use appropriate tie-down straps or tensioning belts to secure the motorcycle to the lift's contact surface, especially during lifting, lowering, and extended storage.
• Během provozu udržujte ruce a nohy v dostatečné vzdálenosti od pohyblivých částí.
• Ensure the motorcycle is balanced and centered on the lift's contact surface before lifting.
• Never work under a motorcycle supported solely by the hydraulic lift without additional safety stands or locking mechanisms engaged.
• Inspect the lift for any damage or wear before each use. Do not use if damaged.
• Keep children and unauthorized persons away from the lift during operation.
• Používejte vhodné osobní ochranné prostředky (OOP), jako jsou ochranné brýle a rukavice.
• Výtah žádným způsobem neupravujte.

3. Obsah balení

Please verify that all components are present and undamaged:

• ConStands CB14682 Scissor Lift XL (main unit with hydraulic pump)
• Operating Lever / Handle
• (Optional: Tensioning belts - recommended for use, but may be sold separately)

Figure 1: ConStands CB14682 Motorcycle Scissor Lift XL with operating lever.

4. Nastavení

1. Rozbalení: Opatrně vyjměte všechny součásti z obalu.
2. Umístění: Position the scissor lift on a firm, level, and non-slip surface in your work area.
3. Attach Operating Lever: Insert the operating lever into the designated socket on the hydraulic pump mechanism. Ensure it is securely seated.
4. Počáteční kontrola: Before first use, visually inspect the lift for any signs of shipping damage, loose fasteners, or hydraulic fluid leaks.

5. Návod k obsluze

5.1. Preparing the Motorcycle

• Ensure the motorcycle is stable on its kickstand or center stand (if applicable) before positioning the lift.
• Identify a suitable, flat, and strong contact point on the motorcycle's frame or engine casing where the lift's contact surface can safely support the weight. Avoid exhaust pipes, oil pans, or other fragile components.

5.2. Positioning the Lift

1. Roll the scissor lift under the motorcycle, aligning its large contact surface (67x35cm) with the chosen support points on the motorcycle's underside.
2. Ensure the motorcycle is centered on the lift's contact surface to maintain balance during lifting.
3. Once positioned, secure the motorcycle to the lift using tensioning belts. This is crucial for stability and safety.

Figure 2: Motorcycle positioned on the lift, ready for raising.

5.3. Raising the Motorcycle

1. With the motorcycle securely strapped to the lift, operate the hydraulic pump pedal using your foot.
2. Pump the pedal steadily to gradually raise the motorcycle.
3. Monitor the motorcycle's stability throughout the lifting process. If any instability is observed, immediately stop and re-secure the motorcycle.
4. Raise the motorcycle to the desired working height, up to a maximum of 42 cm.
5. Once at the desired height, engage the safety locking mechanism (if present) to prevent accidental lowering.

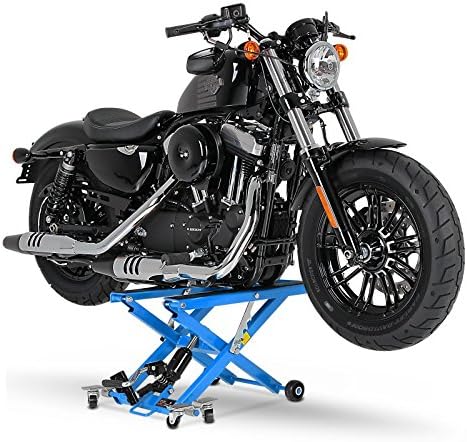

Figure 3: Motorcycle fully lifted, showing clearance for maintenance.

5.4. Lowering the Motorcycle

1. Ensure the work area around the motorcycle is clear.
2. Disengage any safety locking mechanisms.
3. Slowly open the hand valve on the hydraulic pump to gradually lower the motorcycle. Do not open the valve too quickly, as this can cause a rapid descent.
4. Guide the motorcycle down until it rests securely on the ground or its stand.
5. Once fully lowered, release the tensioning belts and carefully roll the lift away.

Obrázek 4: Přample of front wheel lifted for service.

Obrázek 5: Přample of rear wheel lifted for service.

6. Údržba

• Čištění: Keep the lift clean and free from dirt, grease, and debris. Wipe down surfaces with a damp tkanina.
• Mazání: Periodically lubricate pivot points and moving parts with a suitable grease to ensure smooth operation.
• Hydraulická kapalina: Check the hydraulic fluid level regularly. If low, refill with a high-quality hydraulic jack oil. Consult a professional if you suspect a leak.
• Inspekce: Before each use, inspect all bolts, nuts, and pins for tightness. Check for any signs of wear, corrosion, or damage to the frame, contact surfaces, or hydraulic components.
• Skladování: When not in use, store the lift in a dry, clean environment. For long-term storage (hibernation), it is recommended to use tensioning belts to secure the motorcycle if it remains on the lift.

7. Řešení problémů

• Lift does not raise:
  • Check hydraulic fluid level and refill if necessary.
  • Ensure the hand valve is fully closed.
  • Zkontrolujte hydraulické netěsnosti.
• Lift lowers too quickly:
  • The hand valve may be opened too far. Close it partially to control the descent rate.
  • Internal hydraulic seal issue (requires professional service).
• Lift is unstable:
  • Ensure the lift is on a flat, level surface.
  • Verify the motorcycle is centered and securely strapped to the lift.
  • Check for damaged or bent components.

8. Specifikace

9. Záruka a podpora

For warranty information, technical support, or to inquire about replacement parts, please contact your retailer or the manufacturer directly. Please have your model number (CB14682) and purchase date available when contacting support.
