1. Úvod
Thank you for choosing the Teka RS15 71.40 Under-Counter Stainless Steel Sink. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new sink. Please read these instructions carefully before installation and retain them for future reference.
Obrázek 1.1: Nahoře view of the Teka RS15 71.40 stainless steel sink.
2. Bezpečnostní informace
Dodržujte prosím následující bezpečnostní opatření, abyste předešli zranění nebo poškození produktu:
- Před zahájením jakékoli instalace nebo údržby se vždy ujistěte, že je přívod vody uzavřen.
- Wear appropriate personal protective equipment (PPE) such as gloves and safety glasses during installation.
- Handle the sink with care to avoid scratches or damage to the stainless steel surface.
- Ujistěte se, že všechna spojení jsou vodotěsná, abyste zabránili únikům a poškození vodou.
- Pokud si nejste jisti některou částí instalačního procesu, poraďte se s kvalifikovaným odborníkem.
3. Konec produktuview
The Teka RS15 71.40 sink is a high-quality under-counter single bowl sink designed for modern kitchens. It features durable 18/10 stainless steel construction and a SilentSmart system to reduce noise.
3.1 Klíčové vlastnosti
- Materiál: High-quality 18/10 Stainless Steel.
- Design: Under-counter installation, single bowl.
- Redukce šumu: SilentSmart technology reduces noise by 50%.
- Snadné čištění: R15 radius corners facilitate cleaning and water drainage.
- Drenážní systém: Includes a 3½" basket valve and siphon.
- Hloubka: Bowl depth of 200 mm.
Image 3.1: The Teka RS15 71.40 sink seamlessly integrated into a kitchen countertop with a faucet.
Obrázek 3.2: Úhlové view of the Teka RS15 71.40 sink, highlighting its under-counter design.
4. Pokyny k instalaci
This section outlines the general steps for installing your Teka RS15 71.40 sink. It is recommended to have a professional perform the installation.
4.1 Kontrolní seznam před instalací
- Verify all components are present: sink, drain assembly (basket valve, siphon), and fixing accessories.
- Ensure the cabinet opening is correctly sized for an 80 cm under-counter sink. Refer to the dimensions diagram.
- Gather necessary tools: sealant, drill, screwdriver, wrench, measuring tape.
4.2 kroky instalace
- Připravte pracovní desku: Ensure the countertop cutout is clean, dry, and correctly sized for under-counter mounting.
- Naneste tmel: Apply a continuous bead of silicone sealant around the rim of the sink where it will meet the underside of the countertop.
- Umístění dřezu: Carefully lift the sink and align it with the countertop opening from below. Press firmly to ensure good adhesion with the sealant.
- Secure with Fixing Accessories: Use the provided fixing clips and screws to secure the sink to the underside of the countertop. Tighten evenly to create a strong seal.
- Instalace odtokové sestavy:
- Insert the basket valve into the sink's drain opening, ensuring a watertight seal with gaskets and sealant.
- Connect the siphon to the basket valve and then to the household drainage system. Ensure all connections are tight and leak-free.
- Connect Faucet (if applicable): If installing a new faucet, follow the faucet manufacturer's instructions.
- Zkouška těsnosti: Once installation is complete, turn on the water supply and fill the sink. Check all connections for any signs of leakage.

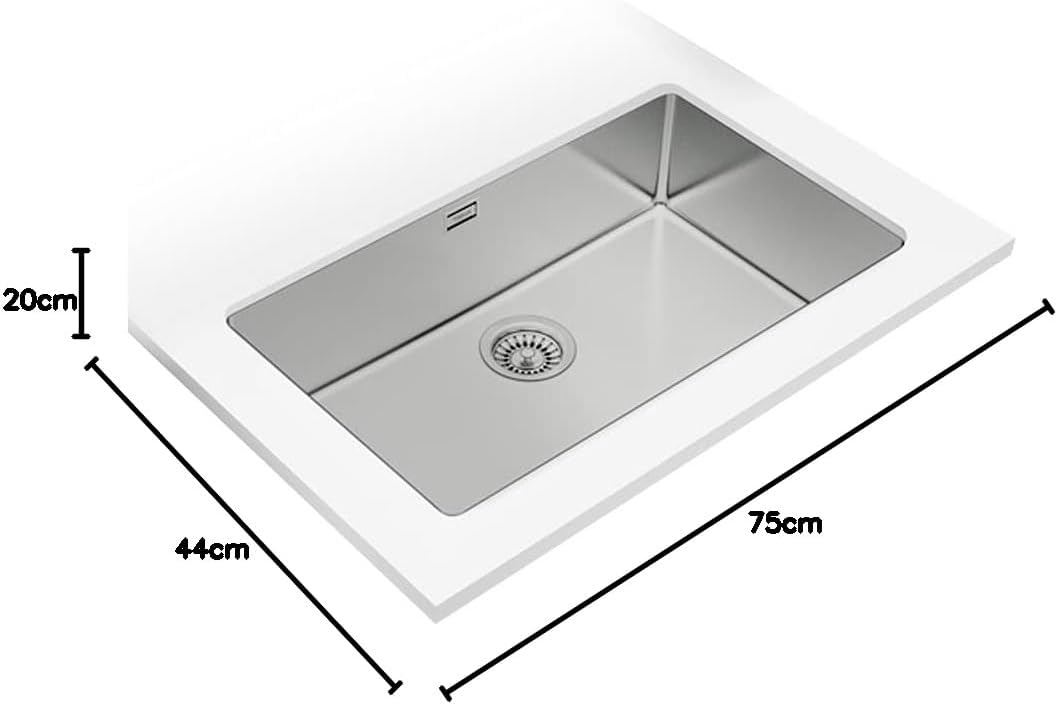

Image 4.1: Dimensional drawing of the Teka RS15 71.40 sink, indicating key measurements for installation.
5. Provoz
The Teka RS15 71.40 sink operates like any standard kitchen sink. Use it for washing dishes, preparing food, and other kitchen tasks. The R15 radius corners and SilentSmart technology enhance the user experience by making cleaning easier and reducing operational noise.
- Ensure the basket valve is open for drainage or closed to retain water in the bowl.
- Avoid placing extremely hot items directly into the sink without protection, as sudden temperature changes can affect the material over time.
6. Péče a údržba
Proper care will ensure the longevity and appearance of your stainless steel sink.
6.1 Denní čištění
- After each use, rinse the sink thoroughly with water to remove food particles and soap residue.
- Dřez otřete dosucha měkkým hadříkem, abyste zabránili vzniku skvrn od vody a usazování minerálů, zejména v oblastech s tvrdou vodou.
- Pro běžné čištění použijte jemný saponát na nádobí a měkkou houbičku nebo hadřík.
6.2 Zabránění poškození
- Vyhněte se abrazivním čisticím prostředkům: Do not use steel wool, abrasive pads, or harsh chemical cleaners (e.g., bleach, ammonia-based products) as these can scratch or stain the stainless steel.
- Zabraňte poškrábání: While stainless steel is durable, it can scratch. Use a sink grid or mat to protect the bottom of the sink from heavy pots and pans.
- Prevence rzi: Although stainless steel is resistant to rust, prolonged contact with iron objects (e.g., cast iron pans, steel wool fragments) can cause surface rust stains. Remove these promptly with a non-abrasive stainless steel cleaner.
- Chemická expozice: Avoid direct contact with strong acids or alkalis, as these can damage the finish.
7. Řešení problémů
This section addresses common issues you might encounter with your sink.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Water leaks from drain connections. | Uvolněné spoje nebo nesprávně usazená těsnění. | Tighten connections. Check and reseat gaskets, apply plumber's putty or sealant if necessary. |
| Slow drainage. | Partial clog in the drain or siphon. | Remove the basket valve and clear any debris. If necessary, disassemble the siphon to remove blockages. |
| Water spots or stains on sink surface. | Hard water deposits or residue from certain foods/liquids. | Clean with a mixture of vinegar and water, then rinse and dry thoroughly. For stubborn stains, use a specialized stainless steel cleaner. |
| Povrchové škrábance. | Abrasive cleaning or contact with sharp objects. | Minor scratches can sometimes be buffed out with a stainless steel scratch removal kit. Prevent future scratches by using sink grids and avoiding abrasive materials. |
8. Specifikace
| Funkce | Detail |
|---|---|
| Značka | Teka |
| Číslo modelu | 115000004 |
| Rozměry produktu | 75 x 44 x 20 cm (délka x šířka x hloubka) |
| Hmotnost | 5.02 kg |
| Materiál | Nerezová ocel 18/10 |
| Barva | Grey (Stainless Steel finish) |
| Styl | 1 Bowl (Seno) |
| Dokončit | Leštěný |
| Způsob instalace | Under-mount (Montaje inferior) |
| Počet produktů | 1 |
| Typ odtoku | Grid (Rejilla) |
| Hloubka mísy | 200 mm |
| Rohový poloměr | R15 |
| Cabinet Size Recommendation | 80 cm |
9. Záruka a podpora
Teka products are manufactured to high-quality standards and come with a manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your purchase or visit the official Teka website. For technical support or service inquiries, please contact Teka customer service through their official channels.
Kontaktní údaje: Please refer to your purchase documentation or the Teka official webweb s nejaktuálnějšími kontaktními informacemi pro váš region.
