X-PRO 110cc DB14 Semi-Automatic Dirt Bike User Manual

1. Úvod

This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your X-PRO 110cc DB14 Semi-Automatic Dirt Bike. Please read this manual thoroughly before operating the vehicle to ensure proper use and to prevent injury or damage.

Safety Warning: Operating a dirt bike can be dangerous. Always wear appropriate safety gear, including a helmet, eye protection, gloves, and protective clothing. Ensure all riders are properly trained and supervised, especially minors. This vehicle is intended for off-road use only.

2. Konec produktuview

The X-PRO 110cc DB14 is a semi-automatic dirt bike designed for youth and intermediate riders. It features a 110cc 4-stroke air-cooled engine, hydraulic disc brakes, and a robust frame suitable for off-road conditions.

Klíčové vlastnosti:

• 110cc 4-Stroke Air-Cooled Engine
• Semi-Automatic Transmission
• Přední a zadní hydraulické kotoučové brzdy
• 14-inch Front Wheel, 12-inch Rear Wheel
• Kick Start System
• Engine Kill Switch for immediate shutdown

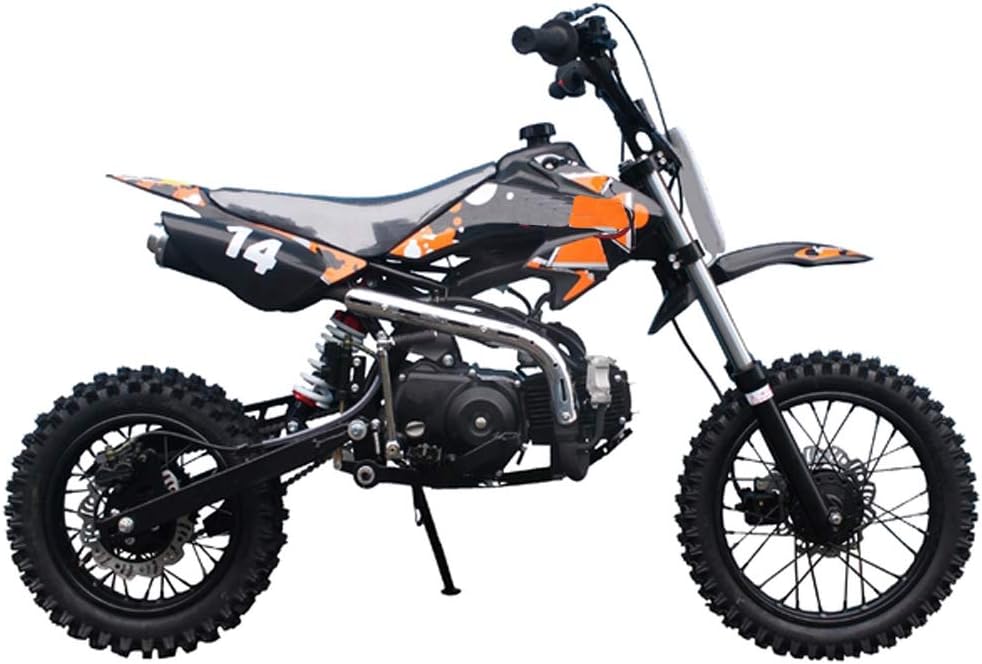

Image 2.1: The X-PRO 110cc DB14 Dirt Bike, showcasing its orange and black design, knobby tires, and suspension system.

3. Nastavení a montáž

Your X-PRO 110cc DB14 Dirt Bike requires some assembly upon arrival. It is recommended that assembly be performed by an adult with mechanical aptitude or by a qualified technician.

Zahrnuté komponenty:

• 110cc Semi-Automatic Dirt Bike (partially assembled)
• Sedadlo
• Sada nářadí
• Kickstand
• Blatník

Kroky montáže (obecné):

1. Vyjmutí z bedny: Carefully remove the bike from its shipping crate and metal frame. Inspect for any shipping damage.
2. Instalace řídítek: Attach the handlebar to the handlebar brackets. Ensure all bolts are securely tightened.
3. Montáž předního kola: Install the front wheel, ensuring the axle is properly aligned and secured. Connect the front brake caliper if it is not pre-installed.
4. Fender and Number Plate: Attach the front fender and number plate as per the design.
5. Kontrola brzdového systému: Verify that both front and rear hydraulic disc brakes are properly connected and functioning. Adjust as necessary.
6. Kontroly provozních kapalin: Check engine oil levels and ensure the fuel tank is empty before filling with fresh fuel.
7. Kontrola před jízdou: Before the first ride, thoroughly inspect all bolts, nuts, and fasteners for tightness. Check tire pressure and chain tension.

Note: Specific assembly details may vary by model. Refer to any supplementary diagrams or instructions provided with your specific unit.

4. Návod k obsluze

4.1 Tankování

• Používejte čerstvý bezolovnatý benzín s oktanovým číslem 87 nebo vyšším.
• The fuel tank capacity is approximately 1 gallon.
• Always refuel in a well-ventilated area with the engine off and cool.

4.2 Startování motoru

1. Ujistěte se, že je palivový ventil v poloze „ON“.
2. If the engine is cold, engage the choke.
3. Place the bike in neutral.
4. Use the kick start lever with a firm, swift motion. Do not 'feather' the kick start.
5. Once the engine starts, gradually disengage the choke as the engine warms up.
6. If the engine does not start after several kicks, check the engine kill switch, fuel supply, and spark plug.

4.3 Semi-Automatic Transmission

The DB14 features a semi-automatic transmission, meaning there is no clutch lever. Shifting gears is done by pressing the gear shifter with your foot.

• To shift up, press the shifter down.
• To shift down, lift the shifter up.
• Practice shifting at low speeds in a safe, open area until comfortable.

4.4 Brzdění

The bike is equipped with front and rear hydraulic disc brakes.

• The front brake is operated by the lever on the right handlebar.
• The rear brake is operated by the foot pedal on the right side.
• Apply both brakes smoothly and progressively for effective stopping. Avoid sudden, hard braking, especially on loose surfaces.

4.5 Engine Kill Switch

A red engine kill switch is located on the handlebar. Pressing this switch will immediately cut power to the engine, stopping the bike. Use this for emergencies or when shutting down the engine.

5. Údržba

Regular maintenance is crucial for the longevity and safe operation of your dirt bike.

5.1 Výměna motorového oleje

• Change the engine oil after the first hour of operation (break-in period), then every 10-15 hours of riding or every 3 months, whichever comes first.
• Use recommended motorcycle engine oil (e.g., 10W-40).
• Refer to the engine diagram for drain plug and fill cap locations.

5.2 Údržba řetězu

• Inspect the drive chain for proper tension and lubrication before each ride.
• Adjust chain tension as needed; there should be approximately 0.5-1 inch of slack.
• Clean and lubricate the chain regularly with specialized chain lubricant.

5.3 Tire Inspection and Pressure

• Před každou jízdou zkontrolujte tlak v pneumatikách. Doporučený tlak naleznete na bočnici pneumatiky.
• Inspect tires for wear, cuts, or punctures. Replace damaged tires immediately.

5.4 Kontroly spojovacích prvků

• Regularly check all bolts, nuts, and fasteners for tightness, especially on critical components like handlebars, wheels, brakes, and suspension.
• Loose fasteners can lead to component failure and unsafe operation.

5.5 Obecné čištění

• Clean the bike after each ride, especially if ridden in muddy or dusty conditions.
• Avoid high-pressure washing directly on electrical components, bearings, or seals.

6. Řešení problémů

This section addresses common issues you might encounter with your X-PRO 110cc DB14 Dirt Bike.

6.1 Motor nenastartuje

• Bez paliva: Check fuel level and ensure the fuel valve is open.
• Engine Kill Switch: Ensure the engine kill switch is in the 'RUN' position.
• Tlumivky: Pokud je motor studený, zapněte sytič.
• Zapalovací svíčka: Inspect the spark plug for fouling or damage. Replace if necessary.
• Systém zapalování: If the spark plug is good, issues might stem from the CDI, stator, or ignition coil. These components may require professional diagnosis.

6.2 Engine Dies Frequently / Runs Rough

• Fuel Quality/Supply: Ensure fresh fuel and clear fuel lines. Check for blockages in the fuel filter or carburetor.
• Vzduchový filtr: Znečištěný vzduchový filtr může omezovat proudění vzduchu. V případě potřeby jej vyčistěte nebo vyměňte.
• Seřízení karburátoru: The carburetor may need adjustment for optimal fuel-air mixture. This is often best done by a professional.

6.3 Shifting Difficulties

• Napnutí řetězu: Incorrect chain tension can affect shifting. Adjust as per maintenance guidelines.
• Převodová kapalina: Ensure proper transmission fluid levels (if applicable, check manual for specific fluid type).
• Vazba: Inspect the shift linkage for obstructions or damage.

6.4 Únik oleje

• Drain Plug/Fill Cap: Check if the oil drain plug and fill cap are securely tightened.
• Gaskets/Seals: Inspect engine gaskets and seals for signs of wear or damage. Leaks from these areas may require professional repair.

6.5 Píchnutá pneumatika

• Propíchnout: Locate the puncture and repair or replace the inner tube.
• Valve Stem: Check the valve stem for leaks.

7. Specifikace

8. Informace o záruce

The X-PRO 110cc DB14 Dirt Bike comes with a 30-day warranty for replacement parts. This warranty covers manufacturing defects in parts. It does not cover damage resulting from misuse, neglect, accidents, or normal wear and tear. For warranty claims, please contact the seller or manufacturer with your proof of purchase.

9. Zákaznická podpora

If you encounter any issues not covered in this manual or require further assistance, please contact your authorized X-PRO dealer or the customer support department of the seller. Have your model number (DB14) and purchase information ready when contacting support.
