EOTECH XPS2 Holographic Weapon Sight XPS2-0 User Manual

1. Konec produktuview & Funkce

The EOTECH XPS2-0 Holographic Weapon Sight is a compact and robust optic designed for rapid target acquisition and reliable performance. Its advanced holographic technology provides a clear and precise aiming solution for various shooting scenarios.

• EOTECH XPS2-0: Holographic Weapon Sight in black with 68MOA ring and (1) 1 MOA dot reticle.
• Všestrannost montáže: Compatible with both 1" weaver and MIL-STD 1913 rails, offering flexible mounting options.
• Nastavitelný jas: Features 20 brightness settings to ensure optimal visibility in any lighting condition, from bright daylight to low-light environments.
• Kompaktní design: Its small footprint leaves ample rail space for additional accessories such as rear iron sights or magnifiers.

2. Nastavení

2.1 Montáž mířidla

The XPS2-0 is designed for easy mounting on any 1" Weaver or MIL-STD 1913 rail. Ensure the rail is clean and free of debris before mounting. Use the provided thumb-bolt or Allen-type bolt to securely fasten the sight to your firearm's rail. Tighten the bolt firmly to prevent movement under recoil.

2.2 Instalace baterie

The XPS2-0 uses a single CR123 battery. To install or replace the battery:

1. Unscrew the battery cap located on the front right side of the sight.
2. Insert the CR123 battery with the positive (+) end facing forward.
3. Bezpečně zašroubujte zpět krytku baterie.

The sight will flash when the battery is at 20% capacity, indicating it's time for replacement soon.

3. Ovládání zaměřovače

3.1 Power On/Off & Brightness Adjustment

The control buttons are located on the rear of the sight:

• Zapnutí: Press either the 'Up' (▲) or 'Down' (▼) button.
• Nastavení jasu: Press the 'Up' (▲) button to increase brightness or the 'Down' (▼) button to decrease brightness. There are 20 settings available.
• Vypnutí: Simultaneously press both the 'Up' (▲) and 'Down' (▼) buttons.

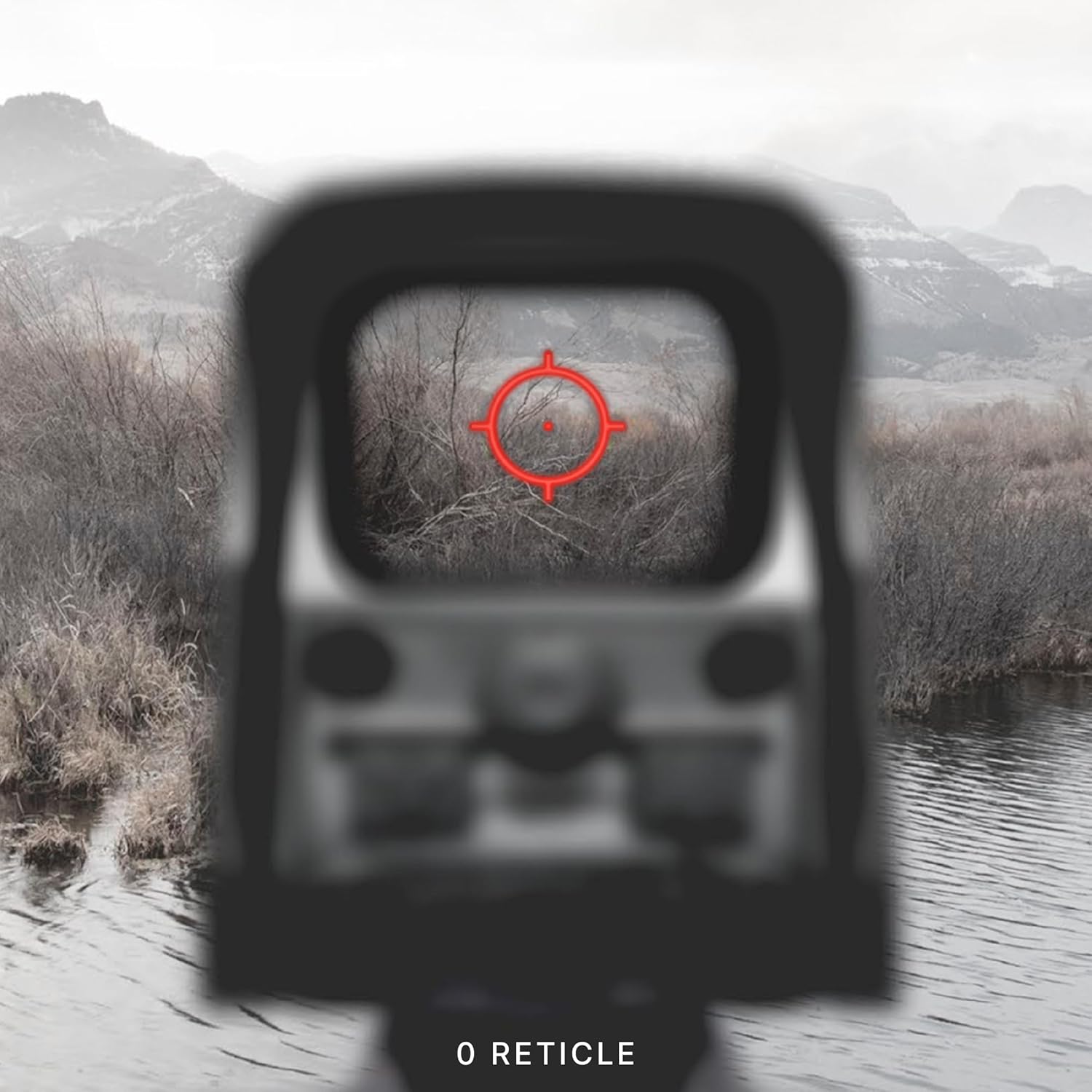

3.2 Reticle Description

The XPS2-0 features a 68 MOA (Minute of Angle) ring with a 1 MOA dot in the center. This reticle design allows for quick target acquisition while maintaining precision.

3.3 Úpravy stranového a elevačního odklonu

Adjustments for windage (left/right) and elevation (up/down) are located on the side of the sight. Each click provides a precise adjustment to the point of impact.

4. Údržba

To ensure the longevity and optimal performance of your EOTECH XPS2-0, regular maintenance is recommended:

• Čištění čoček: Use a soft, lint-free cloth and lens cleaning solution to gently wipe the optical surfaces. Avoid abrasive materials or excessive pressure.
• Čištění těla: Wipe the sight's body with a damp hadříkem k odstranění nečistot a špíny. Vyhněte se agresivním chemikáliím.
• Skladování: Store the sight in a dry, cool place away from direct sunlight and extreme temperatures. Remove the battery if storing for extended periods.

5. Řešení problémů

5.1 Indikátor slabé baterie

When the battery life reaches approximately 20%, the reticle will flash upon power-up to indicate a low battery condition. Replace the CR123 battery promptly to ensure continued operation.

5.2 Reticle Blinking Under Recoil

If the reticle blinks or flickers during recoil, this is another indication of a low battery. Replace the battery to resolve this issue.

6. Specifikace

7. Záruka a podpora

The EOTECH XPS2-0 Holographic Weapon Sight comes with a 10-year limited warranty from the manufacturer, covering defects in materials and workmanship under normal use. For warranty claims or technical support, please refer to the official EOTECH webwebu nebo se přímo obraťte na jejich zákaznický servis.

It is recommended to register your product online to ensure you are contacted in the event of any product issues and to facilitate warranty service.

8. Důležité bezpečnostní informace

VAROVÁNÍ: Tento výrobek obsahuje chemikálie, o nichž je ve státě Kalifornie známo, že způsobují rakovinu a vrozené vady nebo poškozují reprodukci.
