1. Úvod
Thank you for choosing the GRIFEMA COMPLENTO-G802 Hand Shower. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new shower head. Please read these instructions carefully before use and retain them for future reference.
2. Konec produktuview
The GRIFEMA COMPLENTO-G802 is a high-quality hand shower designed for bathroom use, featuring a durable chrome finish and three distinct spray modes for a customized showering experience.
Klíčové vlastnosti:
- Large 120mm shower head for extensive coverage.
- Three easily switchable spray modes: Rain, Shampoo, a masáže.
- Brilliant chrome finish, resistant to scratches and easy to clean.
- Standard G1/2 inch connection for universal compatibility.

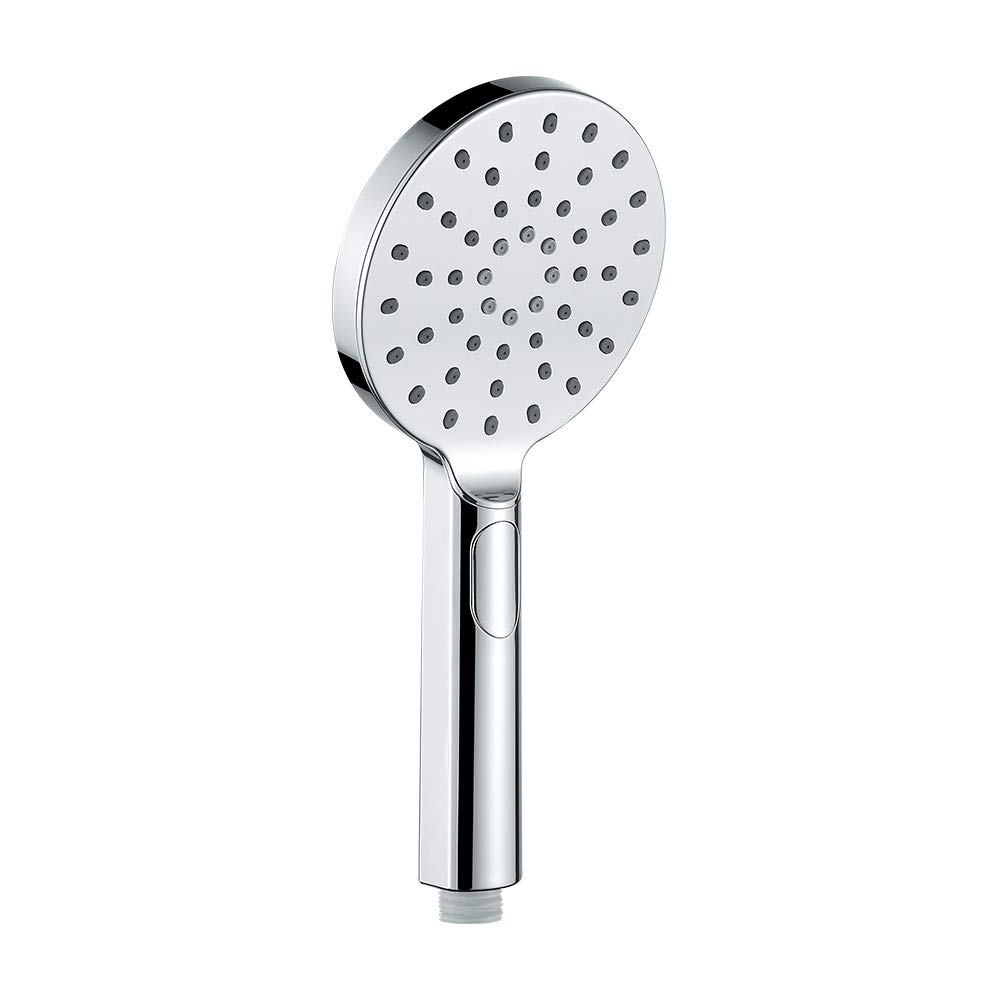

Image 1: GRIFEMA COMPLENTO-G802 Hand Shower with key dimensions. The shower head has a diameter of 120mm and a total length of 256mm. It features a G1/2 inch connection.
Image 2: Various detailed views of the GRIFEMA COMPLENTO-G802 Hand Shower, showcasing its chrome finish, spray plate, handle, and connection point.
3. Nastavení a instalace
The GRIFEMA COMPLENTO-G802 Hand Shower is designed for easy screw-on installation. No specialized tools are typically required for basic setup.
Kroky instalace:
- Příprava: Ensure your water supply is turned off at the main valve before beginning installation.
- Demontáž staré sprchové hlavice (pokud je k dispozici): Unscrew your existing hand shower from the shower hose. You may need a wrench if it's tightly secured, but protect the finish with a cloth.
- Čistá vlákna: Clean any old sealant or debris from the threads of your shower hose.
- Attach New Shower Head: Carefully screw the GRIFEMA COMPLENTO-G802 Hand Shower onto the G1/2 inch thread of your shower hose. Hand-tighten first, then use a wrench for a final quarter turn if necessary, being careful not to overtighten.
- Zkontrolujte netěsnosti: Turn on the water supply and check for any leaks around the connection point. If leaks occur, tighten slightly more or apply plumber's tape to the threads before reattaching.
Poznámka: Ensure a rubber washer is correctly seated within the connection for a watertight seal.
4. Provoz
The GRIFEMA COMPLENTO-G802 Hand Shower features three distinct spray modes, easily selectable via a button on the handle.
Změna režimů stříkání:
- Locate the button on the side of the shower head handle.
- Press the button to cycle through the available spray modes:
- Déšť: A gentle, wide spray for a relaxing shower.
- Shampoo (or ECO Spray): A focused, invigorating spray, ideal for rinsing shampoo
- Masáž: A powerful, pulsating spray for a stimulating massage effect.
Image 3: The GRIFEMA COMPLENTO-G802 Hand Shower demonstrating its three spray patterns: Spray (Rain), ECO Spray (Shampoo), and Massage. The button on the handle allows for easy switching between these modes.
5. Údržba
Regular cleaning and maintenance will ensure the longevity and optimal performance of your GRIFEMA COMPLENTO-G802 Hand Shower.
Čištění sprchové hlavice:
- Povrchová úprava Chrome: The brilliant chrome finish is designed to be scratch-resistant and easy to clean. Use a soft cloth and mild soap or a non-abrasive cleaner specifically designed for chrome surfaces. Avoid harsh chemicals, abrasive pads, or scouring agents, as these can damage the finish.
- Trysky: The shower head features "Easy-Clean Soft Rubber Nozzles." To remove limescale or mineral deposits, gently rub the rubber nozzles with your finger or a soft brush. This will dislodge any buildup and restore the spray pattern.

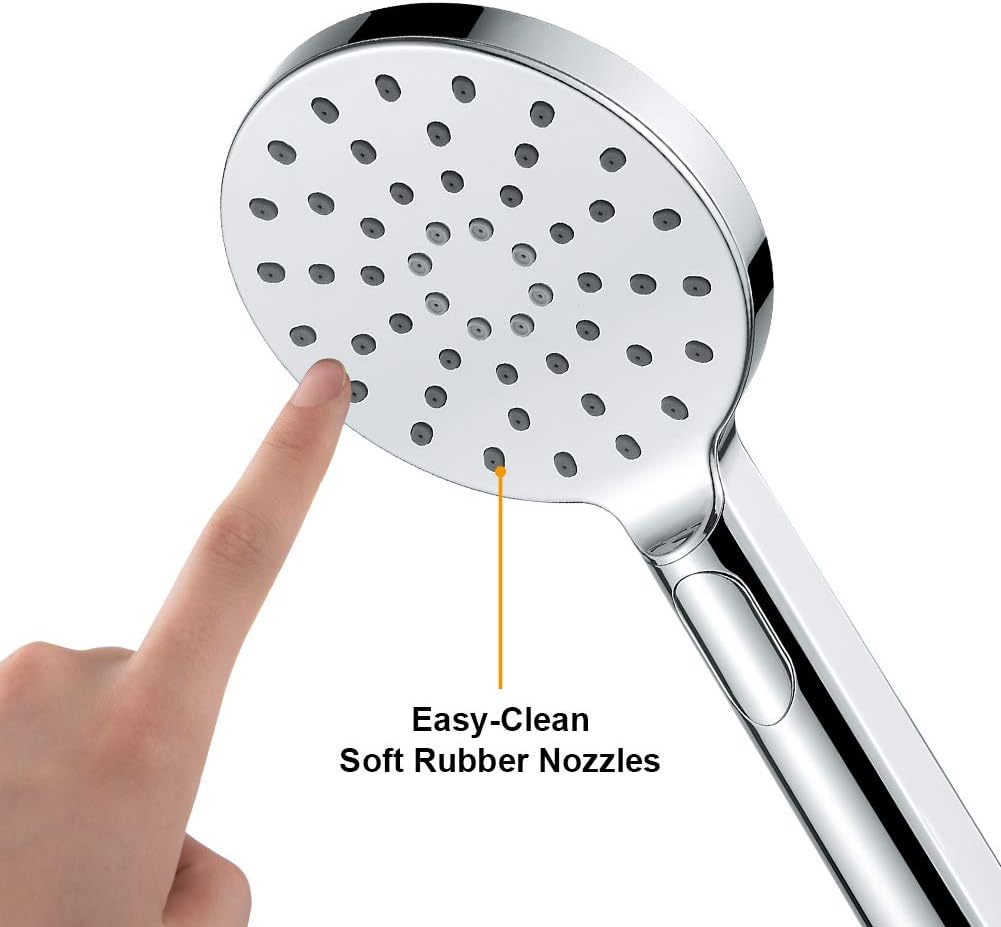

Obrázek 4: Detail view of the GRIFEMA COMPLENTO-G802 Hand Shower's spray plate, highlighting the Easy-Clean Soft Rubber Nozzles. These nozzles allow for simple removal of limescale by rubbing them.
6. Řešení problémů
If you encounter any issues with your hand shower, please refer to the following common troubleshooting tips:
- Nízký tlak vody:
- Zkontrolujte, zda je hlavní přívod vody zcela otevřený.
- Zkontrolujte sprchovou hadici, zda není zalomená nebo ucpaná.
- Clean the shower head nozzles as described in the Maintenance section to remove any mineral buildup.
- Leaking Connection:
- Ensure the connection to the shower hose is tightened sufficiently (do not overtighten).
- Verify that the rubber washer is correctly seated and not damaged. Replace if necessary.
- Apply plumber's tape to the threads of the shower hose before reattaching the hand shower.
- Nekonzistentní vzor postřiku:
- Clean the shower head nozzles to remove any blockages.
If problems persist, please contact GRIFEMA customer support.
7. Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | G802 |
| Značka | GRIFEMA |
| Rozměry (D x Š x V) | 10 x 7 x 25 cm |
| Hmotnost | 280 gramů |
| Velikost připojení | G1/2 palce |
| Barva | Silver (Chrome finish) |
| Styl | Round Hand Shower |
| Dokončit | Chrome |
| Materiál | Akrylonitrilbutadienstyren (ABS) |
| Způsob instalace | Šroubovací |
| Počet režimů postřiku | 3 (Rain, Shampoo/ECO Spray, Massage) |
8. Záruka a podpora
GRIFEMA products are designed for quality and durability. We stand by our products with comprehensive support.
Informace o záruce:
- Tento produkt je dodáván s a dvouletá záruka výrobce od data nákupu.
- GRIFEMA also offers a 100% risk-free exchange and 12-month refund policy, beyond Amazon's standard 30-day return policy.
- The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, misuse, abuse, or normal wear and tear.
Zákaznická podpora:
For any questions, technical assistance, or warranty claims, please contact GRIFEMA customer service. Our dedicated service and sales team is located in Barcelona, Spain, and is ready to assist you.
