1. Úvod
This manual provides essential information for the safe and effective operation, assembly, and maintenance of your SNODE Magnetic Elliptical Trainer. This elliptical machine is designed for home fitness cardio training, offering a full-body workout with minimal impact on joints. It features a magnetic resistance system, a programmable monitor, and Bluetooth connectivity for app tracking.
2. Důležité bezpečnostní informace
Before using this equipment, please read this entire manual. Failure to follow these instructions could result in injury or damage to the equipment.
- Před zahájením jakéhokoli cvičebního programu se poraďte se svým lékařem.
- Během používání udržujte děti a domácí zvířata mimo dosah zařízení.
- Place the elliptical trainer on a solid, level surface with at least 2 feet (0.6 meters) of clear space around it.
- Před každým použitím se ujistěte, že jsou všechny šrouby a matice bezpečně utažené.
- The maximum user weight capacity for this machine is 265 lbs (120 kg).
- Noste vhodné sportovní oblečení a sportovní obuv.
- Do not operate the machine if it is damaged.
- Always maintain balance while operating the elliptical.
3. Komponenty produktu
Familiarize yourself with the main components of your SNODE Elliptical Trainer:
- Hlavní rám: The core structure of the elliptical.
- Magnetic Control Flywheel: Provides smooth and quiet resistance.
- Programmable Monitor: Displays workout data and allows program selection.
- Dual Workout Arms: Moving handlebars for upper body engagement.
- Static Handlebars: Stationary handlebars with integrated heart rate sensors.
- Oversized Pedals: Non-slip foot platforms for secure footing.
- Přepravní kola: Located at the front for easy movement.
- Cross Crank System: Heavy-duty system for performance and momentum.
Obrázek 3.1: Přesview of the SNODE Magnetic Elliptical Trainer with its main features and app connectivity.

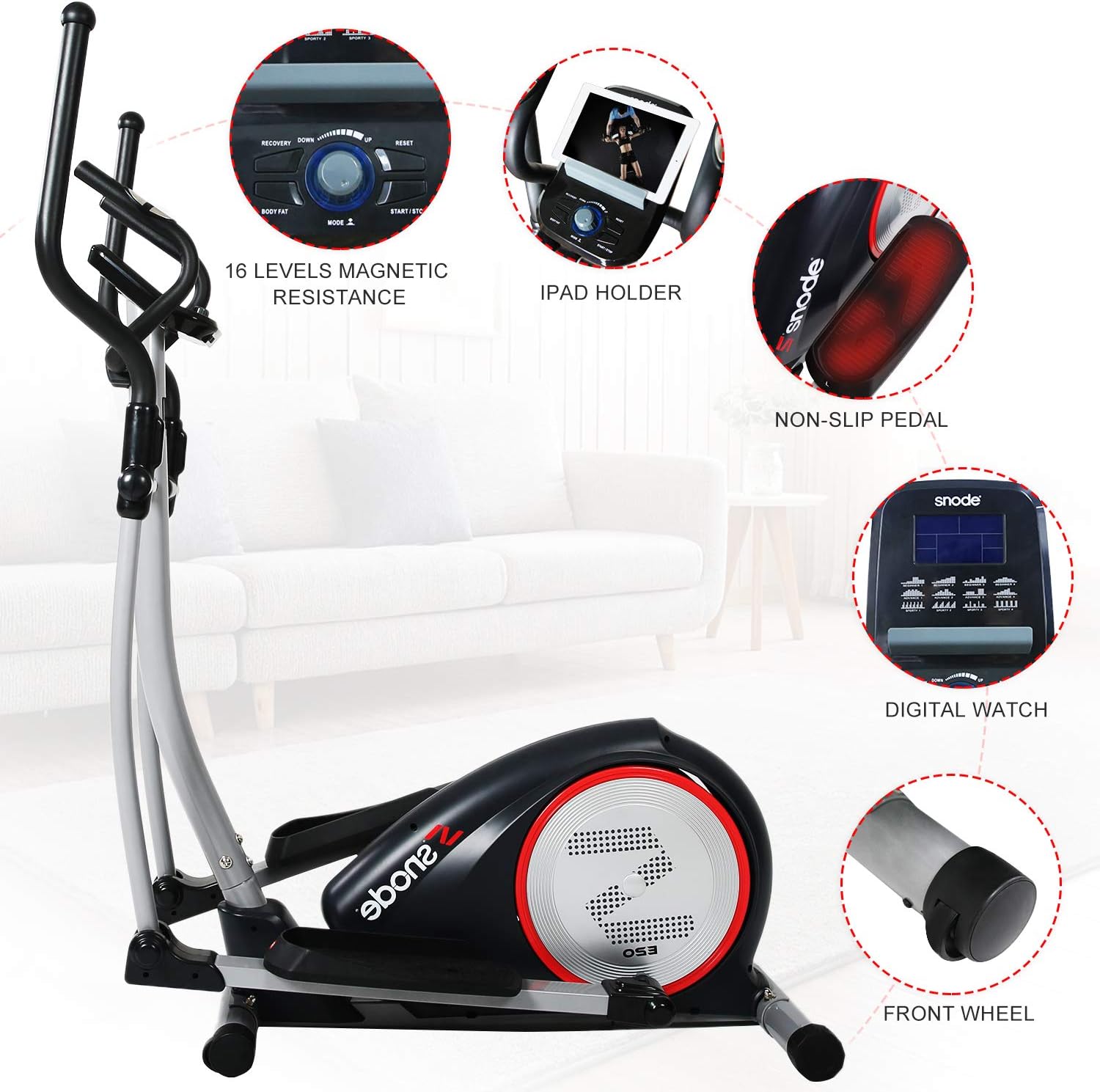

Obrázek 3.2: Detailní view of the control console, iPad holder, non-slip pedals, digital display, and front transportation wheels.
4. Montážní návod
Assembly typically requires two people and basic tools (not included, but usually a wrench and Allen key are sufficient). Follow the detailed instructions provided in the physical manual that accompanies your product. Ensure all parts are accounted for before beginning assembly.
- Unpack all components and verify against the parts list in your physical manual.
- Připevněte přední a zadní stabilizátory k hlavnímu rámu.
- Secure the main upright post to the base.
- Install the pedal arms and handlebars, ensuring proper alignment and secure fastening.
- Connect the console wiring to the main frame wiring.
- Mount the console onto the upright post.
- Perform a final check to ensure all connections are tight and the machine is stable.

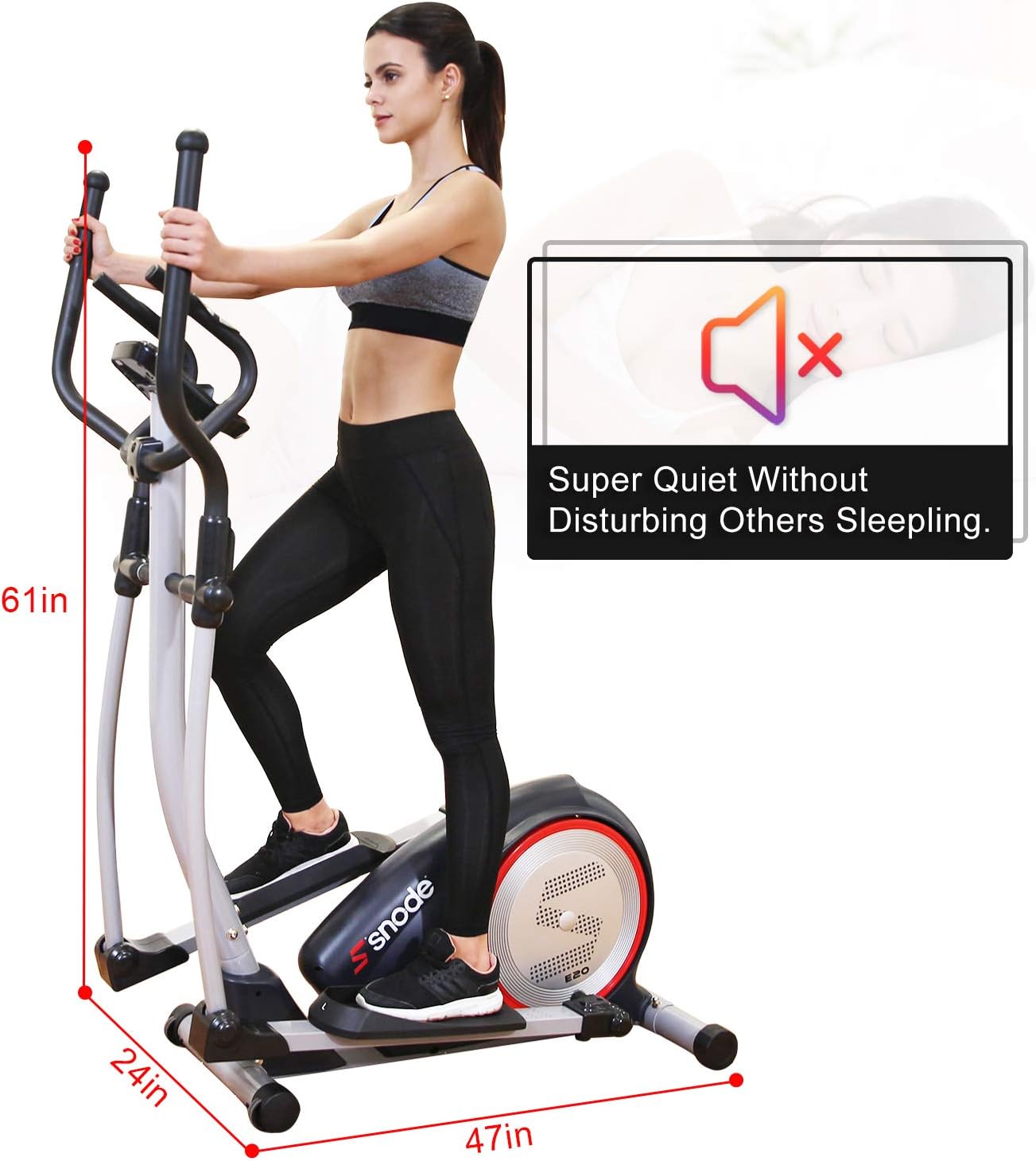

Figure 4.1: Elliptical dimensions (47in L x 24in W x 61in H) and indication of quiet operation, useful for planning placement during setup.
5. Návod k obsluze
5.1. Using the Programmable Monitor
The back-lit display allows you to track various workout metrics and select programs:
- Zapnutí: Plug in the elliptical. The monitor will activate.
- Metrics Displayed: Speed, Time, Distance, Calories Burned, Rotations Per Minute (RPM), Watt Generations, and Magnetic Resistance Load.
- Tréninkové programy: Select from Manual, Pre-program, Watt, Body Fat, Heart Rate, and User programs to customize your workout. Refer to the monitor's specific instructions in your physical manual for detailed navigation.
- Nastavení odporu: Use the computer console to adjust the 16 smooth levels of magnetic resistance.

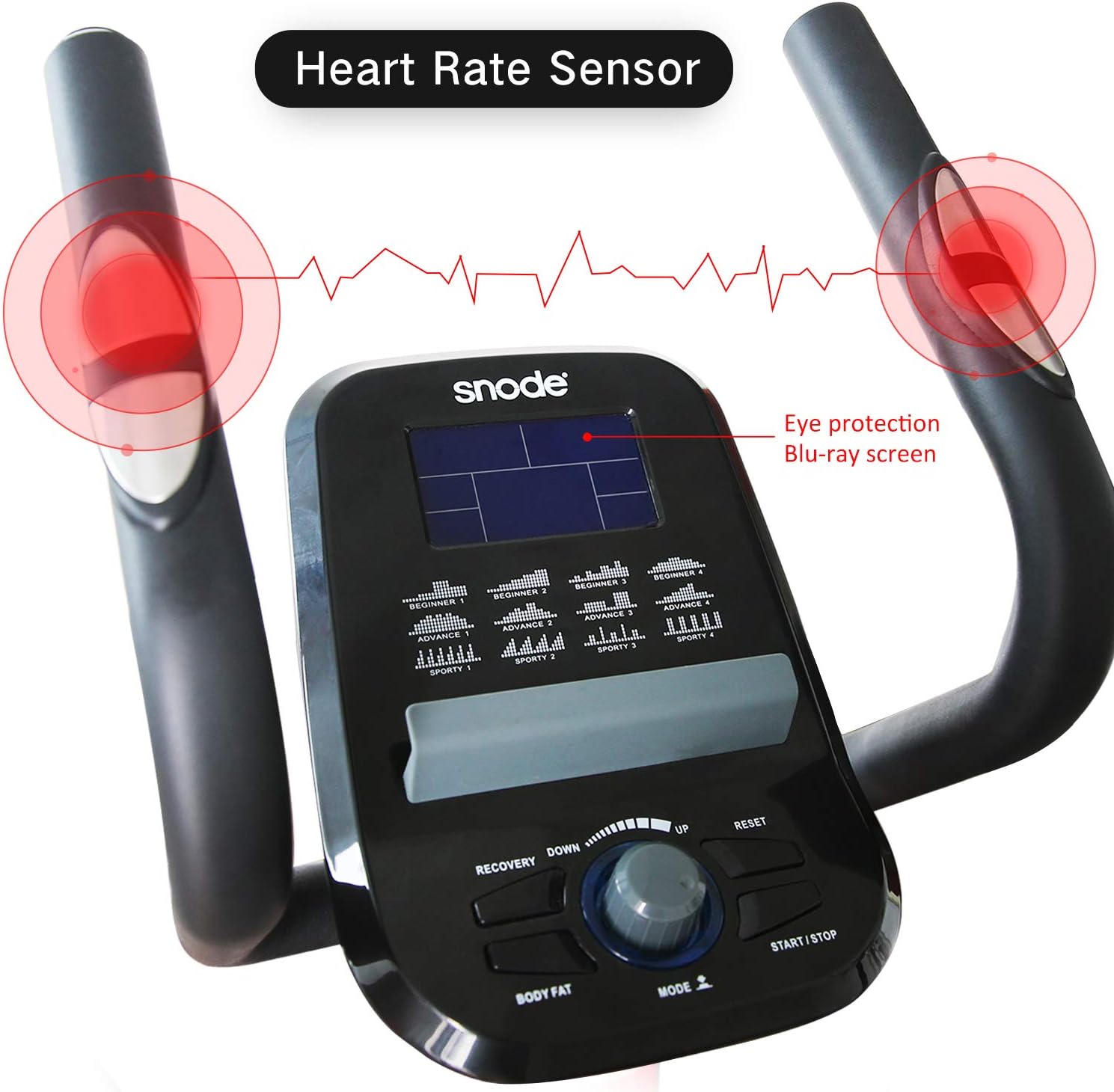

Figure 5.1: The console features heart rate sensors on the static handlebars and an eye-protection Blu-ray screen for comfortable viewIng.
5.2. Bluetooth Connectivity and App Tracking
The elliptical is equipped with Bluetooth Smart technology for tracking your workouts via the free iConsole+ training app, available on Android and iOS devices.
- Download the "iConsole+ training" app from your device's app store.
- Ujistěte se, že je na vašem mobilním zařízení povoleno Bluetooth.
- Open the iConsole+ app and follow the on-screen instructions to connect to your SNODE Elliptical Trainer.
- Once connected, you can track your workout data, set goals, and utilize additional app features.
5.3. Proper Usage Technique
- Umístění nohou: Place your feet securely on the oversized, non-slip pedals.
- Arm Movement: Engage the dual workout arms for an upper body workout, or hold the static handlebars for stability and heart rate monitoring.
- Krok: Maintain a smooth, continuous stride. The elliptical's design minimizes impact on knees and ankles.
Figure 5.2: Illustrates how different "slope" (resistance/effort) levels can target various muscle groups, from arms to legs, and highlights the 265 lbs weight capacity.
6. Údržba
Pravidelná údržba zajistí dlouhou životnost a optimální výkon vašeho eliptického trenažéru.
- Čištění: Otřete stroj reklamouamp Po každém použití setřete hadříkem, abyste odstranili pot a prach. Nepoužívejte abrazivní čisticí prostředky.
- Mazání: Periodically check moving parts for friction. Apply a silicone-based lubricant to pivot points and joints as needed, following the specific instructions in your physical manual.
- Utáhněte spoje: Regularly inspect all bolts, nuts, and screws to ensure they are tight. Loose connections can lead to noise or instability.
- Skladování: When not in use, store the elliptical in a dry, cool place away from direct sunlight and moisture. Use the transportation wheels to move it easily.
7. Řešení problémů
This section addresses common issues you might encounter with your elliptical trainer.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Stroj je během provozu hlučný. | Loose bolts or connections; lack of lubrication on moving parts. | Check and tighten all bolts and screws. Apply lubricant to pivot points as per maintenance instructions. |
| Wobbling or instability. | Uneven floor; loose frame connections. | Ensure the machine is on a level surface. Adjust the leveling feet if available. Tighten all frame bolts. |
| Monitor nezobrazuje data. | Loose console cable connection; power issue. | Check that the power adapter is securely plugged in. Verify the console cable is properly connected to the main frame. |
| Odpor se nemění. | Internal mechanism issue; console malfunction. | Ensure the console is powered on and connected. If the issue persists, contact customer support. |
8. Specifikace produktu
| Funkce | Detail |
|---|---|
| Značka | zakňourat |
| Model | E20i |
| Materiál | Stainless Steel, Rubber |
| Mechanismus odporu | Magnetický |
| Počet úrovní odporu | 16 |
| Doporučená maximální hmotnost | 265 libry |
| Maximální délka kroku | 18 palce |
| Hmotnost položky | 88.2 libry |
| Rozměry položky (DxŠxV) | 47 x 24 x 61 palce |
| UPC | 735980999388 |
Figure 8.1: Illustration of the Magnetic Control Flywheel, a key component of the resistance system.
9. Záruka a zákaznická podpora
Your SNODE Magnetic Elliptical Trainer comes with a 1-letá záruka for free replacement parts. SNODE is committed to providing satisfactory solutions and customer support.
For any issues, questions, or to claim warranty service, please refer to the contact information provided in your physical user manual or reach out to SNODE customer service via their official after-service email or hotline. The customer support team aims to respond within 24 hours.
For more information, you may visit the official SNODE store on Amazon: SNODE Fitness Store
