1. Úvod
This manual provides essential information for the installation, operation, and maintenance of your KENT Grand Plus RO Water Purifier. Please read this manual thoroughly before operating the appliance to ensure proper function and safety. The KENT Grand Plus is designed to provide pure and safe drinking water through its advanced multi-stagproces čištění.

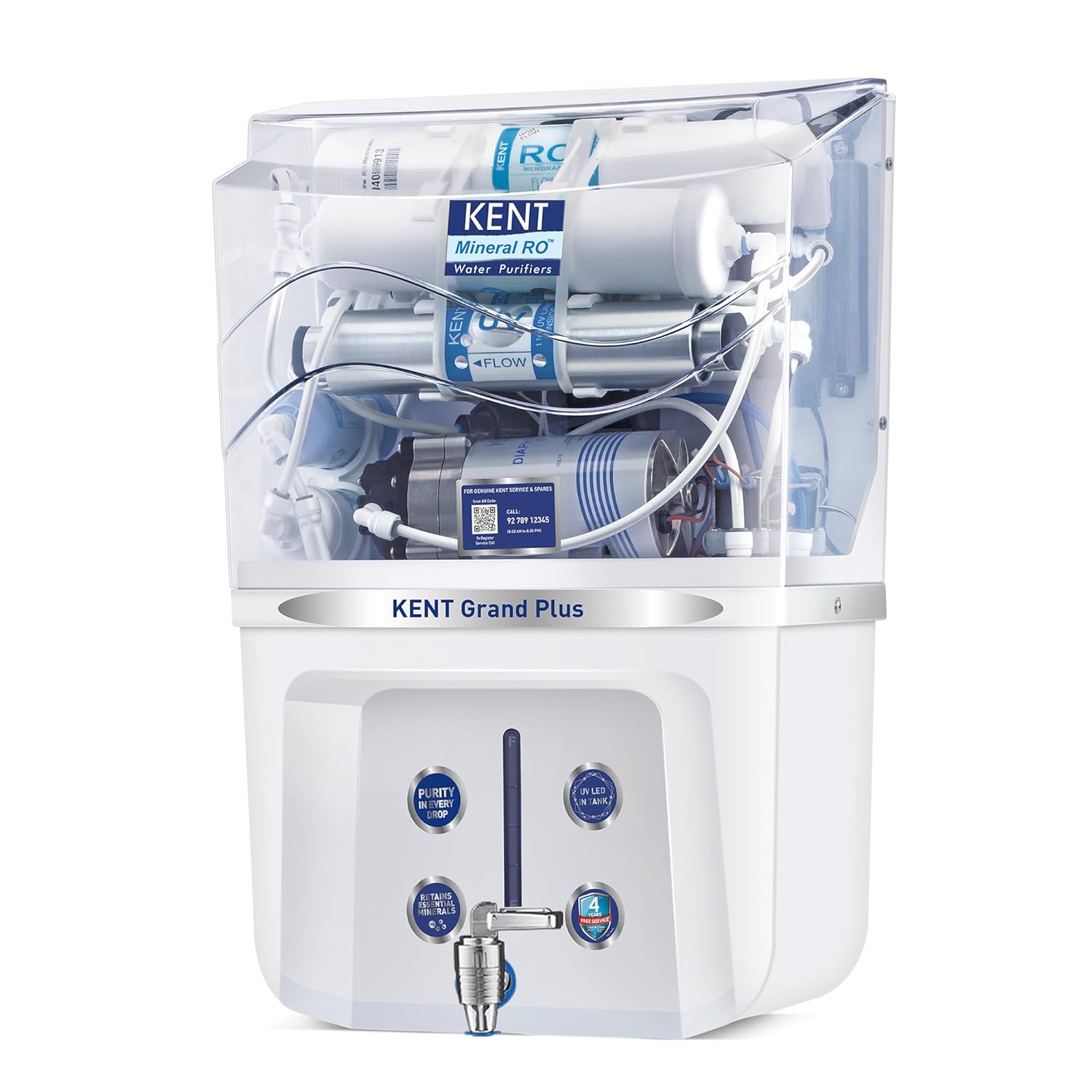

Obrázek 1: Přední strana view of the KENT Grand Plus RO Water Purifier.
2. Klíčové vlastnosti
- Vícenásobný proces čištění: The KENT Grand Plus utilizes a combination of Reverse Osmosis (RO), Ultra Filtration (UF), Ultra Violet (UV), and Total Dissolved Solids (TDS) Control, along with a UV LED in the storage tank, to ensure comprehensive water purification. This process effectively removes dissolved impurities, bacteria, and viruses.
- Byla nulová vodatage Technologie: This innovative technology recirculates rejected water from the purifier back to the overhead tank, minimizing water wastage during the purification process.
- Řídicí systém TDS: An adjustable TDS controller allows for the retention of essential natural minerals like calcium and magnesium in the purified water, enhancing taste and health benefits.
- In-tank UV LED Disinfection: The storage tank is equipped with a UV LED light that continuously disinfects the stored water, keeping it pure and free from contaminants for extended periods.
- Vysoká čisticí kapacita: The purifier offers a purification rate of 20 liters per hour, suitable for various household needs.
- Velká skladovací kapacita: Features a 9-liter storage tank, ensuring a continuous supply of purified water.
- Odolná konstrukce: Built with an ABS food-grade plastic body for durability and hygiene.
- Design pro montáž na stěnu: Designed for convenient wall-mounting, saving counter space.
Figure 2: Illustration of the multi-stagproces čištění.
Video 1: Demonstration of the Zero Water Wastage Technology, showing how rejected water is recirculated to the overhead tank.
Figure 3: Illustration of essential mineral retention in purified water.
Figure 4: UV LED in the storage tank for continuous water disinfection.
3. Nastavení
Proper installation is crucial for the optimal performance of your KENT Grand Plus RO Water Purifier. It is recommended to have the unit installed by a certified KENT service technician.
3.1 Kontroly před instalací
- Ensure the installation site is away from direct sunlight and heat sources.
- Verify that the water pressure at the installation site is within the recommended range (0.3-3 kg/cm²).
- Confirm availability of a standard electrical outlet (230V AC, 50Hz) within 3 meters of the purifier.
- Ensure adequate space for wall mounting, considering the dimensions of the unit.
Obrázek 5: Přample of a wall-mounted installation in a kitchen.
3.2 Kroky instalace (viz výše)view)
- Mount the purifier securely on a wall using the provided template and hardware.
- Connect the raw water inlet to the purifier.
- Connect the rejected water outlet to the overhead tank or a drain as per the Zero Water Wastage systém.
- Connect the purified water outlet to the tap.
- Zapojte napájecí kabel do vhodné elektrické zásuvky.
- Open the raw water supply to the purifier.
- Allow the storage tank to fill completely and drain the first few liters of purified water to flush the system.
4. Návod k obsluze
Once installed, operating your KENT Grand Plus RO Water Purifier is straightforward.
4.1 První spuštění
- After installation, ensure the power supply is on and the water inlet valve is open.
- The purifier will automatically start filling the storage tank.
- For the first use, discard the initial 2-3 liters of purified water to ensure the system is thoroughly flushed.
4.2 Denní provoz
- The purifier operates automatically. It will start when the water level in the storage tank drops and stop when the tank is full or the water supply is interrupted.
- To dispense water, open the purified water tap located at the front of the unit.
4.3 TDS Adjustment
- The TDS controller allows you to adjust the level of essential minerals in the purified water. This adjustment should ideally be performed by a qualified service technician.
- Adjusting the TDS level can alter the taste of the water.
5. Údržba
Regular maintenance ensures the longevity and efficient performance of your water purifier.
5.1 Výměna filtru
- The filters (Sediment, Activated Carbon, RO Membrane, UF Membrane) have a limited lifespan and require periodic replacement.
- The frequency of replacement depends on the quality of raw water and the volume of water purified.
- It is recommended to replace filters at least once a year or as indicated by the service technician.
- Only use genuine KENT spare parts for replacement to maintain purification effectiveness and warranty validity.
5.2 Cleaning the Storage Tank
- The storage tank should be cleaned periodically to prevent accumulation of biofilm or sediment.
- Turn off the power supply and close the raw water inlet valve before cleaning.
- Drain the water from the tank and clean the interior with a soft cloth. Avoid using harsh chemicals.
- After cleaning, refill the tank and discard the first tankful of water.
5.3 Vnější čištění
- Otřete vnější povrch čističky měkkým hadříkemamp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
6. Řešení problémů
If you encounter any issues with your purifier, refer to the common troubleshooting tips below. For complex problems, contact KENT customer support.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Bez výdeje vody | Power off, water inlet closed, tank empty, or tap closed. | Check power supply, open inlet valve, wait for tank to fill, open dispensing tap. |
| Nízký průtok vody | Clogged filters, low inlet water pressure. | Contact service for filter replacement. Check household water pressure. |
| Neobvyklá chuť/vůně | Expired filters, new filter installation (initial flush needed). | Replace filters. Discard initial water after new filter installation. |
| Únik vody | Loose connections, damaged O-rings or components. | Turn off water supply and power. Contact service technician immediately. |
7. Specifikace
| Funkce | Detail |
|---|---|
| Značka | CITY |
| Název modelu | Grand Plus |
| Technologie čištění | RO + UV + UF + TDS Control + UV LED Tank |
| Kapacita úložiště | 9 litrů |
| Míra čištění | 20 litrů za hodinu |
| Materiál těla | Potravinářský plast ABS |
| Typ instalace | Držák na zeď |
| Rozměry produktu (D x Š x V) | 40L x 23W x 54H centimetrů |
| Hmotnost položky | 9 kg |
| Zdroj napájení | Elektrický kabel |
| Země původu | Indie |
Obrázek 6: Rozměry produktu pro plánování instalace.
8. Záruka a podpora
Your KENT Grand Plus RO Water Purifier comes with a comprehensive warranty and support package.
- Záruka: 1 Year Warranty on the product.
- Rozšířená služba: 3 Years Extended Service AMC (Annual Maintenance Contract) free, totaling 4 years of free service.
- For genuine KENT service and spares, you can verify authenticity by scanning the QR code on the spare part or entering the serial number on the product.
Figure 7: Process for verifying genuine KENT service and spares via QR code or serial number. For more information, visit kent.co.in/customerapp.
8.1 Zákaznická podpora
For any service requests, technical assistance, or inquiries, please contact KENT customer support. Refer to your product packaging or the official KENT webstránky s nejaktuálnějšími kontaktními informacemi.
