1. Konec produktuview
The AZUNO Digital Tire Inflator with Pressure Gauge is a heavy-duty accessory designed for accurate and easy tire pressure management. It features a digital display, robust construction, and versatile compatibility with various vehicle types.
Figure 1: AZUNO Digital Tire Inflator with Pressure Gauge and included accessories.
2. Co je v krabici
Your AZUNO Digital Tire Inflator package includes the following components:
- 1 x digitální huštění pneumatik s manometrem
- 1 x mosazné vzduchové sklíčidlo
- 1 x Dual Head Air Chuck
- 1 x role s těsněním závitů
- 4 x Spare Valve Caps
- 1 x úložný sáček
Obrázek 2: Všechny položky obsažené v balení produktu.
3. Nastavení
- Nainstalujte baterie: The digital gauge requires 2 AAA batteries (included). Open the battery compartment, insert the batteries according to the polarity indicators, and close the compartment.
- Připojení ke vzduchovému kompresoru: The inflator features a quick-connect 1/4" NPT fitting. Attach it securely to your air compressor hose. Ensure a tight connection to prevent air leaks. If needed, use the provided thread seal tape on the threads of the air chucks for a leak-free seal.
- Choose Air Chuck: Select either the brass air chuck or the dual head air chuck based on your vehicle's tire valve stem access. The dual head air chuck is particularly useful for dually tires or those with hard-to-reach inner valve stems.
Figure 3: The inflator features a quick-connect 1/4" NPT fitting for easy attachment to an air compressor.
4. Návod k obsluze
4.1 Kontrola tlaku v pneumatikách
- Ensure the inflator is connected to an air compressor.
- Press the 'ON' button to activate the digital display.
- Press the 'UNIT' button to cycle through the desired pressure units (PSI, KPA, Bar, or Kg/cm²).
- Firmly press the air chuck onto the tire's valve stem. The digital display will show the current tire pressure.

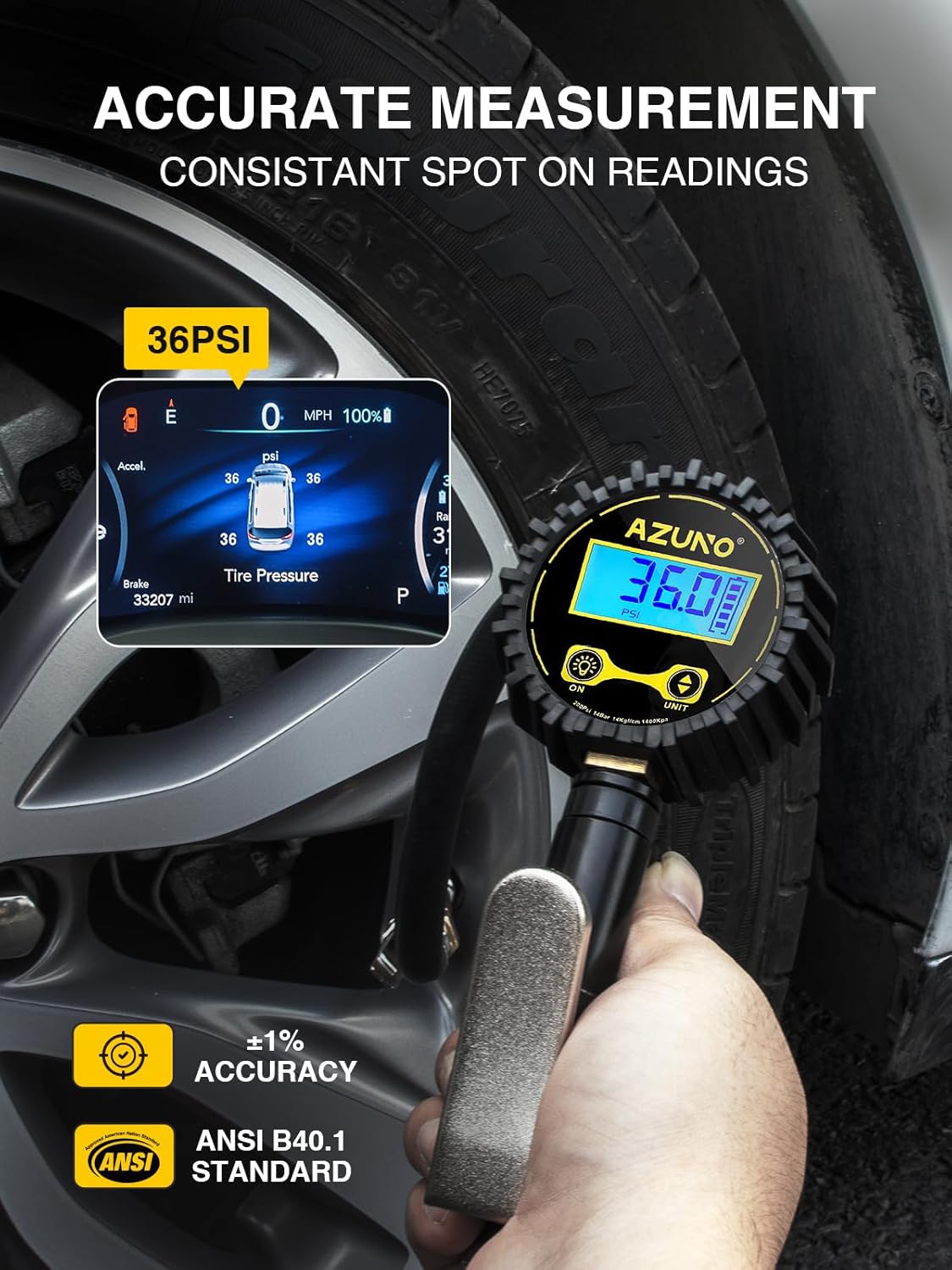

Figure 4: The digital gauge provides accurate and consistent readings.
4.2 Huštění pneumatik
- After checking the current pressure (as above), keep the air chuck firmly attached to the valve stem.
- Press and hold the trigger on the inflator handle to begin inflating the tire. The digital display will update in real-time as the pressure increases.
- Release the trigger once the desired tire pressure is reached.
Figure 5: Simple steps for accurate pressure check, quick connection, and fast inflation.
4.3 Vyfouknutí pneumatik
If the tire pressure is too high, use the built-in air bleeder valve to release air. Press the small button located near the trigger to slowly decrease the pressure. The digital display will update as air is released.

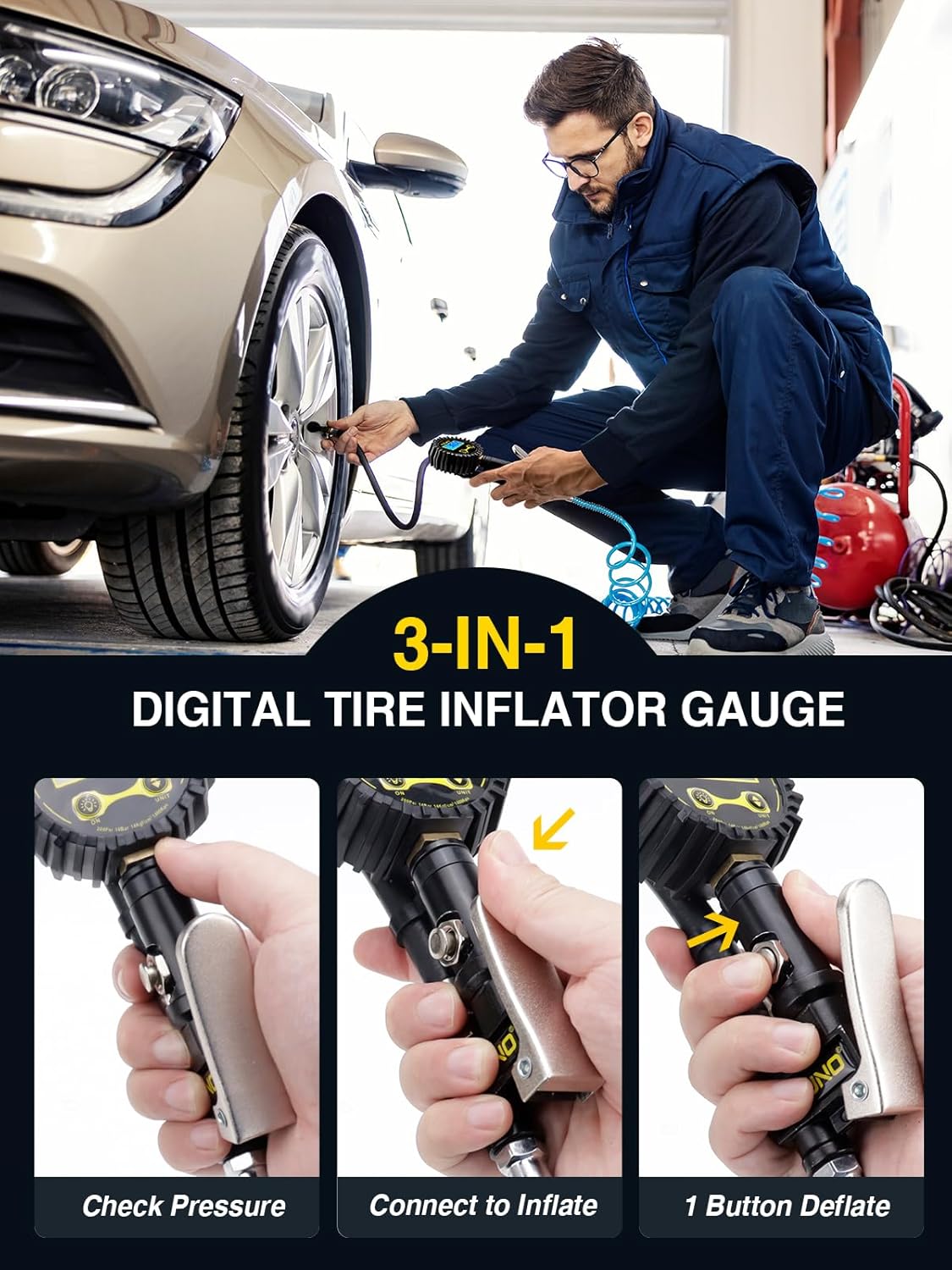

Figure 6: The inflator allows for checking pressure, connecting to inflate, and one-button deflation.
4.4 Převod jednotek
The digital gauge supports four different pressure units: PSI, KPA, Bar, and Kg/cm². To switch between units, simply press the 'UNIT' button on the display. The display will automatically update to the selected unit.
Video 1: Official product video demonstrating the features and usage of the AZUNO Digital Tire Inflator, including unit conversion and inflation/deflation.
5. Údržba
- Čištění: Wipe the gauge and hose with a clean, damp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
- Skladování: Store the inflator in the provided storage bag in a dry, cool place away from direct sunlight and extreme temperatures.
- Výměna baterie: Replace the AAA batteries when the low battery indicator appears on the display.
- Zkontrolujte připojení: Periodically inspect all connections (air chucks, hose fittings) for wear or damage. Replace any worn parts to maintain a leak-free seal.
6. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Nepřesný údaj o tlaku | Loose connection; Low batteries; Gauge malfunction | Ensure air chuck is firmly attached; Replace batteries; Contact customer support |
| Při nafukování uniká vzduch | Loose fittings; Worn O-rings/seals; Improperly applied thread tape | Tighten all connections; Inspect and replace worn seals; Reapply thread seal tape |
| Displej se nezapíná | Dead batteries; Unit not activated | Replace batteries; Press the 'ON' button firmly |
| Cannot inflate tire | Air compressor not supplying air; Air chuck not properly seated | Check air compressor functionality; Re-attach air chuck firmly to valve stem |
7. Specifikace
- Model: 13
- Rozsah tlaku: 10 200-PSI
- Přesnost: ±1% of exact pressure
- Rozlišení displeje: 0.1 PSI
- jednotky: PSI, KPA, Bar, Kg/cm²
- Materiál: Legovaná ocel, mosaz, guma
- Moc: 2 x AAA baterie (součástí balení)
- Rozměry produktu: 8.3 x 3.4 x 2.9 palce
- Hmotnost: 1.08 libry
8. Záruka a podpora
AZUNO products are designed for durability and performance. For warranty information, technical support, or assistance with your Digital Tire Inflator, please visit the official AZUNO store on Amazon or contact their customer service directly.
AZUNO Official Store: https://www.amazon.com/stores/AZUNO/page/45FA2489-2A97-4822-B968-7993FC5BA8EB
Uschovejte si prosím doklad o koupi pro případ reklamace.
