Uživatelská příručka k toaletní nádržce KOHLER Corbelle K-5711-95

Zavedení

This manual provides detailed instructions for the installation, operation, and maintenance of your KOHLER Corbelle K-5711-95 toilet tank. This model features the innovative ContinuousClean system and AquaPiston flush technology, designed for efficient and hygienic performance. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product. This tank is designed to be paired with the K-4144 bowl for a complete Corbelle with ContinuousClean skirted toilet.

Nastavení a instalace

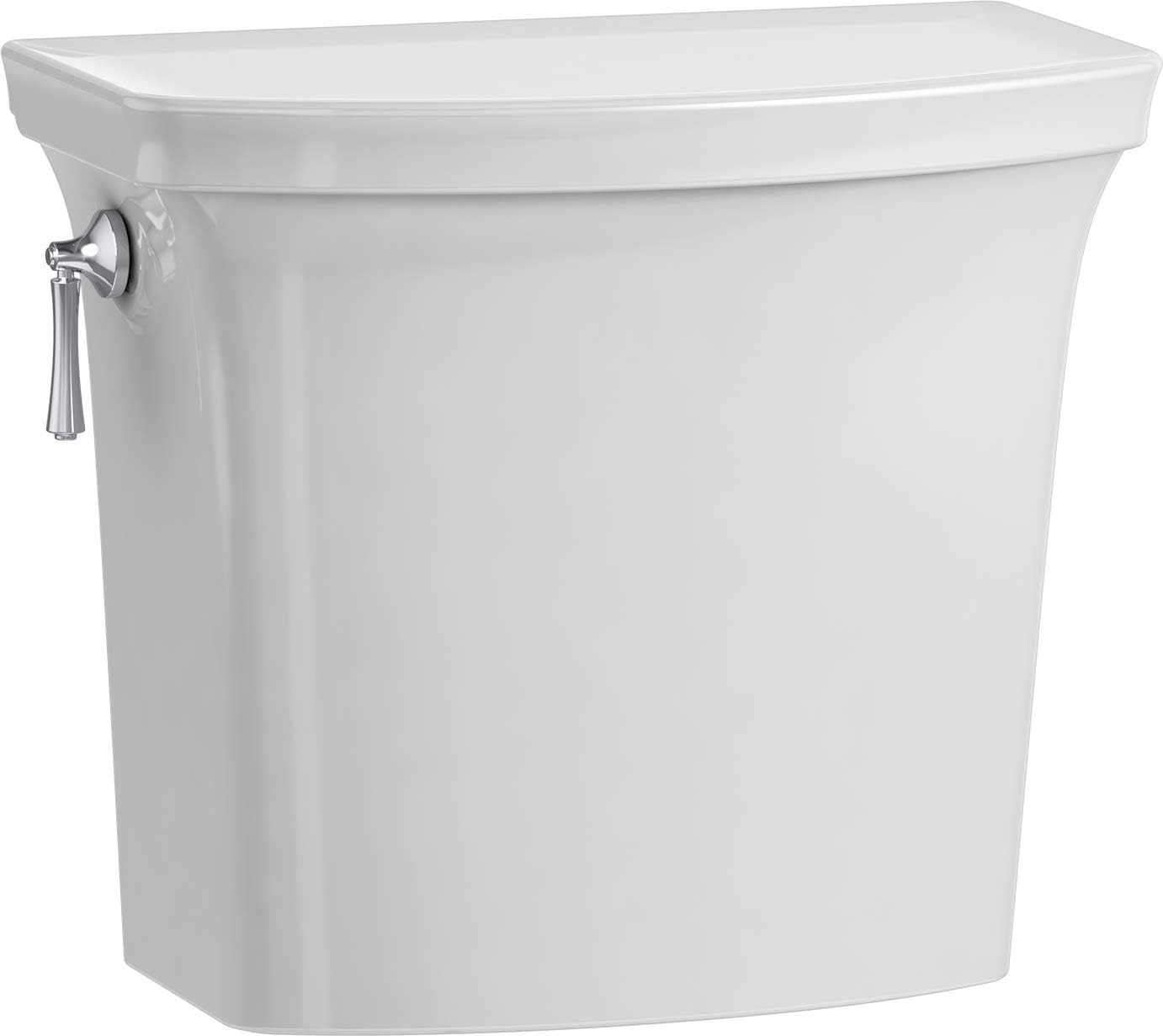

Image: KOHLER Corbelle K-5711-95 Toilet Tank.

The KOHLER Corbelle K-5711-95 toilet tank is designed for floor-mounted installation. It is recommended that installation be performed by a qualified professional to ensure compliance with local plumbing codes and proper functionality. A supply line is not included and must be purchased separately.

ContinuousClean System Setup

1. Nainstalujte baterie: The ContinuousClean system is battery-powered. Install two AAA alkaline batteries into the designated compartment. Ensure correct polarity.
2. Insert Cleaning Tablets: Open the tablet compartment cover. Carefully place two solid puck-style toilet bowl cleaning tablets into the compartment. Avoid direct skin contact with the tablets.

Image: ContinuousClean tablet compartment with cleaning tablets.

3. Set Cleaning Level: Use the adjustment dial on the ContinuousClean unit to select the desired cleaning solution dosage. Settings range from minimum to maximum, or 'Off'.

Image: ContinuousClean adjustment dial for setting cleaning solution dosage.

Návod k obsluze

Splachování WC

To flush the toilet, press down on the standard left-hand Polished Chrome trip lever. The AquaPiston flush technology delivers a powerful and efficient flush using 1.28 gallons per flush (gpf).

ContinuousClean Operation

Once activated and with tablets inserted, the ContinuousClean system automatically dispenses a measured amount of cleaning solution into the bowl with every flush. This helps maintain bowl cleanliness between manual cleanings.

Světelný indikátor

A blue light indicator on the tank lid illuminates to confirm that the ContinuousClean system is actively dispensing cleaning solution. If the light does not illuminate, check the battery status and tablet levels.

Image: ContinuousClean unit with illuminated light indicator.

Údržba

Replacing Cleaning Tablets

When the cleaning tablets are depleted, the blue light indicator may cease to illuminate, or you may notice reduced cleaning action. To replace, open the tablet compartment and insert new tablets as described in the "Setup" section. Tablets are designed to last for more than one year in the ContinuousClean system under normal use.

Výměna baterie

If the ContinuousClean system's light indicator does not activate or the system stops dispensing, replace the two AAA batteries. Ensure proper disposal of used batteries.

Generální úklid

Clean the exterior of the toilet tank with a soft, damp cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or products containing bleach, as these can damage the finish and internal components, potentially leading to corrosion or material degradation over time. Only use cleaning tablets specifically designed for in-tank systems and follow the manufacturer's recommendations.

Odstraňování problémů

• ContinuousClean System Not Dispensing:
  • Check if cleaning tablets are present and correctly inserted.
  • Verify that the adjustment dial is not set to 'Off'.
  • Replace the AAA batteries if the light indicator is not active.
• Weak or Incomplete Flush:
  • Ensure the water supply valve is fully open.
  • Check for any obstructions in the flush mechanism or drain.
  • If issues persist, professional plumbing service may be required.
• Water Continues to Run:
  • Inspect the fill valve and flapper for proper seating and function.
  • Adjust the water level if it is too high.

For complex issues or repairs, it is recommended to contact a certified plumber or KOHLER customer support.

Specifikace

Záruka a podpora

For warranty information and customer support, please refer to the official KOHLER website or contact KOHLER customer service directly. Keep your purchase receipt as proof of purchase for any warranty claims.
