1. Úvod
This manual provides essential information for the proper installation, operation, and maintenance of your Magnadyne WR30W 3-inch Water Resistant Speakers. These speakers are designed for use in marine, recreational vehicle (RV), and hot tub environments, offering durability and sound performance in challenging conditions. Please read this manual thoroughly before installation and retain it for future reference.
2. Bezpečnostní informace
- Always disconnect power to the audio system before installation or maintenance.
- Ensure proper wiring connections to prevent electrical shorts or damage to the speakers and audio system.
- Do not expose speakers to extreme temperatures or direct flame.
- Avoid using harsh chemicals or abrasive cleaners on the speaker surfaces.
- Pokud si nejste jisti některými kroky instalace, poraďte se s kvalifikovaným odborníkem.
3. Co je v krabici
- 2 x Magnadyne WR30W 3-inch Water Resistant Speakers
- 2 x Grill Covers
- 8 x montážní šrouby
4. Specifikace
| Funkce | Specifikace |
|---|---|
| Název modelu | WR30W-PAIR |
| Typ reproduktoru | Woofer (Dual Cone) |
| Velikost reproduktoru | 3 palce |
| Maximální výstupní výkon | 50 wattů |
| Impedance | 4 Ohmy |
| Úroveň odolnosti proti vodě | Vodě odolný |
| Speciální funkce | UV Resistant, Water-Resistant |
| Rozměry produktu | 2.16"H x 2.16"Š x 2"V |
| Hmotnost magnetu | 2.8 unce |
| Drátěné vedení | 24-wire leads with .250 male terminals and in-line capacitor |
| Typ montáže | Zapuštěná montáž |
5. Nastavení a instalace
The Magnadyne WR30W speakers feature a slim profile and universal mounting design for convenient installation in various applications.
5.1. Reproduktor přesview
Obrázek 1: Přední strana view of Magnadyne WR30W speakers.
Obrázek 2: Zadní view of a Magnadyne WR30W speaker with wiring.
5.2. Rozměry a montáž

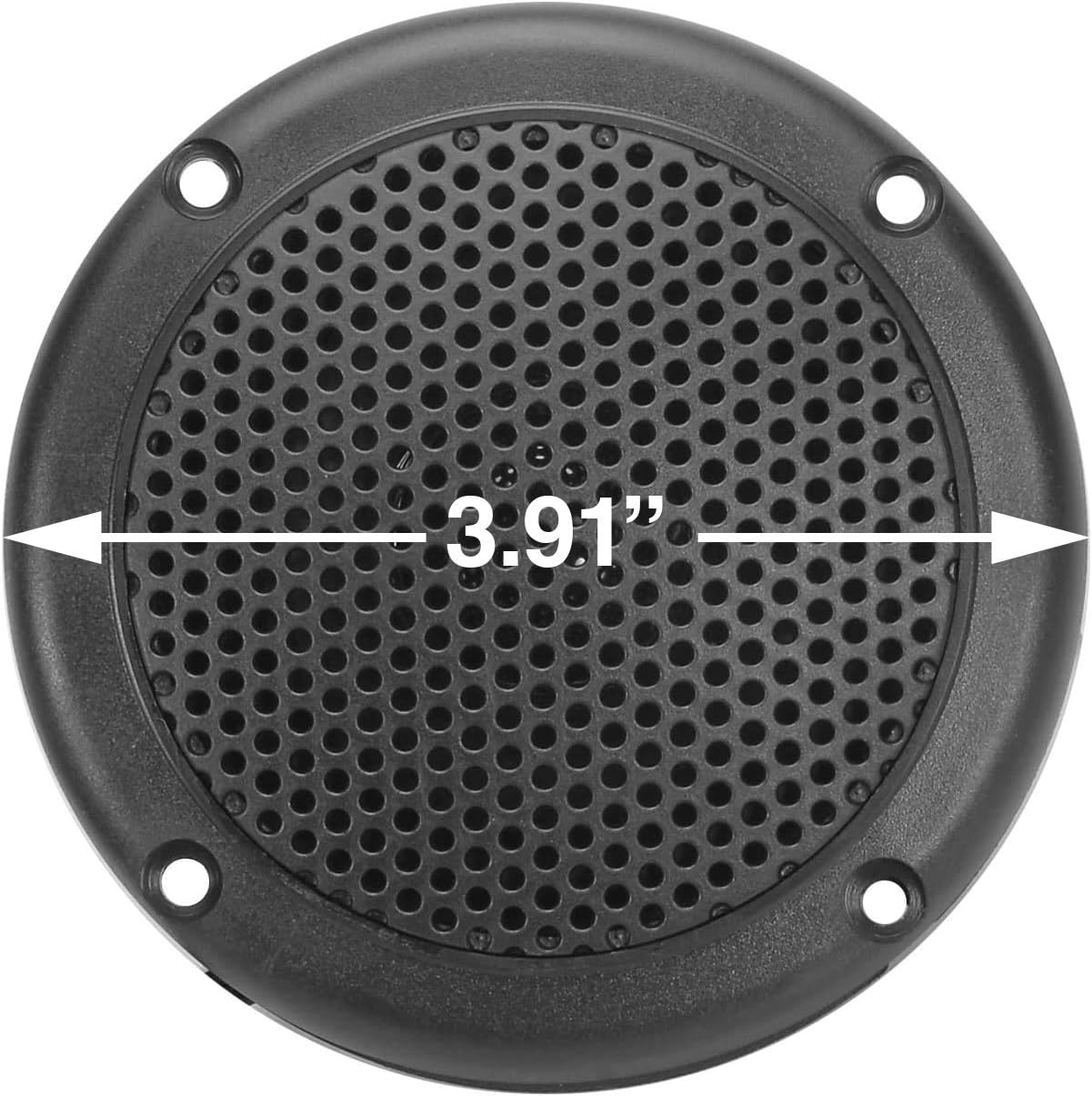

Figure 3: Speaker diameter measurement (3.91 inches).
Figure 4: Detailed dimensions for speaker mounting.
Refer to the provided technical drawing for precise cutout and mounting hole dimensions. The speakers require a 1.5-inch mounting depth.
5.3. Připojení vodičů
The speakers come with 24-wire leads equipped with .250 male terminals and an in-line capacitor. Connect these leads to your audio system's speaker outputs, ensuring correct polarity (positive to positive, negative to negative) for optimal sound performance.
Figure 5: Speaker wire leads with terminals.
5.4. Instalační prostředí
These speakers are suitable for various outdoor and semi-outdoor settings.
Figure 6: Speakers in a marine application.
Figure 7: Speakers in an RV or outdoor setting.
Figure 8: Speakers in an ATV application.
5.5. Referenční video k instalaci
Video 1: General installation guide for water resistant surface mount speakers (provided by Magnadyne Electronics).
6. Návod k obsluze
Once properly installed and connected to an audio source, operate the speakers by controlling your audio system. Adjust volume levels and audio settings directly from your head unit or amplifier. Ensure that the audio system's output power does not exceed the speakers' maximum output power of 50 watts to prevent damage.
7. Údržba
- Čištění: Použijte měkký, damp cloth to clean the speaker grills and surfaces. Avoid using abrasive materials or chemical cleaners that could damage the UV-resistant and water-resistant properties.
- Kontrola připojení: Periodically inspect all wiring connections to ensure they are secure and free from corrosion, especially in marine or high-humidity environments.
- Expozice prostředí: While water-resistant, prolonged exposure to direct sunlight or harsh weather conditions can affect the lifespan of any electronic device. Consider protective covers when the speakers are not in use for extended periods.
8. Řešení problémů
- Žádný zvuk:
- Check all wiring connections for proper contact and polarity.
- Ensure the audio system is powered on and the volume is not muted or set too low.
- Ověřte, zda zdroj zvuku funguje správně.
- Zkreslený zvuk:
- Reduce the volume level on your audio system.
- Zkontrolujte, zda nejsou uvolněné kabelové spoje.
- Ensure the speakers are not over-powered by the ampživější.
- Přerušovaný zvuk:
- Inspect wiring for any breaks, pinches, or corrosion.
- Ensure secure connections at both the speaker and amplifikátor končí.
9. Záruka a podpora
These Magnadyne speakers come with a Limited Warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact Magnadyne customer support. For technical assistance or further inquiries, please visit the official Magnadyne webwebu nebo kontaktujte jejich kanály podpory.
