Zavedení
The PetSafe Wire Break Locator is designed to help you easily find complete breaks in the boundary wire of any in-ground pet fence system. This device utilizes advanced technology with dual tone and light indicators to pinpoint the exact location of a wire break, allowing for quick and efficient repairs. It is important to note that this locator is specifically designed for complete wire breaks and may not detect partial breaks.
Komponenty v ceně
Your PetSafe Wire Break Locator kit includes the following items:
- Locator Transmitter and Adaptor
- Expandable Locator (Wand)
- 50 ft. of Boundary Wire
- 2 Grounding Stakes
- 2 Gel-filled Capsules
- 2 drátěné matice
- Produktový manuál
Obrázek 1: Přesview of all components included in the PetSafe Wire Break Locator kit. This includes the locator wand, transmitter, power adapter, grounding stakes, boundary wire, wire nuts, and gel-filled capsules.
Pokyny pro nastavení
Prepare the Transmitter:
Connect the locator transmitter to a power outlet using the provided adaptor. Ensure the transmitter is placed near the boundary wire connection point of your in-ground fence system.

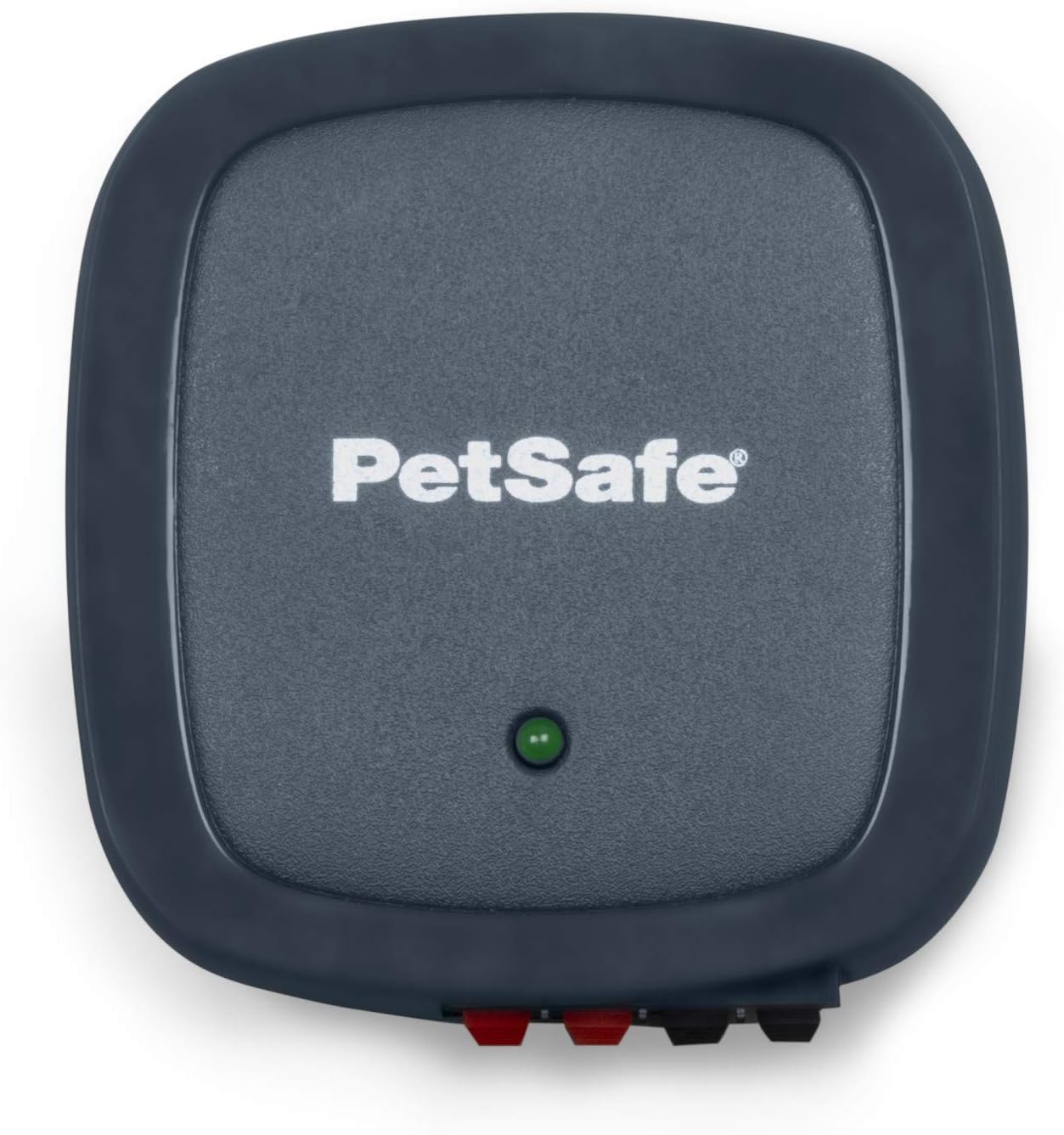

Figure 2: The PetSafe Wire Break Locator Transmitter, which sends the signal through the boundary wire.
Install Grounding Stakes:
Insert both grounding stakes into the ground approximately 10 feet apart. For optimal performance, especially in dry conditions, pour several gallons of water around each grounding stake to ensure good conductivity. Both stakes must be used to hear the two tones separately.
Figure 3: The two grounding stakes, essential for the proper functioning of the locator system.
Connect to Boundary Wire:
Connect the transmitter to your existing in-ground fence boundary wire according to the instructions in your fence system's manual. The transmitter sends two unique tones down each side of your boundary wire.
Prepare the Locator Wand:
Insert 2 AAA batteries (not included) into the expandable locator wand. Extend the wand to a comfortable length for use.
Figure 4: The expandable locator wand, used to detect the signal along the wire.
Návod k obsluze
Follow these steps to locate a wire break in your in-ground fence system:
Aktivujte systém:
Ensure the transmitter is powered on and connected to your boundary wire. Turn on the locator wand using its power button.
Upravit hlasitost:
Use the adjustable volume dial on the locator wand to set a comfortable listening level for the tones.
Sledování drátu:
Walk along your boundary wire path, holding the locator wand near the ground. The locator will provide both audible tones and visual light indicators:
- A zelené světlo indicates a continuous tone, signifying an intact wire segment.
- A červené světlo indicates an intermittent tone, signifying a break in the wire.
Locate the Break:
As you approach a wire break, the tone and light indicators will change. The point where the continuous tone (green light) switches to an intermittent tone (red light) is the location of the wire break. Common areas for breaks include where the wire exits the house, crosses sidewalks or driveways, or is near landscaping.
Repairing Wire Breaks
Once a wire break is located, use the included repair components to fix it:
Expose the Break:
Carefully dig up the wire at the identified break point.
Připravte dráty:
Trim any damaged sections of the wire. If necessary, use the included 50 ft. of boundary wire to bridge larger gaps.
Figure 5: The included 50 ft. of yellow boundary wire for making repairs or extending the fence.
Připojit dráty:
Use the included wire nuts to securely connect the broken wire ends. Ensure a tight connection to prevent future issues.
Seal Connection:
Place the wire nut connection inside one of the gel-filled capsules. The gel will provide a waterproof seal, protecting the connection from moisture and corrosion. Close the capsule securely.
Figure 6: Wire nuts and gel-filled capsules used for creating waterproof and secure wire connections.
Test and Bury:
After repairing, re-test the boundary wire with the locator to confirm the break is fixed. Once confirmed, bury the repaired section of the wire.
Údržba
- Výměna baterie: Replace the 2 AAA batteries in the locator wand when the audio signal becomes weak or the lights dim.
- Čištění: Wipe the locator and transmitter with a damp cloth as needed. Do not submerge any components in water.
- Skladování: Pokud přístroj nepoužíváte, skladujte jej na suchém a chladném místě.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| No tone or light from locator. |
|
|
| Inconsistent or weak signal. |
|
|
| Locator shows red light/intermittent tone everywhere. |
|
|
Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | RFA-590 |
| Hmotnost položky | 3.41 libry |
| Rozměry produktu | 19 x 6 x 3 palce |
| Materiál | Plastic (Acrylonitrile Butadiene Styrene (ABS) or Polycarbonate) |
| Zdroj energie (vysílač) | AC Adaptor (Included) |
| Batteries (Locator) | 2 AAA batteries (Not Included) |
| Kompatibilní zařízení | In-ground Fence Systems |
Informace o záruce
The PetSafe Wire Break Locator comes with a 1 rok omezená záruka from the date of purchase. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, please refer to the official PetSafe webwebu nebo kontaktujte zákaznickou podporu.
Zákaznická podpora
For any questions, assistance, or troubleshooting not covered in this manual, our U.S.-based customer care experts are available to help. You can reach them by phone, email, or chat. Please visit the official PetSafe webkontaktní údaje a otevírací dobu podpory naleznete na webu.
Webmísto: www.petsafe.com
