1. Úvod
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Magnadyne LS3CMW 3-inch Ceiling Mount Satellite Speakers. These speakers are designed to deliver quality audio in various environments, including recreational vehicles (RVs) and home theater setups. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.
Image 1.1: A pair of Magnadyne LS3CMW 3-inch white ceiling mount satellite speakers, showcasinjejich kompaktní design.
2. Důležité bezpečnostní informace
Observe the following safety precautions to prevent damage to the speakers or injury to yourself.
- Elektrická bezpečnost: Ensure all power to the audio system is disconnected before performing any wiring or installation. Incorrect wiring can cause electrical shock or damage to equipment.
- Montáž: Always secure speakers firmly to a stable surface (ceiling or wall) using appropriate hardware. Ensure the mounting location can support the weight of the speakers.
- Větrání: Do not obstruct the speaker grilles. Adequate airflow is necessary for optimal performance and to prevent overheating.
- Prostředí: Avoid exposing speakers to extreme temperatures, humidity, or direct water contact. These speakers are not waterproof.
- Profesionální instalace: Pokud si nejste jisti některou částí instalačního procesu, poraďte se s kvalifikovaným odborníkem.
3. Obsah balení
Ověřte, zda jsou v balení přítomny všechny položky:
- Magnadyne LS3CMW 3-inch Satellite Speakers (2 units)
- Speaker wire with 2-pin Molex plug (pre-attached to each speaker)
4. Pokyny k instalaci
4.1. Plánování instalace
Before beginning installation, determine the optimal placement for your speakers. Consider the acoustics of the room or vehicle, ensuring clear sound projection and even distribution. These speakers are designed for flush mounting in ceilings or walls.
4.2. Montáž reproduktorů
Follow these steps for secure ceiling or wall mounting:
- Připravte montážní povrch: Identify a suitable location in your ceiling or wall. Ensure there are no electrical wires, plumbing, or structural elements that could be damaged during cutting.
- Cut the Mounting Hole: The minimum required mounting hole diameter is 5 5/16 inches. Carefully mark and cut the opening using an appropriate tool.
- Připojení kabeláže: Before inserting the speaker, feed the speaker wire through the mounting hole. Refer to Section 4.3 for wiring instructions.
- Insert and Secure Speaker: Gently insert the speaker into the prepared opening. The speaker features a flush mount housing. Secure the speaker using the integrated mounting tabs or screws provided (if applicable). Ensure the speaker is flush with the surface and firmly held in place.
Obrázek 4.1: Shora dolů view of a single speaker, illustrating the circular mounting flange and speaker grille.
Obrázek 4.2: Boční strana view of the speaker, showing the profile of the mounting flange and the speaker body.
Image 4.3: Dimensional drawing of the LS3CMW speaker, indicating an outside diameter of 6 5/16 inches (165mm), a mounting depth of 1 3/4 inches, and a 35-degree angle for the speaker cone.
4.3. Připojení vodičů
The LS3CMW speakers come with pre-attached flying speaker wire with a 2-pin Molex plug. Connect these wires to your audio amplifier or receiver's speaker outputs. Ensure correct polarity (positive to positive, negative to negative) for optimal sound performance.
- Identify the positive (+) and negative (-) terminals on your ampzvlhčovač/přijímač.
- Connect the corresponding wires from the speaker to these terminals. The speaker wire typically has markings (e.g., a stripe or ridge) to distinguish positive from negative.
- Secure all connections to prevent shorts or loose contacts.

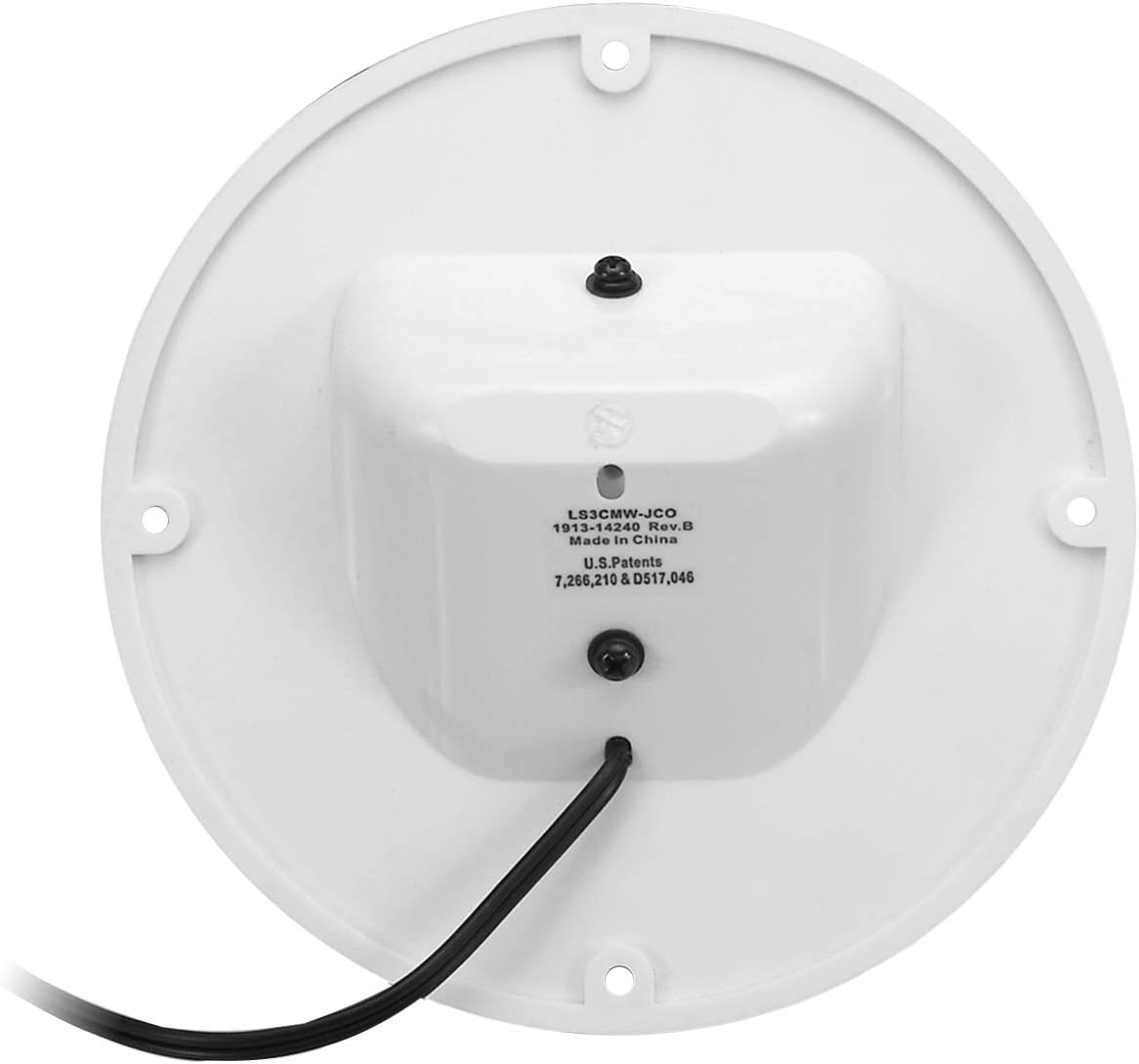

Obrázek 4.4: Zadní strana view of the speaker, illustrating the attached speaker wire ready for connection.
5. Ovládání reproduktorů
Once properly installed and connected to an audio source (e.g., amplifier, receiver), your Magnadyne LS3CMW speakers are ready for use. Simply power on your audio system and select your desired input. Adjust the volume on your amplifier or source device to your preferred listening level.
- Ujistěte se, že vaše amplifier's impedance rating is compatible with the speakers' 6-ohm impedance.
- Avoid playing audio at excessively high volumes for prolonged periods, as this can damage the speakers.
6. Péče a údržba
To maintain the appearance and performance of your speakers, follow these simple care guidelines:
- Čištění: Use a soft, dry cloth to wipe the speaker grilles and housing. Do not use abrasive cleaners, solvents, or excessive moisture, as these can damage the finish or internal components.
- Odstranění prachu: A soft brush or a vacuum cleaner with a brush attachment can be used to gently remove dust from the speaker grilles.
- Inspekce: Pravidelně kontrolujte kabeláž, abyste se ujistili, že je bezpečná.
7. Průvodce odstraňováním problémů
If you encounter issues with your speakers, refer to the table below for common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Žádný zvuk z reproduktorů | Uvolněné nebo nesprávné zapojení kabeláže. Amplifier/receiver not powered on or incorrect input selected. | Check all speaker wire connections for correct polarity and secure contact. Ensure amplifier is on and correct source is selected. |
| Zkreslený zvuk | Hlasitost je příliš vysoká. Amplifier clipping. Damaged speaker wire. | Snižte hlasitost. Zkontrolujte amplifier for signs of clipping. Inspect speaker wires for damage and replace if necessary. |
| Sound only from one speaker | Wiring issue for the silent speaker. Balance settings on ampživější. | Check wiring for the non-working speaker. Verify ampnastavení vyvážení záchranáře. |
8. Technické specifikace
| Funkce | Specifikace |
|---|---|
| Model | LS3CMW |
| Typ reproduktoru | Satelit |
| Velikost ovladače | 3 palce |
| Manipulace s energií | 90 Watts (Maximum Output Power) |
| Impedance | 6 Ohmy |
| Materiál | Plast |
| Barva | Bílý |
| Typ montáže | Stropní držák |
| Doporučené použití | Recreational Vehicles (RV), Home Theater |
| Konektivita | Wired (Flying speaker wire with 2-pin Molex plug) |
| Rozměry produktu (na reproduktor) | 7 x 7 x 4 palce |
| Item Weight (pair) | 3.32 libry |
| Počet reproduktorů | 2 (pár) |
9. Informace o záruce a podpora
Your Magnadyne LS3CMW speakers come with a Limited Warranty. Please refer to the warranty documentation included with your purchase for specific terms, conditions, and duration. For technical support or warranty claims, please contact Magnadyne customer service.
Výrobce: Magnadyne
Datum první dostupnosti: 12. prosince 2018
For further assistance, please visit the official Magnadyne webnebo kontaktujte jejich zákaznickou podporu.
